Chapter 2:
Data Visualisation

For the R For Data Science 2nd Edition Book Club Cohort 9

Jeremy Selva

Introduction

This chapter shows how to visualise data using ggplot2. Ensure these libraries are available.

# Needed in the book
library(tidyverse)
library(palmerpenguins)
library(ggthemes)

# For the extra slides
library(scales)
library(glue)
library(ggfittext)
library(ggtext)
library(downloadthis)

penguins data

The penguins data has 344 penguins observations with 8 columns.

print(penguins, width = Inf)

# A tibble: 344 × 8
   species island    bill_length_mm bill_depth_mm flipper_length_mm body_mass_g
   <fct>   <fct>              <dbl>         <dbl>             <int>       <int>
 1 Adelie  Torgersen           39.1          18.7               181        3750
 2 Adelie  Torgersen           39.5          17.4               186        3800
 3 Adelie  Torgersen           40.3          18                 195        3250
 4 Adelie  Torgersen           NA            NA                  NA          NA
 5 Adelie  Torgersen           36.7          19.3               193        3450
 6 Adelie  Torgersen           39.3          20.6               190        3650
 7 Adelie  Torgersen           38.9          17.8               181        3625
 8 Adelie  Torgersen           39.2          19.6               195        4675
 9 Adelie  Torgersen           34.1          18.1               193        3475
10 Adelie  Torgersen           42            20.2               190        4250
   sex     year
   <fct>  <int>
 1 male    2007
 2 female  2007
 3 female  2007
 4 <NA>    2007
 5 female  2007
 6 male    2007
 7 female  2007
 8 male    2007
 9 <NA>    2007
10 <NA>    2007
# ℹ 334 more rows

penguins data

Among the variables in penguins are:

1. species: a penguin’s species (Adelie, Chinstrap, or Gentoo).

2. flipper_length_mm: length of a penguin’s flipper, in millimeters.

3. body_mass_g: body mass of a penguin, in grams.

penguins data

We can take a closer look using dplyr::glimpse()

dplyr::glimpse(penguins)

Rows: 344
Columns: 8
$ species           <fct> Adelie, Adelie, Adelie, Adelie, Adelie, Adelie, Adel…
$ island            <fct> Torgersen, Torgersen, Torgersen, Torgersen, Torgerse…
$ bill_length_mm    <dbl> 39.1, 39.5, 40.3, NA, 36.7, 39.3, 38.9, 39.2, 34.1, …
$ bill_depth_mm     <dbl> 18.7, 17.4, 18.0, NA, 19.3, 20.6, 17.8, 19.6, 18.1, …
$ flipper_length_mm <int> 181, 186, 195, NA, 193, 190, 181, 195, 193, 190, 186…
$ body_mass_g       <int> 3750, 3800, 3250, NA, 3450, 3650, 3625, 4675, 3475, …
$ sex               <fct> male, female, female, NA, female, male, female, male…
$ year              <int> 2007, 2007, 2007, 2007, 2007, 2007, 2007, 2007, 2007…

We try to find a relationship between flipper lengths and body masses for each penguins species.

Creating a ggplot

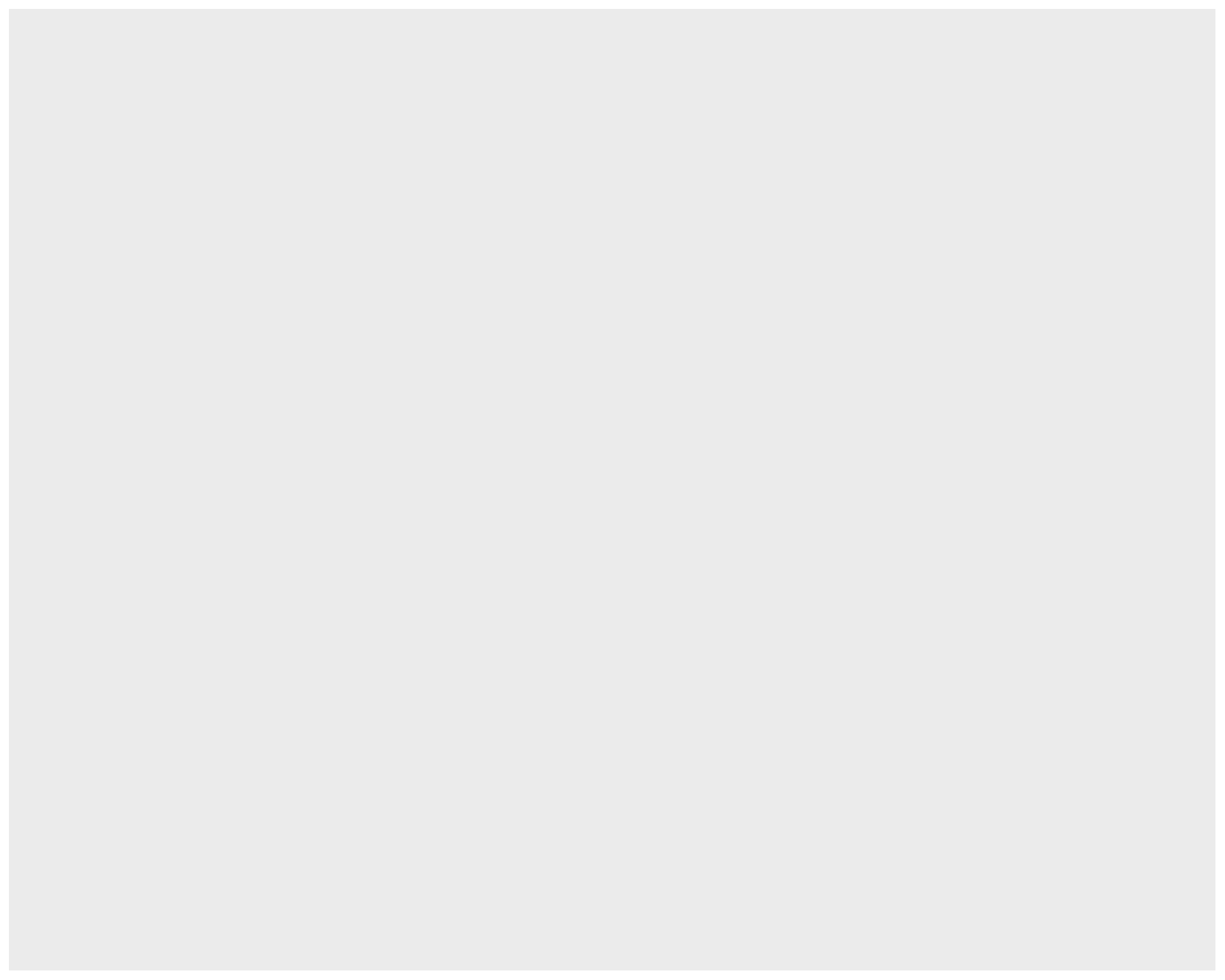

The first argument data is to tell ggplot which the dataset to use in the graph. It gives an empty graph at first.

ggplot2::ggplot(
  data = penguins
)

Creating a ggplot

The next argument mapping tells ggplot what variables in penguins holds the x and y axis. The mapping argument must be an output of the ggplot2::aes function.

ggplot2::ggplot(
  data = penguins,
  mapping = ggplot2::aes(
      x = flipper_length_mm,
      y = body_mass_g
      )
)

Creating a ggplot

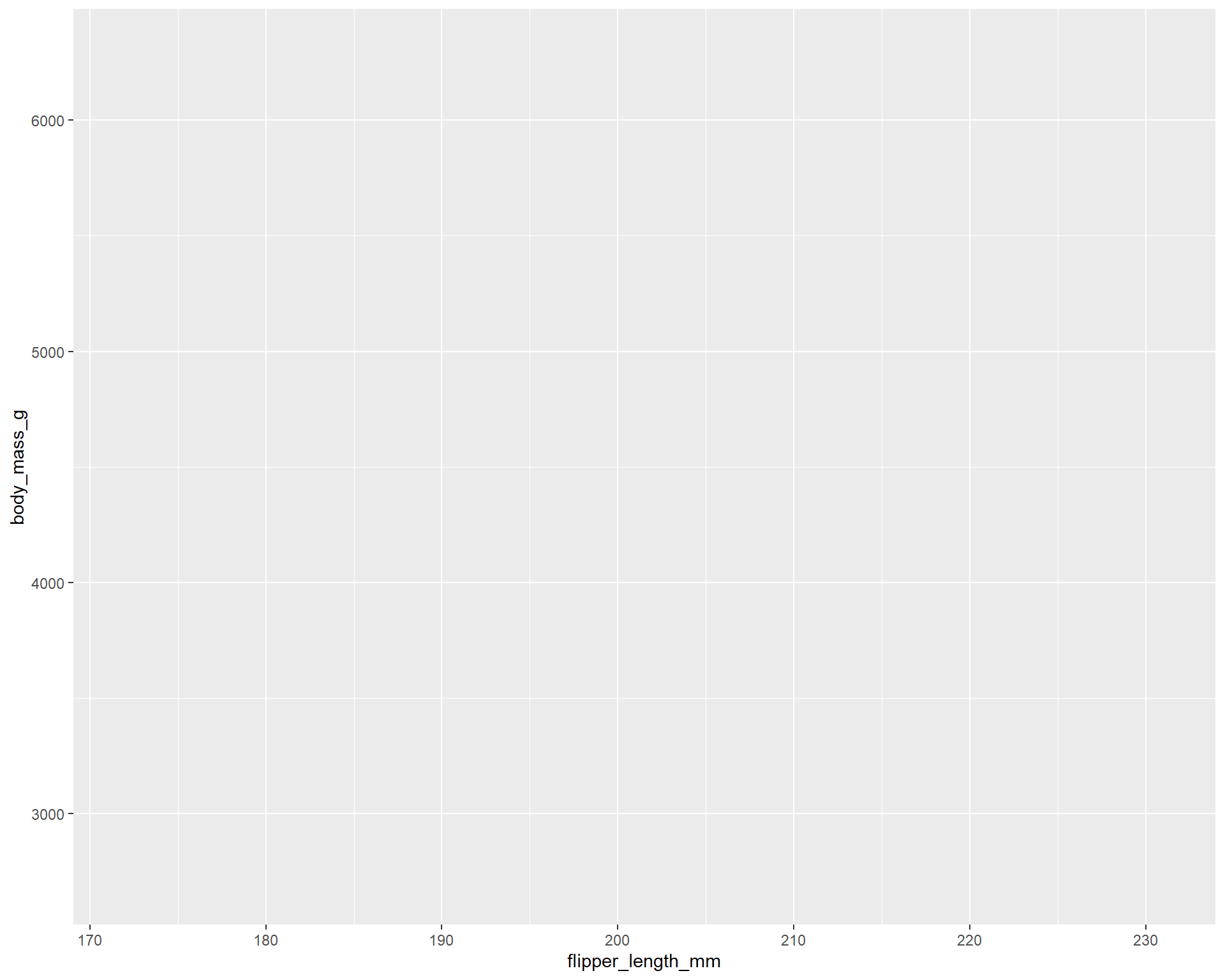

We can see that flipper lengths and body mass are displayed in the x and y axis. However, we cannot see the penguin data in the plot.

ggplot2::ggplot(
  data = penguins,
  mapping = ggplot2::aes(
      x = flipper_length_mm,
      y = body_mass_g
      )
)

Creating a ggplot

We need to specify using geom_ what the data should be represented as a

• bar using geom_bar()
• line using geom_line()
• boxplot using geom_boxplot()
• scatterplots using geom_point()

Creating a ggplot

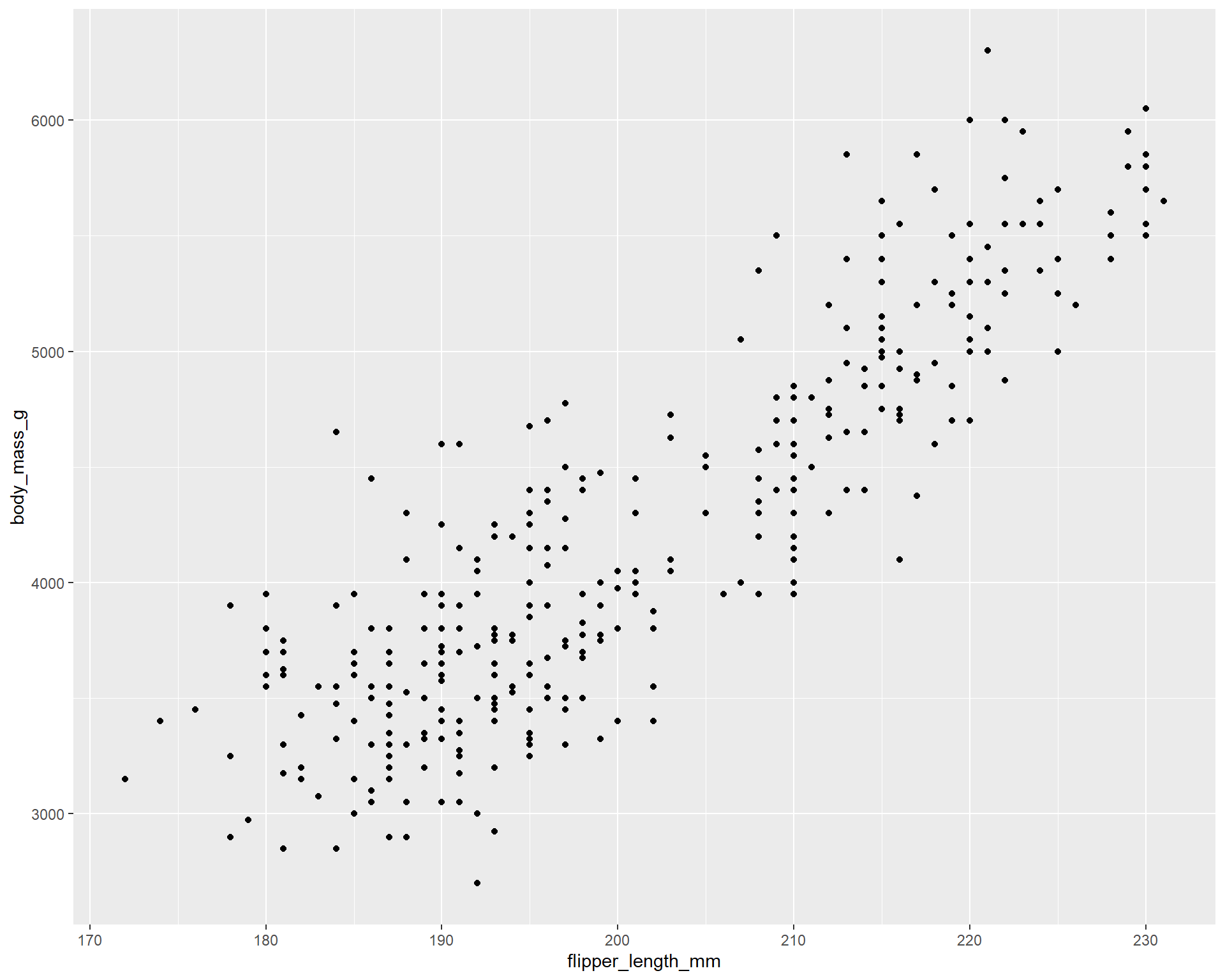

Adding geom_point() gives us the points in the plot. We can see that penguins with longer flippers are generally larger in their body mass.

ggplot2::ggplot(
  data = penguins,
  mapping = ggplot2::aes(
      x = flipper_length_mm,
      y = body_mass_g
      )
) +
ggplot2::geom_point()

Warning: Removed 2 rows containing missing values (`geom_point()`).

Creating a ggplot

The warning indicates that two of the penguins have missing body mass and/or flipper length values.

penguins |>
  dplyr::filter(
    is.na(flipper_length_mm) | is.na(body_mass_g)
  ) |>
  print(width = Inf)

# A tibble: 2 × 8
  species island    bill_length_mm bill_depth_mm flipper_length_mm body_mass_g
  <fct>   <fct>              <dbl>         <dbl>             <int>       <int>
1 Adelie  Torgersen             NA            NA                NA          NA
2 Gentoo  Biscoe                NA            NA                NA          NA
  sex    year
  <fct> <int>
1 <NA>   2007
2 <NA>   2009

Creating a ggplot

In general, we can see that penguins with longer flippers are generally larger in their body mass.

Does this applies for all species (Adelie, Chinstrap and Gentoo) ?

We can do this by representing species with different coloured points.

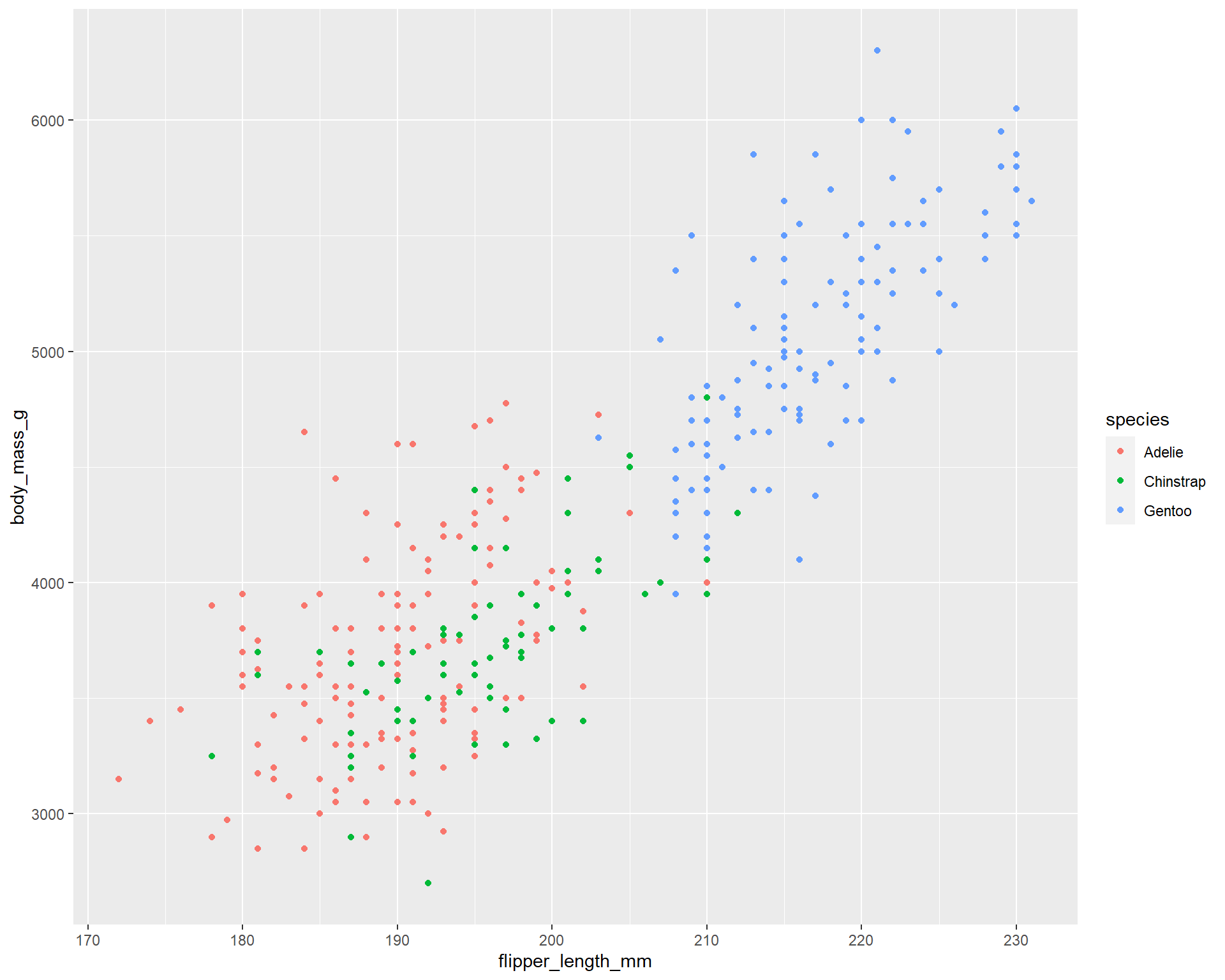

Creating a ggplot

To do this, we modify the aes function by adding color = species.

ggplot2::ggplot(
  data = penguins,
  mapping = ggplot2::aes(
      x = flipper_length_mm,
      y = body_mass_g,
      color = species
      )
) +
ggplot2::geom_point()

Warning: Removed 2 rows containing missing values (`geom_point()`).

Creating a ggplot

Adding color = species allows ggplot to assign a unique colour for each species and provides a legend.

ggplot2::ggplot(
  data = penguins,
  mapping = ggplot2::aes(
      x = flipper_length_mm,
      y = body_mass_g,
      color = species
      )
) +
ggplot2::geom_point()

Warning: Removed 2 rows containing missing values (`geom_point()`).

Creating a ggplot

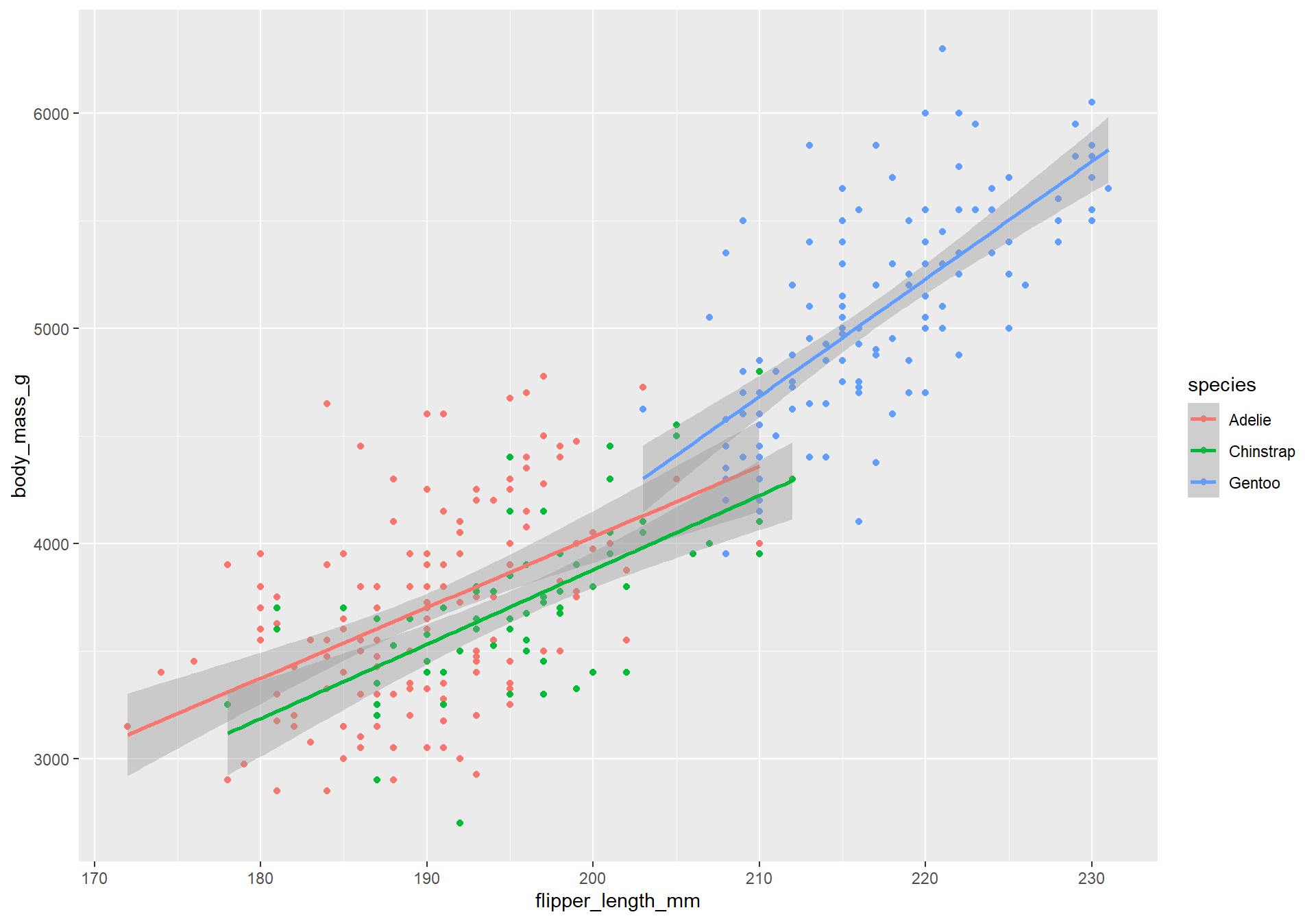

We now wish to add a smooth curve for each species. this is done by adding geom_smooth(method = "lm")

ggplot2::ggplot(
  data = penguins,
  mapping = ggplot2::aes(
      x = flipper_length_mm,
      y = body_mass_g,
      color = species
      )
) +
ggplot2::geom_point() +
ggplot2::geom_smooth(method = "lm")

`geom_smooth()` using formula = 'y ~ x'

Warning: Removed 2 rows containing non-finite values (`stat_smooth()`).

Warning: Removed 2 rows containing missing values (`geom_point()`).

Creating a ggplot

Instead of a line for all species, how do we add only one smooth curve to describe the relationship for all species ?

ggplot2::ggplot(
  data = penguins,
  mapping = ggplot2::aes(
      x = flipper_length_mm,
      y = body_mass_g,
      color = species
      )
) +
ggplot2::geom_point() +
ggplot2::geom_smooth(method = "lm")

`geom_smooth()` using formula = 'y ~ x'

Warning: Removed 2 rows containing non-finite values (`stat_smooth()`).

Warning: Removed 2 rows containing missing values (`geom_point()`).

Creating a ggplot

We need to agree that the following are equivalent.

ggplot2::ggplot(
  data = penguins,
  mapping = ggplot2::aes(
      x = flipper_length_mm,
      y = body_mass_g,
      color = species)
) +
ggplot2::geom_point() +
ggplot2::geom_smooth(method = "lm")

ggplot2::ggplot() +
ggplot2::geom_point(
  data = penguins,
  mapping = ggplot2::aes(
      x = flipper_length_mm,
      y = body_mass_g,
      color = species)
) +
ggplot2::geom_smooth(
  data = penguins,
  mapping = ggplot2::aes(
      x = flipper_length_mm,
      y = body_mass_g,
      color = species),
  method = "lm")

Creating a ggplot

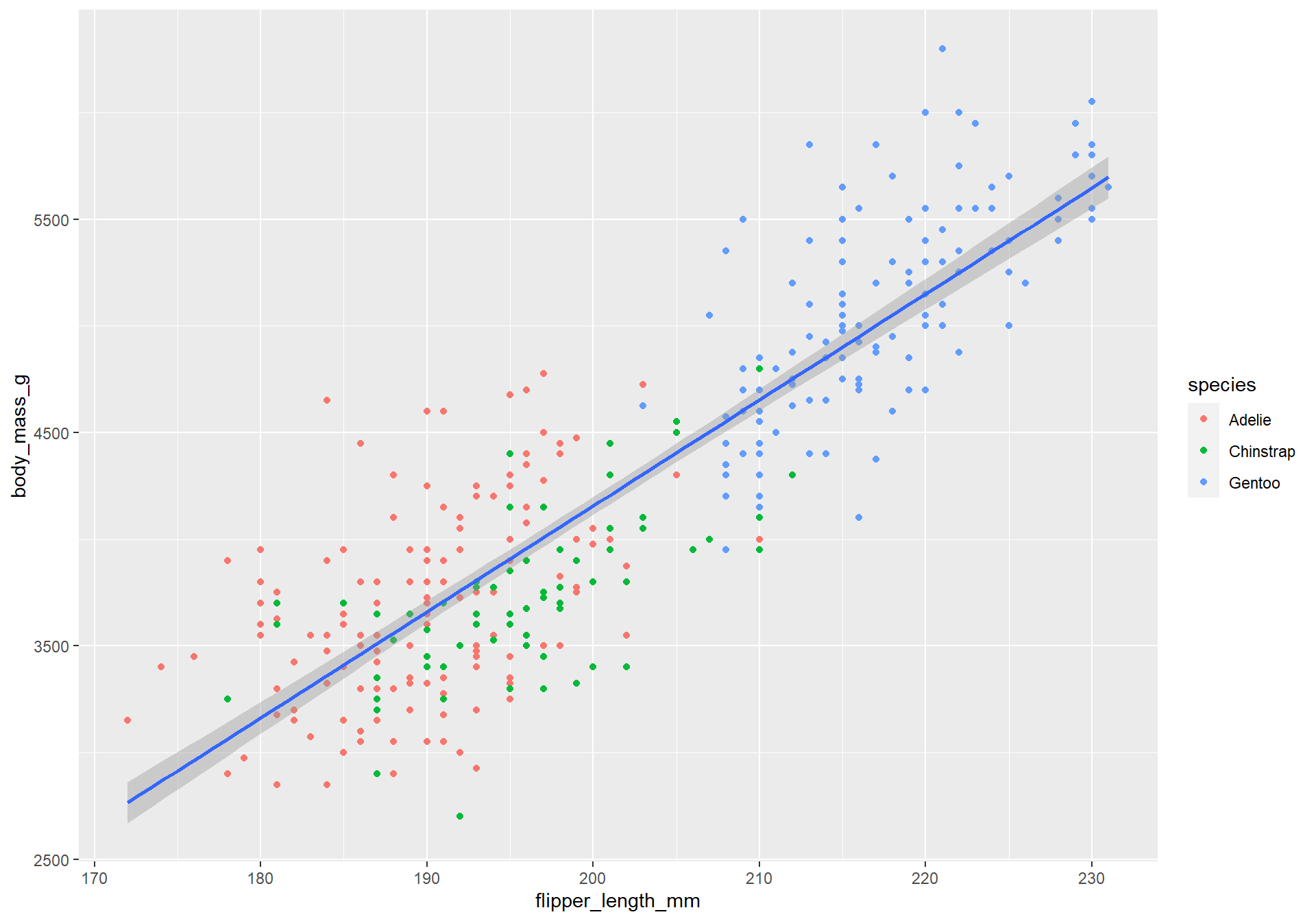

Because we want to draw a smooth curve along all species, we need to remove the color = species in the mapping argument of geom_smooth.

ggplot2::ggplot() +
ggplot2::geom_point(
  data = penguins,
  mapping = ggplot2::aes(
      x = flipper_length_mm,
      y = body_mass_g,
      color = species)
) +
ggplot2::geom_smooth(
  data = penguins,
  mapping = ggplot2::aes(
      x = flipper_length_mm,
      y = body_mass_g),
  method = "lm")

`geom_smooth()` using formula = 'y ~ x'

Warning: Removed 2 rows containing non-finite values (`stat_smooth()`).

Warning: Removed 2 rows containing missing values (`geom_point()`).

Creating a ggplot

We put what mapping arguments that are common in geom_point and geom_smooth back to ggplot.

ggplot2::ggplot() +
ggplot2::geom_point(
  data = penguins,
  mapping = ggplot2::aes(
      x = flipper_length_mm,
      y = body_mass_g,
      color = species)
) +
ggplot2::geom_smooth(
  data = penguins,
  mapping = ggplot2::aes(
      x = flipper_length_mm,
      y = body_mass_g),
  method = "lm")

ggplot2::ggplot(
  data = penguins,
  mapping = ggplot2::aes(
     x = flipper_length_mm,
     y = body_mass_g
    )
) +
ggplot2::geom_point(
  mapping = ggplot2::aes(
      color = species)
) +
ggplot2::geom_smooth(
  method = "lm")

Creating a ggplot

Here is the simplified code.

ggplot2::ggplot(
  data = penguins,
  mapping = ggplot2::aes(
     x = flipper_length_mm,
     y = body_mass_g
    )
) +
ggplot2::geom_point(
  mapping = ggplot2::aes(
      color = species)
) +
ggplot2::geom_smooth(
  method = "lm")

`geom_smooth()` using formula = 'y ~ x'

Warning: Removed 2 rows containing non-finite values (`stat_smooth()`).

Warning: Removed 2 rows containing missing values (`geom_point()`).

Creating a ggplot

Besides colour, we can create a different shape for each species.

ggplot2::ggplot(
  data = penguins,
  mapping = ggplot2::aes(
     x = flipper_length_mm,
     y = body_mass_g
    )
) +
ggplot2::geom_point(
  mapping = ggplot2::aes(
      color = species,
      shape = species)
) +
ggplot2::geom_smooth(
  method = "lm")

`geom_smooth()` using formula = 'y ~ x'

Warning: Removed 2 rows containing non-finite values (`stat_smooth()`).

Warning: Removed 2 rows containing missing values (`geom_point()`).

Creating a ggplot

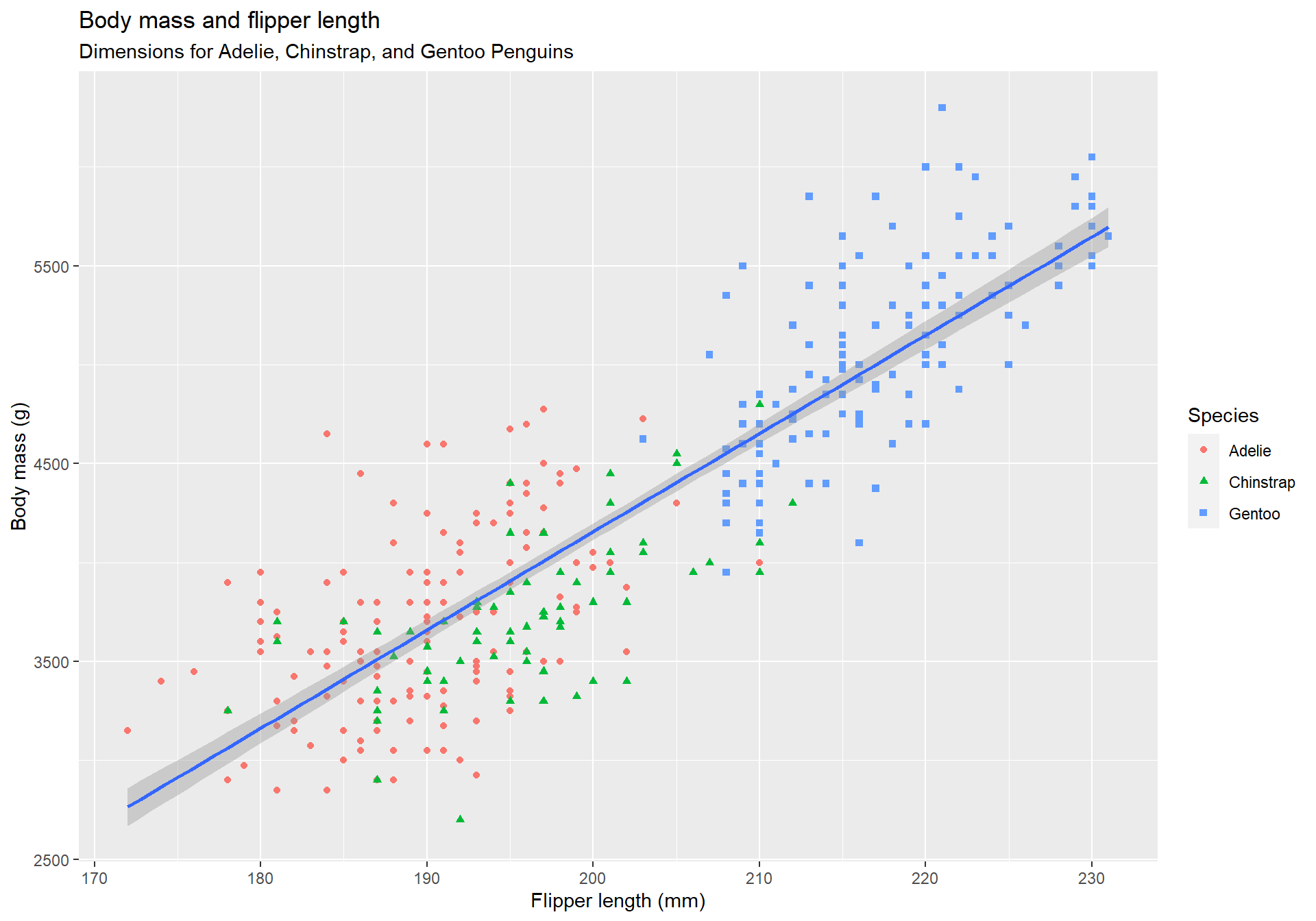

Next, we use labs to label the plot.

ggplot2::ggplot(
  data = penguins,
  mapping = ggplot2::aes(
     x = flipper_length_mm,
     y = body_mass_g
    )
) +
ggplot2::geom_point(
  mapping = ggplot2::aes(
      color = species,
      shape = species)
) +
ggplot2::geom_smooth(
  method = "lm") +
ggplot2::labs(
    title = "Body mass and flipper length",
    subtitle = "Dimensions for Adelie, Chinstrap, and Gentoo Penguins",
    x = "Flipper length (mm)",
    y = "Body mass (g)",
    color = "Species",
    shape = "Species"
  )

`geom_smooth()` using formula = 'y ~ x'

Warning: Removed 2 rows containing non-finite values (`stat_smooth()`).

Warning: Removed 2 rows containing missing values (`geom_point()`).

Creating a ggplot

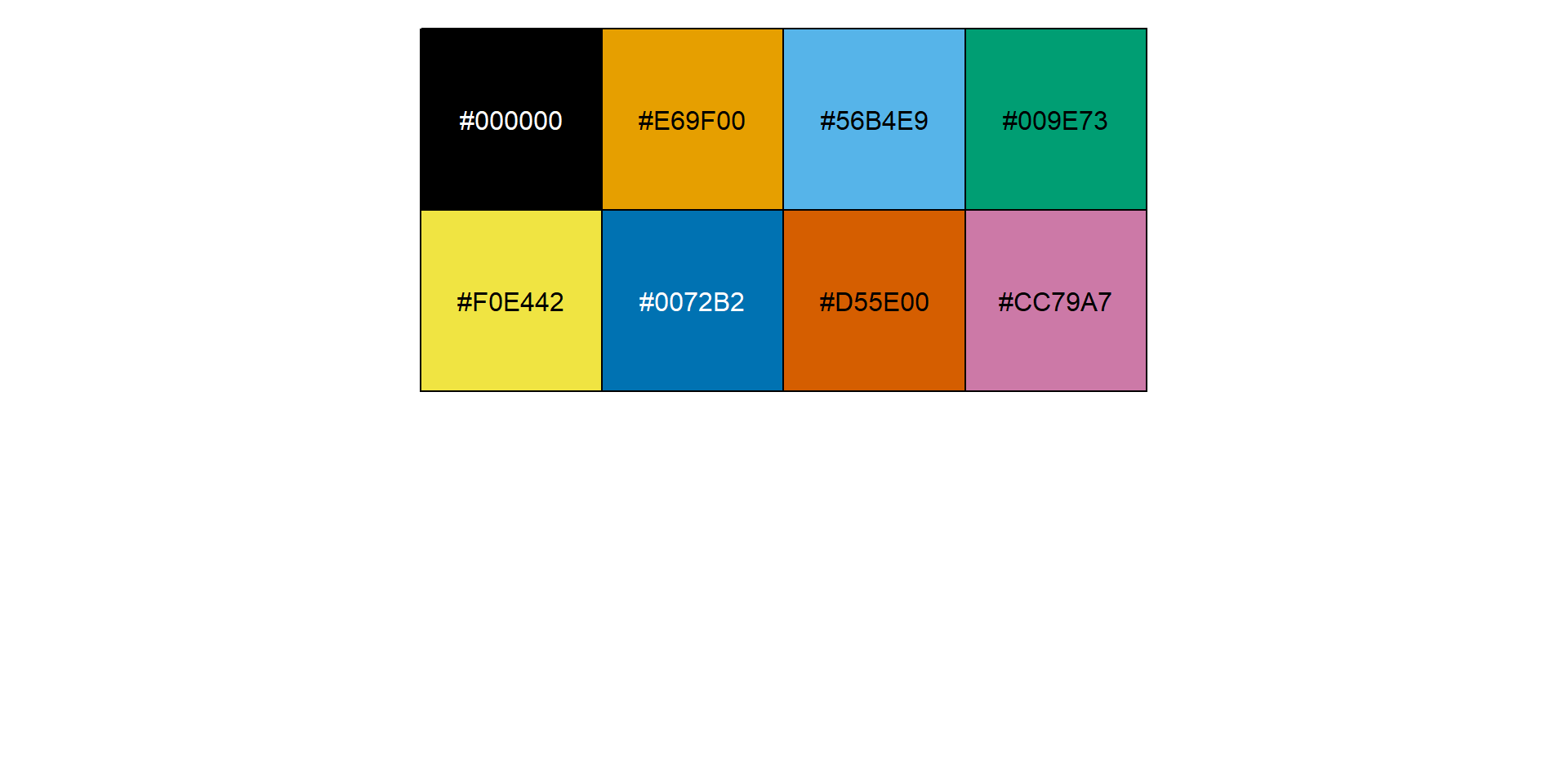

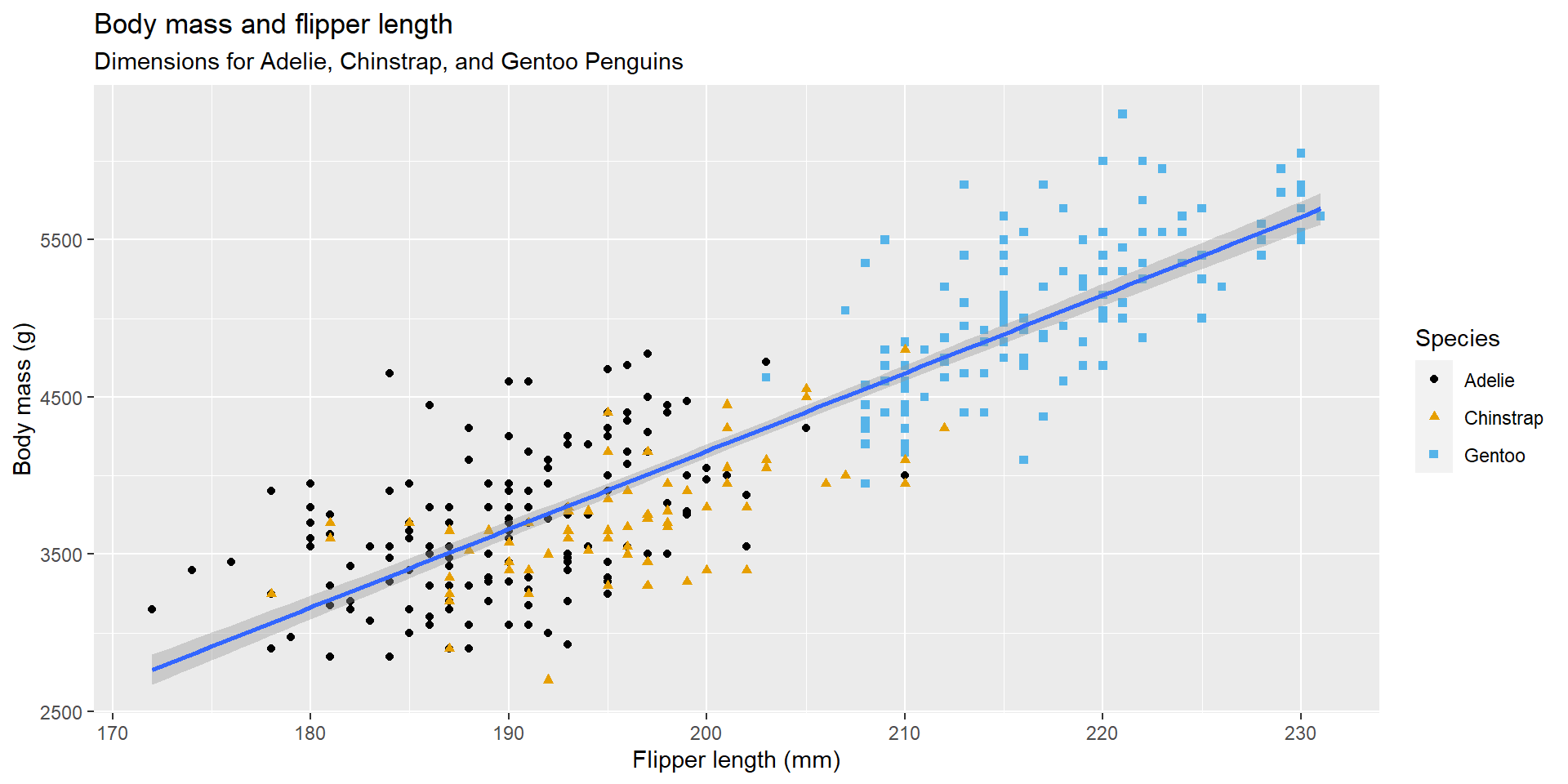

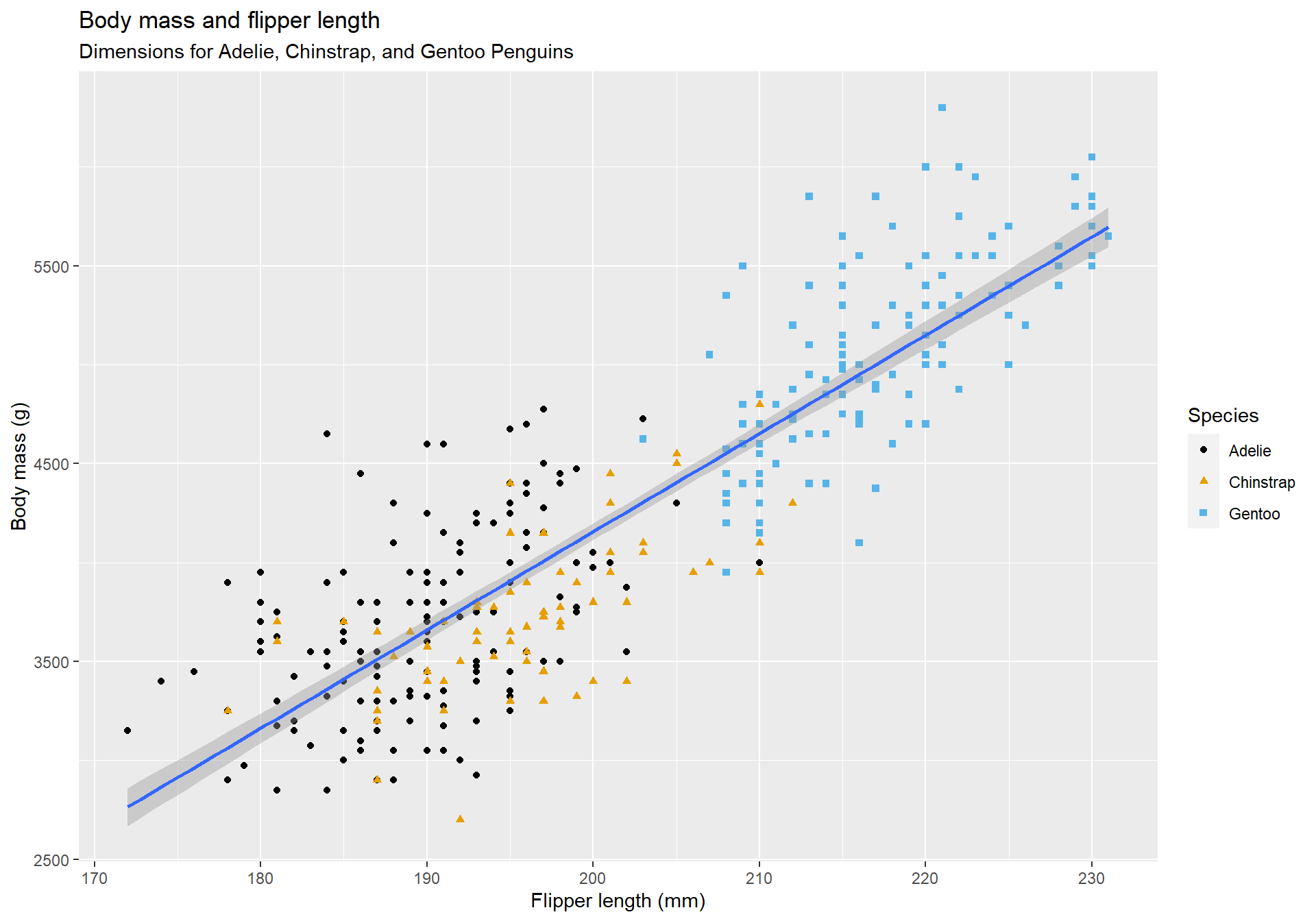

Lastly, we add scale_color_colorblind to improve the colour palette to be colour-blind safe.

ggplot2::ggplot(
  data = penguins,
  mapping = ggplot2::aes(
     x = flipper_length_mm,
     y = body_mass_g
    )
) +
ggplot2::geom_point(
  mapping = ggplot2::aes(
      color = species,
      shape = species)
) +
ggplot2::geom_smooth(
  method = "lm") +
ggplot2::labs(
    title = "Body mass and flipper length",
    subtitle = "Dimensions for Adelie, Chinstrap, and Gentoo Penguins",
    x = "Flipper length (mm)",
    y = "Body mass (g)",
    color = "Species",
    shape = "Species"
  ) +
ggthemes::scale_color_colorblind()

`geom_smooth()` using formula = 'y ~ x'

Warning: Removed 2 rows containing non-finite values (`stat_smooth()`).

Warning: Removed 2 rows containing missing values (`geom_point()`).

Creating a ggplot (Extra)

In Google Chrome, we can go to Developer’s mode (Press F12), press Three Dots, press More tools, press Rendering, scroll down to Emulate vision deficiencies and make changes.

More info in Anna Monus’s Blog

ggplot2 calls

There is a concise way of using ggplot2 code to that saves typing. In general, we want to reduce the amount of extra text to make it easier to compare similar codes.

More information will be provided in Chapter 4 when we’ll learn about the pipe, |> and Chapter 26 where we’ll look into coding style.

ggplot2::ggplot(
  data = penguins,
  mapping = ggplot2::aes(
    x = flipper_length_mm,
    y = body_mass_g)) +
  ggplot2::geom_point()

penguins |>
  ggplot2::ggplot(
    ggplot2::aes(
      x = flipper_length_mm,
      y = body_mass_g)) +
  ggplot2::geom_point()

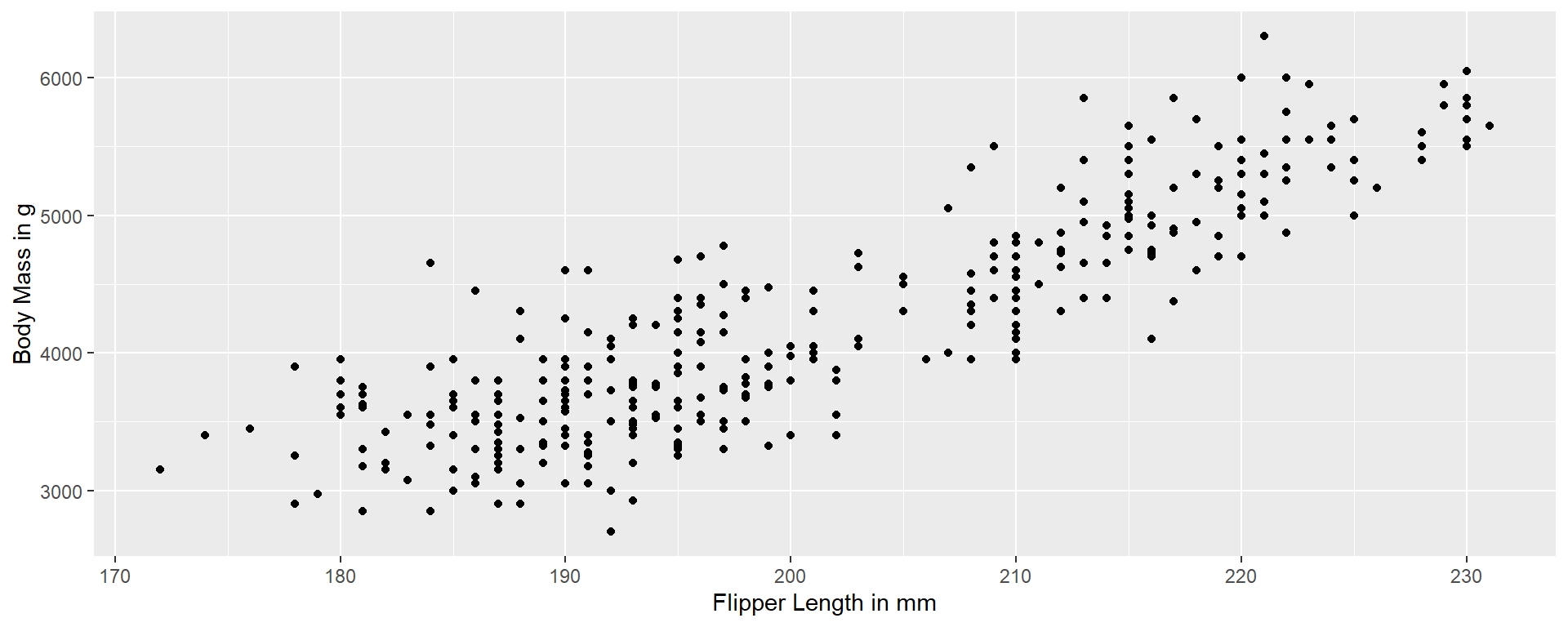

ggplot2 calls (Extra)

When is flipper_length_mm and body_mass_g a variable or column name ? We can use .data to differentiate them.

flipper_length_mm = "Flipper Length in mm"
body_mass_g = "Body Mass in g"

penguins |>
  ggplot2::ggplot(
    ggplot2::aes(
      x = flipper_length_mm,
      y = body_mass_g)) +
  ggplot2::geom_point() +
  ggplot2::labs(
    x = flipper_length_mm,
    y = body_mass_g
  )

flipper_length_mm = "Flipper Length in mm"
body_mass_g = "Body Mass in g"

penguins |>
  ggplot2::ggplot(
    ggplot2::aes(
      x = .data[["flipper_length_mm"]],
      y = .data[["body_mass_g"]])) +
  ggplot2::geom_point() +
  ggplot2::labs(
    x = flipper_length_mm,
    y = body_mass_g
  )

ggplot2 calls (Extra)

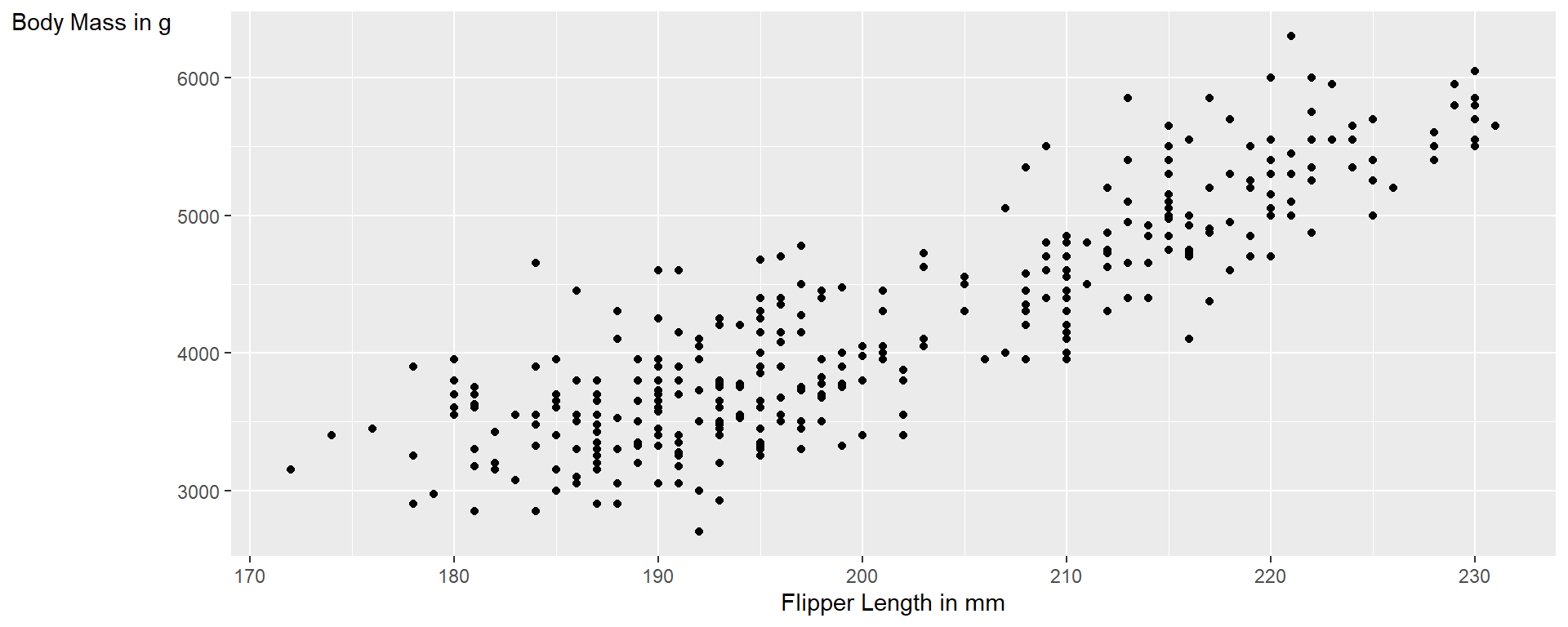

Set axis.title.y = ggplot2::element_text(angle = 0) in ggplot2::theme to rotate the y axis title.

penguins |>
  ggplot2::ggplot(
    ggplot2::aes(
      x = .data[["flipper_length_mm"]],
      y = .data[["body_mass_g"]])) +
  ggplot2::geom_point() +
  ggplot2::labs(
    x = "Flipper Length in mm",
    y = "Body Mass in g"
  )

penguins |>
  ggplot2::ggplot(
    ggplot2::aes(
      x = .data[["flipper_length_mm"]],
      y = .data[["body_mass_g"]])) +
  ggplot2::geom_point() +
  ggplot2::theme(
    axis.title.y = ggplot2::element_text(angle = 0)
  ) +
  ggplot2::labs(
    x = "Flipper Length in mm",
    y = "Body Mass in g"
  )

Exercise 2.2.5

How many rows are in penguins? How many columns?

glue::glue("
  There are {nrow(penguins)} rows and {ncol(penguins)} columns in the penguin data set
  "
)

There are 344 rows and 8 columns in the penguin data set

A little preview of glue from Chapter 15.

Exercise 2.2.5

What does the bill_depth_mm variable in the penguins data frame describe? Read the help for ?penguins to find out.

?penguins

Exercise 2.2.5

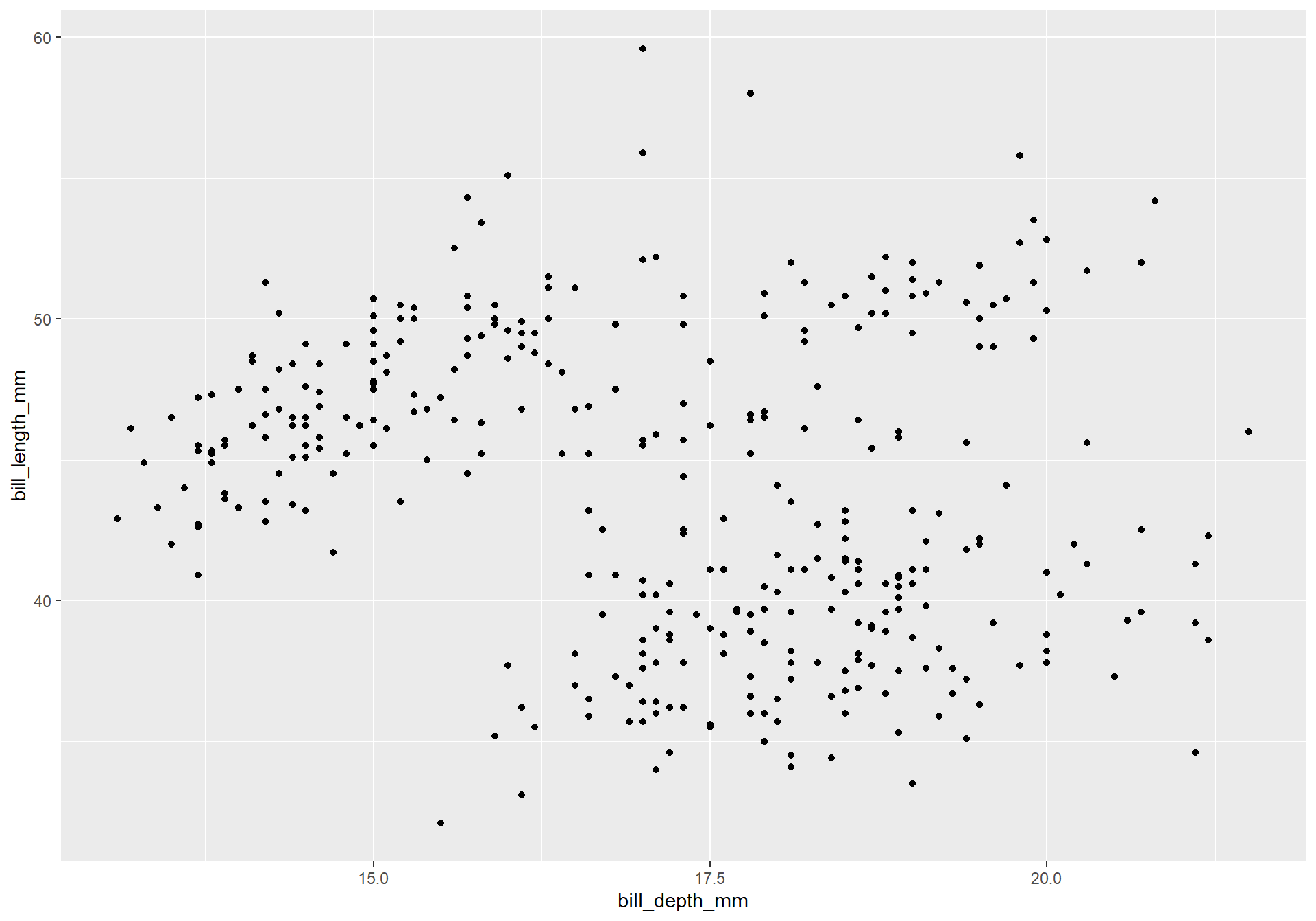

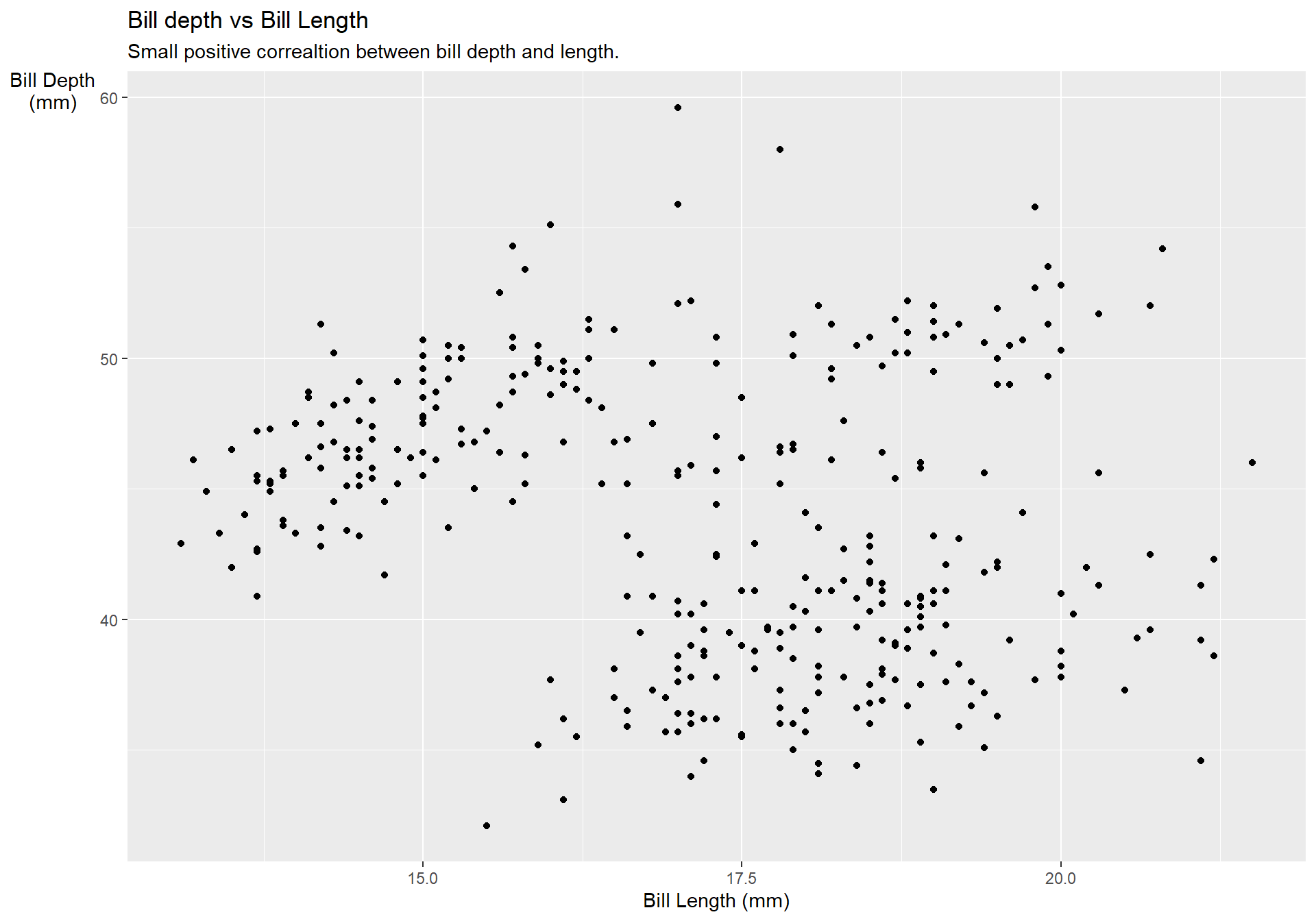

Make a scatterplot of bill_depth_mm vs. bill_length_mm. Describe the relationship between these two variables.

ggplot2::ggplot(
  data = penguins,
  mapping = ggplot2::aes(
    x = .data[["bill_depth_mm"]],
    y = .data[["bill_length_mm"]])
) +
  ggplot2::geom_point() +
ggplot2::theme(
  axis.title.y = ggplot2::element_text(angle = 0)
) +
ggplot2::labs(
    title = "Bill depth vs Bill Length",
    subtitle = "Small positive correaltion between bill depth and length.",
    x = "Bill Length (mm)",
    y = "Bill Depth\n(mm)"
  )

Warning: Removed 2 rows containing missing values (`geom_point()`).

Exercise 2.2.5

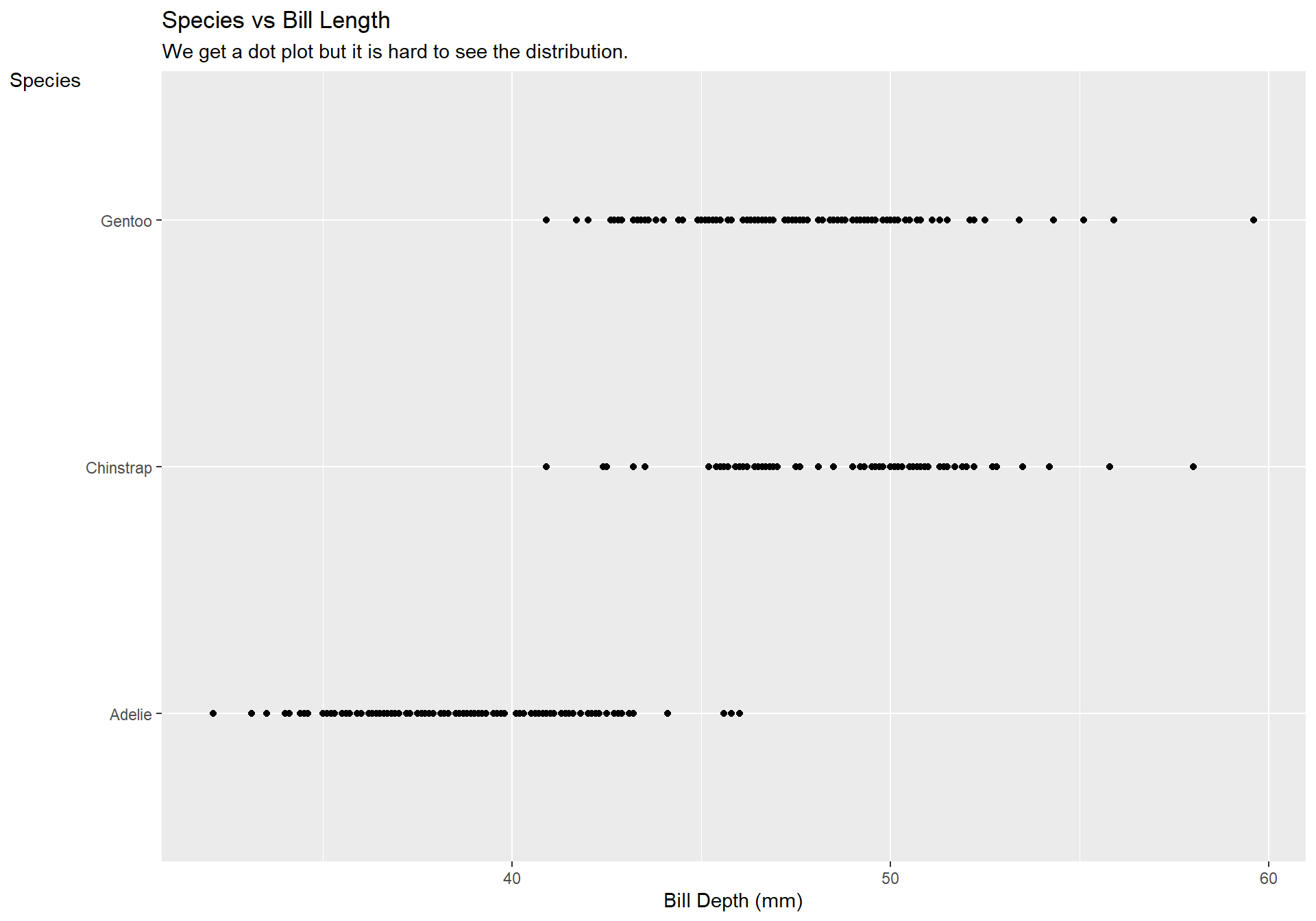

What happens if you make a scatterplot of species vs. bill_depth_mm ?

ggplot2::ggplot(
  data = penguins,
  mapping = ggplot2::aes(
    x = .data[["bill_length_mm"]],
    y = .data[["species"]])
) +
  ggplot2::geom_point() +
ggplot2::theme(
  axis.title.y = ggplot2::element_text(angle = 0)
) +
ggplot2::labs(
    title = "Species vs Bill Length",
    subtitle = "We get a dot plot but it is hard to see the distribution.",
    x = "Bill Depth (mm)",
    y = "Species"
  )

Warning: Removed 2 rows containing missing values (`geom_point()`).

Exercise 2.2.5

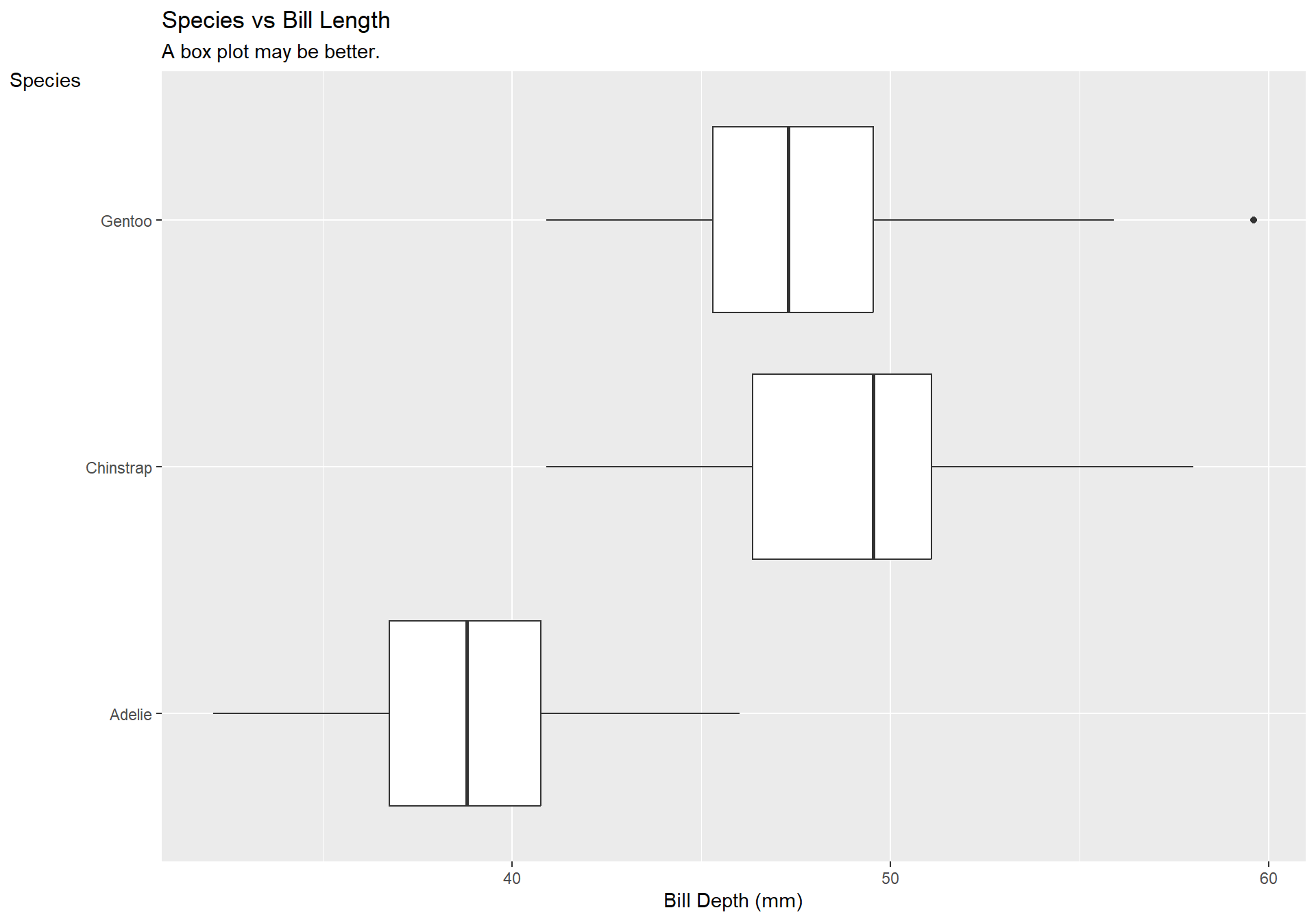

What might be a better choice of geom ?

ggplot2::ggplot(
  data = penguins,
  mapping = ggplot2::aes(
    x = .data[["bill_length_mm"]],
    y = .data[["species"]])
) +
  ggplot2::geom_boxplot() +
ggplot2::theme(
  axis.title.y = ggplot2::element_text(angle = 0)
) +
ggplot2::labs(
    title = "Species vs Bill Length",
    subtitle = "A box plot may be better.",
    x = "Bill Depth (mm)",
    y = "Species"
  )

Warning: Removed 2 rows containing non-finite values (`stat_boxplot()`).

Exercise 2.2.5

Why does the following give an error and how would you fix it?

ggplot2::ggplot(data = penguins) +
  ggplot2::geom_point()

Error in `ggplot2::geom_point()`:
! Problem while setting up geom.
ℹ Error occurred in the 1st layer.
Caused by error in `compute_geom_1()`:
! `geom_point()` requires the following missing aesthetics: x and y

Exercise 2.2.5

We need to set mapping parameters using the aes function to tell ggplot which columns in penguins are used for the x or y axis respectively.

ggplot(data = penguins) +
  geom_point(
    mapping = ggplot2::aes(
    x = .data[["bill_depth_mm"]],
    y = .data[["bill_length_mm"]]
  )
)

Warning: Removed 2 rows containing missing values (`geom_point()`).

Exercise 2.2.5

What does the na.rm argument do in geom_point()? What is the default value of the argument? Create a scatterplot where you successfully use this argument set to TRUE.

?ggplot2::geom_point()

Exercise 2.2.5

Warning message is removed.

ggplot2::ggplot(
  data = penguins,
  mapping = ggplot2::aes(
    x = .data[["bill_depth_mm"]],
    y = .data[["bill_length_mm"]])
) +
  ggplot2::geom_point(
    na.rm = TRUE,
) +
ggplot2::theme(
  axis.title.y = ggplot2::element_text(angle = 0)
) +
ggplot2::labs(
    title = "Bill depth vs Bill Length",
    subtitle = "Small positive correaltion between bill depth and length.",
    x = "Bill Length (mm)",
    y = "Bill Depth\n(mm)"
  )

Exercise 2.2.5

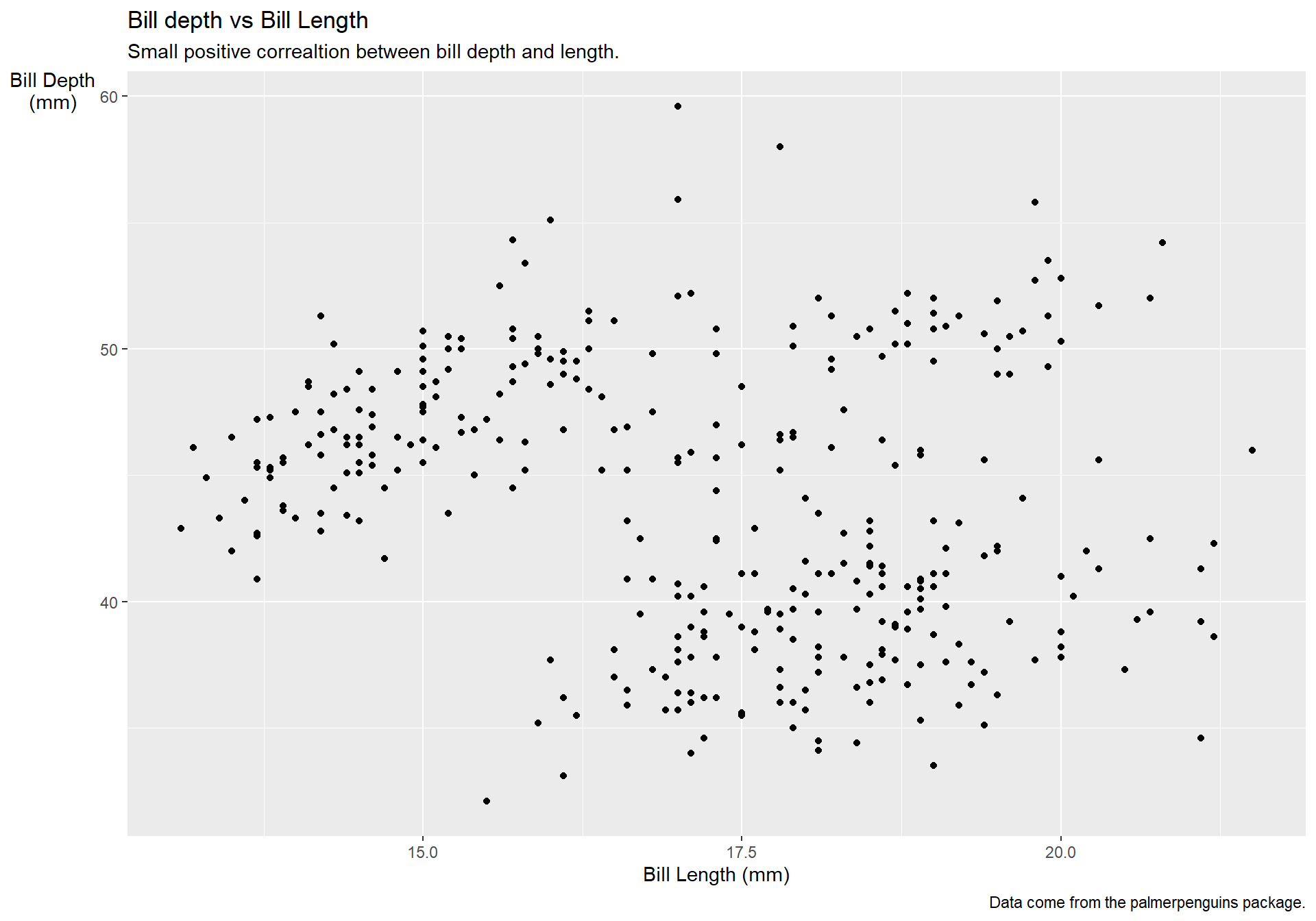

Add the following caption to the plot you made in the previous exercise: “Data come from the palmerpenguins package.” Hint: Take a look at the documentation for labs().

ggplot2::ggplot(
  data = penguins,
  mapping = ggplot2::aes(
    x = .data[["bill_depth_mm"]],
    y = .data[["bill_length_mm"]])
) +
  ggplot2::geom_point(
    na.rm = TRUE,
) +
ggplot2::theme(
  axis.title.y = ggplot2::element_text(angle = 0)
) +
ggplot2::labs(
    title = "Bill depth vs Bill Length",
    subtitle = "Small positive correaltion between bill depth and length.",
    caption = "Data come from the palmerpenguins package.",
    x = "Bill Length (mm)",
    y = "Bill Depth\n(mm)"
  )

Exercise 2.2.5

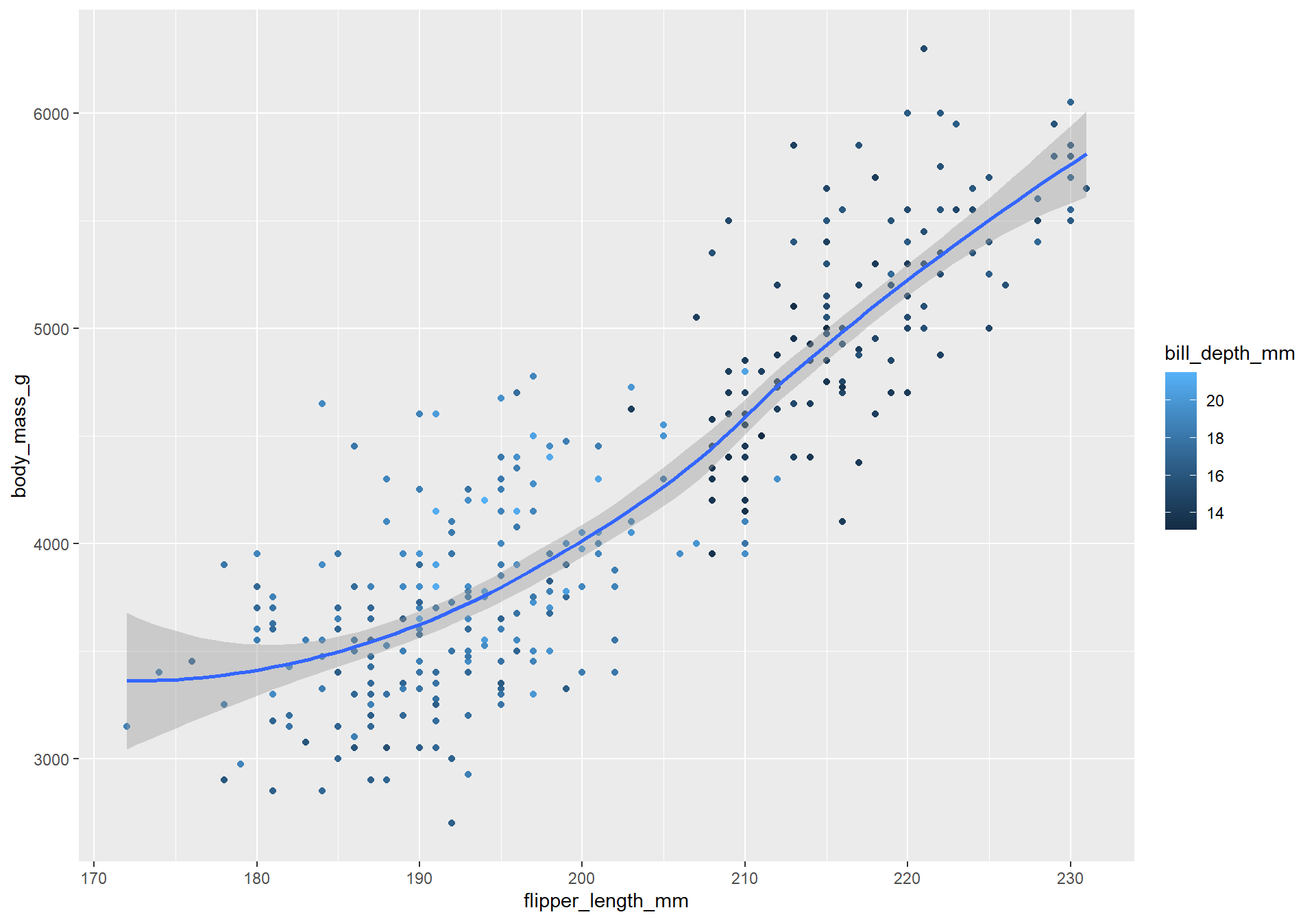

Image replication

ggplot2::ggplot(
  data = penguins,
  mapping = ggplot2::aes(
    x = .data[["flipper_length_mm"]],
    y = .data[["body_mass_g"]])
  ) +
  ggplot2::geom_point(
    mapping = ggplot2::aes(
      color = .data[["bill_depth_mm"]]
    )
  ) +
  ggplot2::geom_smooth()

`geom_smooth()` using method = 'loess' and formula = 'y ~ x'

Warning: Removed 2 rows containing non-finite values (`stat_smooth()`).

Warning: Removed 2 rows containing missing values (`geom_point()`).

Exercise 2.2.5

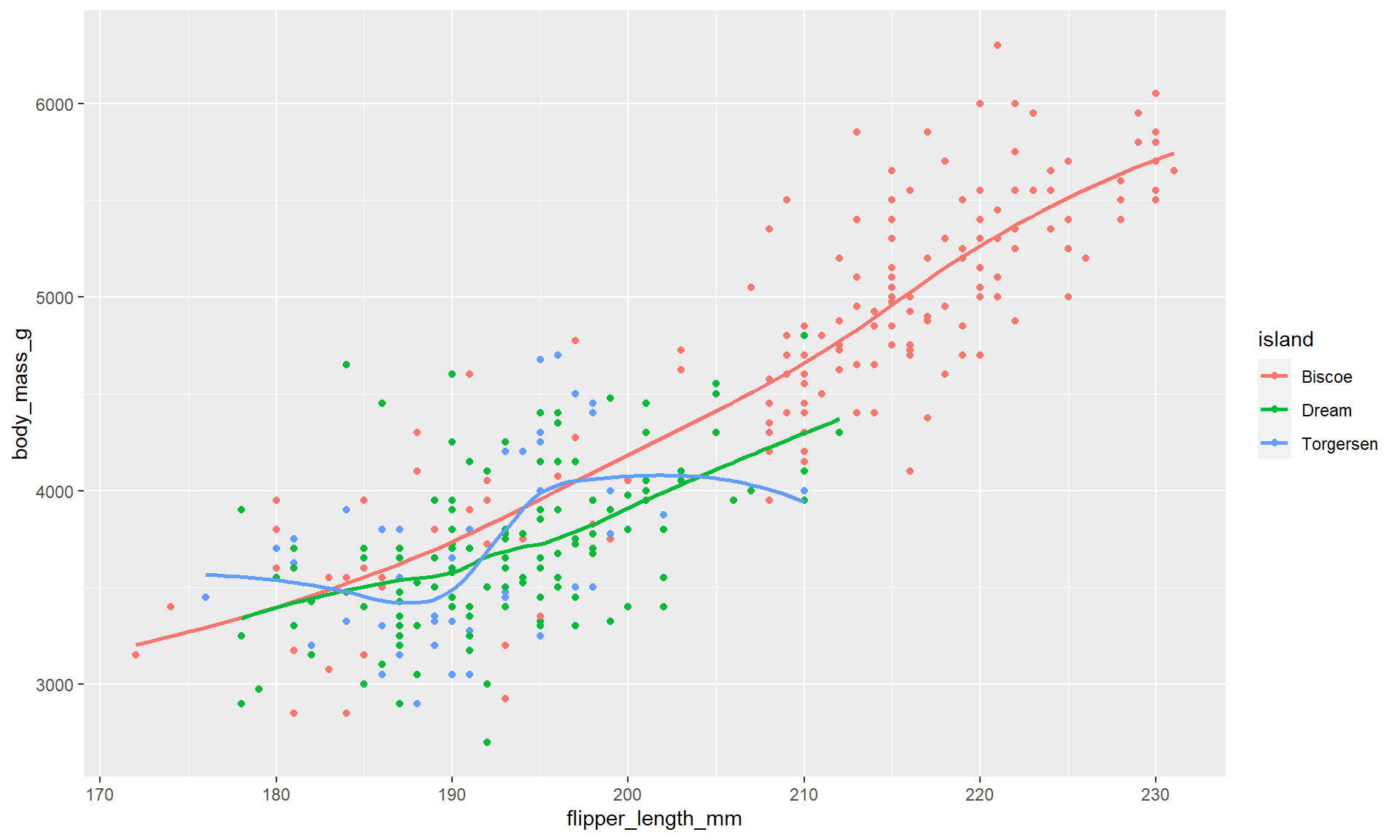

What does se = FALSE in geom_smooth do ? It plots the smooth line without confidence interval.

ggplot2::ggplot(
  data = penguins,
  mapping = ggplot2::aes(
    x = .data[["flipper_length_mm"]],
    y = .data[["body_mass_g"]],
    color = .data[["island"]])
) +
  ggplot2::geom_point() +
  ggplot2::geom_smooth(se = FALSE)

`geom_smooth()` using method = 'loess' and formula = 'y ~ x'

Warning: Removed 2 rows containing non-finite values (`stat_smooth()`).

Warning: Removed 2 rows containing missing values (`geom_point()`).

Exercise 2.2.5

What is the output difference between these two codes ? There is no difference.

ggplot2::ggplot(
  data = penguins,
  mapping = ggplot2::aes(
    x = .data[["flipper_length_mm"]],
    y = .data[["body_mass_g"]])
) +
  ggplot2::geom_point() +
  ggplot2::geom_smooth()

ggplot2::ggplot() +
ggplot2::geom_point(
  data = penguins,
  mapping = ggplot2::aes(
      x = .data[["flipper_length_mm"]],
      y = .data[["body_mass_g"]])
) +
ggplot2::geom_smooth(
  data = penguins,
  mapping = ggplot2::aes(
      x = .data[["flipper_length_mm"]],
      y = .data[["body_mass_g"]])
  )

Visualising Distributions

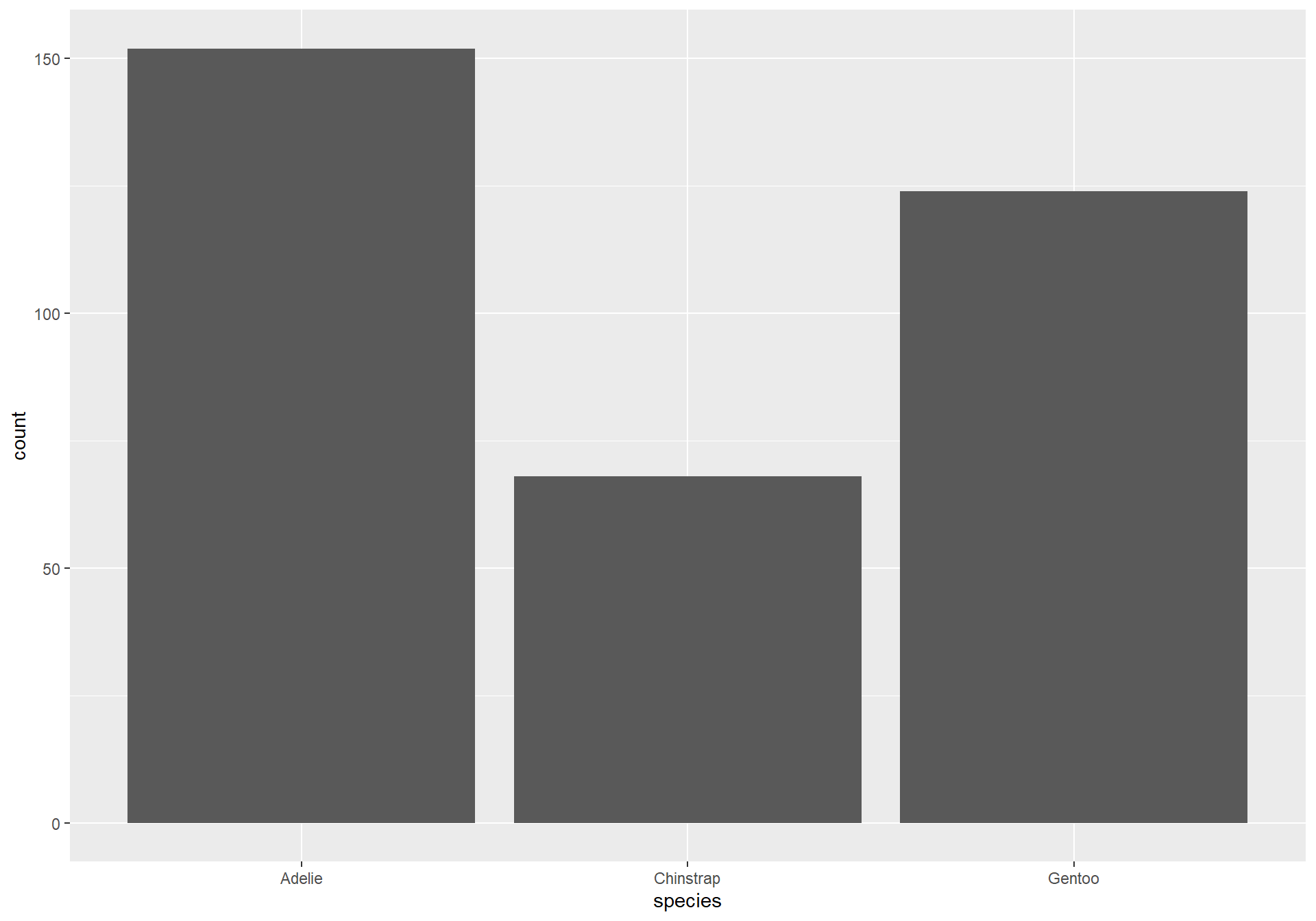

For categorical variables, we can view the distribution using bar charts.

ggplot2::ggplot(
  data = penguins,
  mapping = ggplot2::aes(
     x = species
    )
) +
ggplot2::geom_bar()

Visualising Distributions

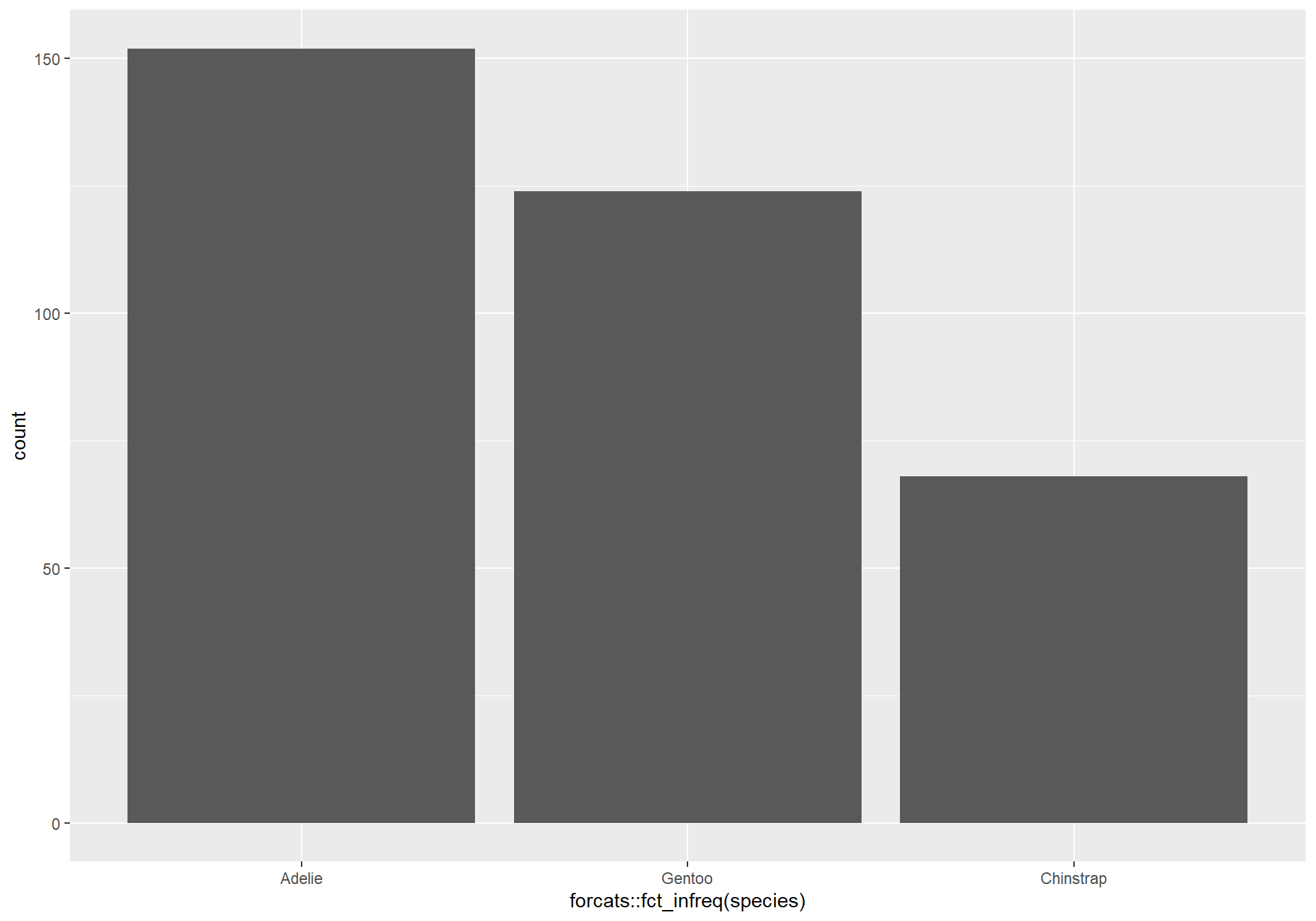

To arrange them based on frequencies, we can use fct_infreq to convert the categorical variable to a factor and reorder the level of the factor based on the frequencies. More on Chapter 17.

ggplot2::ggplot(
  data = penguins,
  mapping = ggplot2::aes(
     x = forcats::fct_infreq(species)
    )
) +
ggplot2::geom_bar()

Visualising Distributions

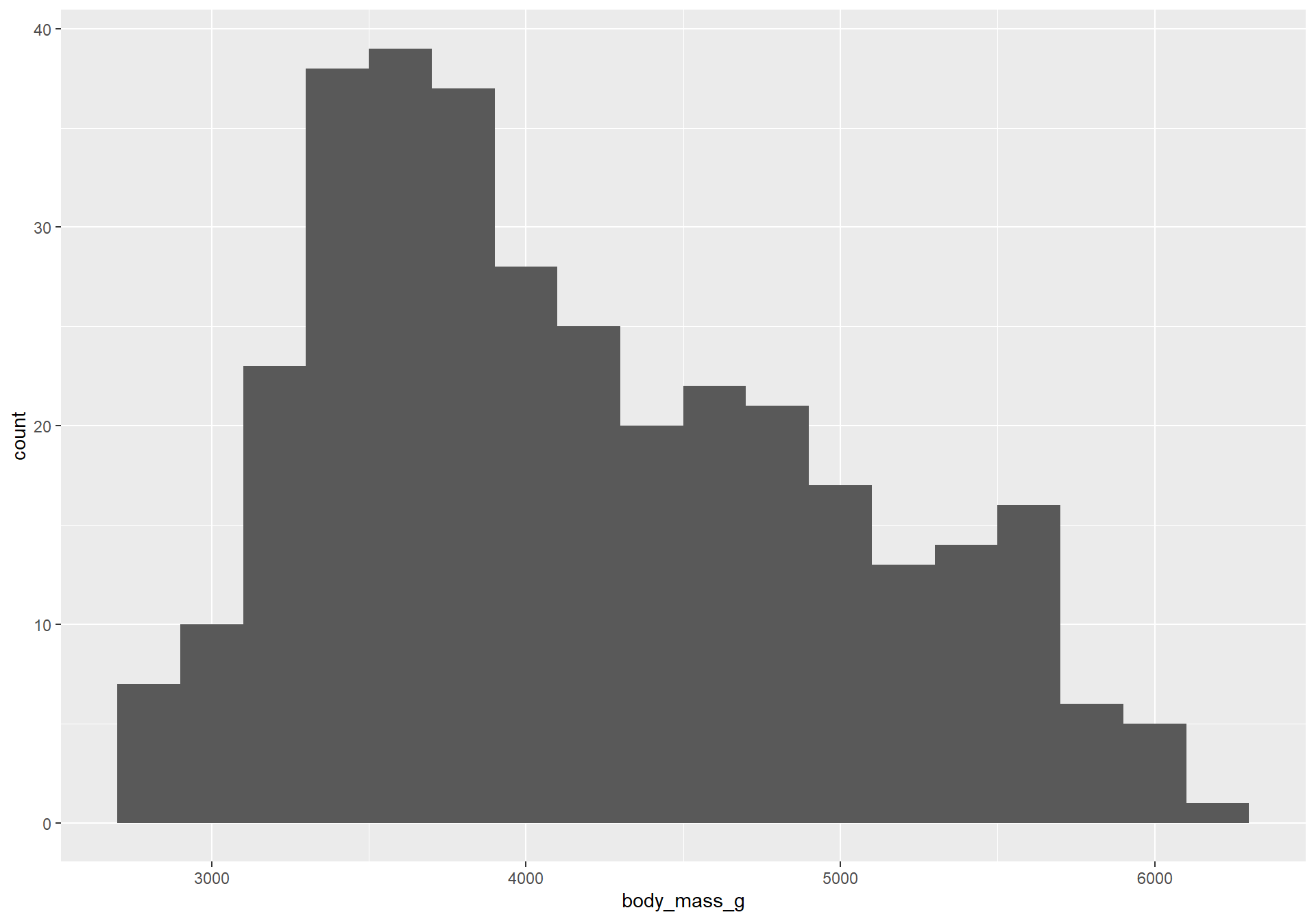

For numerical variables, we can view the distribution using histograms.

ggplot2::ggplot(
  data = penguins,
  mapping = ggplot2::aes(
     x = body_mass_g
    )
) +
ggplot2::geom_histogram(
  binwidth = 200)

Warning: Removed 2 rows containing non-finite values (`stat_bin()`).

Visualising Distributions

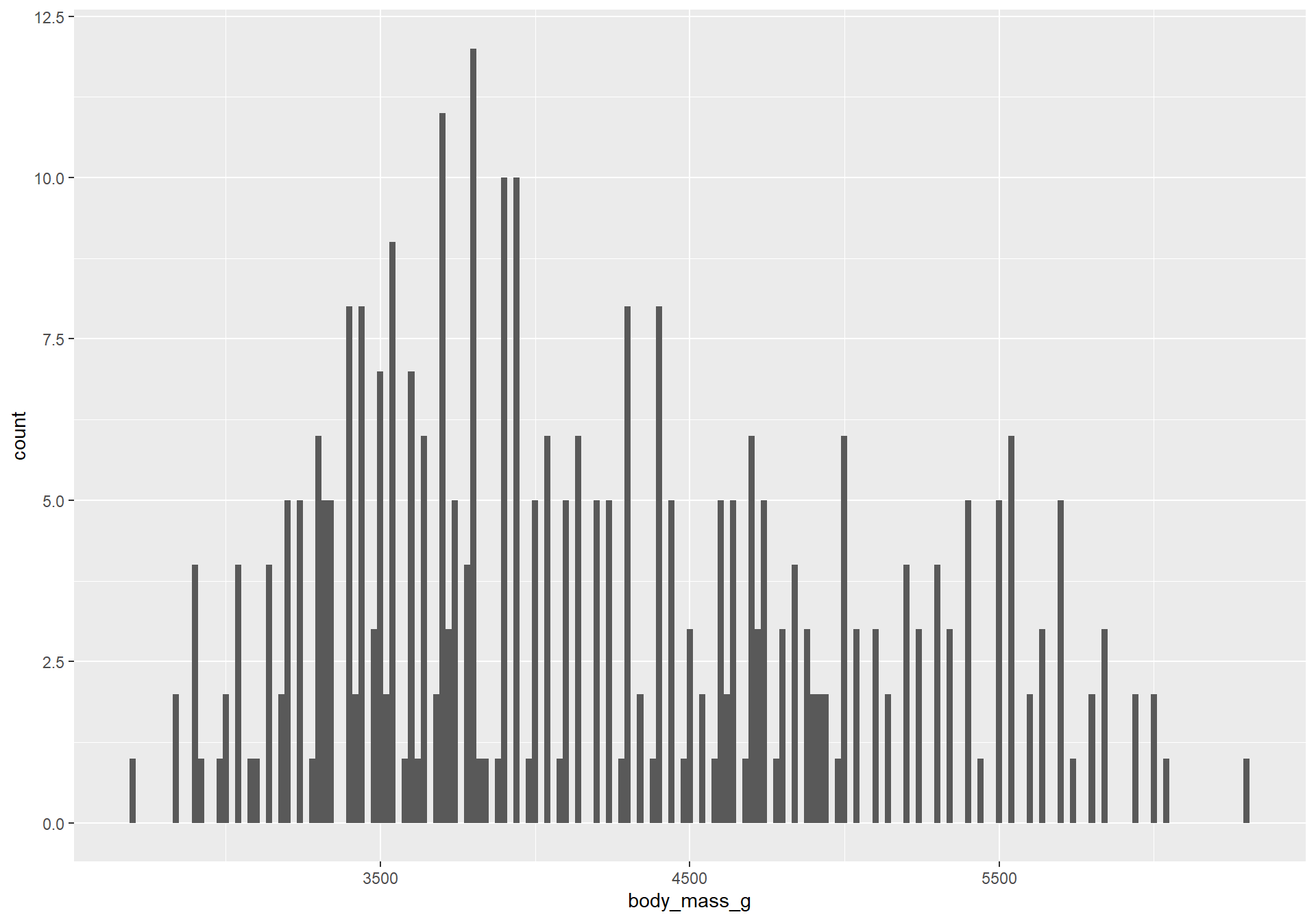

We may need to adjust the binwidth argument if necessary.

ggplot2::ggplot(
  data = penguins,
  mapping = ggplot2::aes(
     x = body_mass_g
    )
) +
ggplot2::geom_histogram(
  binwidth = 20)

Warning: Removed 2 rows containing non-finite values (`stat_bin()`).

Visualising Distributions

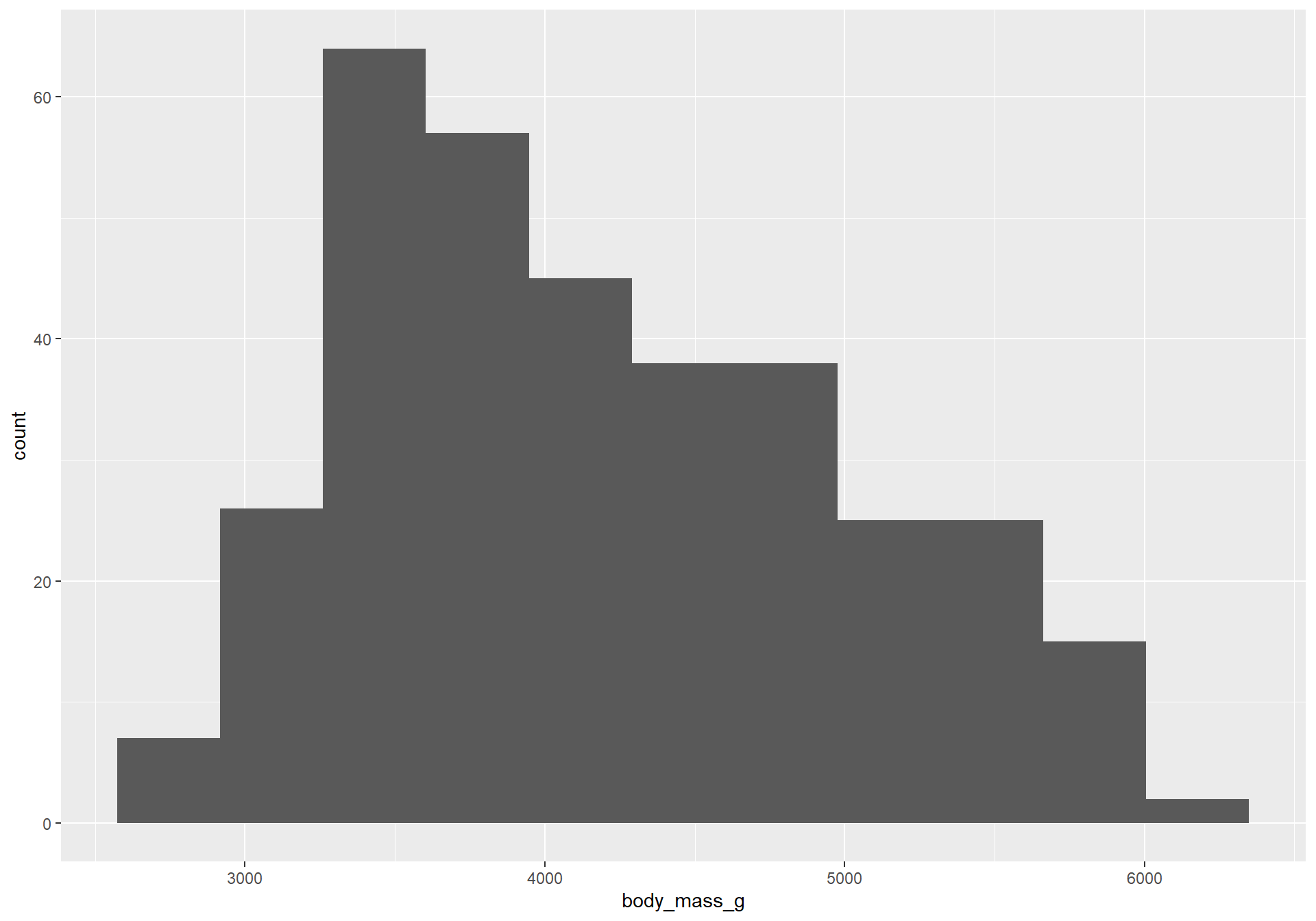

You can specify a function for calculating binwidth. More info about functions in Chapter 26.

ggplot2::ggplot(
  data = penguins,
  mapping = ggplot2::aes(
     x = body_mass_g
    )
) +
ggplot2::geom_histogram(
  binwidth = function(x) 2 * stats::IQR(x) / (length(x)^(1/3)))

Warning: Removed 2 rows containing non-finite values (`stat_bin()`).

Visualising Distributions

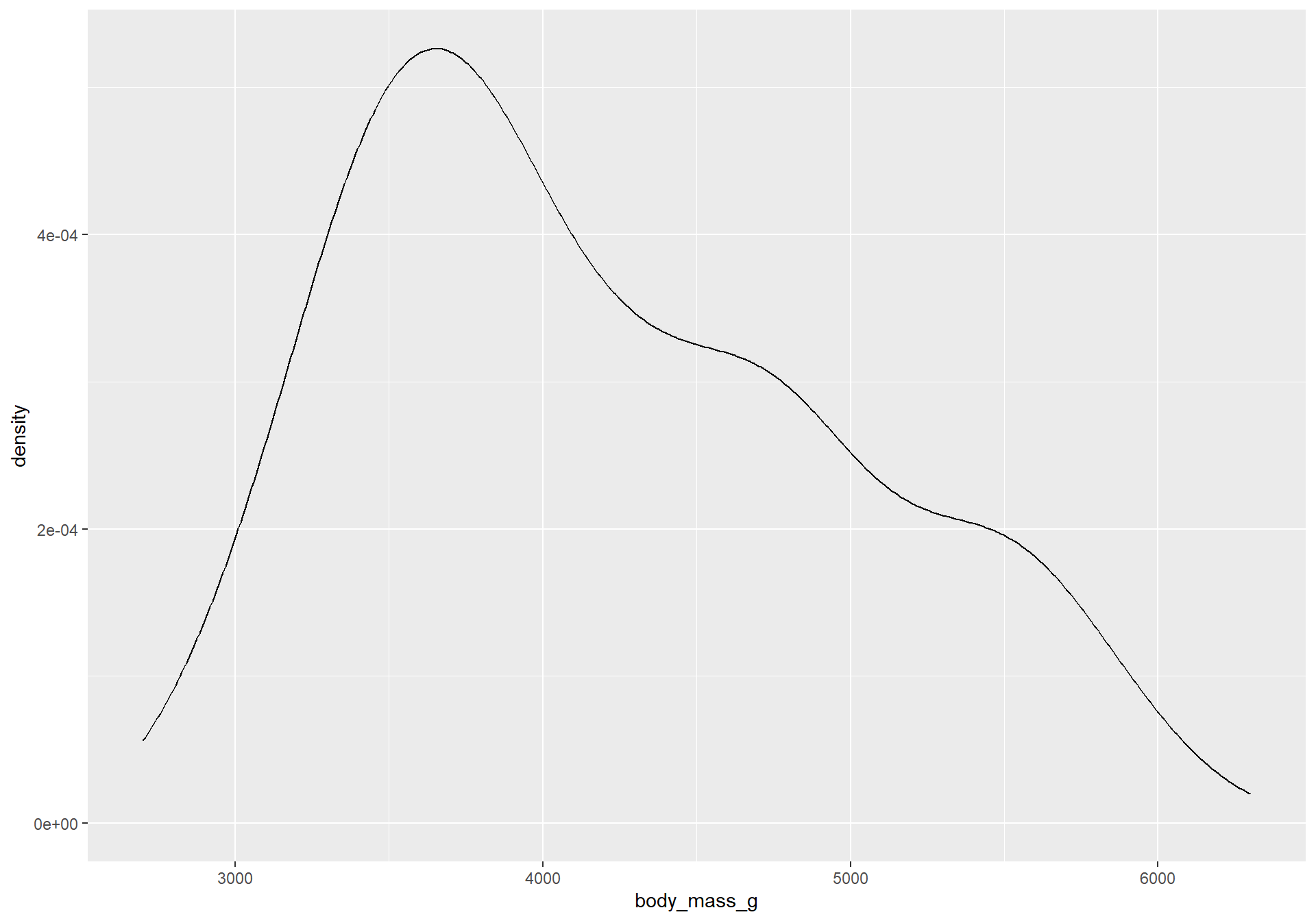

Alternatively, we can view the distribution using density plot.

ggplot2::ggplot(
  data = penguins,
  mapping = ggplot2::aes(
     x = body_mass_g
    )
) +
ggplot2::geom_density()

Warning: Removed 2 rows containing non-finite values (`stat_density()`).

Exercise 2.4.3

Make a bar plot of species of penguins, where you assign species to the y aesthetic (instead of x). How is this plot different?

ggplot2::ggplot(
  data = penguins,
  mapping = ggplot2::aes(
    x = .data[["species"]])
) +
  ggplot2::geom_bar()

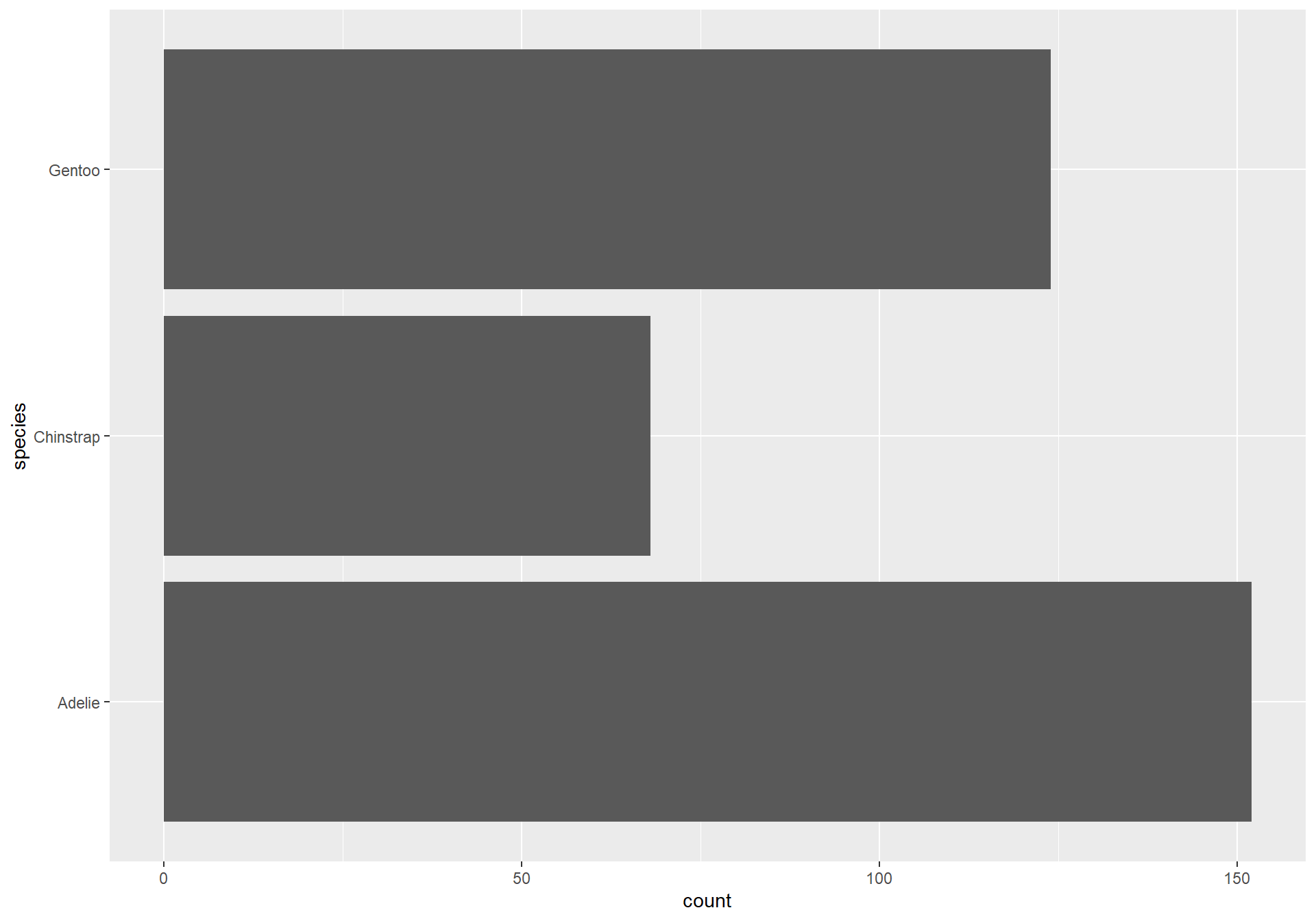

ggplot2::ggplot(
  data = penguins,
  mapping = ggplot2::aes(
    y = .data[["species"]])
) +
  ggplot2::geom_bar()

Exercise 2.4.3

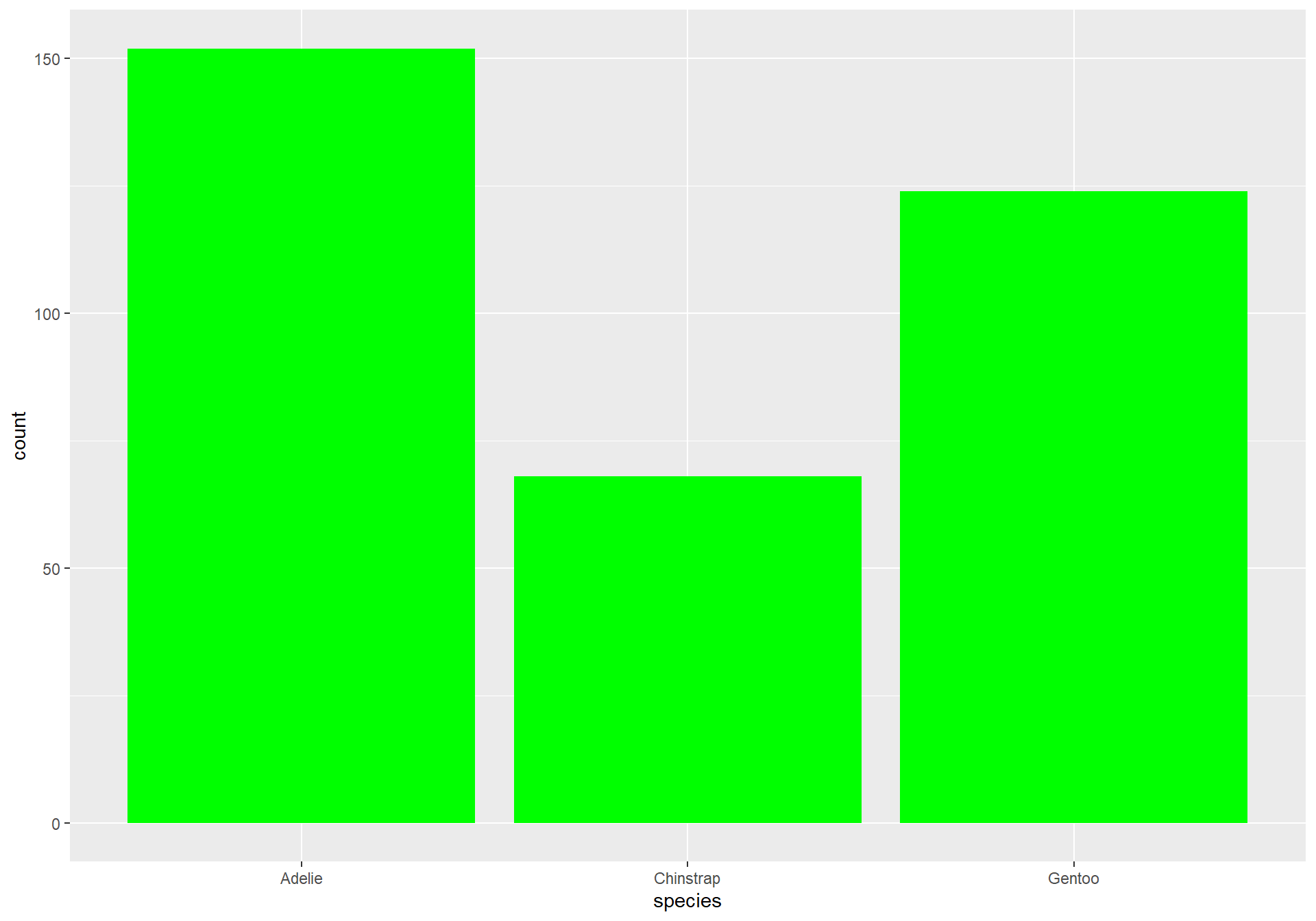

Which aesthetic, color or fill, is more useful for changing the color of bars?

ggplot2::ggplot(
  data = penguins,
  mapping = ggplot2::aes(
    x = .data[["species"]])
) +
  ggplot2::geom_bar(
    color = "green"
  )

ggplot2::ggplot(
  data = penguins,
  mapping = ggplot2::aes(
    x = .data[["species"]])
) +
  ggplot2::geom_bar(
    fill = "green"
  )

Exercise 2.4.3

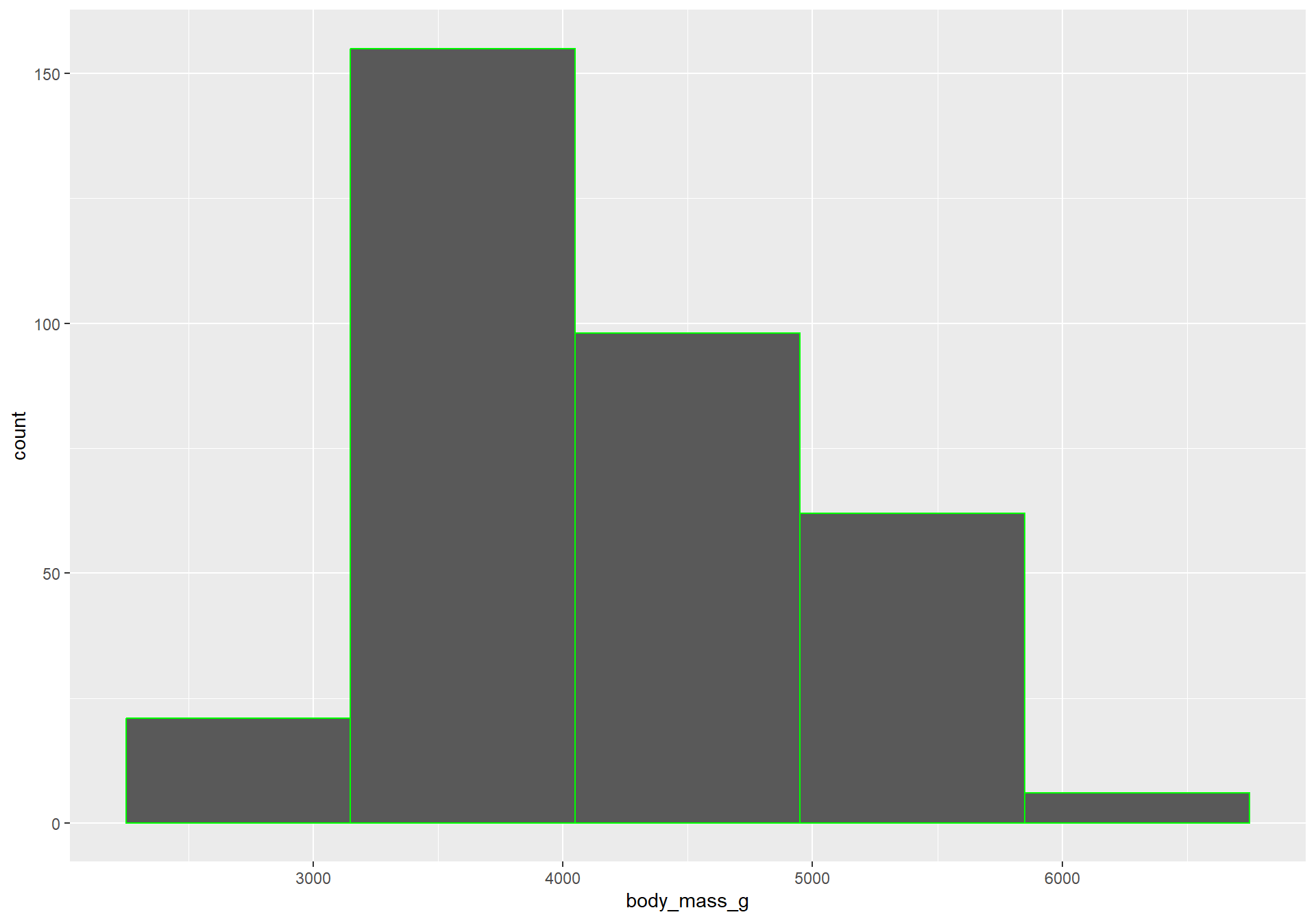

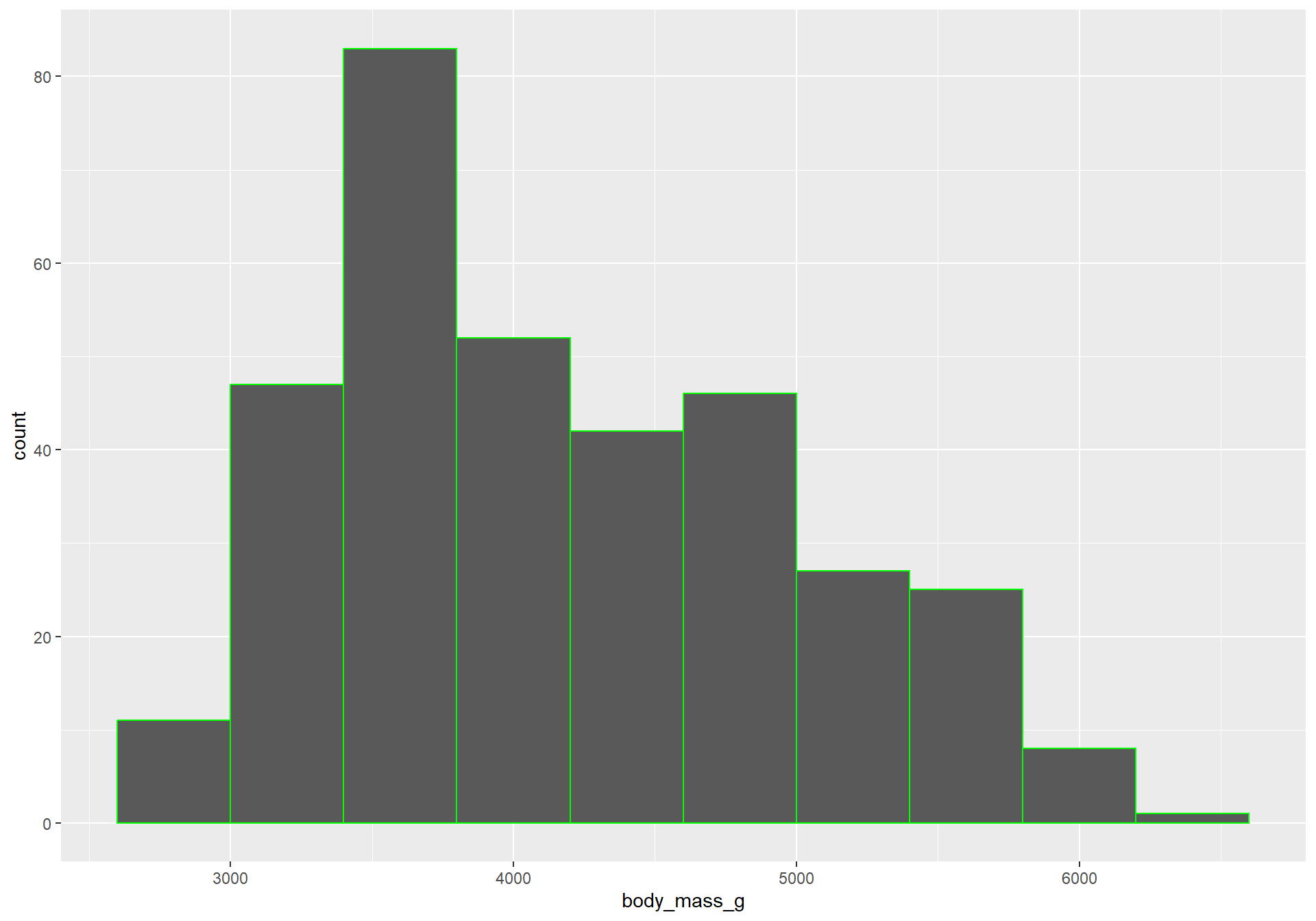

What does the bins argument in geom_histogram do?

ggplot2::ggplot(
  data = penguins,
  mapping = ggplot2::aes(
    x = .data[["body_mass_g"]])
) +
ggplot2::geom_histogram(
  color = "green",
  bins = 5)

ggplot2::ggplot(
  data = penguins,
  mapping = ggplot2::aes(
    x = .data[["body_mass_g"]])
) +
ggplot2::geom_histogram(
  color = "green",
  bins = 10)

Exercise 2.4.3

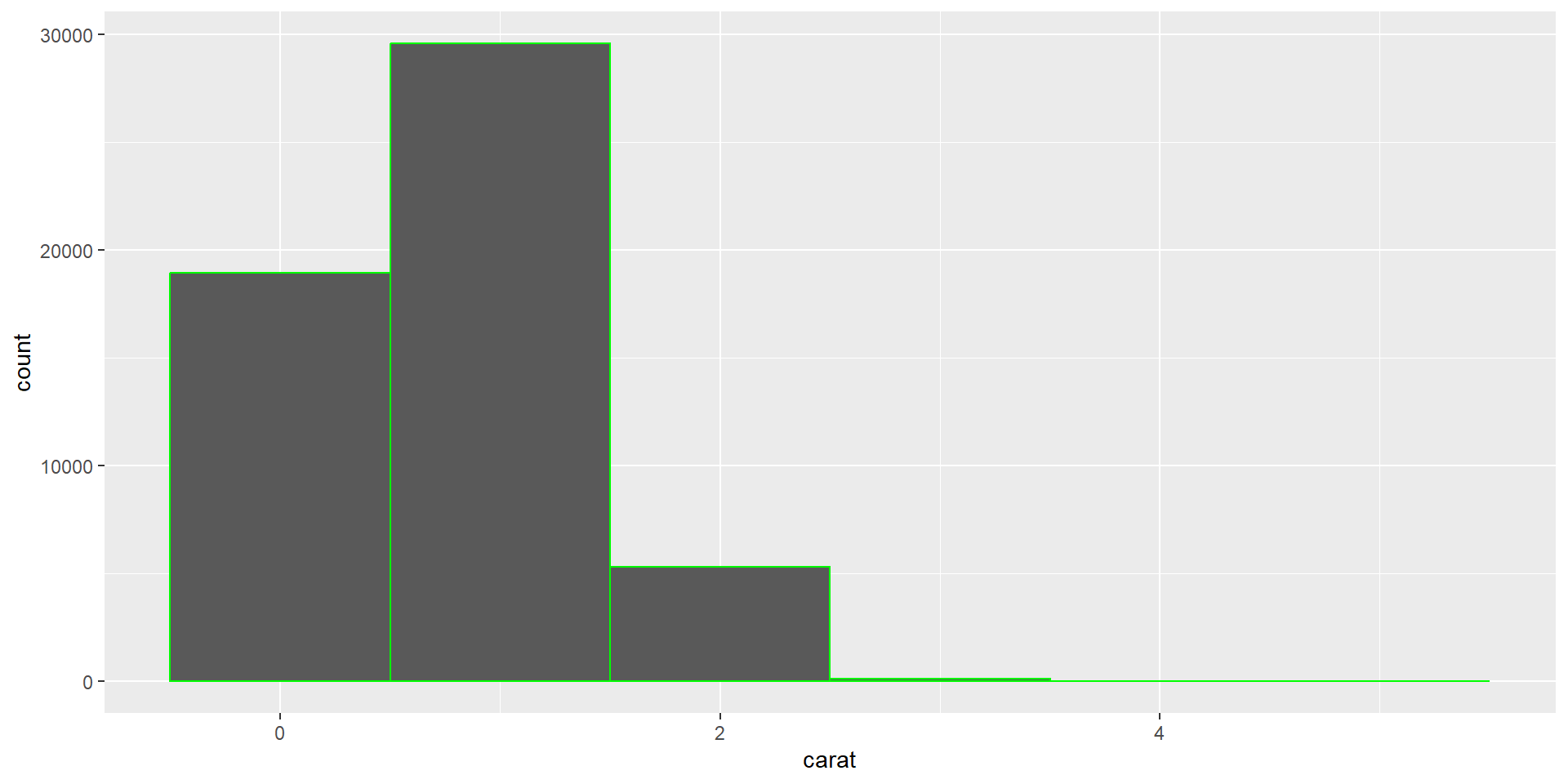

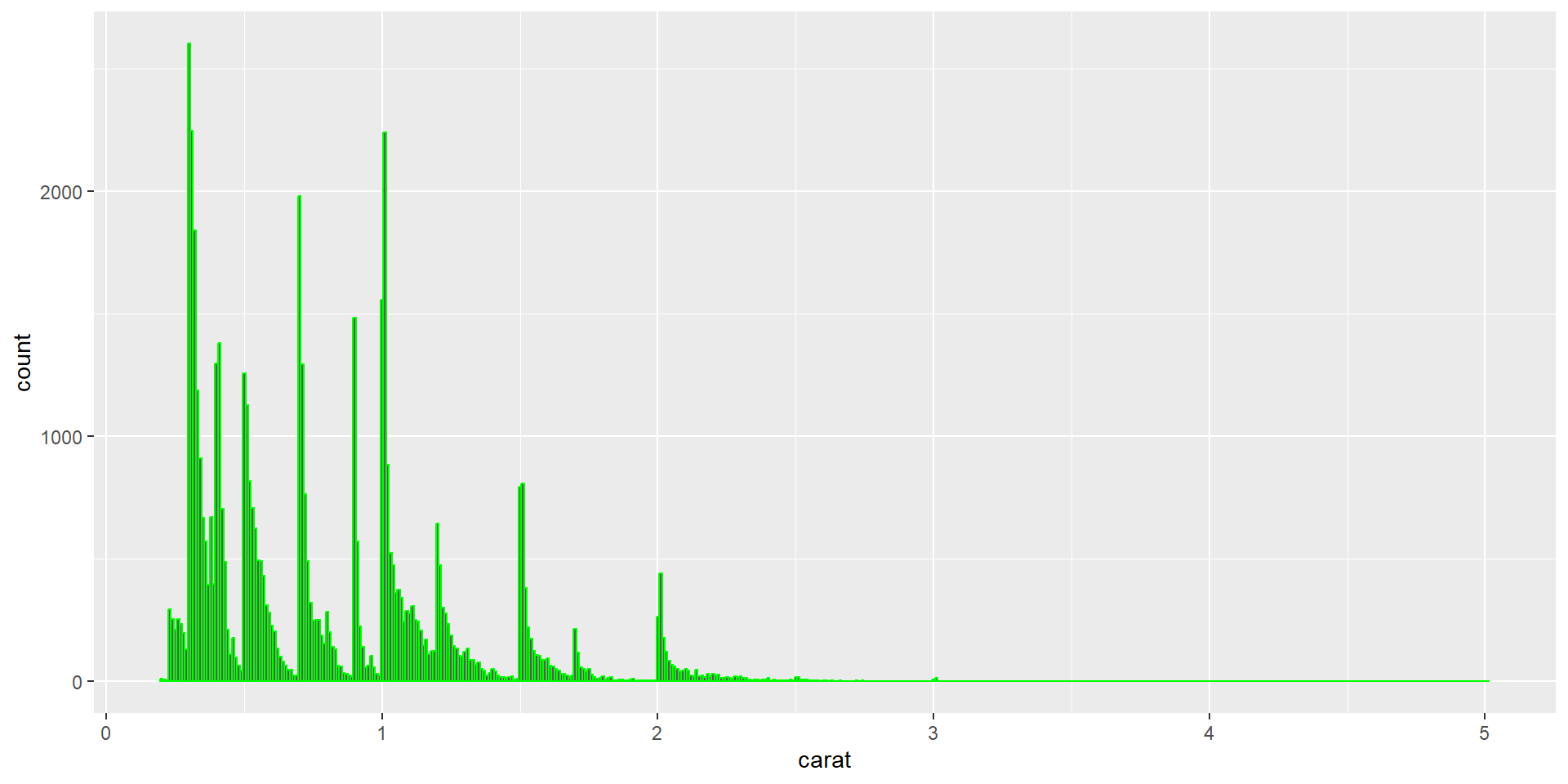

Make a histogram of the carat variable in the diamonds dataset that is available when you load the tidyverse package. Experiment with different binwidths. What binwidth reveals the most interesting patterns?

ggplot2::ggplot(
  data = diamonds,
  mapping = ggplot2::aes(
    x = .data[["carat"]])
) +
ggplot2::geom_histogram(
  color = "green",
  binwidth = 1)

ggplot2::ggplot(
  data = diamonds,
  mapping = ggplot2::aes(
    x = .data[["carat"]])
) +
ggplot2::geom_histogram(
  color = "green",
  binwidth = 0.01)

Visualising Relationships

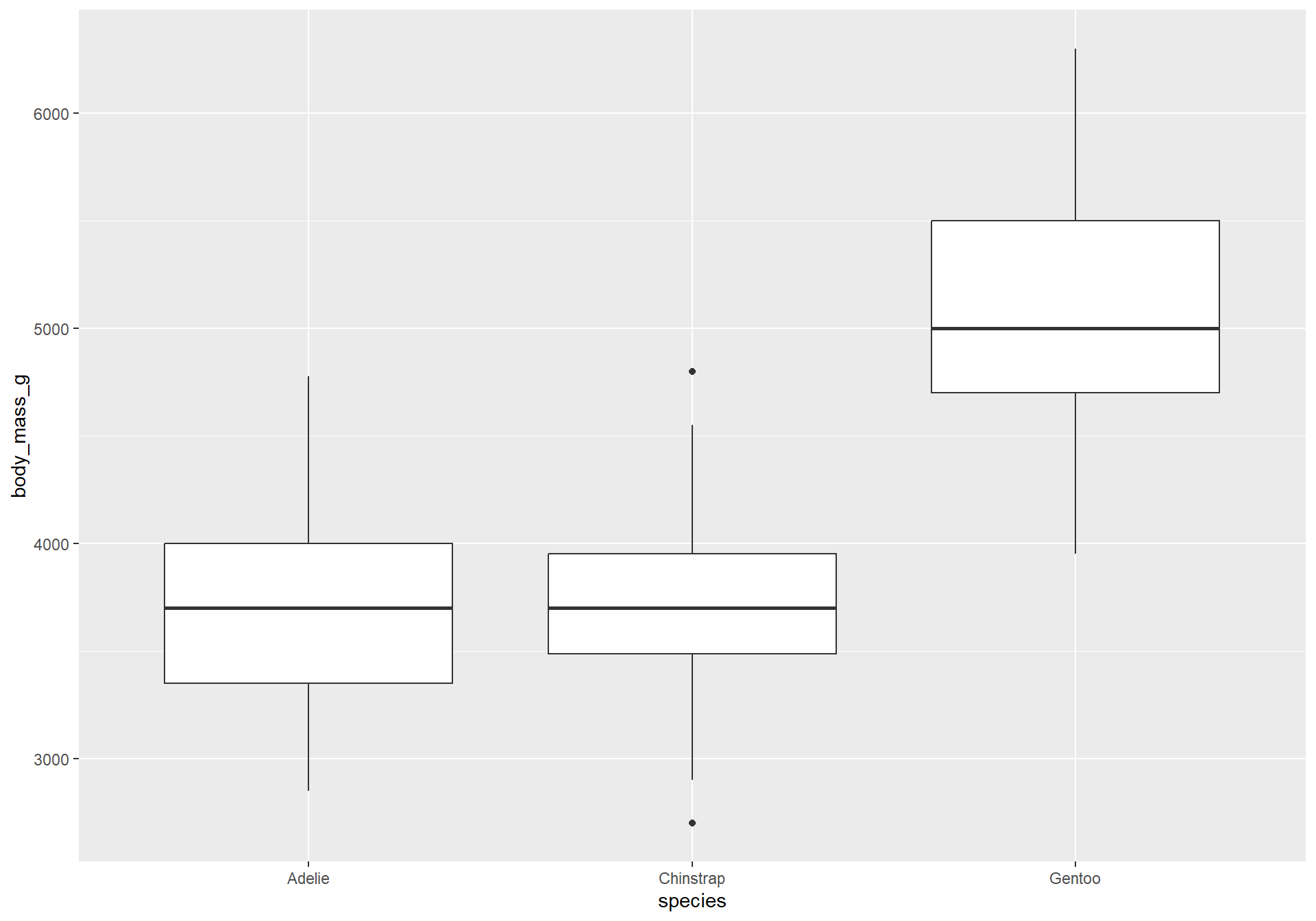

We can use a side-by-side boxplot to view the relationship between a numerical and a categorical variable.

ggplot2::ggplot(
  data = penguins,
  mapping = ggplot2::aes(
     x = species,
     y = body_mass_g
    )
) +
ggplot2::geom_boxplot()

Warning: Removed 2 rows containing non-finite values (`stat_boxplot()`).

Visualising Relationships

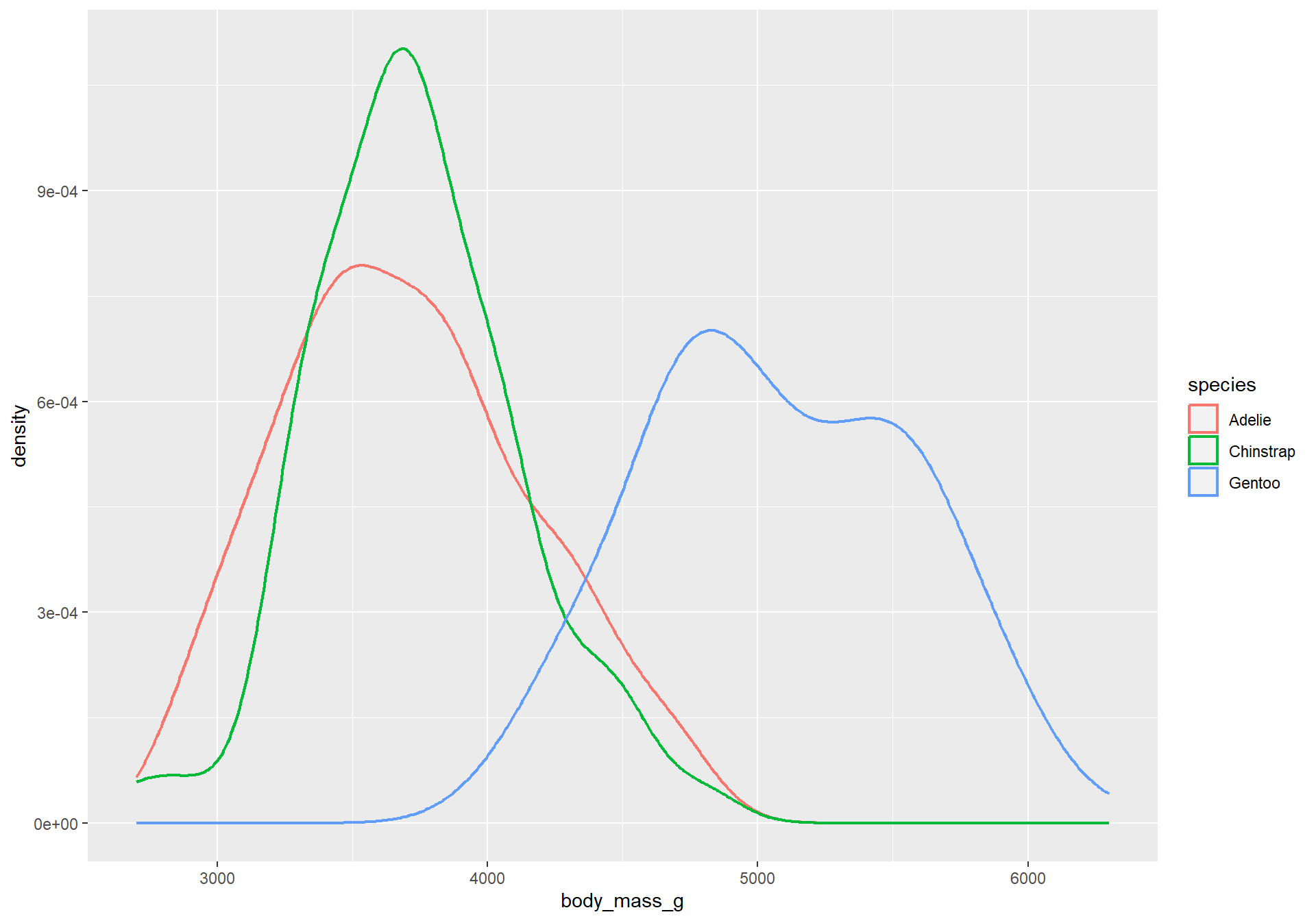

Alternatively, we can view the distribution using density plot. We use linewidth = 0.75 to make the lines stand out a bit more against the background.

ggplot2::ggplot(
    data = penguins,
  mapping = ggplot2::aes(
     x = body_mass_g,
     color = species
    )
) +
ggplot2::geom_density(
  linewidth = 0.75
)

Warning: Removed 2 rows containing non-finite values (`stat_density()`).

Visualising Relationships

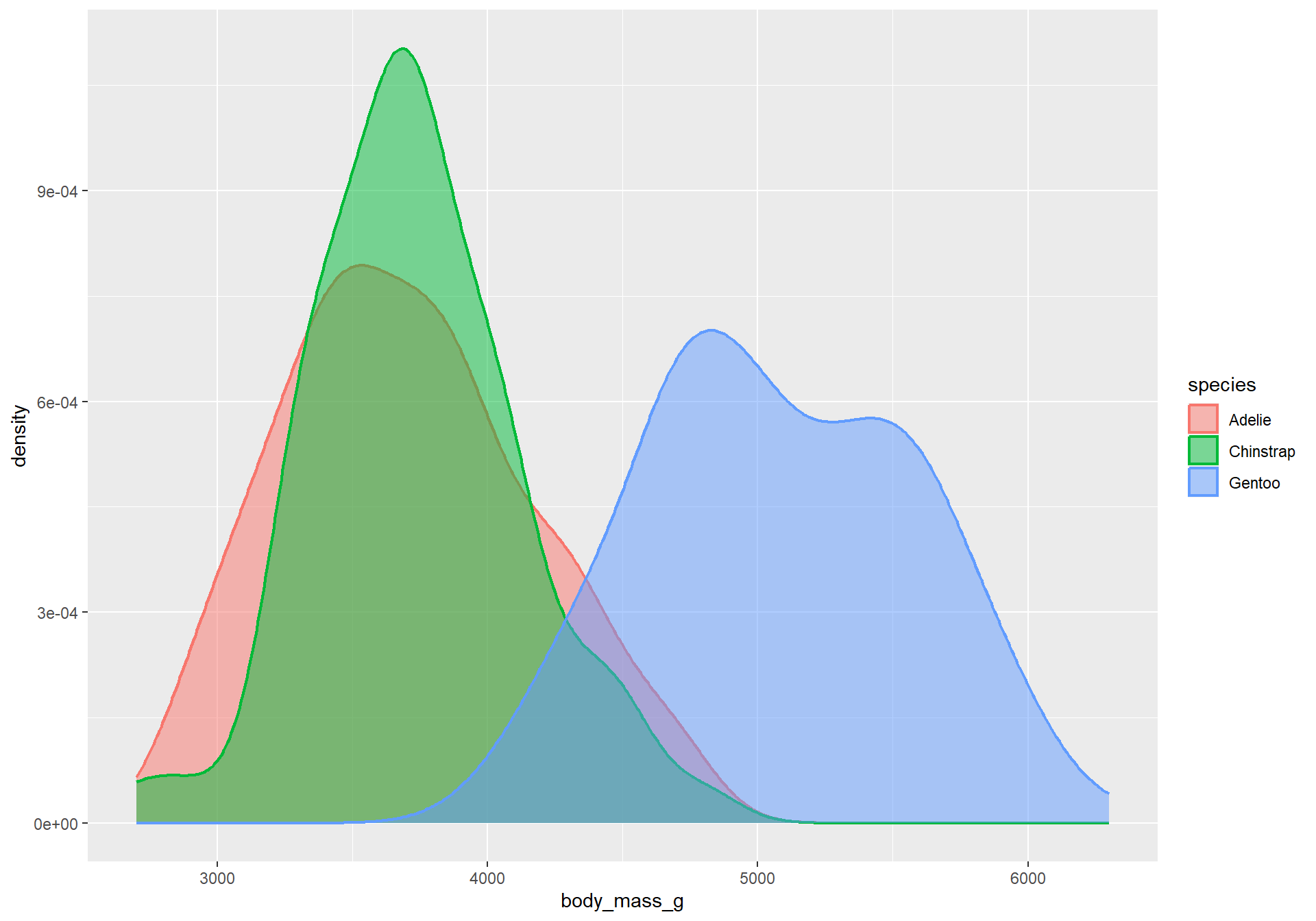

Additionally, we can set fill = species and use alpha to add transparency to the filled density curve.

ggplot2::ggplot(
  data = penguins,
  mapping = ggplot2::aes(
     x = body_mass_g,
     color = species,
     fill = species
    )
) +
ggplot2::geom_density(
  linewidth = 0.75,
  alpha = 0.5
)

Warning: Removed 2 rows containing non-finite values (`stat_density()`).

Visualising Relationships

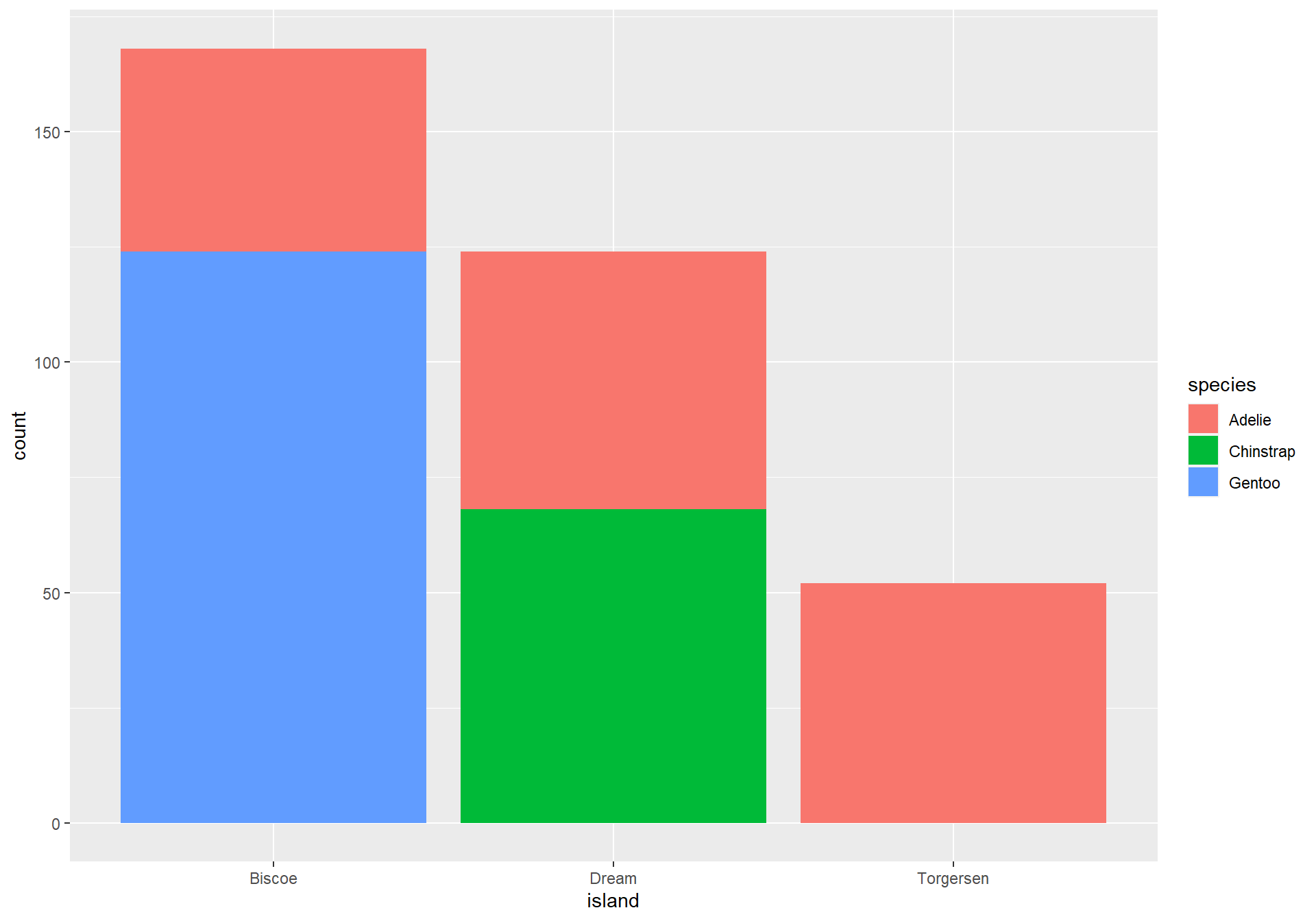

Stacked bar plots are useful to visualize the relationship between two categorical variables.

ggplot2::ggplot(
  data = penguins,
  mapping = ggplot2::aes(
     x = island,
     fill = species
    )
) +
ggplot2::geom_bar()

Visualising Relationships

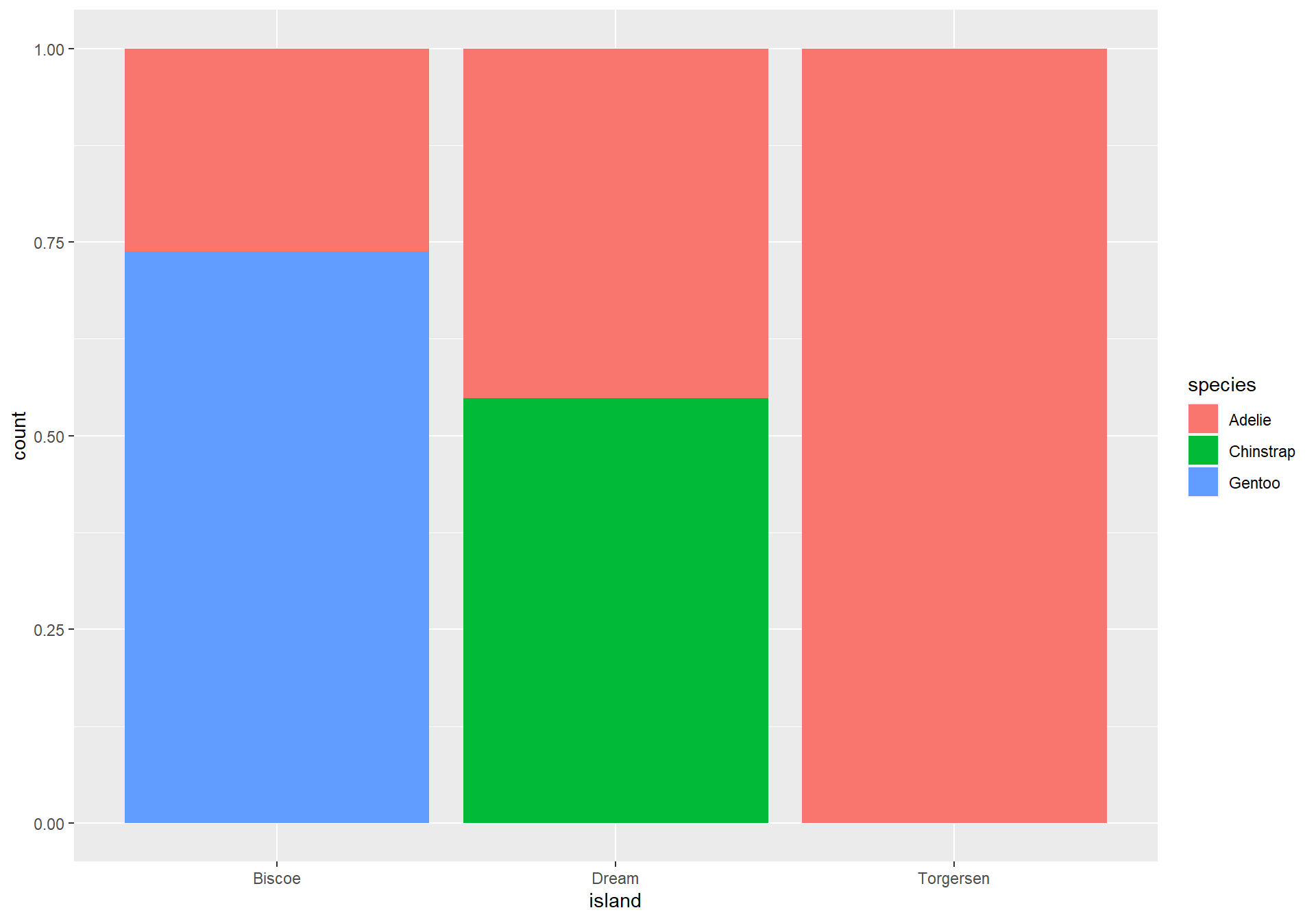

By setting position = "fill", we create a relative frequency plot.

ggplot2::ggplot(
  data = penguins,
  mapping = ggplot2::aes(
     x = island,
     fill = species
    )
) +
ggplot2::geom_bar(
  position = "fill"
)

Visualising Relationships

Scatterplots are useful to visualize the relationship between two numerical variables.

ggplot2::ggplot(
  data = penguins,
  mapping = ggplot2::aes(
     x = flipper_length_mm,
     y = body_mass_g
    )
) +
ggplot2::geom_point()

Warning: Removed 2 rows containing missing values (`geom_point()`).

Visualising Relationships

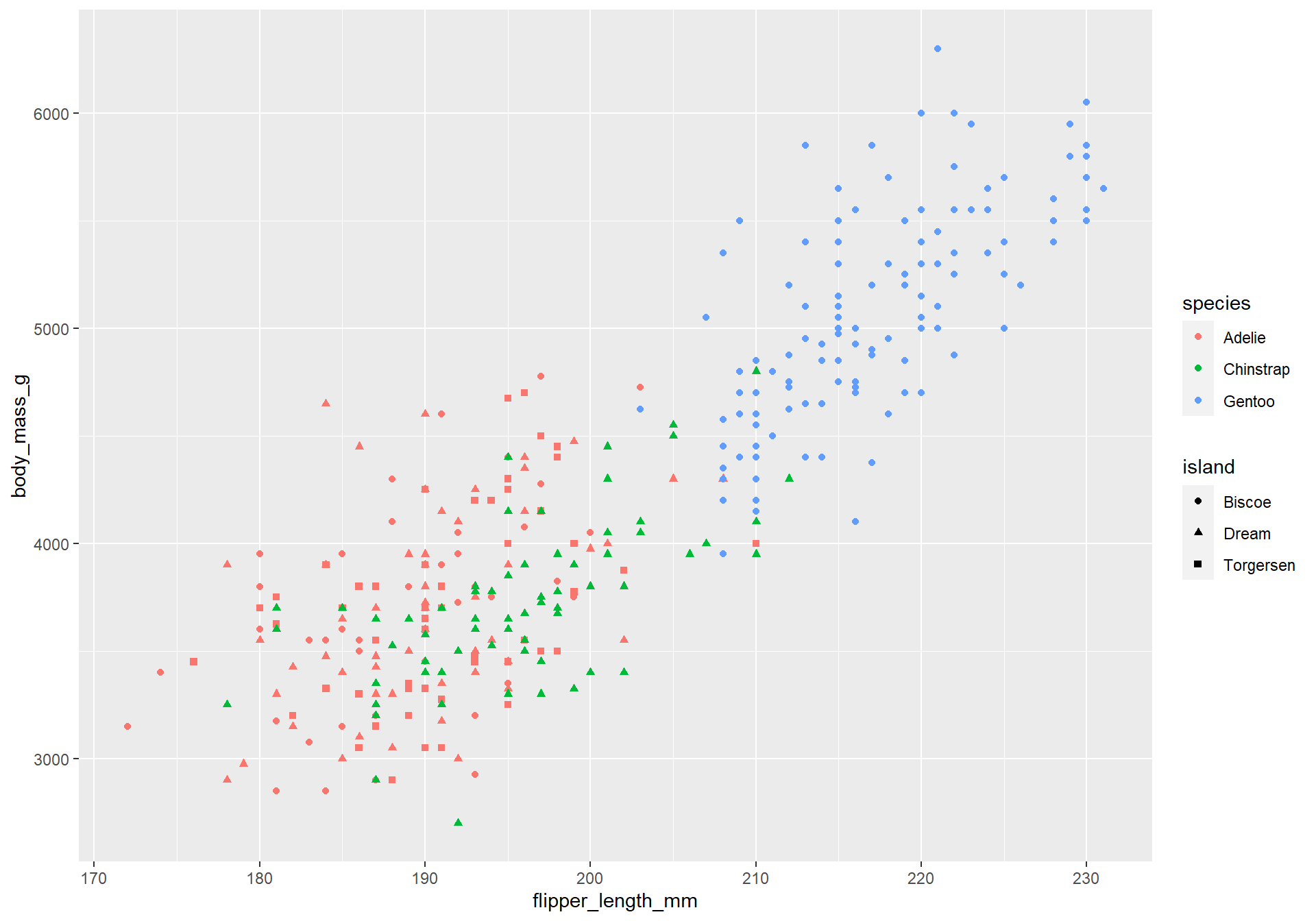

To visualize the relationship between three or more variables. Things get a bit tricky. For example, we can let colors of points represent species and the shapes of points represent islands but it is hard to see anything meaningful.

ggplot2::ggplot(
  data = penguins,
  mapping = ggplot2::aes(
     x = flipper_length_mm,
     y = body_mass_g
    )
) +
ggplot2::geom_point(
  mapping = ggplot2::aes(
     color = species,
     shape = island
    )
)

Warning: Removed 2 rows containing missing values (`geom_point()`).

Visualising Relationships

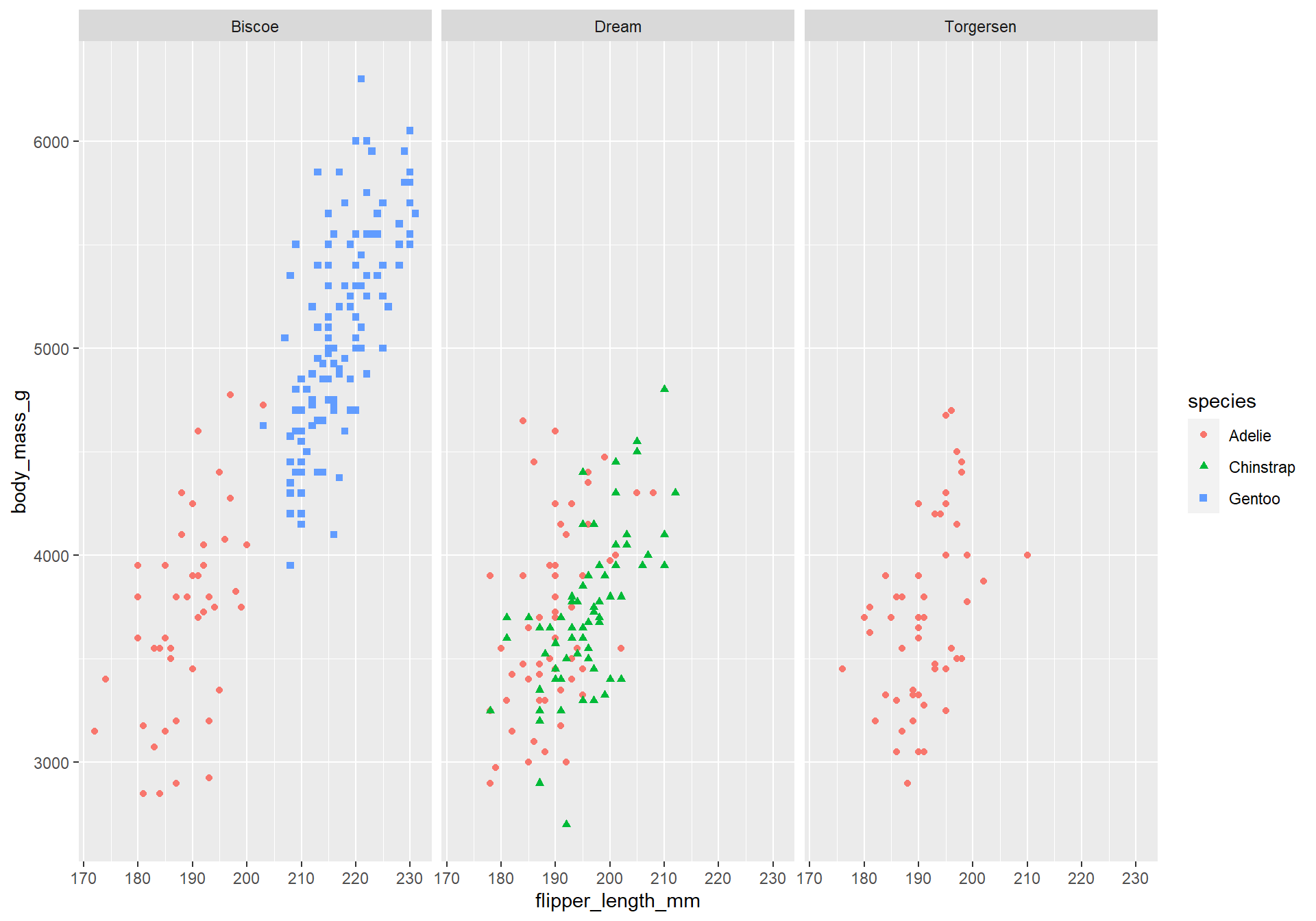

To counter this issue we can split plots into different facets, subplots that each display one subset of the data, using facet_wrap

ggplot2::ggplot(
  data = penguins,
  mapping = ggplot2::aes(
     x = flipper_length_mm,
     y = body_mass_g
    )
) +
ggplot2::geom_point(
  mapping = ggplot2::aes(
     color = species,
     shape = species
    )
) +
ggplot2::facet_wrap(
  ggplot2::vars(island)
)

Warning: Removed 2 rows containing missing values (`geom_point()`).

Exercise 2.5.5

Which variables in mpg are categorical? Which variables are numerical? How can you see this information when you run mpg? Unfortunately ?mpg is not so clear.

?mpg

Exercise 2.5.5

We can use dplyr::glimpse to identify which variables are categorical and numeric.

dplyr::glimpse(mpg)

Rows: 234
Columns: 11
$ manufacturer <chr> "audi", "audi", "audi", "audi", "audi", "audi", "audi", "…
$ model        <chr> "a4", "a4", "a4", "a4", "a4", "a4", "a4", "a4 quattro", "…
$ displ        <dbl> 1.8, 1.8, 2.0, 2.0, 2.8, 2.8, 3.1, 1.8, 1.8, 2.0, 2.0, 2.…
$ year         <int> 1999, 1999, 2008, 2008, 1999, 1999, 2008, 1999, 1999, 200…
$ cyl          <int> 4, 4, 4, 4, 6, 6, 6, 4, 4, 4, 4, 6, 6, 6, 6, 6, 6, 8, 8, …
$ trans        <chr> "auto(l5)", "manual(m5)", "manual(m6)", "auto(av)", "auto…
$ drv          <chr> "f", "f", "f", "f", "f", "f", "f", "4", "4", "4", "4", "4…
$ cty          <int> 18, 21, 20, 21, 16, 18, 18, 18, 16, 20, 19, 15, 17, 17, 1…
$ hwy          <int> 29, 29, 31, 30, 26, 26, 27, 26, 25, 28, 27, 25, 25, 25, 2…
$ fl           <chr> "p", "p", "p", "p", "p", "p", "p", "p", "p", "p", "p", "p…
$ class        <chr> "compact", "compact", "compact", "compact", "compact", "c…

Exercise 2.5.5

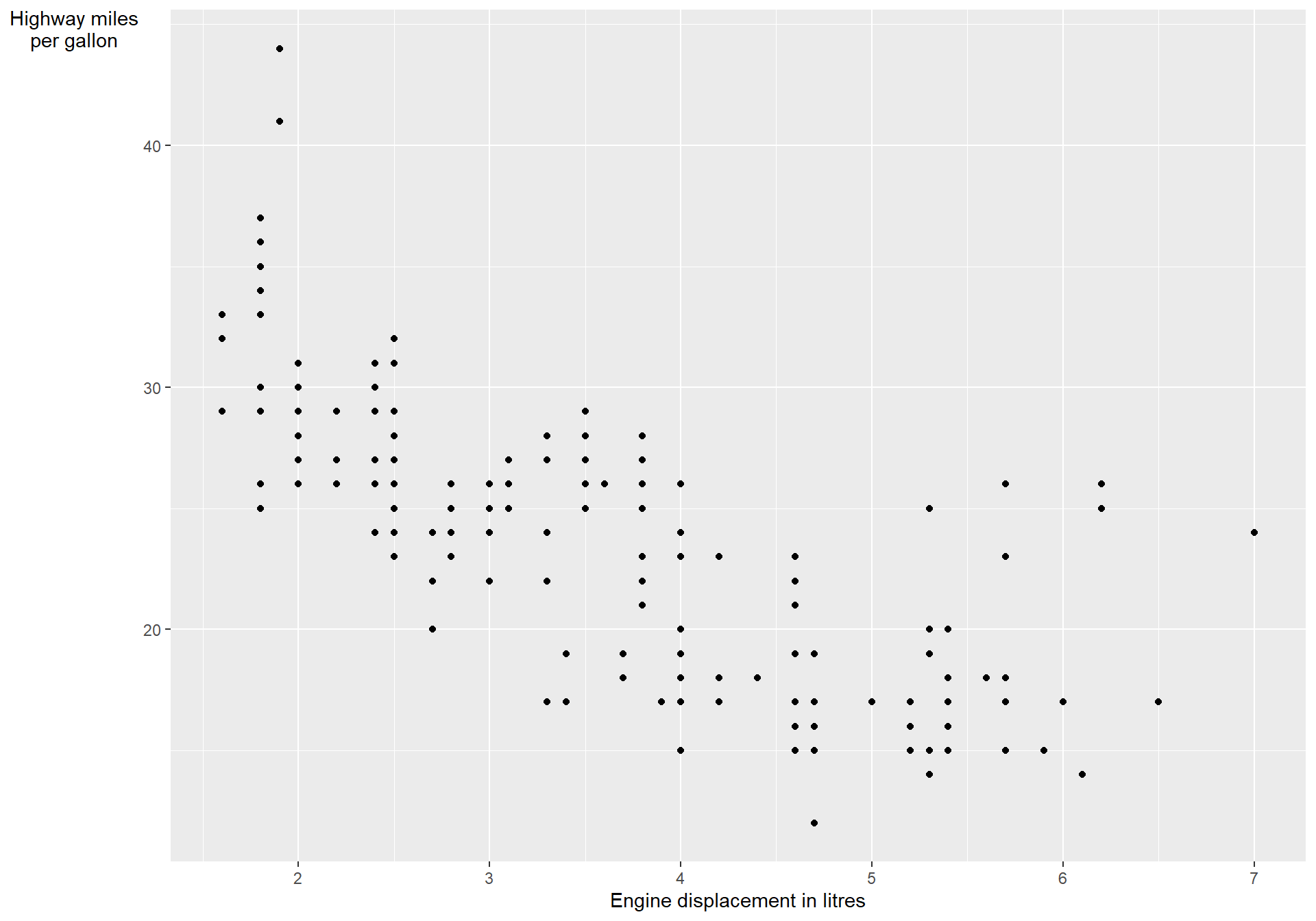

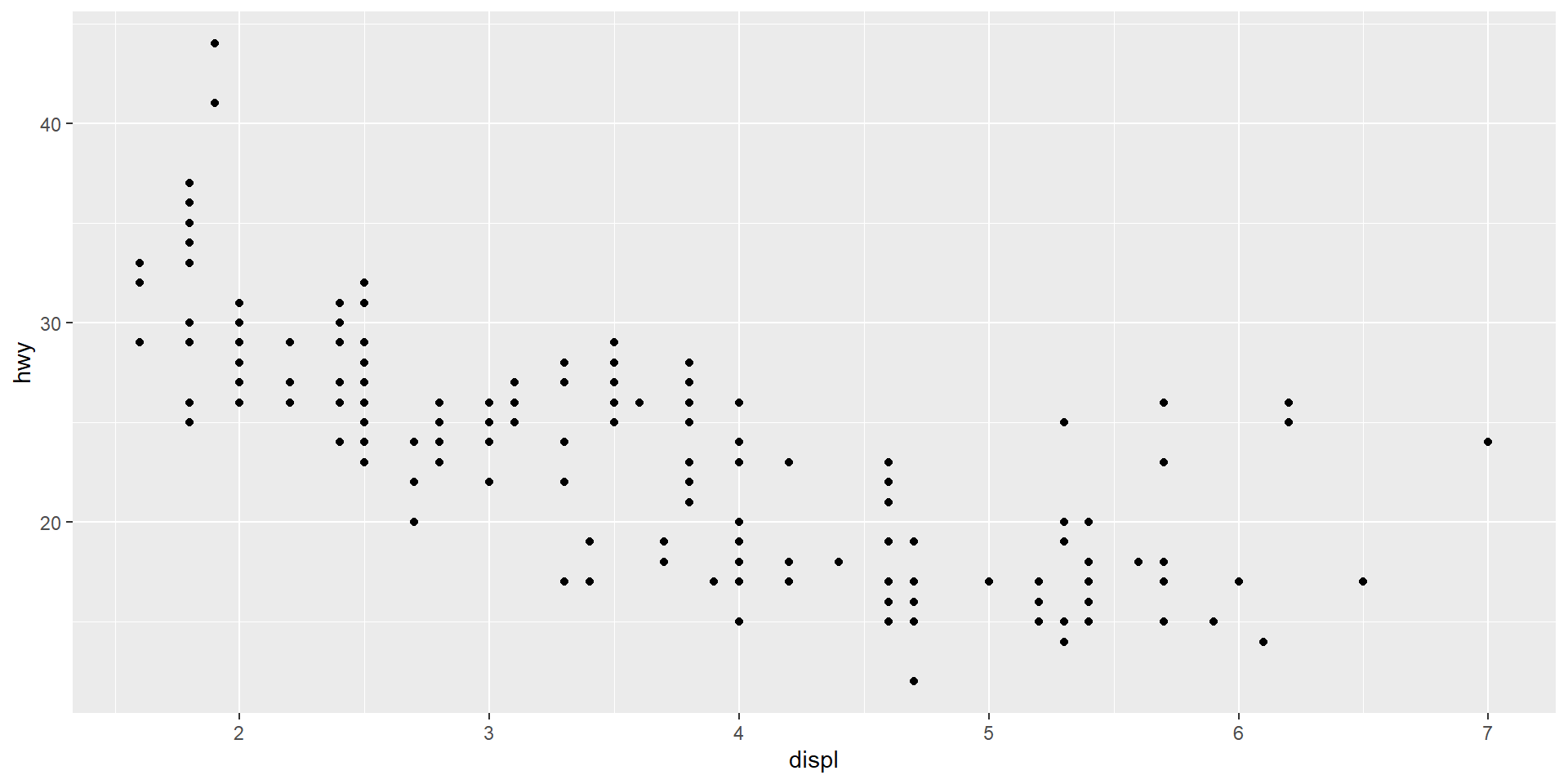

Make a scatterplot of hwy vs. displ using the mpg data frame

ggplot2::ggplot(
  data = mpg,
  mapping = ggplot2::aes(
    x = .data[["displ"]],
    y = .data[["hwy"]])
) +
  ggplot2::geom_point() +
ggplot2::theme(
  axis.title.y = ggplot2::element_text(angle = 0)
) +
ggplot2::labs(
    x = "Engine displacement in litres",
    y = "Highway miles\nper gallon"
  )

Exercise 2.5.5

Next, map a third, numerical/categorical variable to color, then size, then both color and size, then shape.

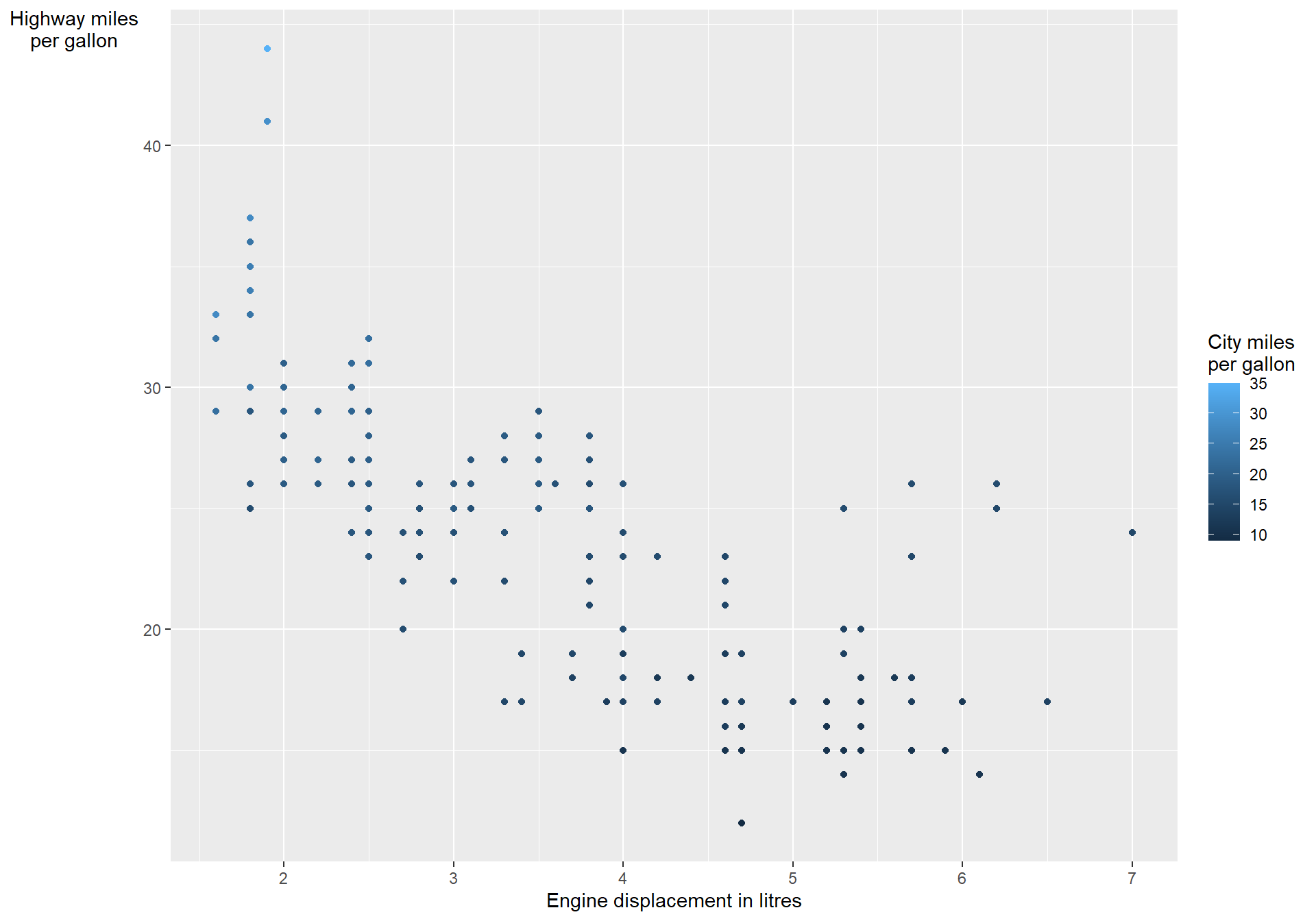

• Color (cty)
• Color (class)

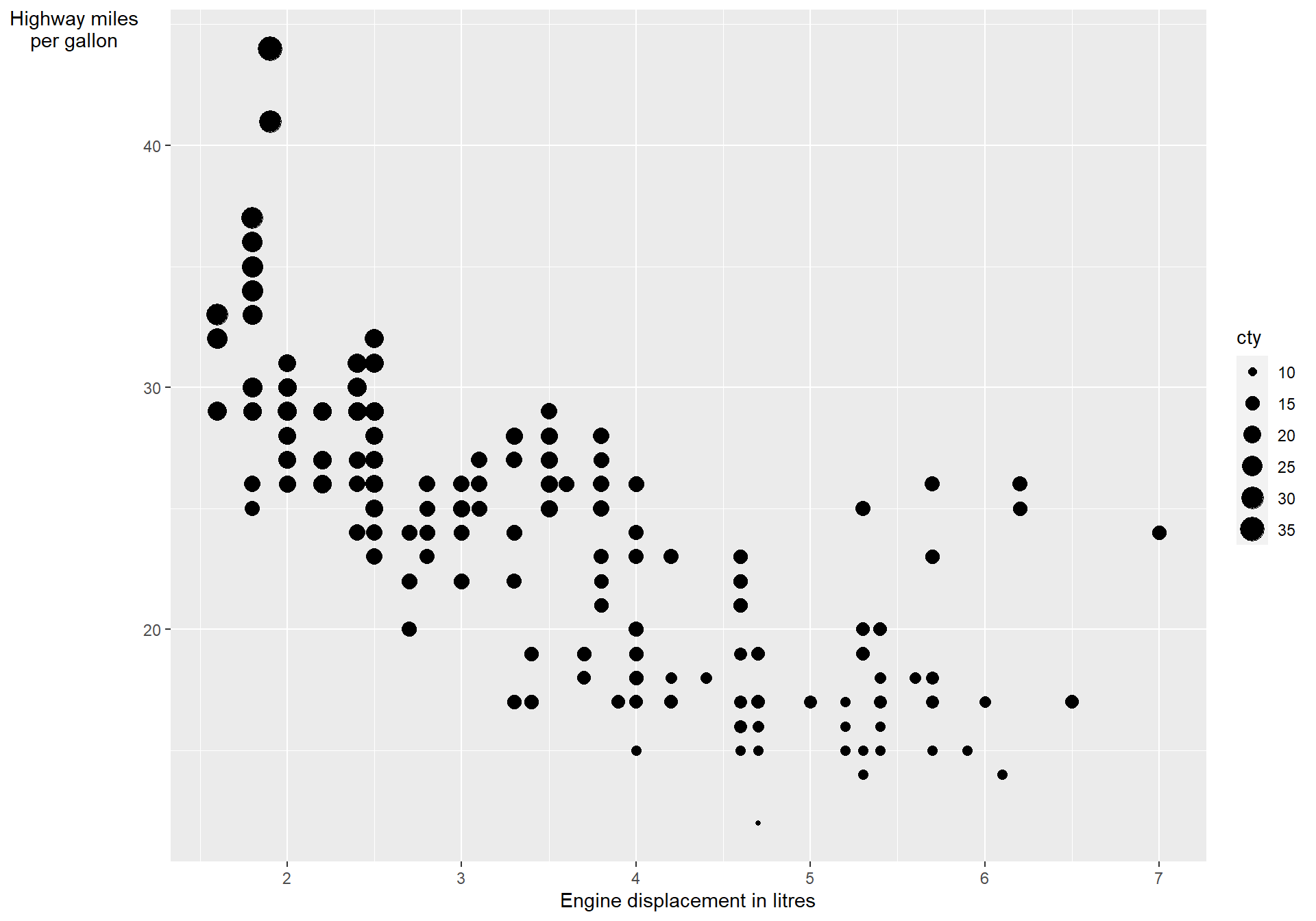

• Size (cty)
• Size (class)

ggplot2::ggplot(
  data = mpg,
  mapping = ggplot2::aes(
    x = .data[["displ"]],
    y = .data[["hwy"]],
    color = .data[["cty"]])
) +
  ggplot2::geom_point() +
ggplot2::theme(
  axis.title.y = ggplot2::element_text(angle = 0)
) +
ggplot2::labs(
    x = "Engine displacement in litres",
    y = "Highway miles\nper gallon",
    colour = "City miles\nper gallon"
  )

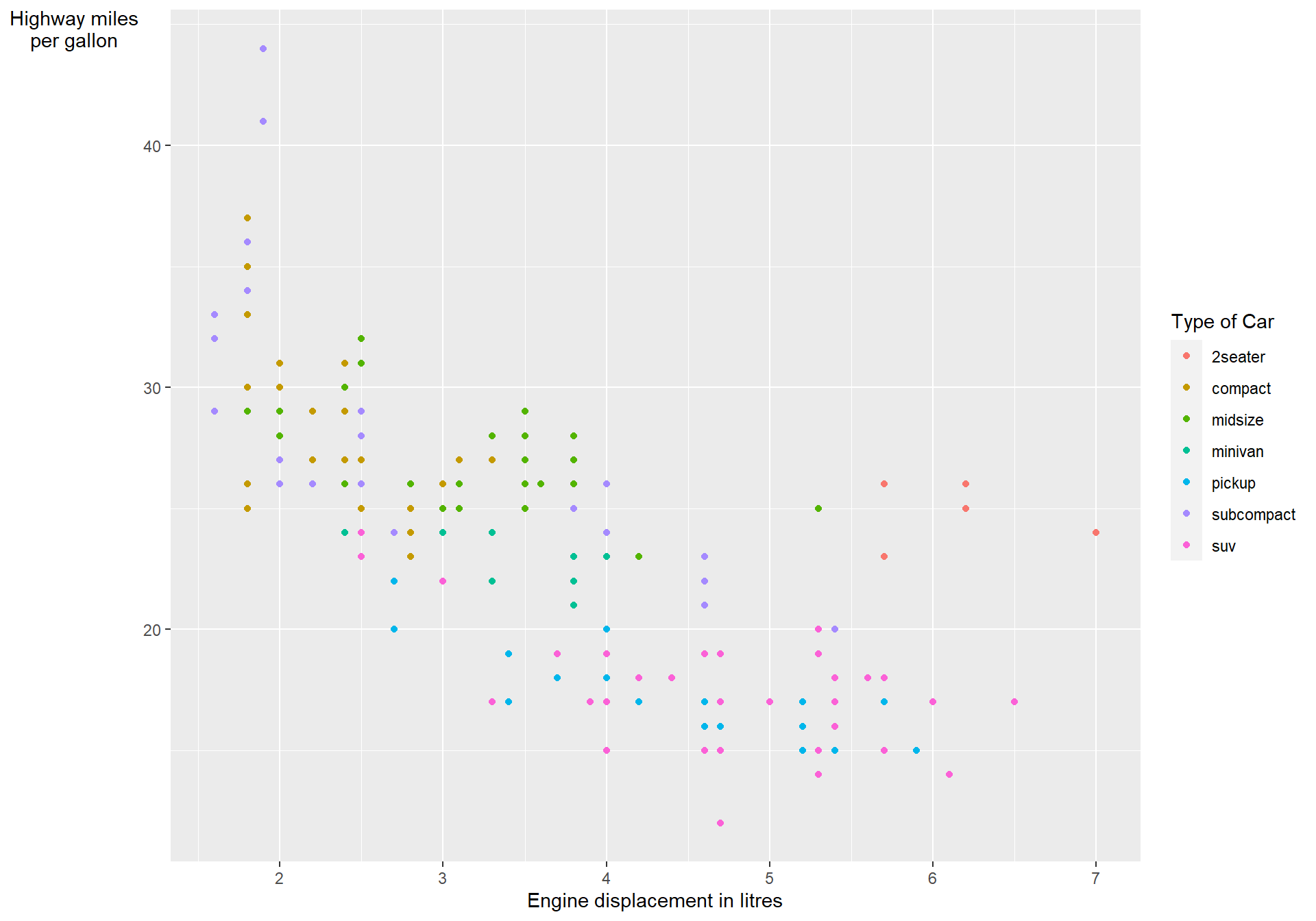

ggplot2::ggplot(
  data = mpg,
  mapping = ggplot2::aes(
    x = .data[["displ"]],
    y = .data[["hwy"]],
    color = .data[["class"]])
) +
  ggplot2::geom_point() +
ggplot2::theme(
  axis.title.y = ggplot2::element_text(angle = 0)
) +
ggplot2::labs(
    x = "Engine displacement in litres",
    y = "Highway miles\nper gallon",
    color = "Type of Car"
  )

ggplot2::ggplot(
  data = mpg,
  mapping = ggplot2::aes(
    x = .data[["displ"]],
    y = .data[["hwy"]],
    size = .data[["cty"]])
) +
  ggplot2::geom_point() +
ggplot2::theme(
  axis.title.y = ggplot2::element_text(angle = 0)
) +
ggplot2::labs(
    x = "Engine displacement in litres",
    y = "Highway miles\nper gallon",
    colour = "City miles\nper gallon"
  )

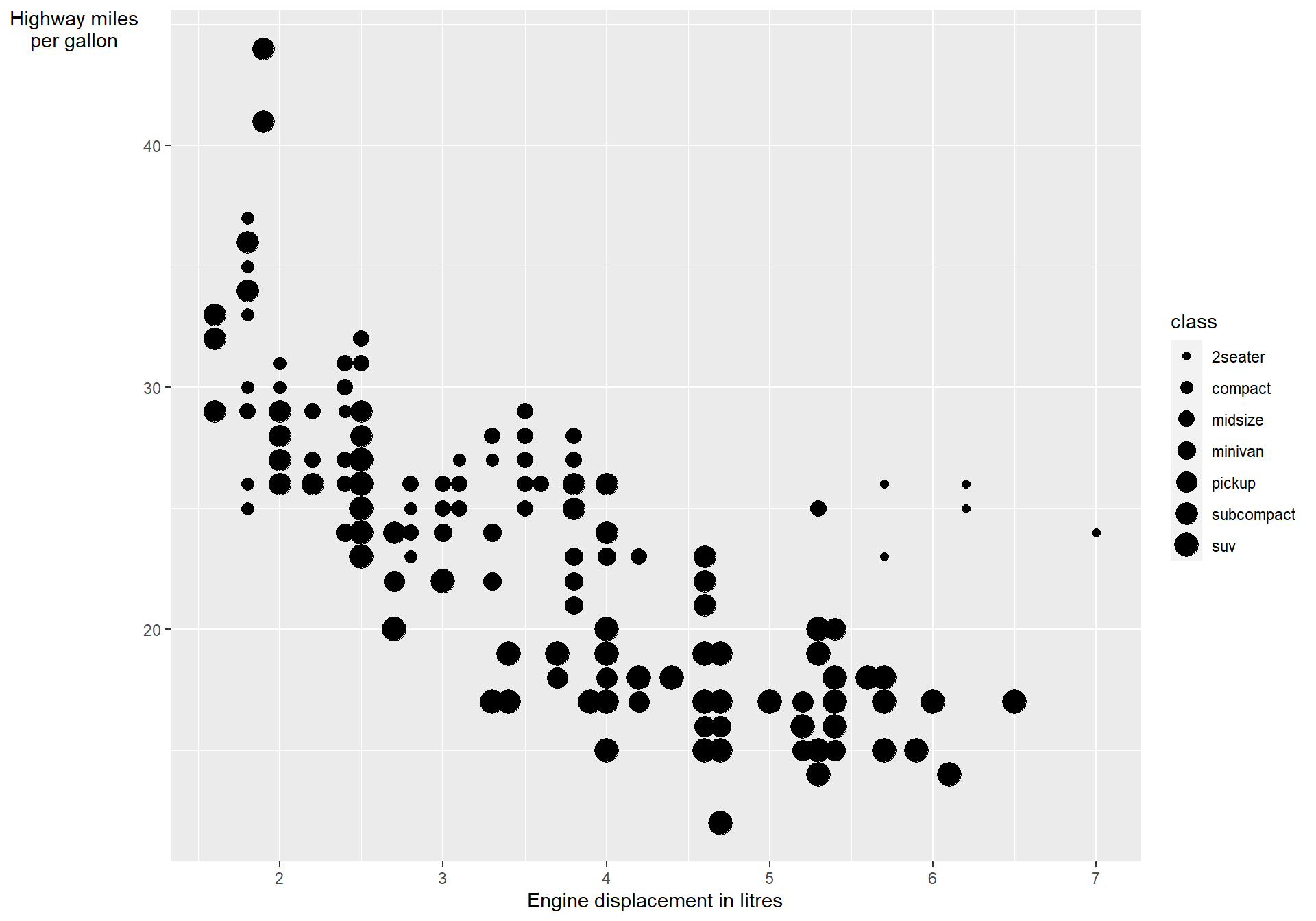

ggplot2::ggplot(
  data = mpg,
  mapping = ggplot2::aes(
    x = .data[["displ"]],
    y = .data[["hwy"]],
    size = .data[["class"]])
) +
  ggplot2::geom_point() +
ggplot2::theme(
  axis.title.y = ggplot2::element_text(angle = 0)
) +
ggplot2::labs(
    x = "Engine displacement in litres",
    y = "Highway miles\nper gallon",
    color = "Type of Car"
  )

Warning: Using size for a discrete variable is not advised.

Exercise 2.5.5

Next, map a third, numerical/categorical variable to color, then size, then both color and size, then shape.

• Color and Size (cty)

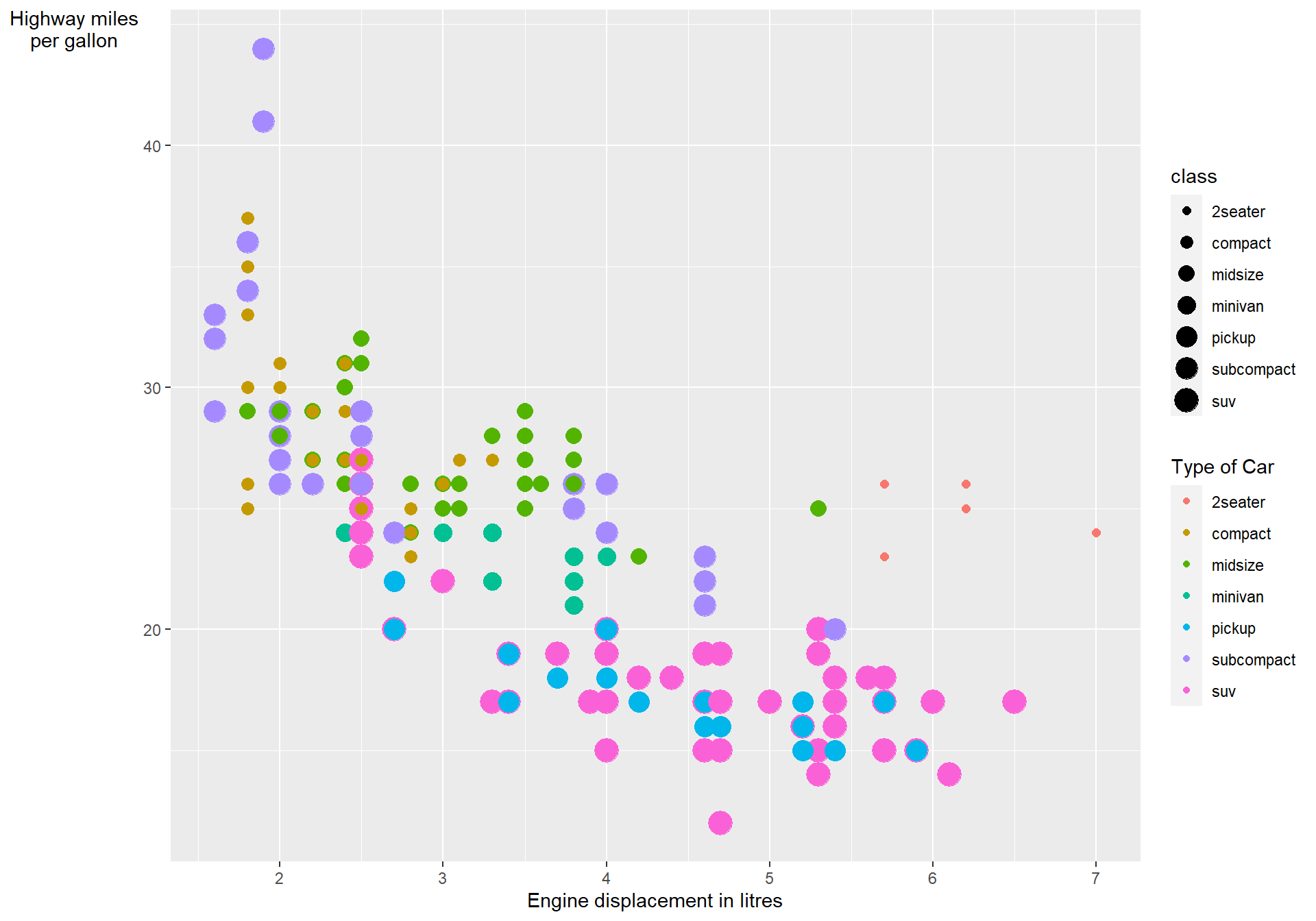

• Color and Size (class)

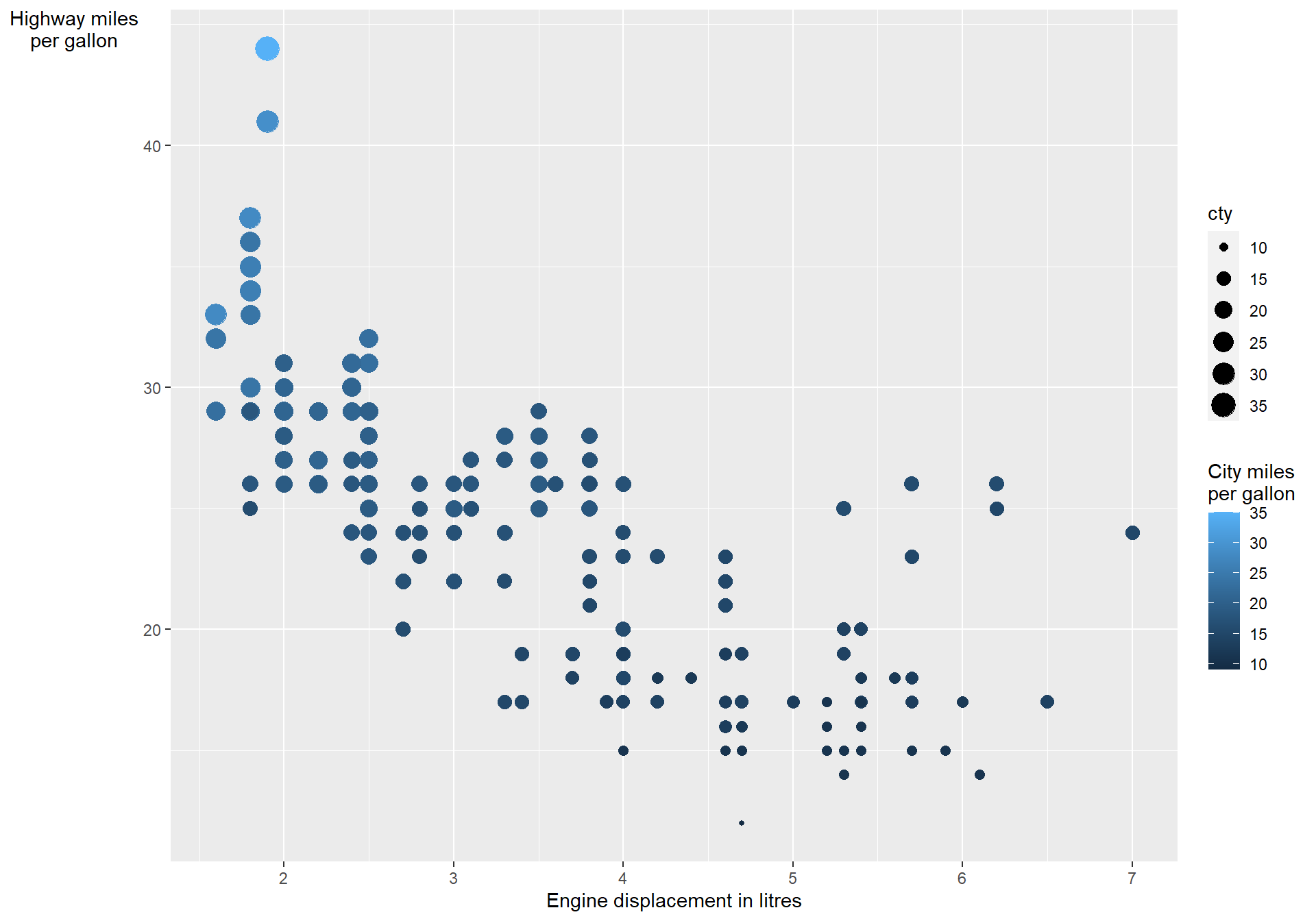

ggplot2::ggplot(
  data = mpg,
  mapping = ggplot2::aes(
    x = .data[["displ"]],
    y = .data[["hwy"]],
    color = .data[["cty"]],
    size = .data[["cty"]])
) +
  ggplot2::geom_point() +
ggplot2::theme(
  axis.title.y = ggplot2::element_text(angle = 0)
) +
ggplot2::labs(
    x = "Engine displacement in litres",
    y = "Highway miles\nper gallon",
    colour = "City miles\nper gallon"
  )

ggplot2::ggplot(
  data = mpg,
  mapping = ggplot2::aes(
    x = .data[["displ"]],
    y = .data[["hwy"]],
    color = .data[["class"]],
    size = .data[["class"]])
) +
  ggplot2::geom_point() +
ggplot2::theme(
  axis.title.y = ggplot2::element_text(angle = 0)
) +
ggplot2::labs(
    x = "Engine displacement in litres",
    y = "Highway miles\nper gallon",
    color = "Type of Car"
  )

Warning: Using size for a discrete variable is not advised.

Exercise 2.5.5

Next, map a third, numerical/categorical variable to color, then size, then both color and size, then shape

• Shape (cty)
• Shape (cty) Fixed

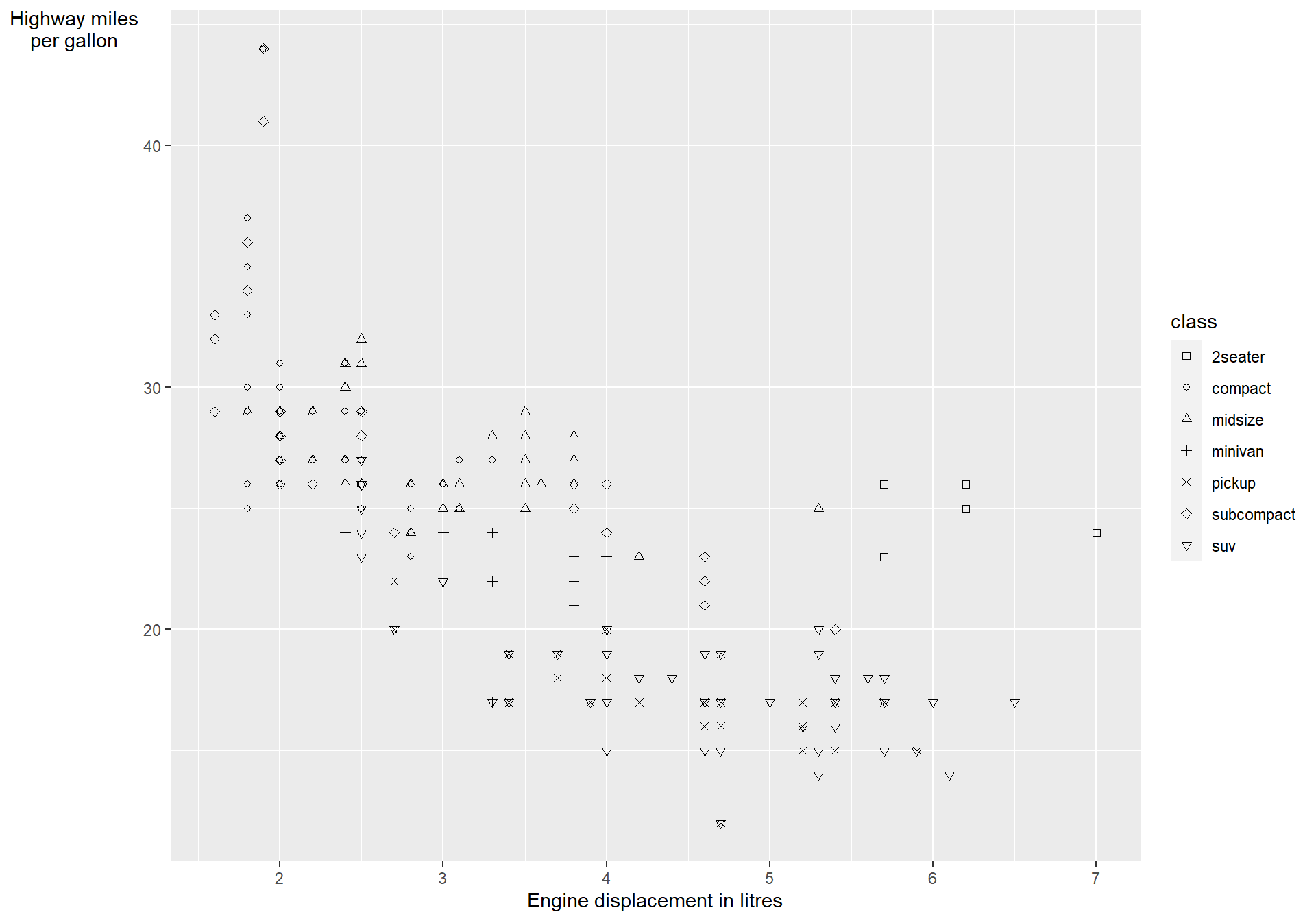

• Shape (class)
• Shape (class) Fixed

ggplot2::ggplot(
  data = mpg,
  mapping = ggplot2::aes(
    x = .data[["displ"]],
    y = .data[["hwy"]],
    shape = .data[["cty"]])
) +
  ggplot2::geom_point() +
ggplot2::theme(
  axis.title.y = ggplot2::element_text(angle = 0)
) +
ggplot2::labs(
    x = "Engine displacement in litres",
    y = "Highway miles\nper gallon",
    colour = "City miles\nper gallon"
  )

Error in `ggplot2::geom_point()`:
! Problem while computing aesthetics.
ℹ Error occurred in the 1st layer.
Caused by error in `scale_f()`:
! A continuous variable cannot be mapped to the shape aesthetic
ℹ choose a different aesthetic or use `scale_shape_binned()`

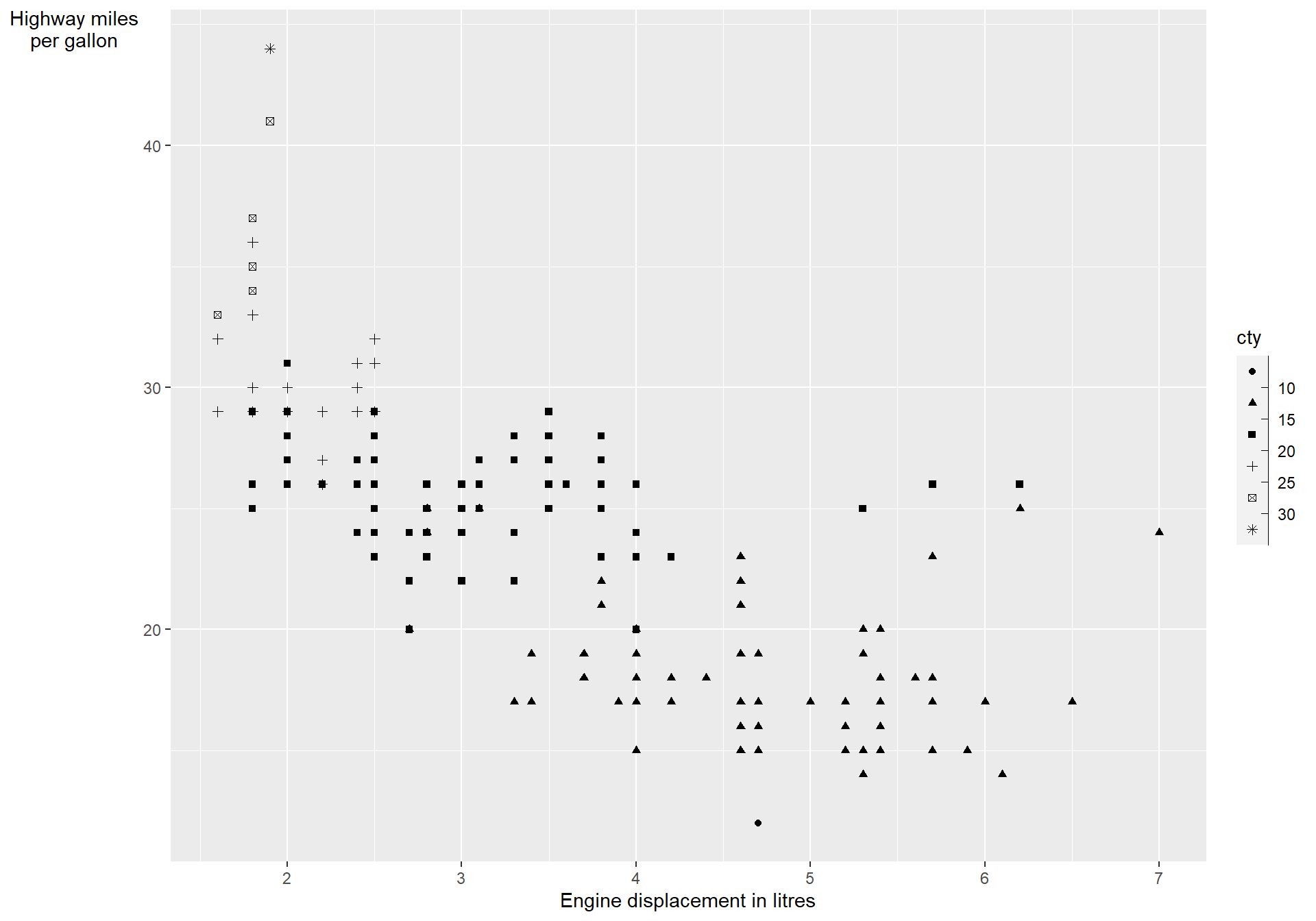

ggplot2::ggplot(
  data = mpg,
  mapping = ggplot2::aes(
    x = .data[["displ"]],
    y = .data[["hwy"]],
    shape = .data[["cty"]])
) +
  ggplot2::geom_point() +
  ggplot2::scale_shape_binned() +
ggplot2::theme(
  axis.title.y = ggplot2::element_text(angle = 0)
) +
ggplot2::labs(
    x = "Engine displacement in litres",
    y = "Highway miles\nper gallon",
    colour = "City miles\nper gallon"
  )

ggplot2::ggplot(
  data = mpg,
  mapping = ggplot2::aes(
    x = .data[["displ"]],
    y = .data[["hwy"]],
    shape = .data[["class"]])
) +
  ggplot2::geom_point() +
ggplot2::theme(
  axis.title.y = ggplot2::element_text(angle = 0)
) +
ggplot2::labs(
    x = "Engine displacement in litres",
    y = "Highway miles\nper gallon",
    color = "Type of Car"
  )

Warning: The shape palette can deal with a maximum of 6 discrete values because
more than 6 becomes difficult to discriminate; you have 7. Consider
specifying shapes manually if you must have them.

Warning: Removed 62 rows containing missing values (`geom_point()`).

See stackoverflow link for more info.

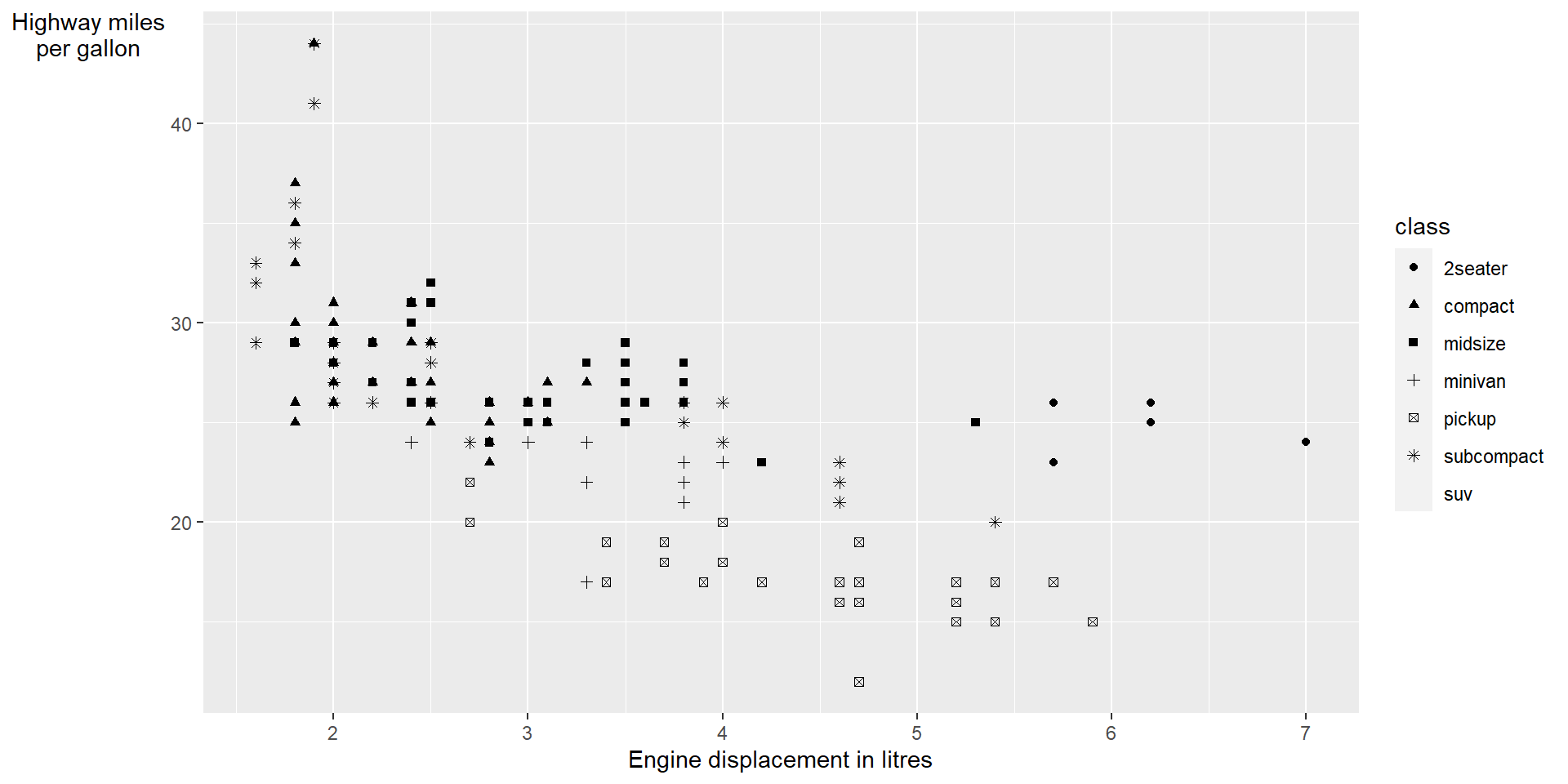

ggplot2::ggplot(
  data = mpg,
  mapping = ggplot2::aes(
    x = .data[["displ"]],
    y = .data[["hwy"]],
    shape = .data[["class"]])
) +
  ggplot2::geom_point() +
ggplot2::scale_shape_manual(values= c(0:7)) +
ggplot2::theme(
  axis.title.y = ggplot2::element_text(angle = 0)
) +
ggplot2::labs(
    x = "Engine displacement in litres",
    y = "Highway miles\nper gallon",
    color = "Type of Car"
  )

Exercise 2.5.5

In the scatterplot of hwy vs. displ, what happens if you map a third variable to linewidth?

• Lucky case
• Unlucky case
• Oh No case

ggplot2::ggplot(
  data = mpg,
  mapping = ggplot2::aes(
    x = .data[["displ"]],
    y = .data[["hwy"]],
    linewidth = .data[["year"]])
) +
  ggplot2::geom_point()

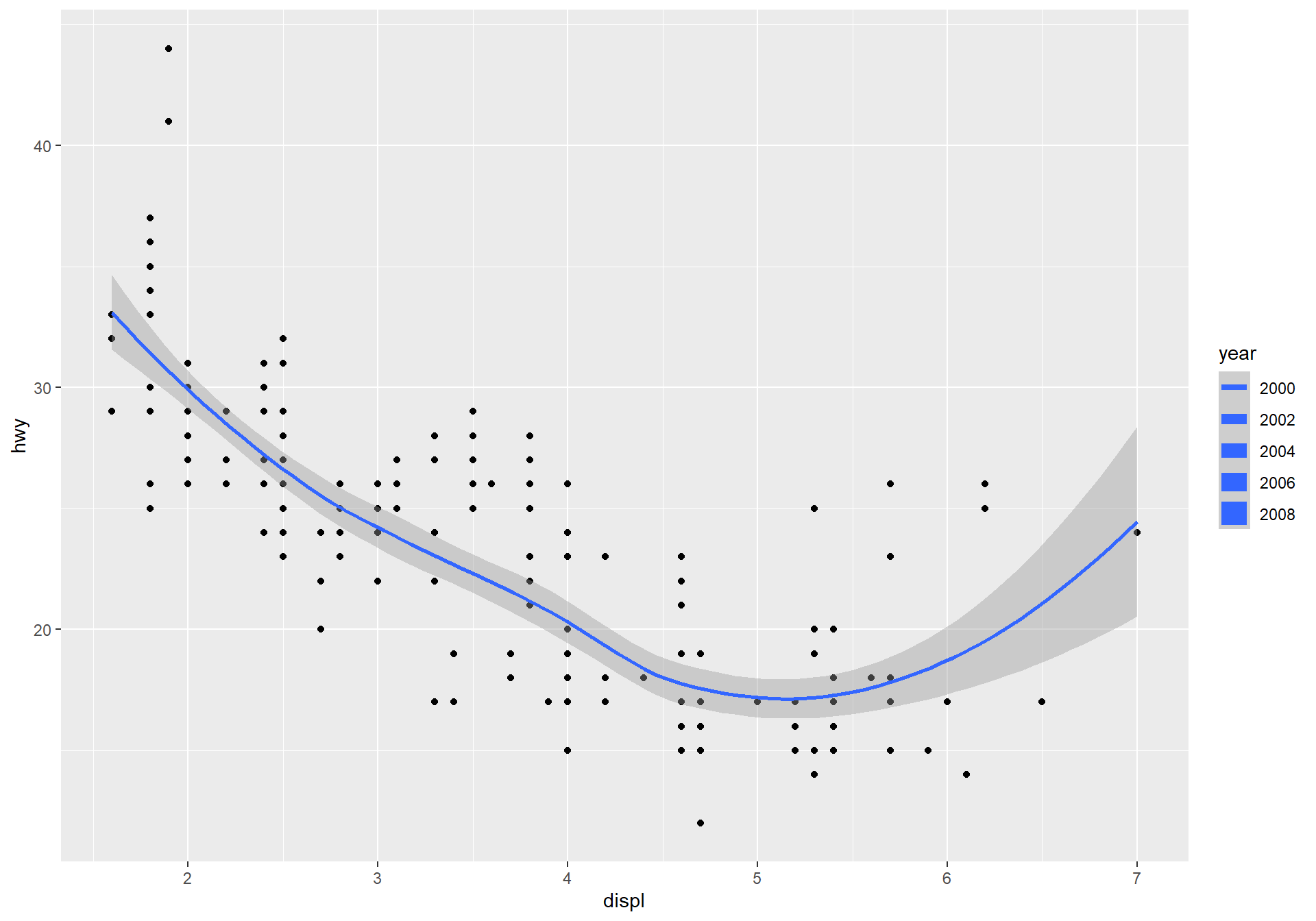

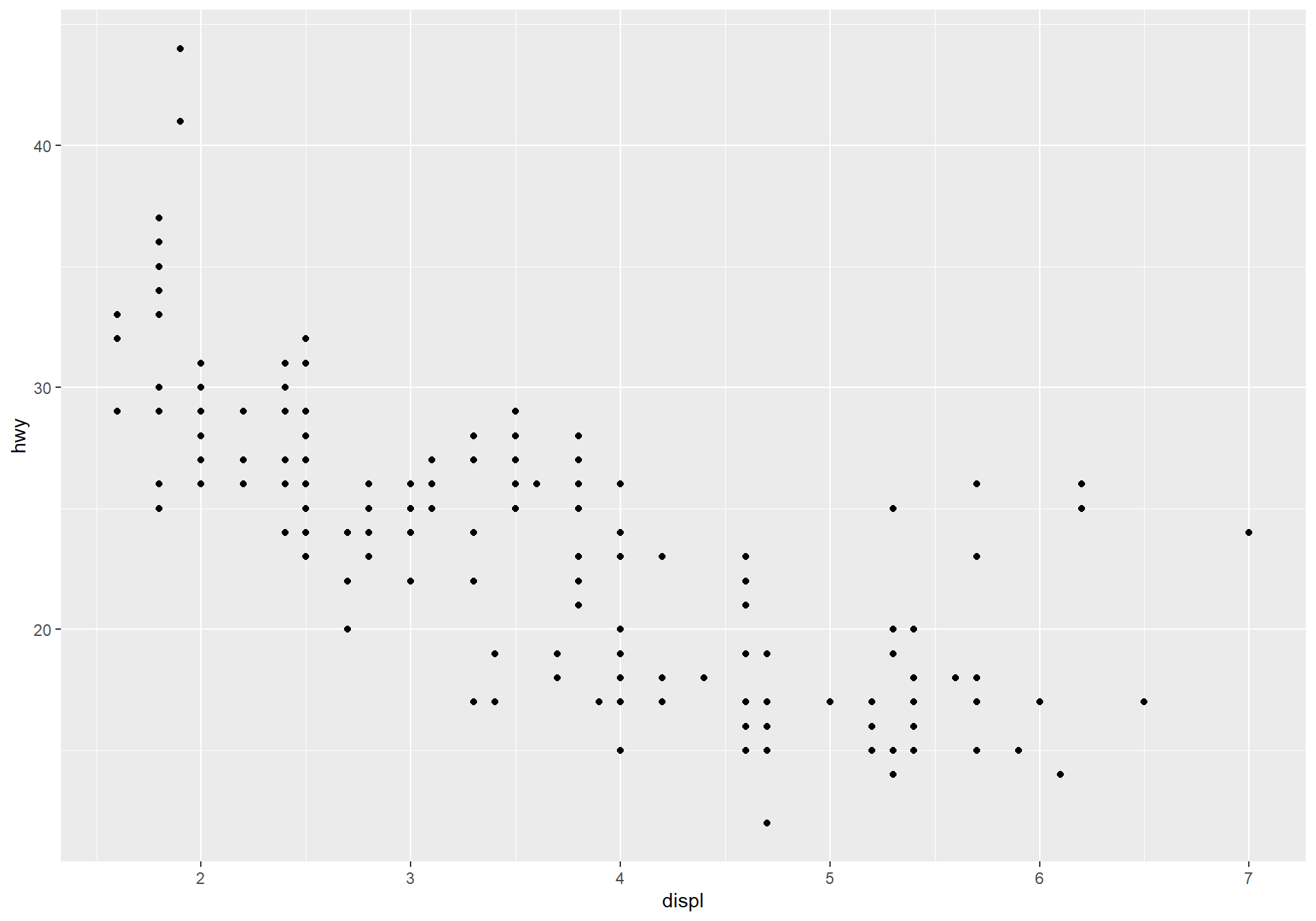

ggplot2::ggplot(
  data = mpg,
  mapping = ggplot2::aes(
    x = .data[["displ"]],
    y = .data[["hwy"]],
    linewidth = .data[["year"]])
) +
  ggplot2::geom_point() +
  ggplot2::geom_smooth()

`geom_smooth()` using method = 'loess' and formula = 'y ~ x'

Warning: The following aesthetics were dropped during statistical transformation:
linewidth
ℹ This can happen when ggplot fails to infer the correct grouping structure in
  the data.
ℹ Did you forget to specify a `group` aesthetic or to convert a numerical
  variable into a factor?

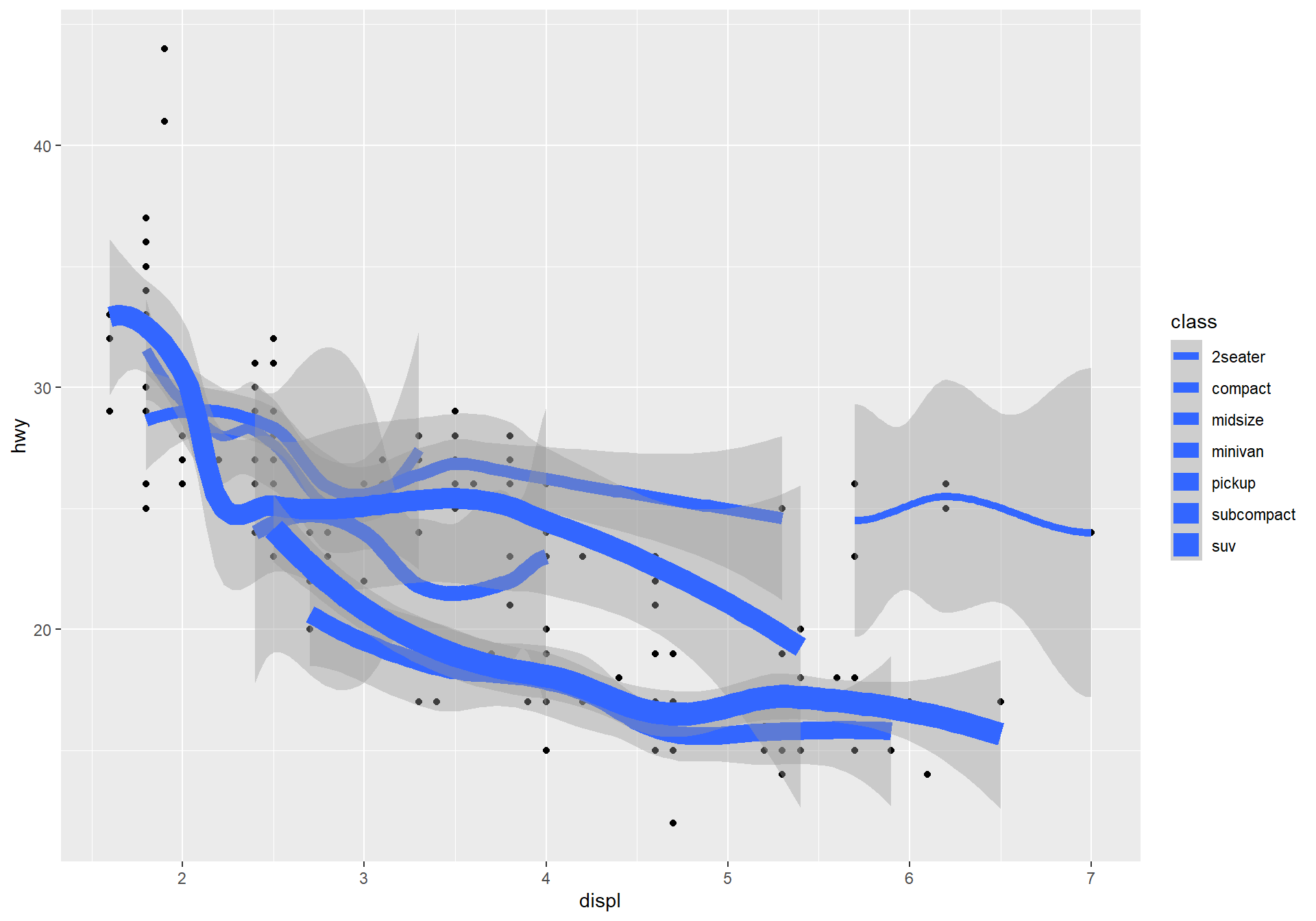

ggplot2::ggplot(
  data = mpg,
  mapping = ggplot2::aes(
    x = .data[["displ"]],
    y = .data[["hwy"]],
    linewidth = .data[["class"]])
) +
  ggplot2::geom_point() +
  ggplot2::geom_smooth()

Warning: Using linewidth for a discrete variable is not advised.

`geom_smooth()` using method = 'loess' and formula = 'y ~ x'

Warning in simpleLoess(y, x, w, span, degree = degree, parametric = parametric,
: span too small.  fewer data values than degrees of freedom.

Warning in simpleLoess(y, x, w, span, degree = degree, parametric = parametric,
: pseudoinverse used at 5.6935

Warning in simpleLoess(y, x, w, span, degree = degree, parametric = parametric,
: neighborhood radius 0.5065

Warning in simpleLoess(y, x, w, span, degree = degree, parametric = parametric,
: reciprocal condition number 0

Warning in simpleLoess(y, x, w, span, degree = degree, parametric = parametric,
: There are other near singularities as well. 0.65044

Warning in predLoess(object$y, object$x, newx = if (is.null(newdata)) object$x
else if (is.data.frame(newdata))
as.matrix(model.frame(delete.response(terms(object)), : span too small.  fewer
data values than degrees of freedom.

Warning in predLoess(object$y, object$x, newx = if (is.null(newdata)) object$x
else if (is.data.frame(newdata))
as.matrix(model.frame(delete.response(terms(object)), : pseudoinverse used at
5.6935

Warning in predLoess(object$y, object$x, newx = if (is.null(newdata)) object$x
else if (is.data.frame(newdata))
as.matrix(model.frame(delete.response(terms(object)), : neighborhood radius
0.5065

Warning in predLoess(object$y, object$x, newx = if (is.null(newdata)) object$x
else if (is.data.frame(newdata))
as.matrix(model.frame(delete.response(terms(object)), : reciprocal condition
number 0

Warning in predLoess(object$y, object$x, newx = if (is.null(newdata)) object$x
else if (is.data.frame(newdata))
as.matrix(model.frame(delete.response(terms(object)), : There are other near
singularities as well. 0.65044

Warning in simpleLoess(y, x, w, span, degree = degree, parametric = parametric,
: pseudoinverse used at 4.008

Warning in simpleLoess(y, x, w, span, degree = degree, parametric = parametric,
: neighborhood radius 0.708

Warning in simpleLoess(y, x, w, span, degree = degree, parametric = parametric,
: reciprocal condition number 0

Warning in simpleLoess(y, x, w, span, degree = degree, parametric = parametric,
: There are other near singularities as well. 0.25

Warning in predLoess(object$y, object$x, newx = if (is.null(newdata)) object$x
else if (is.data.frame(newdata))
as.matrix(model.frame(delete.response(terms(object)), : pseudoinverse used at
4.008

Warning in predLoess(object$y, object$x, newx = if (is.null(newdata)) object$x
else if (is.data.frame(newdata))
as.matrix(model.frame(delete.response(terms(object)), : neighborhood radius
0.708

Warning in predLoess(object$y, object$x, newx = if (is.null(newdata)) object$x
else if (is.data.frame(newdata))
as.matrix(model.frame(delete.response(terms(object)), : reciprocal condition
number 0

Warning in predLoess(object$y, object$x, newx = if (is.null(newdata)) object$x
else if (is.data.frame(newdata))
as.matrix(model.frame(delete.response(terms(object)), : There are other near
singularities as well. 0.25

Exercise 2.5.5

What happens if you map the same variable to multiple aesthetics?

• Lucky case
• Unlucky case

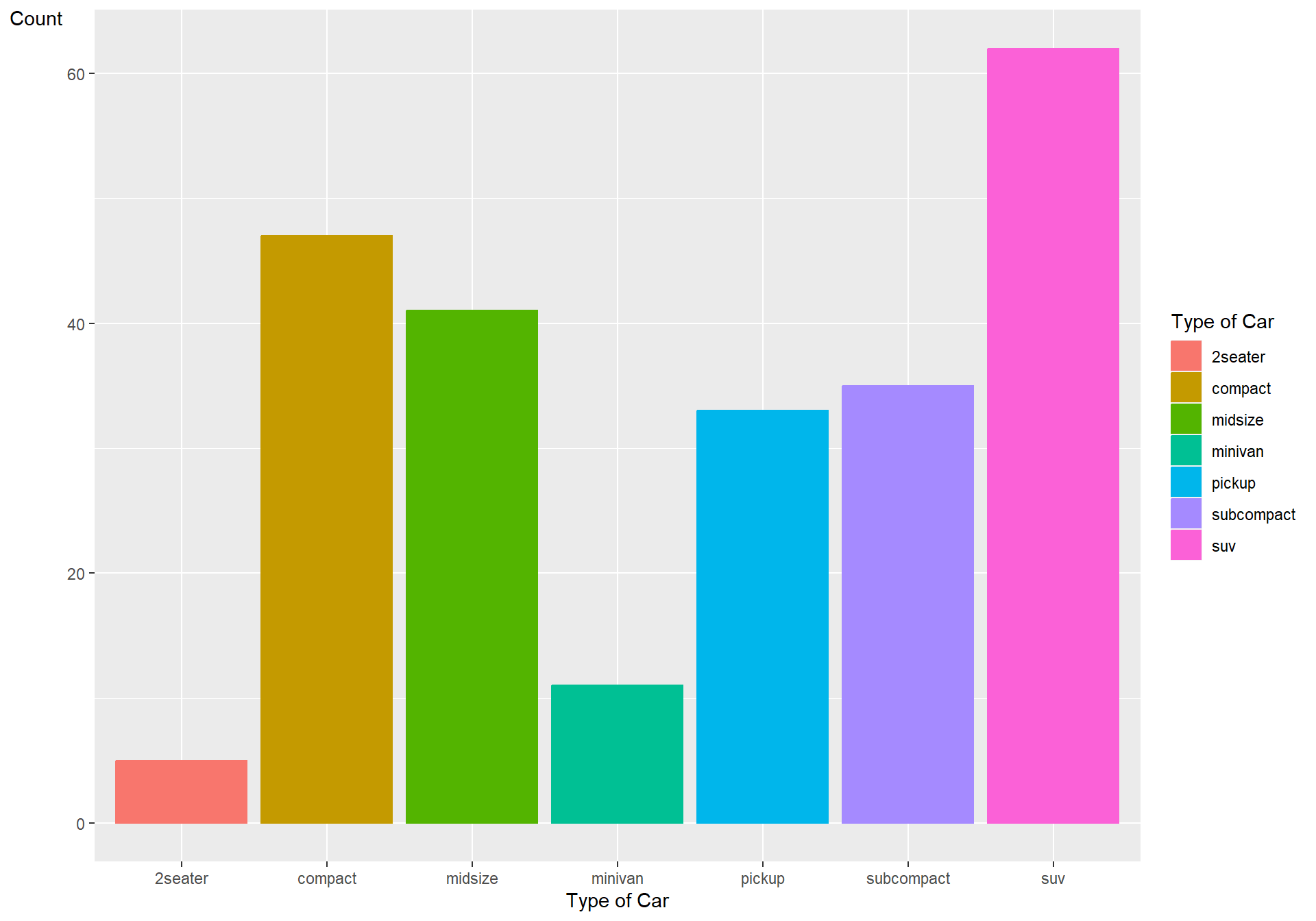

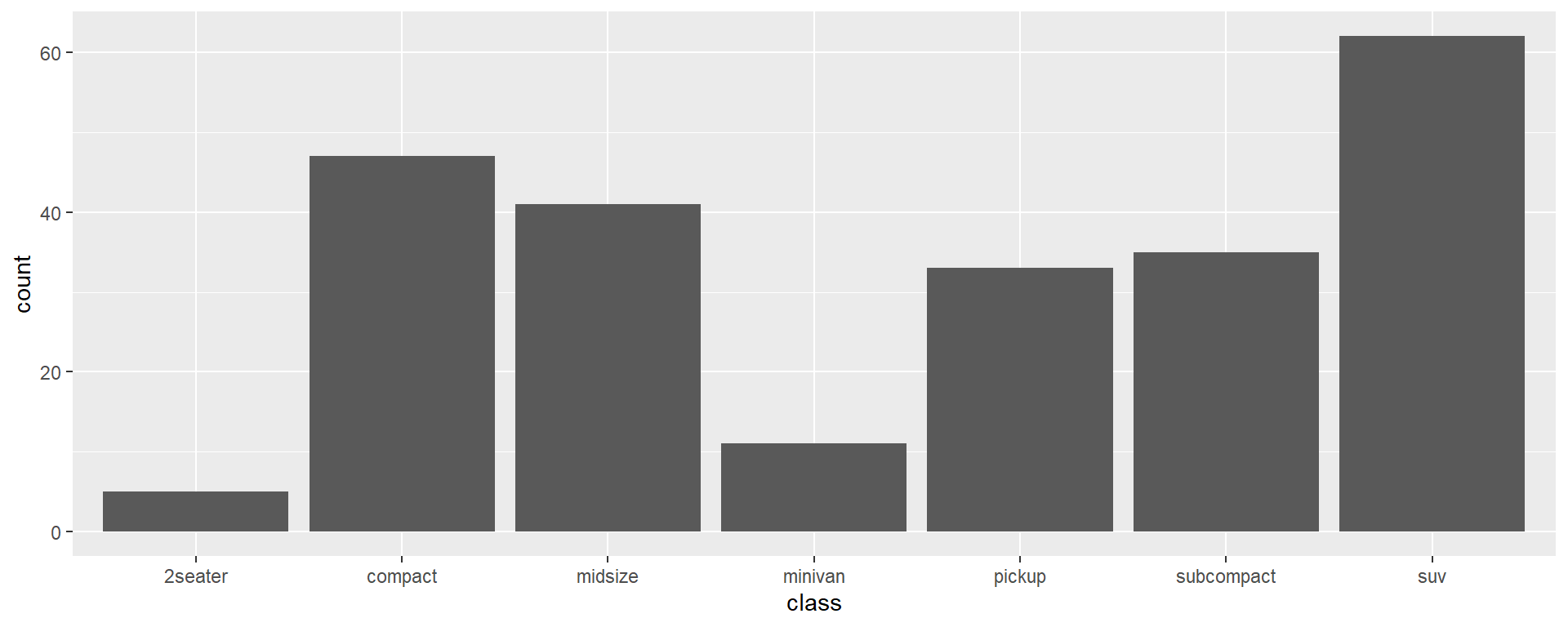

ggplot2::ggplot(
  data = mpg,
  mapping = ggplot2::aes(
    x = .data[["class"]],
    colour = .data[["class"]],
    fill = .data[["class"]])

) +
  ggplot2::geom_bar() +
ggplot2::theme(
  axis.title.y = ggplot2::element_text(angle = 0)
) +
ggplot2::labs(
    x = "Type of Car",
    y = "Count",
    color = "Type of Car",
    fill = "Type of Car"
  )

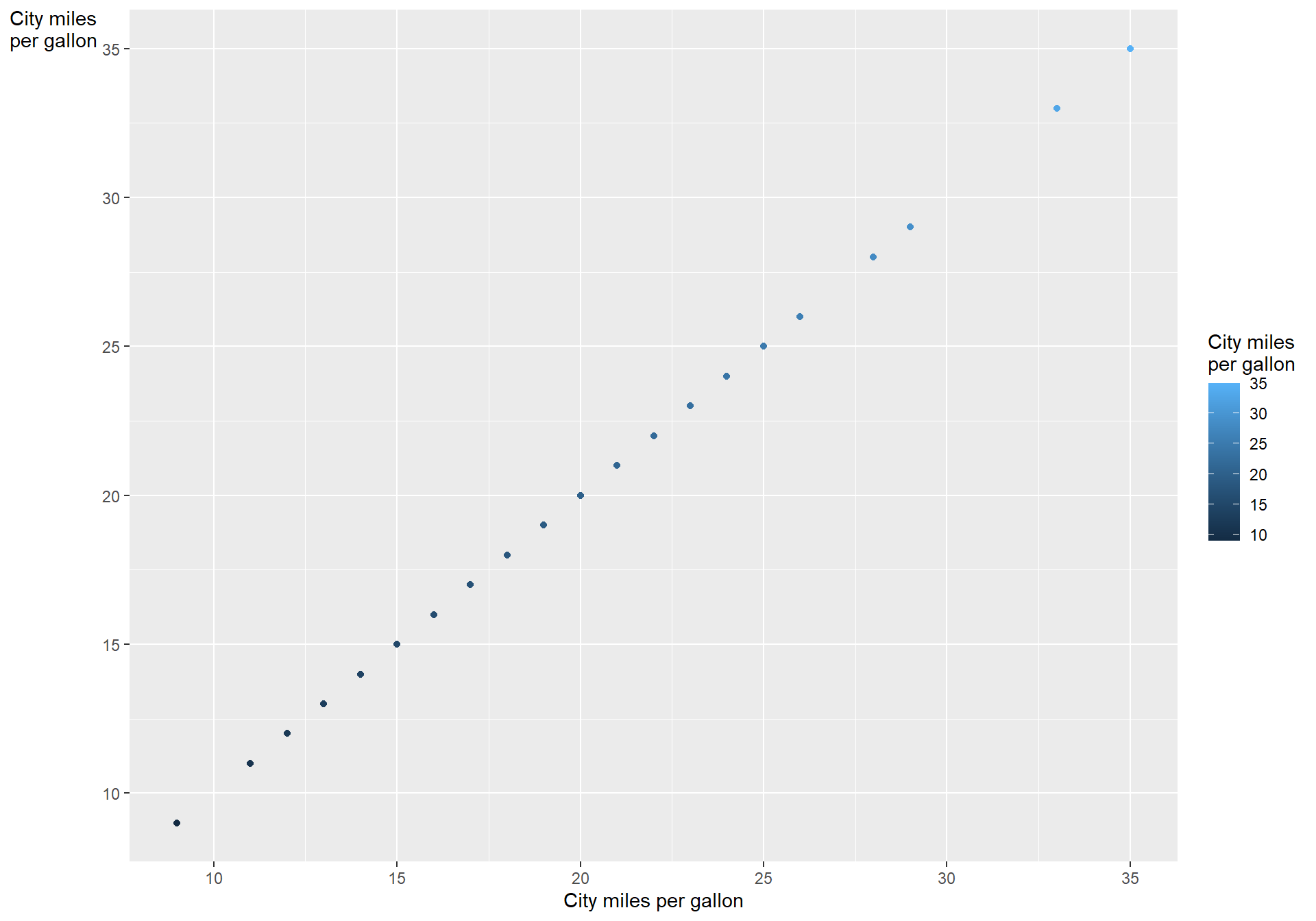

ggplot2::ggplot(
  data = mpg,
  mapping = ggplot2::aes(
    x = .data[["cty"]],
    y = .data[["cty"]],
    colour = .data[["cty"]])

) +
  ggplot2::geom_point() +
ggplot2::theme(
  axis.title.y = ggplot2::element_text(angle = 0)
) +
ggplot2::labs(
    x = "City miles per gallon",
    y = "City miles\nper gallon",
    color = "City miles\nper gallon",
  )

Exercise 2.5.5

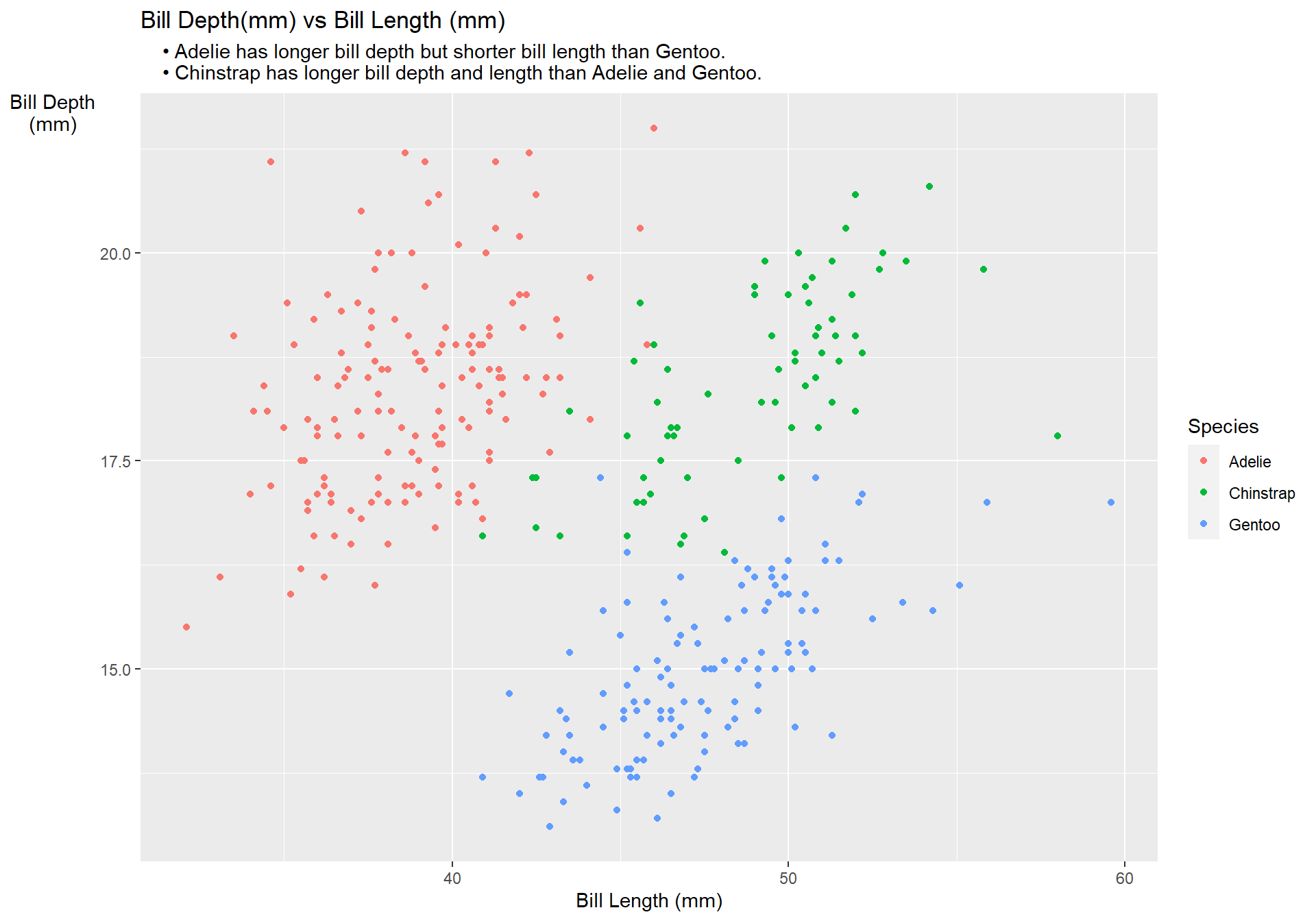

Make a scatterplot of bill_depth_mm vs. bill_length_mm and color the points by species. What does adding coloring by species reveal about the relationship between these two variables? What about faceting by species?

• No facet
• With facet

ggplot2::ggplot(
  data = penguins,
  mapping = ggplot2::aes(
    x = .data[["bill_length_mm"]],
    y = .data[["bill_depth_mm"]],
    colour = .data[["species"]])

) +
  ggplot2::geom_point() +
ggplot2::theme(
  axis.title.y = ggplot2::element_text(angle = 0)
) +
ggplot2::labs(
    title = "Bill Depth(mm) vs Bill Length (mm)",
    subtitle = glue::glue("
        \U2022 Adelie has longer bill depth but shorter bill length than Gentoo.
        \U2022 Chinstrap has longer bill depth and length than Adelie and Gentoo.
    "),
    x = "Bill Length (mm)",
    y = "Bill Depth\n(mm)",
    color = "Species",
  )

Warning: Removed 2 rows containing missing values (`geom_point()`).

ggplot2::ggplot(
  data = penguins,
  mapping = ggplot2::aes(
    x = .data[["bill_length_mm"]],
    y = .data[["bill_depth_mm"]],
    colour = .data[["species"]])

) +
  ggplot2::geom_point() +
  ggplot2::facet_wrap(
    facets = ggplot2::vars(.data[["species"]])
) +
ggplot2::theme(
  axis.title.y = ggplot2::element_text(angle = 0)
) +
ggplot2::labs(
    title = "Bill Depth(mm) vs Bill Length (mm)",
    subtitle = glue::glue("
        \U2022 Adelie has longer bill depth but shorter bill length than Gentoo.
        \U2022 Chinstrap has longer bill depth and length than Adelie and Gentoo.
    "),
    x = "Bill Length (mm)",
    y = "Bill Depth\n(mm)",
    color = "Species",
  )

Warning: Removed 2 rows containing missing values (`geom_point()`).

Exercise 2.5.5

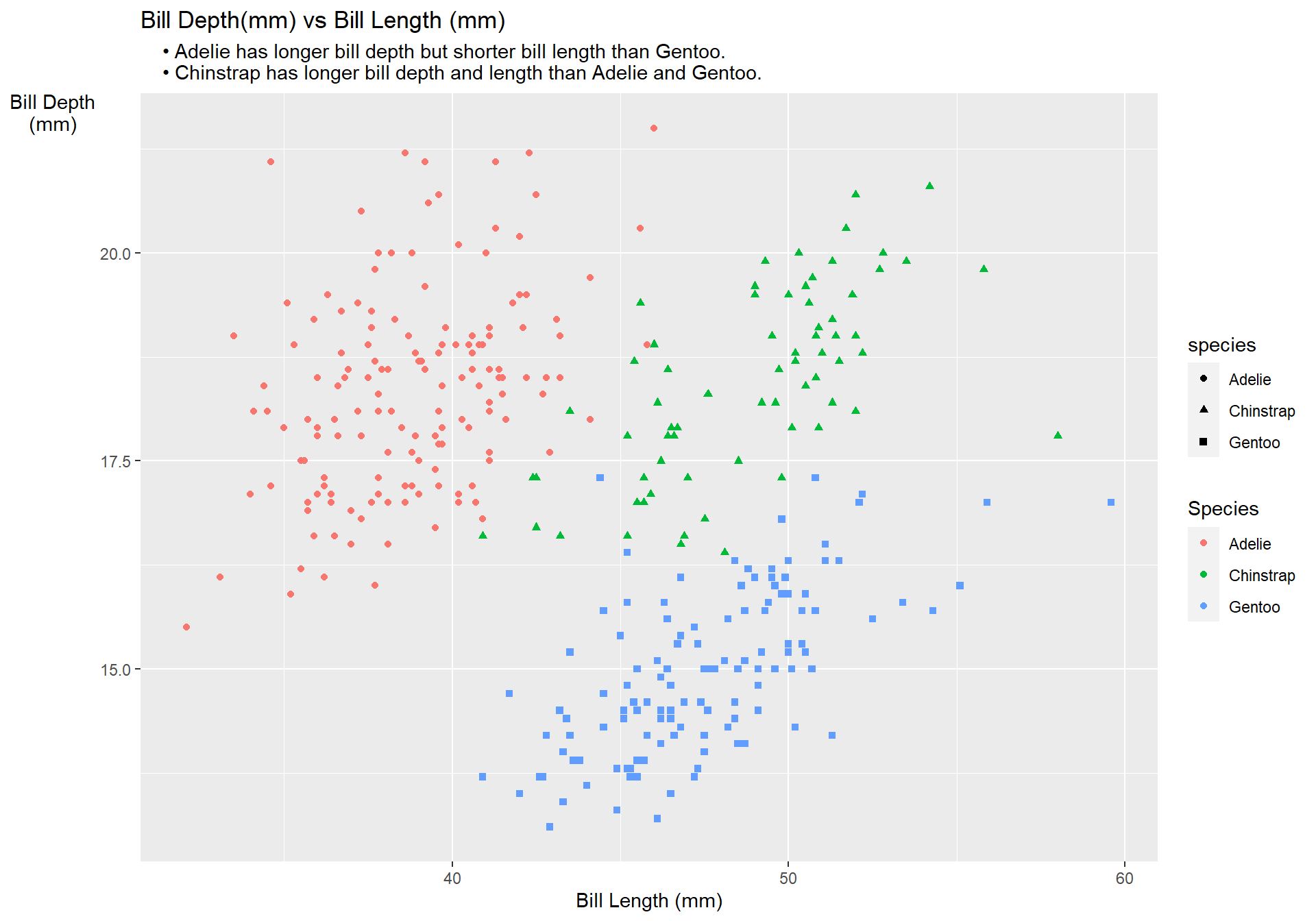

Why does the following yield two separate legends? How would you fix it to combine the two legends?

• Two Legend
• Two Legend Fixed

ggplot2::ggplot(
  data = penguins,
  mapping = ggplot2::aes(
    x = .data[["bill_length_mm"]],
    y = .data[["bill_depth_mm"]],
    colour = .data[["species"]],
    shape = .data[["species"]])

) +
  ggplot2::geom_point() +
ggplot2::theme(
  axis.title.y = ggplot2::element_text(angle = 0)
) +
ggplot2::labs(
    title = "Bill Depth(mm) vs Bill Length (mm)",
    subtitle = glue::glue("
        \U2022 Adelie has longer bill depth but shorter bill length than Gentoo.
        \U2022 Chinstrap has longer bill depth and length than Adelie and Gentoo.
    "),
    x = "Bill Length (mm)",
    y = "Bill Depth\n(mm)",
    color = "Species",
  )

Warning: Removed 2 rows containing missing values (`geom_point()`).

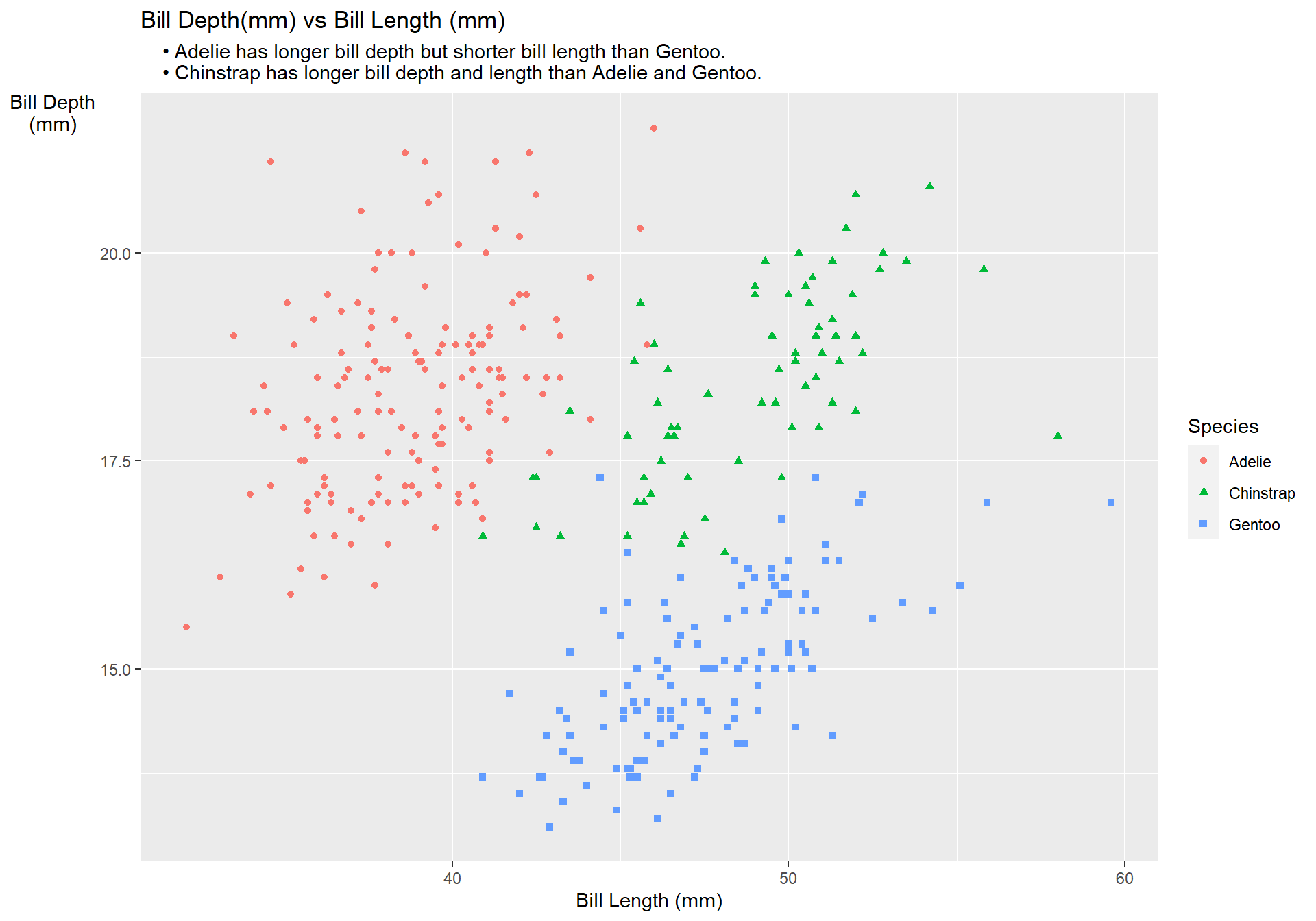

ggplot2::ggplot(
  data = penguins,
  mapping = ggplot2::aes(
    x = .data[["bill_length_mm"]],
    y = .data[["bill_depth_mm"]],
    colour = .data[["species"]],
    shape = .data[["species"]])

) +
  ggplot2::geom_point() +
ggplot2::theme(
  axis.title.y = ggplot2::element_text(angle = 0)
) +
ggplot2::labs(
    title = "Bill Depth(mm) vs Bill Length (mm)",
    subtitle = glue::glue("
        \U2022 Adelie has longer bill depth but shorter bill length than Gentoo.
        \U2022 Chinstrap has longer bill depth and length than Adelie and Gentoo.
    "),
    x = "Bill Length (mm)",
    y = "Bill Depth\n(mm)",
    color = "Species",
    shape = "Species"
  )

Warning: Removed 2 rows containing missing values (`geom_point()`).

Exercise 2.5.5

Create the two following stacked bar plots. Which question can you answer with the first one? Which question can you answer with the second one?

• First
• Second

ggplot2::ggplot(
  data = penguins,
  mapping = ggplot2::aes(
    x = .data[["island"]],
    fill = .data[["species"]])
) +
  ggplot2::geom_bar(
    position = "fill"
  ) +
ggplot2::theme(
  axis.title.y = ggplot2::element_text(angle = 0)
) +
ggplot2::labs(
    title = "Proportion Of Species In A Given Island",
    subtitle = glue::glue("
        \U2022 Torgersen only has Adelie.
        \U2022 Dream has similar proportions of Adelie and Chinstrap living there.
        \U2022 Biscoe has 1/4 Adelie and 3/4 Gentoo living there.
    "),
    x = "Island",
    y = "Proportion",
    fill = "Species"
  )

ggplot2::ggplot(
  data = penguins,
  mapping = ggplot2::aes(
    x = .data[["species"]],
    fill = .data[["island"]])
) +
  ggplot2::geom_bar(
    position = "fill"
  ) +
ggplot2::theme(
  axis.title.y = ggplot2::element_text(angle = 0)
) +
ggplot2::labs(
    title = "Island habitat distribution for each species",
    subtitle = glue::glue("
        \U2022 Adelie lives in all three islands at similar proportions.
        \U2022 Chinstrap only lives in Dream.
        \U2022 Gentoo only lives in Biscoe.
    "),
    x = "Species",
    y = "Proportion",
    fill = "Island"
  )

Save Plots

Use ggsave to save a ggplot plot.

penguin_plot <- ggplot2::ggplot(
  data = penguins,
  mapping = ggplot2::aes(
     x = flipper_length_mm,
     y = body_mass_g
    )
) +
ggplot2::geom_point()

ggplot2::ggsave(
  filename = "penguin-plot.png",
  plot = penguin_plot,
  width = 6,
  height = 7)

Exercise 2.6.1

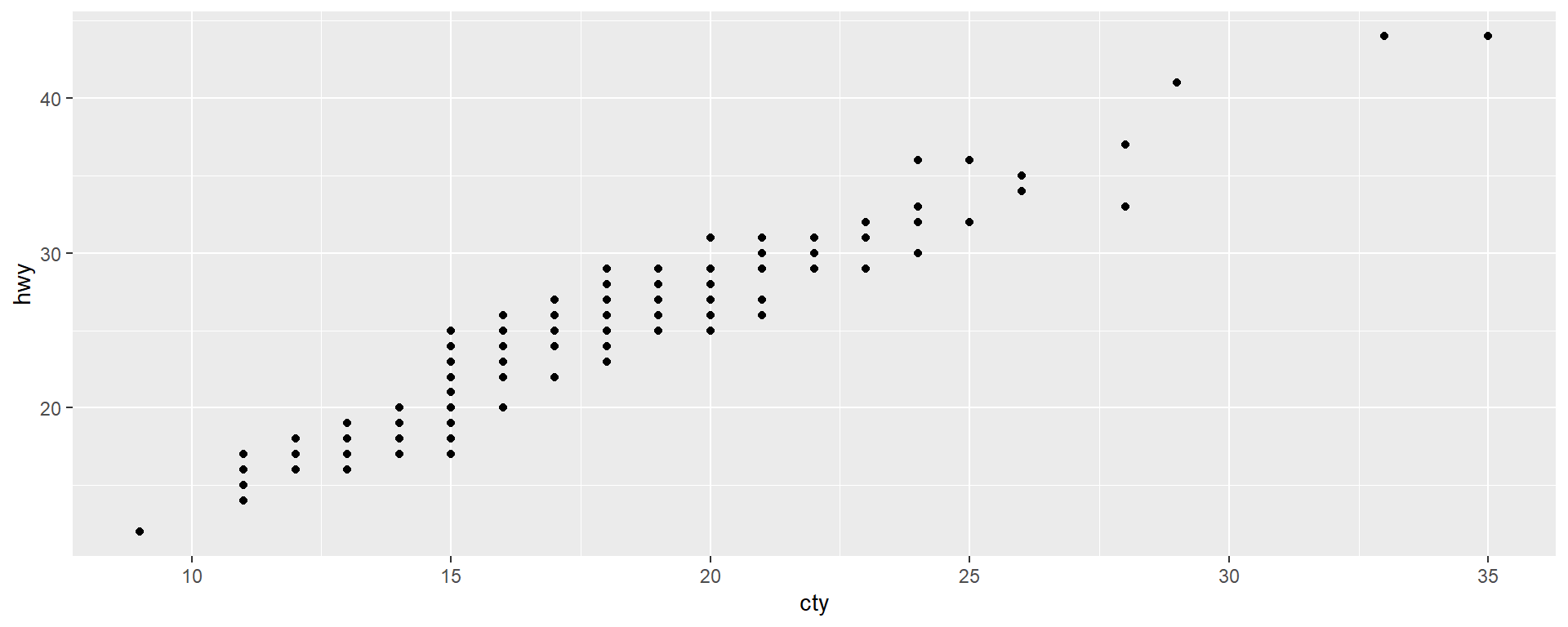

Run the following lines of code. Which of the two plots is saved as mpg-plot.png? Why?

car_bar_plot <- ggplot2::ggplot(
  data = mpg,
  mapping = ggplot2::aes(
     x = .data[["class"]]
    )
) +
ggplot2::geom_bar()

car_scatter_plot <- ggplot2::ggplot(
  data = mpg,
  mapping = ggplot2::aes(
     x = .data[["cty"]],
     y = .data[["hwy"]]
    )
) +
ggplot2::geom_point()

ggplot2::ggsave(
  filename = "mpg-plot.png"
)

Exercise 2.6.1

It is the second plot because by default value of the plot argument, ggsave saves the last plot displayed.

?ggplot2::ggsave

Exercise 2.6.1

What do you need to change in the code above to save the plot as a PDF instead of a PNG?

ggplot2::ggsave(
  filename = "mpg-plot.pdf"
)

ggplot2::ggsave(
  filename = "no_file_extension",
  device = "pdf"
)

Exercise 2.6.1

How could you find out what types of image files would work in ggsave()? Use the device argument.

ggplot2::ggsave(
  filename = "no_file_extension",
  device = "pdf"
)

Common Problems

Spelling mistakes (Pics from Allison Horst)

Common Problems

Plus in wrong place

ggplot2::ggplot(data = mpg)

+ ggplot2::geom_point(
  mapping = ggplot2::aes(x = displ, y = hwy))

Error:
! Cannot use `+` with a single argument
ℹ Did you accidentally put `+` on a new line?

ggplot2::ggplot(data = mpg) +
  ggplot2::geom_point(
    mapping = ggplot2::aes(x = displ, y = hwy))

Summary

Chapter 2 helps you learn the basics of ggplot2. More ggplot2 related techniques will be covered on Chapter 10 to Chapter 12.

The rest of my slides are some thorny “issues” that I have faced when using ggplot2 and how I handle them (after hours of searching).

Extra

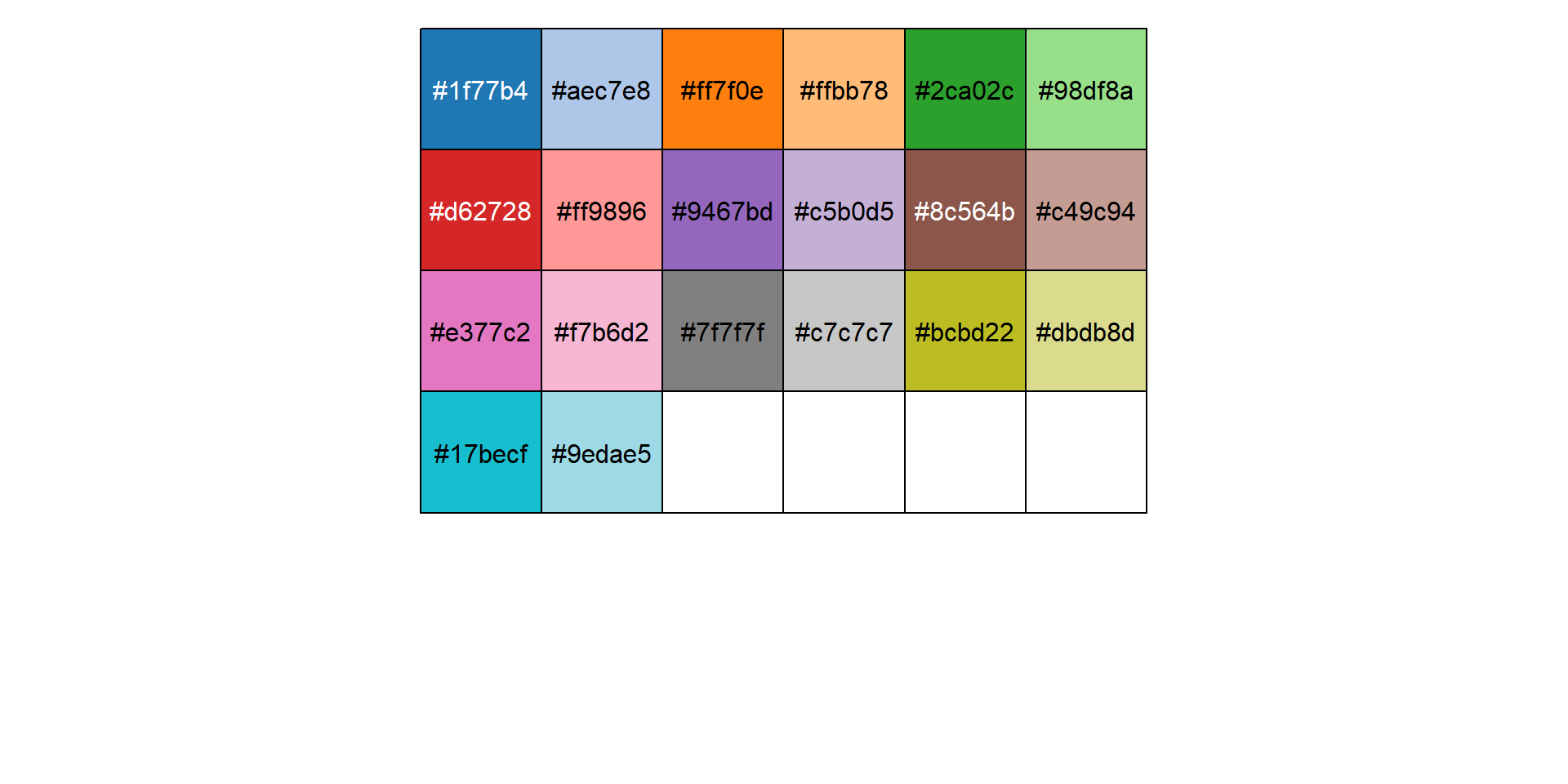

Not enough discrete colours. Check out ggthemes::tableau_color_pal

scales::show_col(
  colours = ggthemes::tableau_color_pal("Classic 20")(20),
  ncol = 6)

Extra

Colour-blind friendly discrete colours. Check out ggthemes::colorblind_pal for Okabe Ito colour palette. But 8 may not always be sufficient …

scales::show_col(
  colours = ggthemes::colorblind_pal()(8),
  ncol = 4)

Extra

Both colour-blind friendly discrete and continunus colours. Check out microshades

Extra

Both colour-blind friendly discrete and continunus colours. Check out microshades

Extra

Not enough shapes. Check out ggstars

Extra

Facing long axis labels. See Andrew Heiss’s blog.

Extra

Need to label your bar charts. Consider ggfittext

Extra

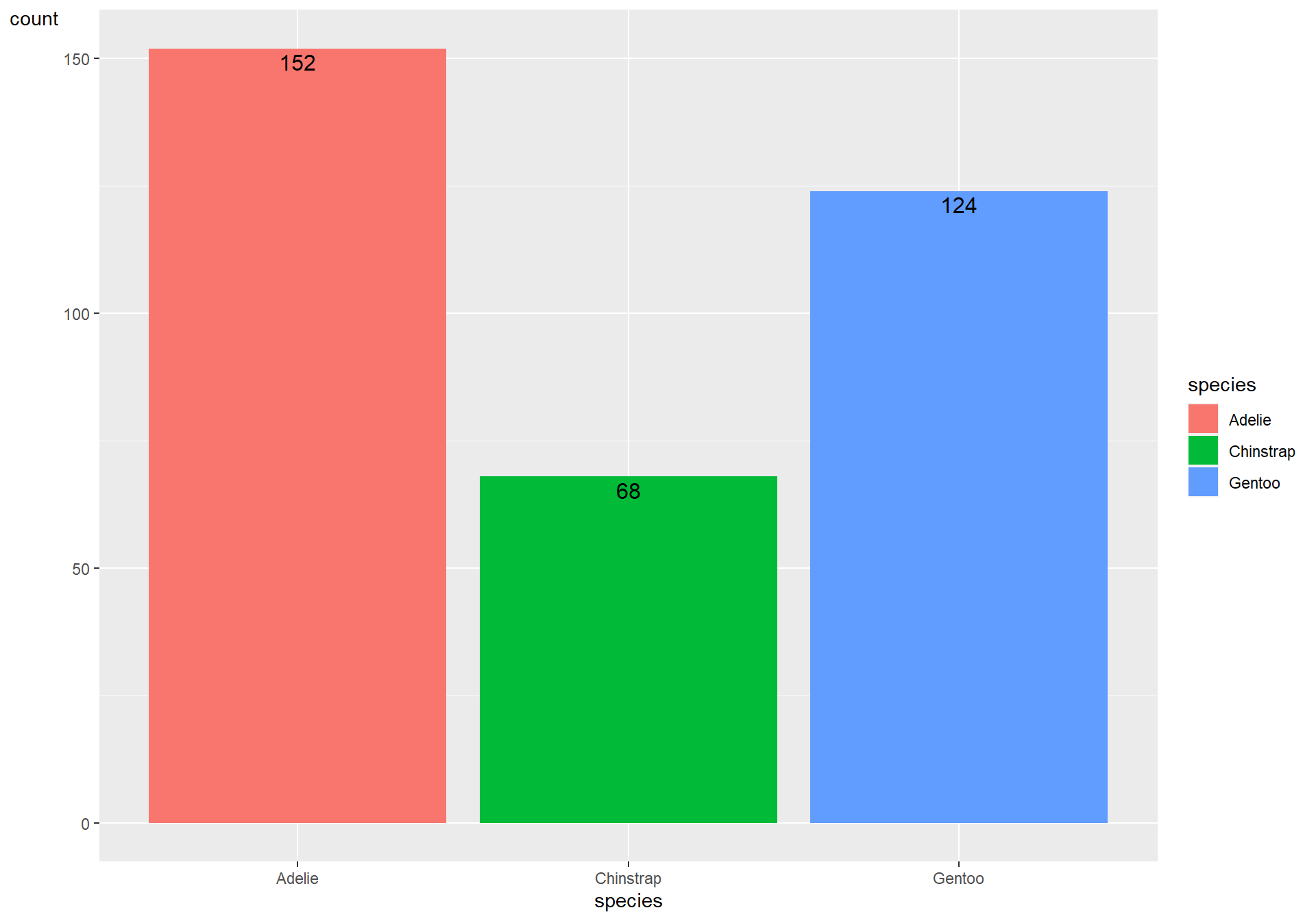

Need to label your bar charts quickly. Consider ggfittext

island_count <- penguins |>
  dplyr::reframe(count = dplyr::n(), .by = c("species"))

ggplot2::ggplot(
  data = island_count,
  mapping = ggplot2::aes(
    x = .data[["species"]],
    y = .data[["count"]],
    fill = .data[["species"]]),
) +
  ggplot2::geom_col() +
  ggfittext::geom_bar_text() +
ggplot2::theme(
  axis.title.y = ggplot2::element_text(angle = 0)
)

Extra

Need to add text annotation. Consider ggtext.

Extra

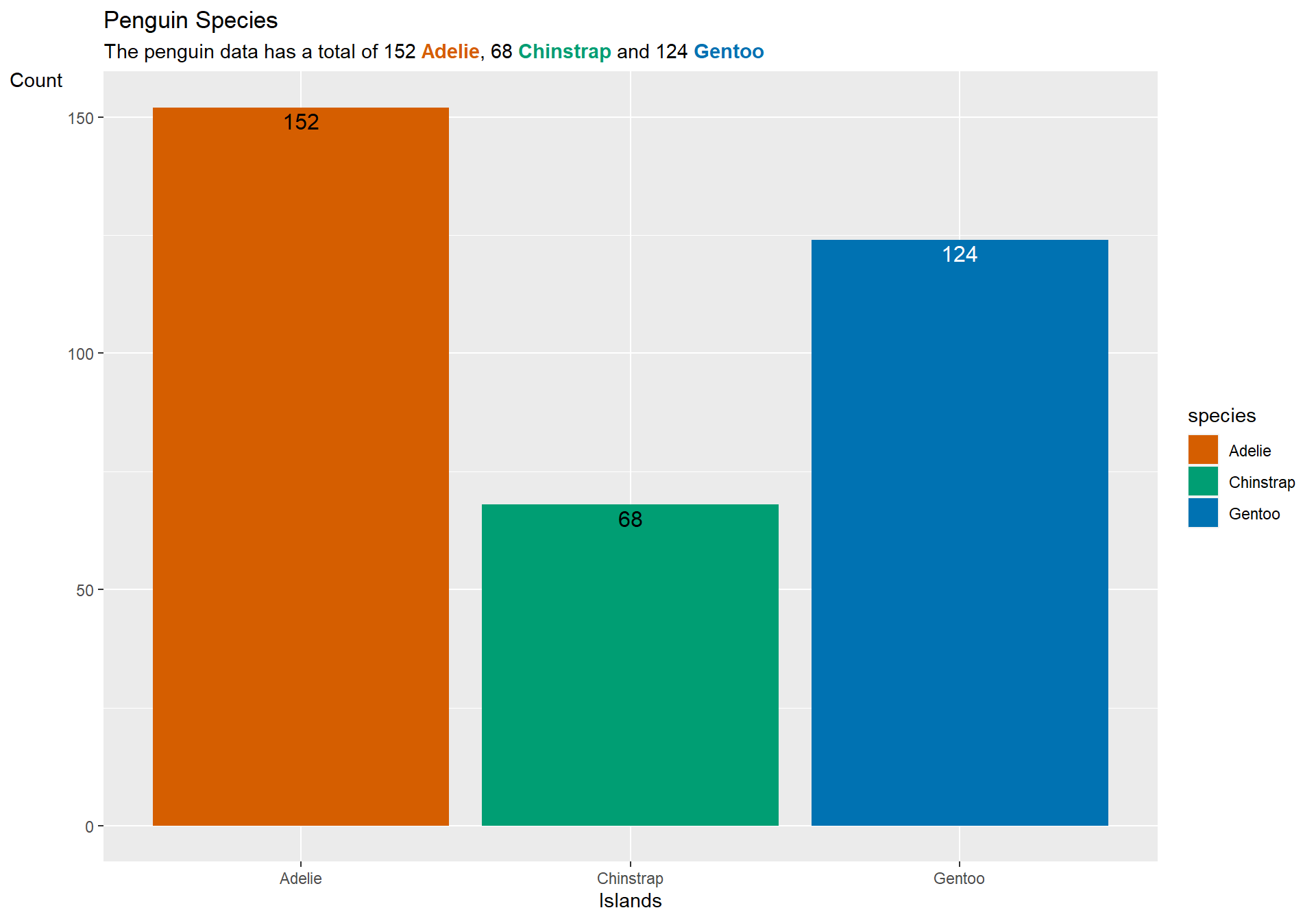

Here is my example.

island_count <- penguins |>
  dplyr::reframe(count = dplyr::n(), .by = c("species"))

species_colours <- list("Adelie" = "#D55E00",
                        "Chinstrap" = "#009E73",
                        "Gentoo" = "#0072B2")

ggplot2::ggplot(
  data = island_count,
  mapping = ggplot2::aes(
    x = .data[["species"]],
    y = .data[["count"]],
    fill = .data[["species"]]),
) +
  ggplot2::geom_col() +
  ggfittext::geom_bar_text() +
  ggplot2::scale_fill_manual(values = species_colours) +
ggplot2::theme(
  plot.subtitle = ggtext::element_markdown(),
  axis.title.y = ggtext::element_markdown(angle = 0)
) +
ggplot2::labs(
    x = "Islands",
    y = "Count",
    title = "Penguin Species",
    subtitle = glue::glue("
    The penguin data has a total of {island_count$count[island_count$species == \"Adelie\"]} <span style=\"color:{species_colours$Adelie}\">**Adelie**</span>, {island_count$count[island_count$species == \"Chinstrap\"]} <span style=\"color:{species_colours$Chinstrap}\">**Chinstrap**</span> and {island_count$count[island_count$species == \"Gentoo\"]} <span style=\"color:{species_colours$Gentoo}\">**Gentoo**</span>
    ")
  )

Extra

See Royal Statistical Society Best Practices for Data Visualisation and Cara Thompsom’s NHRS 2022 Talk for more ggtext examples.

Extra

Don’t know which plot your client wants. Create buttons using download_this in your html document.

penguin_plot <- ggplot2::ggplot(
  data = penguins,
  mapping = ggplot2::aes(
     x = .data[["flipper_length_mm"]],
     y = .data[["body_mass_g"]]
    )
) +
ggplot2::geom_point()

downloadthis::download_this(
  penguin_plot,
  output_name = "penguin-plot",
  ggsave_args = list(width = 6, height = 7))

Extra

Learn from ggplot2 mishaps. See Kara Woo’s RStudio 2021 Conference talk.
