Chapter 13: Numbers

For the R For Data Science 2nd Edition Book Club Cohort 9

Jeremy Selva
@JauntyJJS
https://jeremy-selva.netlify.app

Introduction

This chapter aims to show what R can do to numeric vectors.

• Convert string to numbers
• Using the dplyr::count()
• Numeric transformation
• Numeric summaries

Here are R packages needed.

# Needed in the book
library(tidyverse)
library(nycflights13)

# Others
library(reactable)
library(reactablefmtr)
library(ggh4x)

Making numbers

During the data import process, numeric columns are usually expressed in integer or double. In some cases, they are in strings. The readr package has useful functions for parsing strings back to numeric.

Making numbers

Use readr::parse_double() when you have numbers that have been written as strings:

c("1.2", "5.6", "1e3") |>
  readr::parse_double()

[1]    1.2    5.6 1000.0

Use readr::parse_number() to ignore non-numeric text in the numbers:

c("$1,234", "USD 3,513", "59%") |>
  readr::parse_number()

[1] 1234 3513   59

Counts

The dplyr package has a function called dplyr::count() that helps to count the number of observations in each group.

flights |>
  dplyr::count(.data[["dest"]]) |>
  reactable::reactable(
    filterable = TRUE,
    defaultPageSize = 5,
    theme = reactablefmtr::dark()
  )

Counts

If you want to see the most common values, add sort = TRUE:

flights |>
  dplyr::count(.data[["dest"]],
               name = "frequency",
               sort = TRUE) |>
  reactable::reactable(
    filterable = TRUE,
    defaultPageSize = 5,
    theme = reactablefmtr::dark()
  )

Counts

The same computation can be done using dplyr::group_by(), dplyr::summarize() and dplyr::n()

flights |>
  dplyr::group_by(.data[["dest"]]) |>
  dplyr::summarize(
    n = dplyr::n(),
    delay = mean(.data[["arr_delay"]],
                 na.rm = TRUE)
  ) |>
  reactable::reactable(
    filterable = TRUE,
    defaultPageSize = 5,
    theme = reactablefmtr::dark()
  )

Counts

dplyr::n() is a special function that can only be used with some dplyr functions.

dplyr::n()

Error in `dplyr::n()`:
! Must only be used inside data-masking verbs like `mutate()`,
  `filter()`, and `group_by()`.

Counts

dplyr::n_distinct helps to count the number of distinct (unique) values of one or more variables. For example, we could figure out which destinations are served by the most carriers:

flights |>
  dplyr::group_by(.data[["dest"]]) |>
  dplyr::summarize(
    carriers = dplyr::n_distinct(.data[["carrier"]])
  ) |>
  dplyr::arrange(
    dplyr::desc(.data[["carriers"]])
  ) |>
  reactable::reactable(
    filterable = TRUE,
    defaultPageSize = 10,
    theme = reactablefmtr::dark()
  )

Counts

A weighted count is a sum. For example you could “count” the number of miles each plane flew:

flights |>
  dplyr::group_by(.data[["tailnum"]]) |>
  dplyr::summarize(
    miles = sum(.data[["distance"]])
  ) |>
  reactable::reactable(
    filterable = TRUE,
    defaultPageSize = 5,
    theme = reactablefmtr::dark()
  )

flights |>
  dplyr::count(
    .data[["tailnum"]],
    wt = .data[["distance"]]
  ) |>
  reactable::reactable(
    filterable = TRUE,
    defaultPageSize = 5,
    theme = reactablefmtr::dark()
  )

Counts

We can count missing values by combining sum() and is.na(). Below represents the number of flights that are cancelled for each destination (destination with no departure time from origin).

flights |>
  dplyr::group_by(.data[["dest"]]) |>
  dplyr::summarize(
    n_cancelled = sum(is.na(.data[["dep_time"]]))
  ) |>
  reactable::reactable(
    filterable = TRUE,
    defaultPageSize = 5,
    theme = reactablefmtr::dark()
  )

Exercise 13.3.1

How can you use count() to count the number rows with a missing value for a given variable?

flights |>
  dplyr::count(.data[["dep_time"]]) |>
  dplyr::filter(is.na(.data[["dep_time"]])) |>
  reactable::reactable(
    filterable = TRUE,
    defaultPageSize = 5,
    theme = reactablefmtr::dark()
  )

Exercise 13.3.1

Alternatively

flights |>
  dplyr::summarise(
    dplyr::across(
      .cols = dplyr::everything(),
      .fns = ~ sum(is.na(.))
    )
  ) |>
  tidyr::pivot_longer(
    cols = dplyr::everything(),
    names_to = "column names",
    values_to = "na count"
  ) |>
  reactable::reactable(
    filterable = TRUE,
    defaultPageSize = 5,
    theme = reactablefmtr::dark()
  )

Exercise 13.3.1

How can you use count() to count the number rows with a missing value for a given variable?

flights |>
  dplyr::summarise(
    dplyr::across(
      .cols = everything(),
      .fns = ~ sum(is.na(.)),
      .names = "{col}_na_count"
                  )
  ) |>
  reactable::reactable(
    filterable = TRUE,
    defaultPageSize = 5,
    theme = reactablefmtr::dark()
  )

Exercise 13.3.2

Expand the following calls to count() to instead use group_by(), summarize(), and arrange():

flights |>
  dplyr::count(.data[["dest"]],
               sort = TRUE) |>
  reactable::reactable(
    filterable = TRUE,
    defaultPageSize = 5,
    theme = reactablefmtr::dark()
  )

flights |>
  dplyr::group_by(.data[["dest"]]) |>
  dplyr::summarise(n = dplyr::n()) |>
  dplyr::arrange(dplyr::desc(.data[["n"]])) |>
  reactable::reactable(
    filterable = TRUE,
    defaultPageSize = 5,
    theme = reactablefmtr::dark()
  )

Exercise 13.3.2

Expand the following calls to count() to instead use group_by(), summarize(), and arrange():

flights |>
  dplyr::count(.data[["tailnum"]],
               wt = .data[["distance"]]) |>
  reactable::reactable(
    filterable = TRUE,
    defaultPageSize = 5,
    theme = reactablefmtr::dark()
  )

flights |>
  dplyr::group_by(.data[["tailnum"]]) |>
  dplyr::summarise(n = sum(.data[["distance"]])) |>
  reactable::reactable(
    filterable = TRUE,
    defaultPageSize = 5,
    theme = reactablefmtr::dark()
  )

Arithmetic and recycling rules

R handles mismatched lengths by recycling. Occasionally warnings are given.

x <- c(1, 2, 10, 20)

x / 5

[1] 0.2 0.4 2.0 4.0

x / c(5, 5, 5, 5)

[1] 0.2 0.4 2.0 4.0

x * c(1, 2)

[1]  1  4 10 40

x * c(1, 2, 3)

Warning in x * c(1, 2, 3): longer object length is not a multiple of shorter
object length

[1]  1  4 30 20

Arithmetic and recycling rules

Recycling rules also applied to logical comparison. Below is an example when == is used instead of %in%. Because of the recycling rules, the dplyr::filter function will find flights in odd numbered rows that departed in January and flights in even numbered rows that departed in February

flights |>
  dplyr::mutate(row = 1:nrow(flights),
                .before = "year") |>
  dplyr::filter(.data[["month"]] == c(1, 2)) |>
  reactable::reactable(
    filterable = TRUE,
    defaultPageSize = 5,
    theme = reactablefmtr::dark()
  )

flights |>
  dplyr::mutate(row = 1:nrow(flights),
                .before = "year") |>
  dplyr::filter(.data[["month"]] %in% c(1, 2)) |>
  reactable::reactable(
    filterable = TRUE,
    defaultPageSize = 5,
    theme = reactablefmtr::dark()
  )

Minimum and maximum

Functions are pmin() and pmax() will return the smallest or largest value in each row. This is different to the summary functions min() and max() which take multiple observations and return a single value.

df <- tibble::tribble(
  ~x, ~y,
  1,  3,
  5,  2,
  7, NA,
)

df |>
  dplyr::mutate(
    min = pmin(x, y, na.rm = TRUE),
    max = pmax(x, y, na.rm = TRUE)
  ) |>
  reactable::reactable(
    filterable = TRUE,
    defaultPageSize = 5,
    theme = reactablefmtr::dark()
  )

df <- tibble::tribble(
  ~x, ~y,
  1,  3,
  5,  2,
  7, NA,
)

df |>
  dplyr::mutate(
    min = min(x, y, na.rm = TRUE),
    max = max(x, y, na.rm = TRUE)
  ) |>
  reactable::reactable(
    filterable = TRUE,
    defaultPageSize = 5,
    theme = reactablefmtr::dark()
  )

Modular arithmetic

In R, %/% does integer division and %% computes the remainder:

1:10 %/% 3

 [1] 0 0 1 1 1 2 2 2 3 3

1:10 %% 3

 [1] 1 2 0 1 2 0 1 2 0 1

Modular arithmetic

We can use modular arithmetic to unpack the sched_dep_time variable into hour and minute:

#
flights |>
  dplyr::mutate(
    hour = .data[["sched_dep_time"]] %/% 100,
    minute = .data[["sched_dep_time"]] %% 100,
    .keep = "used"
  ) |>
  reactable::reactable(
    filterable = TRUE,
    defaultPageSize = 5,
    theme = reactablefmtr::dark()
  )

Modular arithmetic

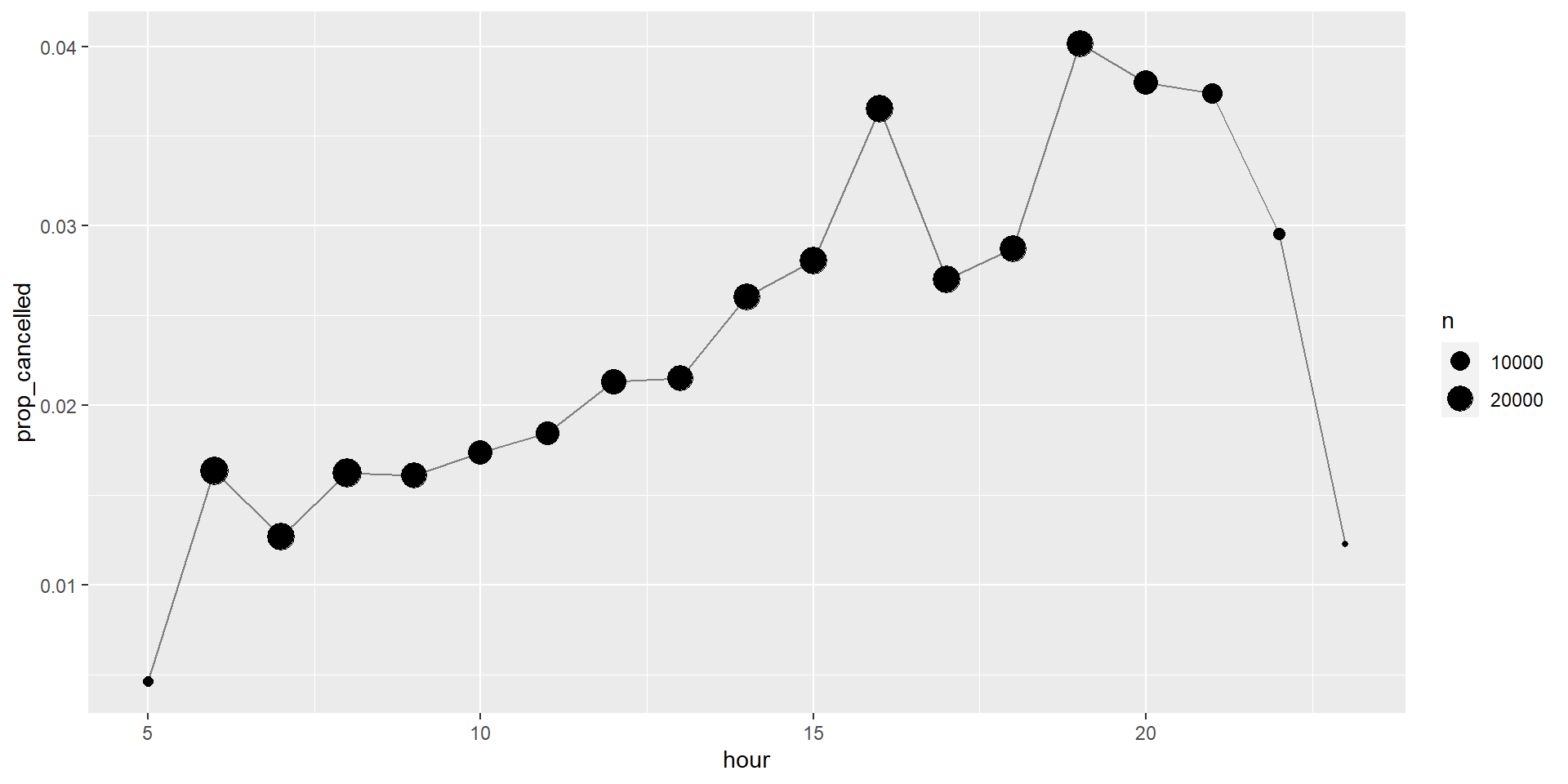

Proportion of cancelled flights varies over the course of the day. Cancellations seem to accumulate over the course of the day until 8pm, very late flights are much less likely to be cancelled.

cancelled_flights <- flights |>
  dplyr::group_by(hour = .data[["sched_dep_time"]] %/% 100) |>
  dplyr::summarize(
    prop_cancelled = mean(is.na(.data[["dep_time"]])),
    total_cancelled = sum(is.na(.data[["dep_time"]])),
    n = dplyr::n())

cancelled_flights |>
  reactable::reactable(
    filterable = TRUE,
    defaultPageSize = 2,
    theme = reactablefmtr::dark()
  )

cancelled_flights |>
  # filter the one flight that departs at 1:06 am
  filter(.data[["hour"]] > 1) |>
  ggplot(aes(x = hour, y = prop_cancelled)) +
  geom_line(color = "grey50") +
  geom_point(aes(size = n))

Logarithms

In R, you have a choice of three logarithms: log() (the natural log, base e), log2() (base 2), and log10() (base 10).

The inverse of log() is exp(); to compute the inverse of log2() or log10() you’ll need to use 2^ or 10^

exp(log(100))

[1] 100

2^log2(100)

[1] 100

10^log10(100)

[1] 100

3^(log(100, base = 3))

[1] 100

Rounding

Use round(x) to round a number to the nearest integer. The second argument, digits rounds to the nearest 10^-{digits}.

round(123.456)     # nearest integer

[1] 123

round(123.456, 2)  # two digits

[1] 123.46

round(123.456, 1)  # one digit

[1] 123.5

round(123.456, -1) # round to nearest ten

[1] 120

round(123.456, -2) # round to nearest hundred

[1] 100

Rounding

However, do note that round does a Banker’s rounding. If a number is half way between two integers, it will be rounded to the even integer.

It does this to keep keeps the rounding unbiased: half of all 0.5s are rounded up, and half are rounded down.

round(c(1.5, 2.5, -1.5, -2.5))

[1]  2  2 -2 -2

Rounding

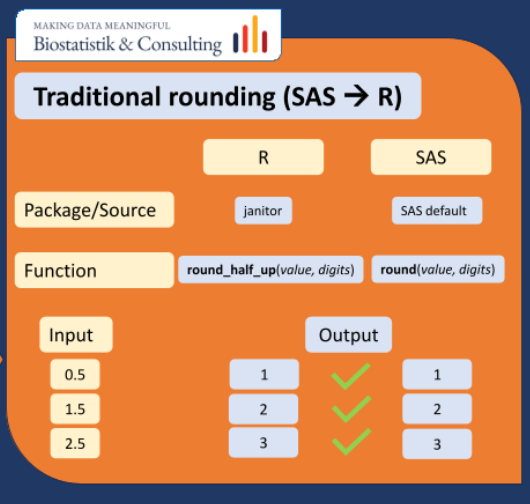

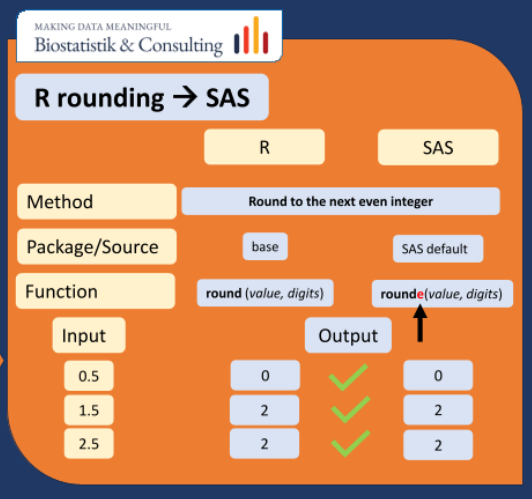

See Markus Savli’s Linkedin Post on difference between SAS and R rounding methods.

Rounding

floor() always rounds down and ceiling() always rounds up:

x <- 123.456

floor(x)

[1] 123

ceiling(x)

[1] 124

However, they do not have a digits argument like round. There is a need to scale down, round, and then scale back up.

# Round down to nearest two decimal places
floor(x / 0.01) * 0.01

[1] 123.45

# Round up to nearest hundred
ceiling(x / 100) * 100

[1] 200

Cutting numbers into ranges

Use cut() to break up (aka bin) a numeric vector into discrete buckets or categories:

x <- c(1, 2, 5, 10, 15, 20)
cut(x, breaks = c(0, 5, 10, 15, 20))

[1] (0,5]   (0,5]   (0,5]   (5,10]  (10,15] (15,20]
Levels: (0,5] (5,10] (10,15] (15,20]

The breaks don’t need to be evenly spaced:

cut(x, breaks = c(0, 5, 10, 100))

[1] (0,5]    (0,5]    (0,5]    (5,10]   (10,100] (10,100]
Levels: (0,5] (5,10] (10,100]

Cutting numbers into ranges

You can optionally supply your own labels. Note that there should be one less labels than breaks.

cut(x,
  breaks = c(0, 5, 10, 15, 20),
  labels = c("small", "medium", "large", "XL")
)

[1] small  small  small  medium large  XL
Levels: small medium large XL

Any values outside (30) of the range of the breaks (0-20) will become NA:

y <- c(NA, -10, 5, 10, 30)
cut(y, breaks = c(0, 5, 10, 15, 20))

[1] <NA>   <NA>   (0,5]  (5,10] <NA>
Levels: (0,5] (5,10] (10,15] (15,20]

Cumulative and rolling aggregates

Base R provides cumsum(), cumprod(), cummin(), cummax() for running, or cumulative, sums, products, mins and maxes. dplyr provides cummean() for cumulative means. Cumulative sums tend to come up the most in practice:

• cumsum
• cumprod
• cummin
• cummax
• cummean

x <- 1:10
cumsum(x)

 [1]  1  3  6 10 15 21 28 36 45 55

x <- 1:10
cumprod(x)

 [1]       1       2       6      24     120     720    5040   40320  362880
[10] 3628800

x <- 1:10
cummin(x)

 [1] 1 1 1 1 1 1 1 1 1 1

x <- 1:10
cummax(x)

 [1]  1  2  3  4  5  6  7  8  9 10

x <- 1:10
dplyr::cummean(x)

 [1] 1.0 1.5 2.0 2.5 3.0 3.5 4.0 4.5 5.0 5.5

Cumulative and rolling aggregates

If you need more complex rolling or sliding aggregates, try the slider package.

Exercise 13.4.8

What trigonometric functions does R provide? Guess some names and look up the documentation. Do they use degrees or radians?

Exercise 13.4.8

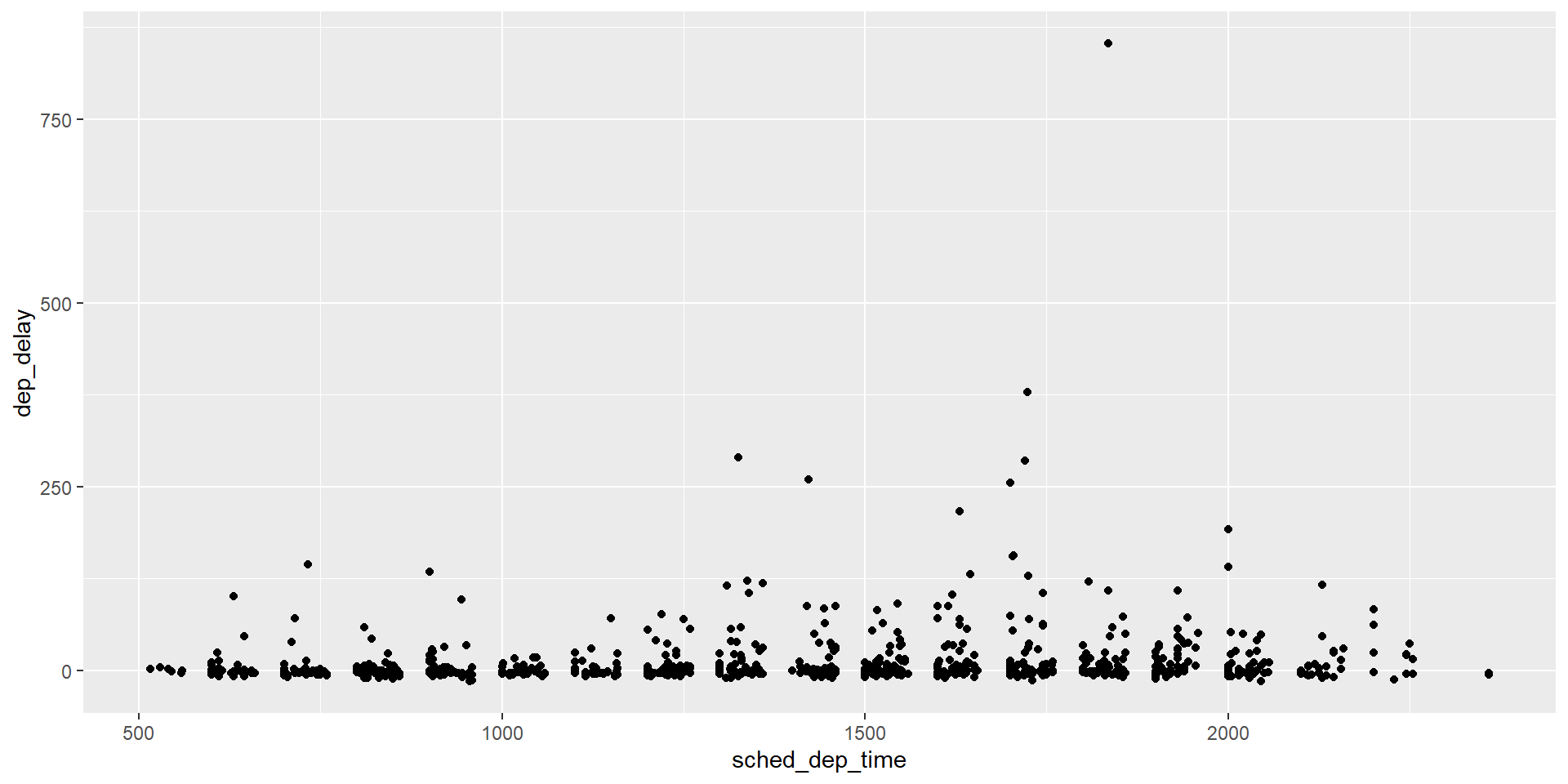

Currently dep_time and sched_dep_time are convenient to look at, but hard to compute with because they’re not really continuous numbers. You can see the basic problem by running the code below: there’s a gap between each hour.

flights |>
  dplyr::filter(.data[["month"]] == 1,
                .data[["day"]] == 1) |>
  ggplot2::ggplot(
    mapping = ggplot2::aes(
      x = .data[["sched_dep_time"]],
      y = .data[["dep_delay"]])) +
  ggplot2::geom_point()

Exercise 13.4.8

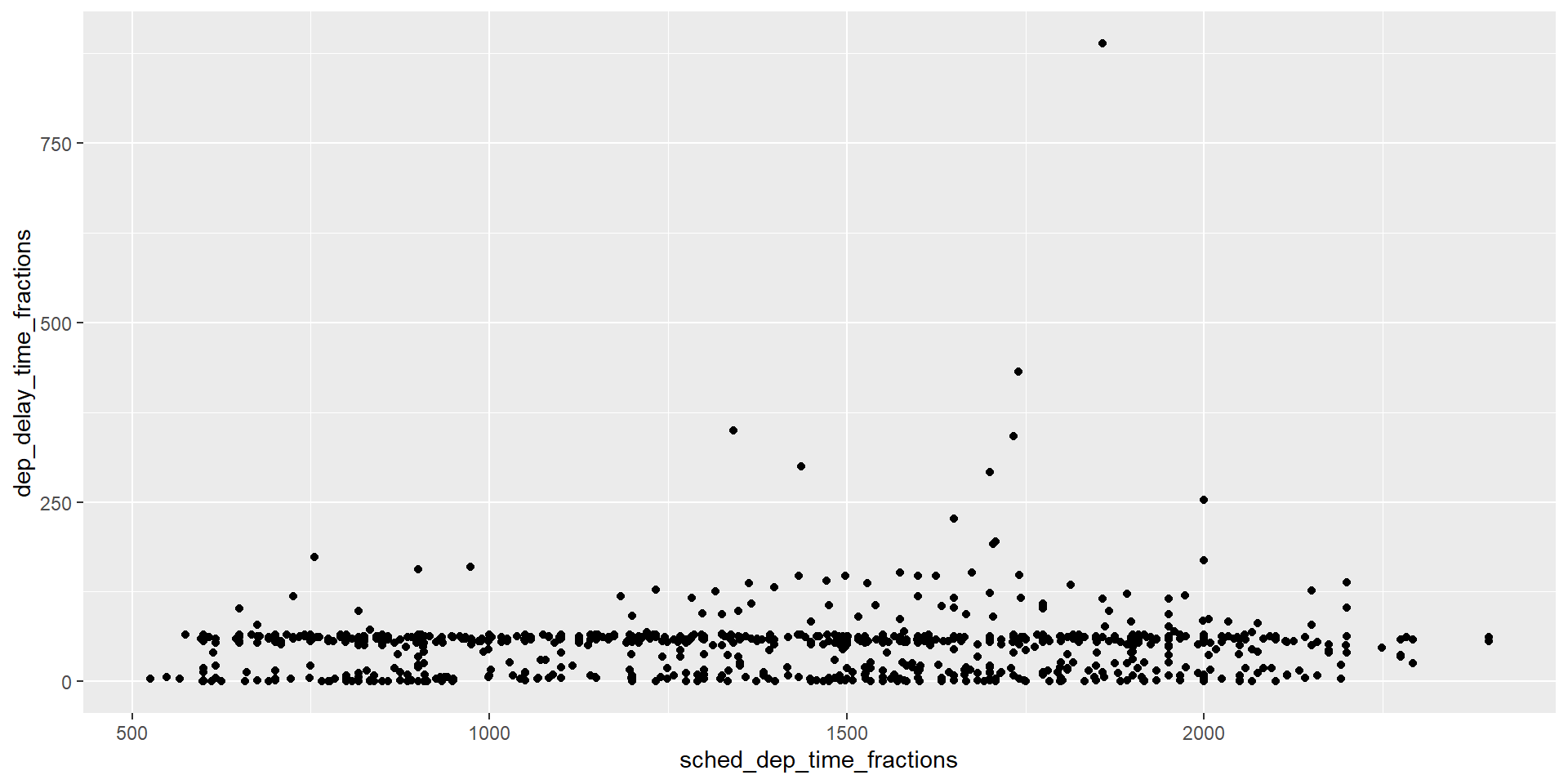

Convert them to a more truthful representation of time (either fractional hours or minutes since midnight).

calculated_flights <- flights |>
  dplyr::mutate(
    sched_dep_time_hour = .data[["sched_dep_time"]] %/% 100,
    sched_dep_time_minute = .data[["sched_dep_time"]] %% 100,
    sched_dep_time_fractions = (sched_dep_time_hour + sched_dep_time_minute/60) * 100,
    dep_delay_time_hour = .data[["dep_delay"]] %/% 100,
    dep_delay_time_minute = .data[["dep_delay"]] %% 100,
    dep_delay_time_fractions = (dep_delay_time_hour + dep_delay_time_minute/60) * 100
  )

calculated_flights |>
  dplyr::filter(.data[["month"]] == 1,
                .data[["day"]] == 1) |>
  ggplot2::ggplot(
    mapping = ggplot2::aes(
      x = .data[["sched_dep_time_fractions"]],
      y = .data[["dep_delay_time_fractions"]])
  ) +
  ggplot2::geom_point()

Exercise 13.4.8

Round dep_time and arr_time to the nearest five minutes.

flights |>
  dplyr::mutate(
    dep_time_round = round(.data[["dep_time"]] / 5) * 5,
    arr_time_round = round(.data[["arr_time"]] / 5) * 5,
    .keep = "used"
  ) |>
  reactable::reactable(
    filterable = TRUE,
    defaultPageSize = 5,
    theme = reactablefmtr::dark()
  )

Ranks

dplyr provides a number of ranking functions inspired by SQL. They differ primarily in how they handle ties.

dplyr::min_rank() gives every tie the same (smallest) value. It’s the way that ranks are usually computed in sports. This is similar to rank(ties.method = "min")

x <- c(1, 2, 2, 3, 4, NA)
dplyr::min_rank(x)

[1]  1  2  2  4  5 NA

rank(x,ties.method = "min", na.last = "keep")

[1]  1  2  2  4  5 NA

Ranks

Use dplyr::desc(x) to give the largest values the smallest ranks:

x <- c(1, 2, 2, 3, 4, NA)
dplyr::min_rank(dplyr::desc(x))

[1]  5  3  3  2  1 NA

rank(dplyr::desc(x),ties.method = "min", na.last = "keep")

[1]  5  3  3  2  1 NA

Ranks

• dplyr::row_number() gives every input a unique rank.
• dplyr::dense_rank() is like dplyr::min_rank() but does not leave gaps.
• dplyr::percent_rank() counts the total number of values less than the observed value x_i, and divides it by the number of observations minus 1. Missing values are ignored when counting the number of observations
• dplyr::cume_dist() counts the total number of values less than the observed value x_i, and divides it by the number of observations minus 1.

• row_number
• dense_rank
• percent_rank
• cume_dist

x <- c(1, 2, 2, 3, 4, NA)
dplyr::row_number(x)

[1]  1  2  3  4  5 NA

rank(x,ties.method = "first", na.last = "keep")

[1]  1  2  3  4  5 NA

x <- c(1, 2, 2, 3, 4, NA)
dplyr::dense_rank(x)

[1]  1  2  2  3  4 NA

x <- c(1, 2, 2, 3, 4, NA)
dplyr::percent_rank(x)

[1] 0.00 0.25 0.25 0.75 1.00   NA

x <- c(1, 2, 2, 3, 4, NA)
dplyr::cume_dist(x)

[1] 0.2 0.6 0.6 0.8 1.0  NA

Ranks

row_number() can also be used without any arguments when inside a dplyr verb. In this case, it’ll give the number of the “current” row. When combined with %% (computes remainder) or %/% (integer division) this can be a useful tool for dividing data into similarly sized groups:

tibble(id = 1:10) |>
  dplyr::mutate(
    row0 = dplyr::row_number() - 1,
    three_groups = row0 %% 3,
    three_in_each_group = row0 %/% 3
  ) |>
  reactable::reactable(
    filterable = TRUE,
    defaultPageSize = 6,
    theme = reactablefmtr::dark()
  )

Offsets

dplyr::lead() and dplyr::lag() allow you to refer the values just before or just after the “current” value. They return a vector of the same length as the input, padded with NAs at the start or end:

x <- c(2, 5, 11, 11, 19, 35)
dplyr::lag(x, n = 1)

[1] NA  2  5 11 11 19

x <- c(2, 5, 11, 11, 19, 35)
dplyr::lead(x, n = 1)

[1]  5 11 11 19 35 NA

Offsets

• x - lag(x) gives you the difference between the current and previous value.

x <- c(2, 5, 11, 11, 19, 35)
x - dplyr::lag(x)

[1] NA  3  6  0  8 16

• x != lag(x) tells you when the current value changes.

x <- c(2, 5, 11, 11, 19, 35)
x != dplyr::lag(x)

[1]    NA  TRUE  TRUE FALSE  TRUE  TRUE

Consecutive identifiers

Sometimes you want to start a new group every time some event occurs.

# Imagine you have the times (in minutes) when someone visited a website.
# We want to identify new session (gap of more than 5 minutes since the last activity)
events <- tibble(
  time = c(0, 1, 2, 3, 5, 10, 12, 15, 17, 19, 20, 27, 28, 30)
  ) |>
  dplyr::mutate(
    diff = .data[["time"]] -
      dplyr::lag(.data[["time"]], default = dplyr::first(.data[["time"]])),
    has_gap = .data[["diff"]] >= 5
  )

events |>
  reactable::reactable(
    filterable = TRUE,
    defaultPageSize = 6,
    theme = reactablefmtr::dark()
  )

Consecutive identifiers

To classify rows before and/or after has_gap == TRUE into one group. We start with group = 0 and use cumsum to increment each row when has_gap is set to TRUE.

events |> dplyr::mutate(
  group = cumsum(.data[["has_gap"]])
) |>
  reactable::reactable(
    filterable = TRUE,
    defaultPageSize = 6,
    theme = reactablefmtr::dark()
  )

Consecutive identifiers

consecutive_id() generates a unique identifier that increments every time a variable (or combination of variables) changes.

df <- tibble(
  x = c("a", "a", "a", "b", "c", "c",
        "d", "e", "a", "a", "b", "b")
  ) |>
dplyr::mutate(id = dplyr::consecutive_id(.data[["x"]]))

df |>
  reactable::reactable(
    filterable = TRUE,
    defaultPageSize = 6,
    theme = reactablefmtr::dark()
  )

Exercise 13.5.4

Find the 10 most delayed (delay arrival) flights using a ranking function.

flights |>
  dplyr::mutate(
    arr_delay_rank =
      dplyr::min_rank(dplyr::desc(.data[["arr_delay"]]))
  ) |>
  dplyr::arrange(.data[["arr_delay_rank"]]) |>
  dplyr::select(c("arr_delay_rank", "arr_delay",
                  "day", "flight", "tailnum")) |>
  dplyr::slice_head(n = 10) |>
  reactable::reactable(
    filterable = TRUE,
    defaultPageSize = 5,
    theme = reactablefmtr::dark()
  )

Exercise 13.5.4

Which plane (tailnum) has the worst on-time record ?

flights |>
  dplyr::group_by(.data[["tailnum"]]) |>
  dplyr::summarise(
    number_of_delay =
      sum(.data[["arr_delay"]] > 0, na.rm = TRUE),
  ) |>
  dplyr::mutate(
    number_of_delay_rank =
      dplyr::min_rank(dplyr::desc(.data[["number_of_delay"]]))
  ) |>
  dplyr::arrange(.data[["number_of_delay_rank"]]) |>
  dplyr::slice_head(n = 10) |>
  reactable::reactable(
    filterable = TRUE,
    defaultPageSize = 5,
    theme = reactablefmtr::dark()
  )

Exercise 13.5.4

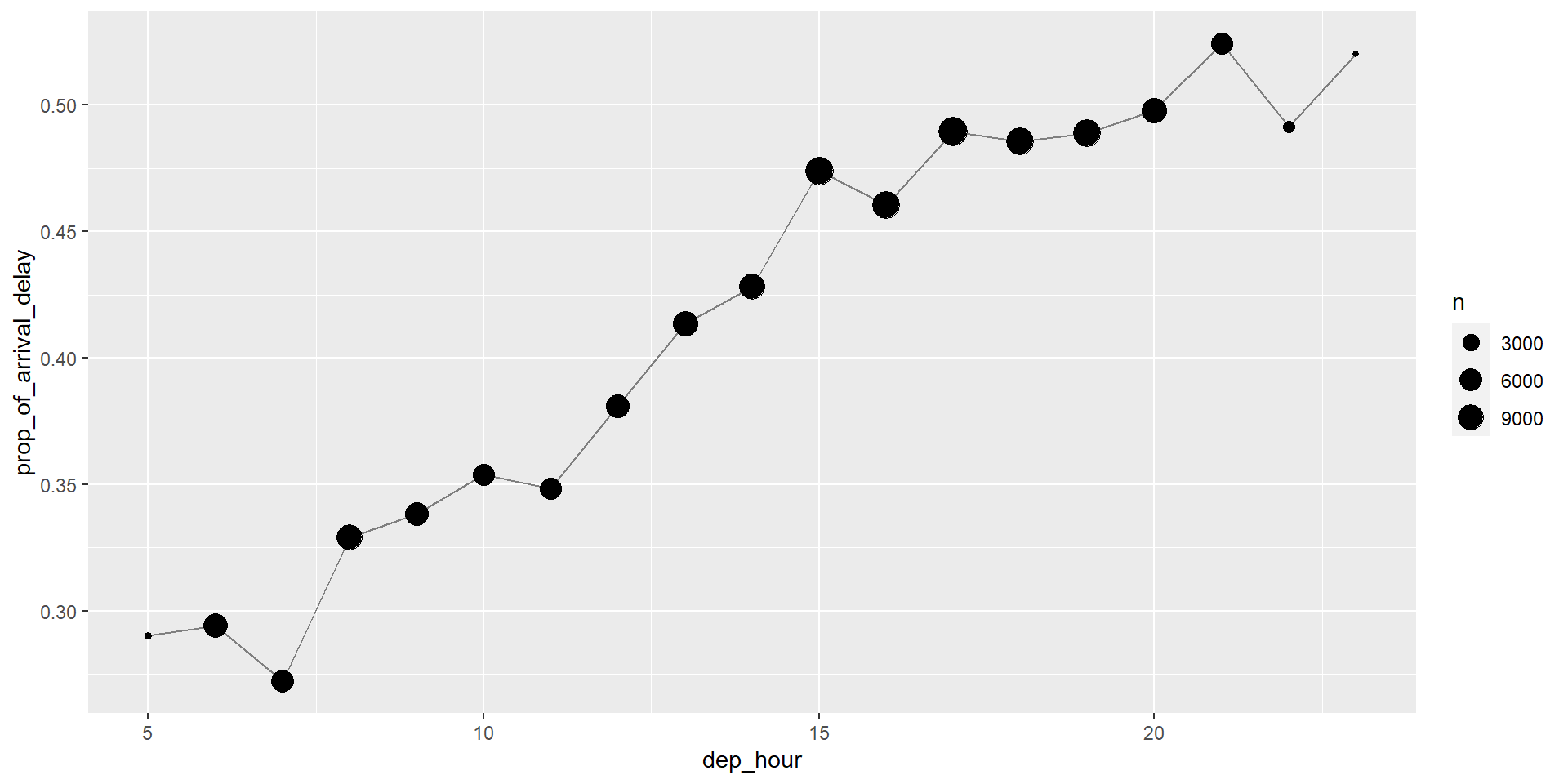

What time of day should you fly if you want to avoid delays as much as possible?

flights |>
  group_by(dep_hour = sched_dep_time %/% 100) |>
  summarize(prop_of_arrival_delay = mean(.data[["arr_delay"]] > 0, na.rm = TRUE),
            n = sum(.data[["arr_delay"]] > 0, na.rm = TRUE)
            ) |>
  filter(dep_hour > 1) |>
  ggplot(aes(x = dep_hour, y = prop_of_arrival_delay)) +
  geom_line(color = "grey50") +
  geom_point(aes(size = n), color = "black")

Exercise 13.5.4

What does the below code do ?

flights |>
  dplyr::group_by(.data[["dest"]]) |>
  dplyr::filter(dplyr::row_number() < 4) |>
  dplyr::relocate(c("dest")) |>
  dplyr::arrange(.data[["dest"]]) |>
  dplyr::select(c("dest", "year", "month",
                  "day", "arr_time", "tailnum")) |>
  reactable::reactable(
    filterable = TRUE,
    defaultPageSize = 5,
    theme = reactablefmtr::dark()
  )

Assume data is sorted by time, we are filtering to see the first three flights for each destination.

flights |>
  dplyr::group_by(.data[["dest"]]) |>
  dplyr::mutate(
    group_id = dplyr::row_number()
  ) |>
  dplyr::relocate(c("dest","group_id")) |>
  dplyr::filter(.data[["group_id"]] < 4) |>
  dplyr::arrange(.data[["dest"]]) |>
  dplyr::select(c("dest", "group_id" ,"year",
                  "month", "day", "arr_time", "tailnum")) |>
  reactable::reactable(
    filterable = TRUE,
    defaultPageSize = 5,
    theme = reactablefmtr::dark()
  )

Exercise 13.5.4

What does the below code do ?

flights |>
  dplyr::group_by(.data[["dest"]]) |>
  dplyr::filter(dplyr::row_number(.data[["dep_delay"]]) < 4) |>
  dplyr::relocate(c("dest")) |>
  dplyr::arrange(.data[["dest"]], .data[["dep_delay"]]) |>
  dplyr::select(c("dest", "dep_delay", "year",
                  "month", "day", "tailnum")) |>
  reactable::reactable(
    filterable = TRUE,
    defaultPageSize = 5,
    theme = reactablefmtr::dark()
  )

We are filtering to see the three lowest dep_delay flights for each destination.

flights |>
  dplyr::group_by(.data[["dest"]]) |>
  dplyr::mutate(
    group_id = dplyr::row_number(.data[["dep_delay"]])
  ) |>
  dplyr::relocate(c("dest","group_id")) |>
  dplyr::filter(.data[["group_id"]] < 4) |>
  dplyr::arrange(.data[["dest"]], .data[["dep_delay"]]) |>
  dplyr::select(c("dest", "dep_delay", "group_id" ,
                  "year", "month", "day", "tailnum")) |>
  reactable::reactable(
    filterable = TRUE,
    defaultPageSize = 5,
    theme = reactablefmtr::dark()
  )

Exercise 13.5.4

For each destination, compute the total minutes of delay.

flights |>
  dplyr::group_by(.data[["dest"]]) |>
  dplyr::summarise(
    total_delay = sum(.data[["arr_delay"]], na.rm = TRUE)
  ) |>
  reactable::reactable(
    filterable = TRUE,
    defaultPageSize = 5,
    theme = reactablefmtr::dark()
  )

Exercise 13.5.4

For each flight, compute the proportion of the total delay for its destination.

flights |>
  dplyr::group_by(.data[["tailnum"]], .data[["dest"]]) |>
  dplyr::summarise(
    prop_delay = mean(.data[["arr_delay"]], na.rm = TRUE),
    total_delay = sum(.data[["arr_delay"]], na.rm = TRUE),
    n = dplyr::n(),
    .groups = "drop"
  ) |>
  reactable::reactable(
    filterable = TRUE,
    defaultPageSize = 5,
    theme = reactablefmtr::dark()
  )

Exercise 13.5.4

Delays are typically temporally correlated: Using lag(), explore how the average flight delay for an hour is related to the average delay for the previous hour.

filtered_flights <- flights |>
  mutate(hour = .data[["dep_time"]] %/% 100) |>
  group_by(.data[["year"]], .data[["month"]],
           .data[["day"]], .data[["hour"]]) |>
  summarize(
    dep_delay = mean(.data[["dep_delay"]], na.rm = TRUE),
    n = dplyr::n(),
    .groups = "drop"
  ) |>
  filter(.data[["n"]] > 5)

filtered_flights |>
  reactable::reactable(
    filterable = TRUE,
    defaultPageSize = 5,
    theme = reactablefmtr::dark()
  )

Exercise 13.5.4

Delays are typically temporally correlated: Using lag(), explore how the average flight delay for an hour is related to the average delay for the previous hour.

filtered_flights <- filtered_flights |>
  mutate(prev_dep_delay =
           dplyr::lag(.data[["dep_delay"]], n = 1))

filtered_flights |>
  reactable::reactable(
    filterable = TRUE,
    defaultPageSize = 5,
    theme = reactablefmtr::dark()
  )

Exercise 13.5.4

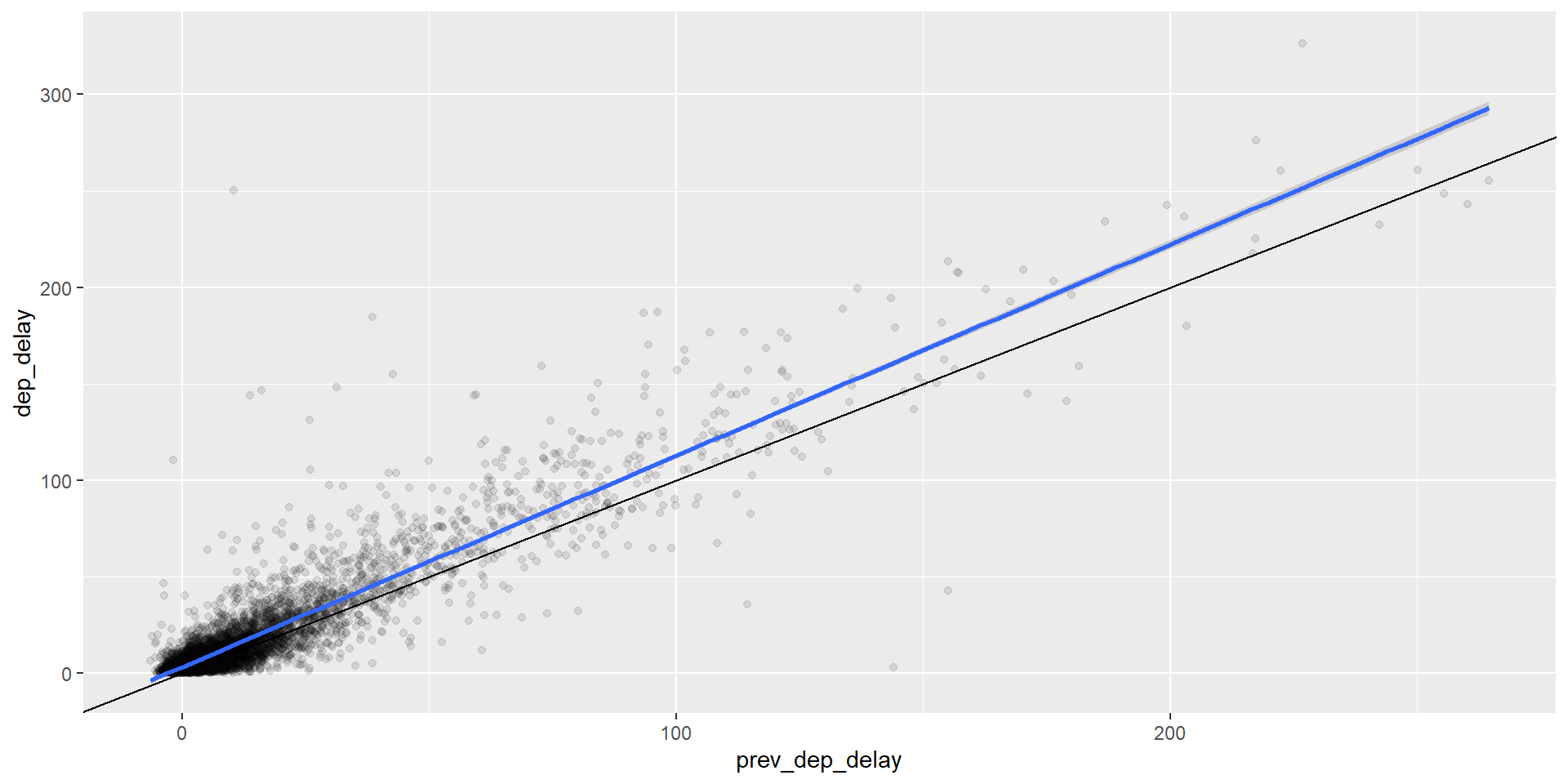

Delays are typically temporally correlated: Later flights are delayed to allow earlier flights to leave

filtered_flights |>
  filter(.data[["dep_delay"]] > 0,
         !is.na(.data[["dep_delay"]]),
         !is.na(.data[["prev_dep_delay"]])) |>
  select(.data[["dep_delay"]],
         .data[["prev_dep_delay"]]) |>
  ggplot2::ggplot(
    mapping = ggplot2::aes(
      x = .data[["prev_dep_delay"]],
      y = .data[["dep_delay"]])
  ) +
  ggplot2::geom_point(alpha = 1/10) +
  ggplot2::geom_smooth(method = "lm") +
  ggplot2::geom_abline(slope = 1, intercept = 0)

Exercise 13.5.4

Look at each destination. Can you find flights that are suspiciously fast (above 575 mph) (i.e. flights that represent a potential data entry error) ?

flights |>
  dplyr::mutate(
    air_time_hours = .data[["air_time"]] / 60,
    air_speed_mph = .data[["distance"]] / .data[["air_time_hours"]]
  ) |>
  dplyr::arrange(dplyr::desc(.data[["air_speed_mph"]])) |>
  dplyr::select(c("tailnum", "dest", "air_speed_mph",
                  "distance", "air_time_hours")) |>
  reactable::reactable(
    filterable = TRUE,
    defaultPageSize = 5,
    theme = reactablefmtr::dark()
  )

Exercise 13.5.4

Compute the air time of a flight relative to the shortest flight to that destination. Which flights were most delayed in the air (longest relative air time) ?

flights |>
  dplyr::group_by(.data[["dest"]]) |>
  dplyr::mutate(
    min_air_time = min(.data[["air_time"]], na.rm = TRUE),
    relative_air_time = .data[["air_time"]] - .data[["min_air_time"]]
  ) |>
  dplyr::arrange(dplyr::desc(.data[["relative_air_time"]])) |>
  dplyr::select(c("tailnum", "dest", "relative_air_time",
                  "air_time", "min_air_time")) |>
  reactable::reactable(
    filterable = TRUE,
    defaultPageSize = 5,
    theme = reactablefmtr::dark()
  )

Exercise 13.5.4

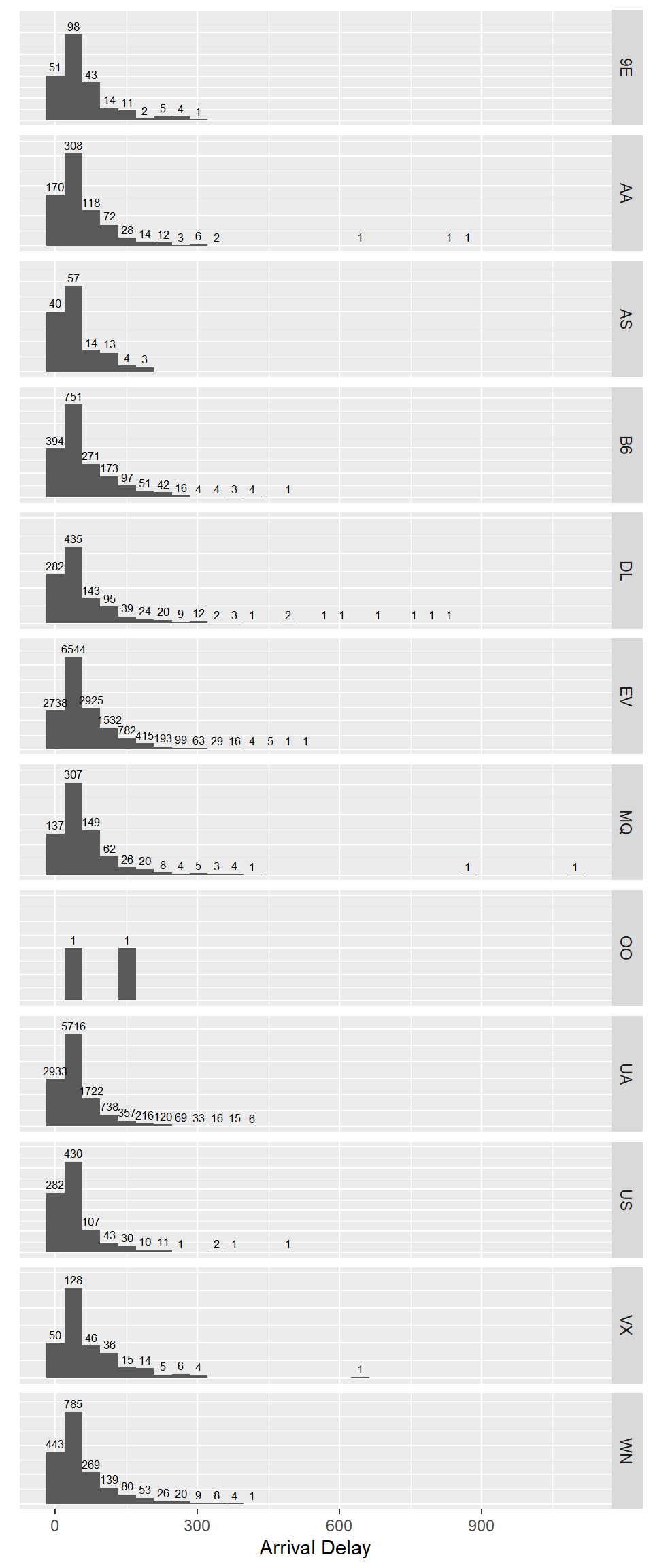

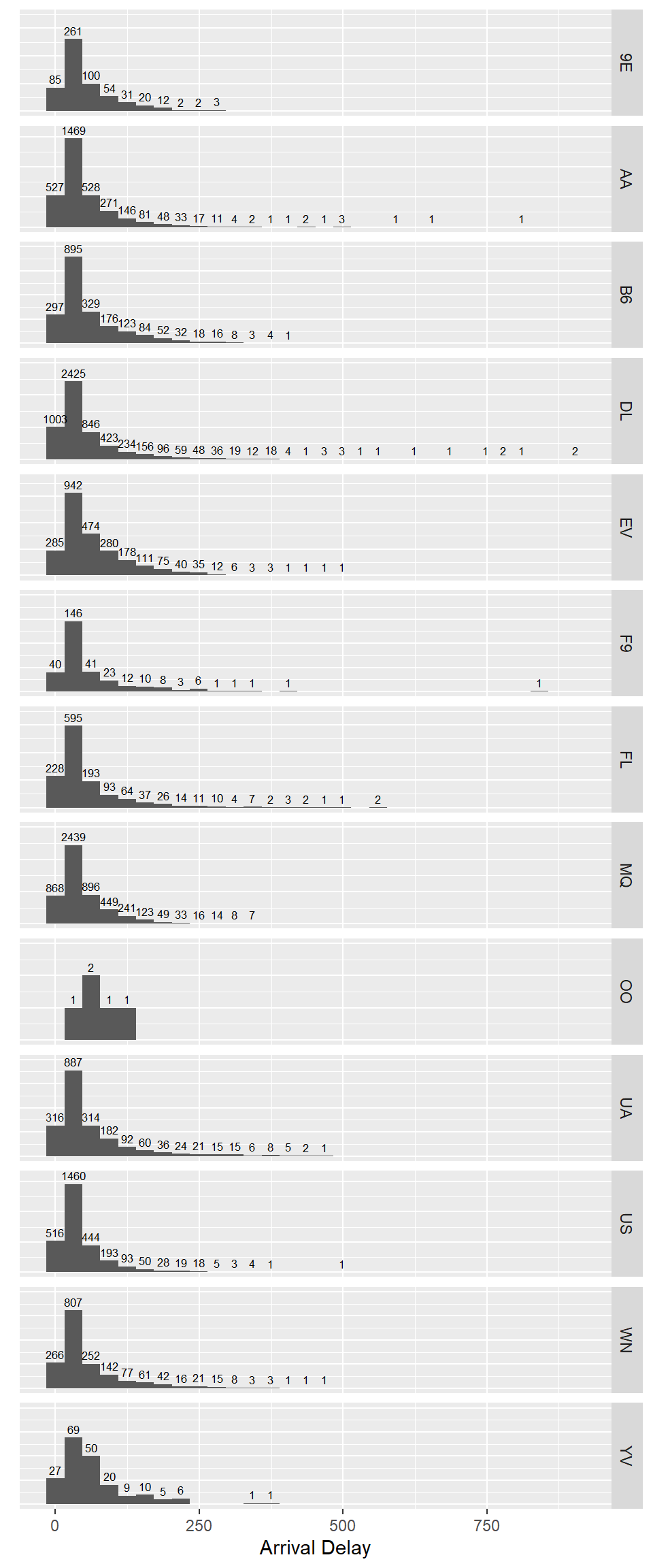

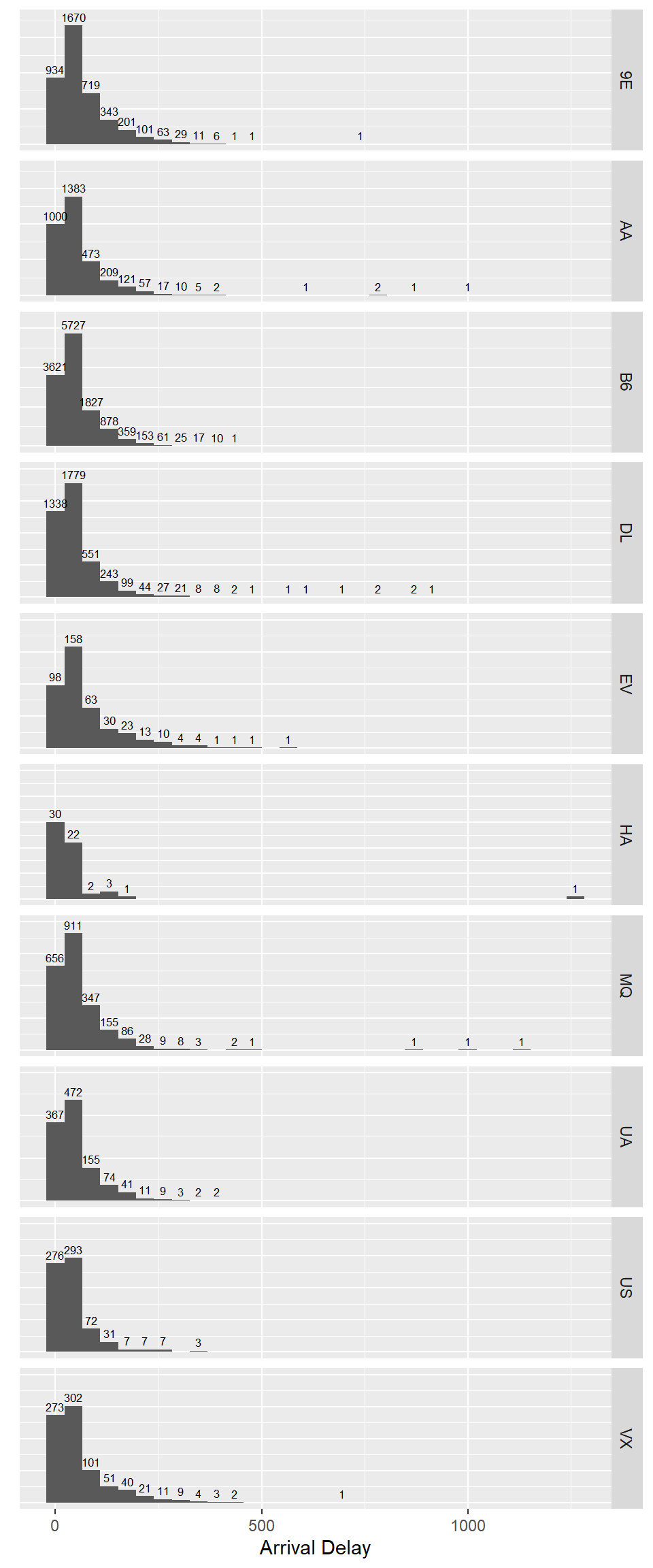

Find all destinations that are flown by at least two carriers. Use those destinations to come up with a relative ranking of the carriers based on their performance for the same destination.

flights |>
  dplyr::group_by(.data[["dest"]]) |>
  dplyr::filter(dplyr::n_distinct(.data[["carrier"]]) >= 2) |>
  dplyr::select(c("dest", "carrier", "arr_delay")) |>
  dplyr::ungroup() |>
  dplyr::group_by(.data[["dest"]], .data[["carrier"]]) |>
  dplyr::summarise(
    arr_delay_mean = mean(.data[["arr_delay"]], na.rm = TRUE),
    n = dplyr::n(),
    arr_delay_rank = dplyr::min_rank(dplyr::desc(.data[["arr_delay_mean"]])),
    .groups = "drop"
  ) |>
  dplyr::group_by(.data[["dest"]]) |>
  dplyr::mutate(
    arr_delay_rank = dplyr::min_rank(.data[["arr_delay_mean"]])
  ) |>
  dplyr::arrange(.data[["arr_delay_rank"]]) |>
  reactable::reactable(
    filterable = TRUE,
    defaultPageSize = 5,
    theme = reactablefmtr::dark()
  )

Center

For symmetric distributions we generally report the mean using mean() while for skewed distributions we usually report the median using stats::median().

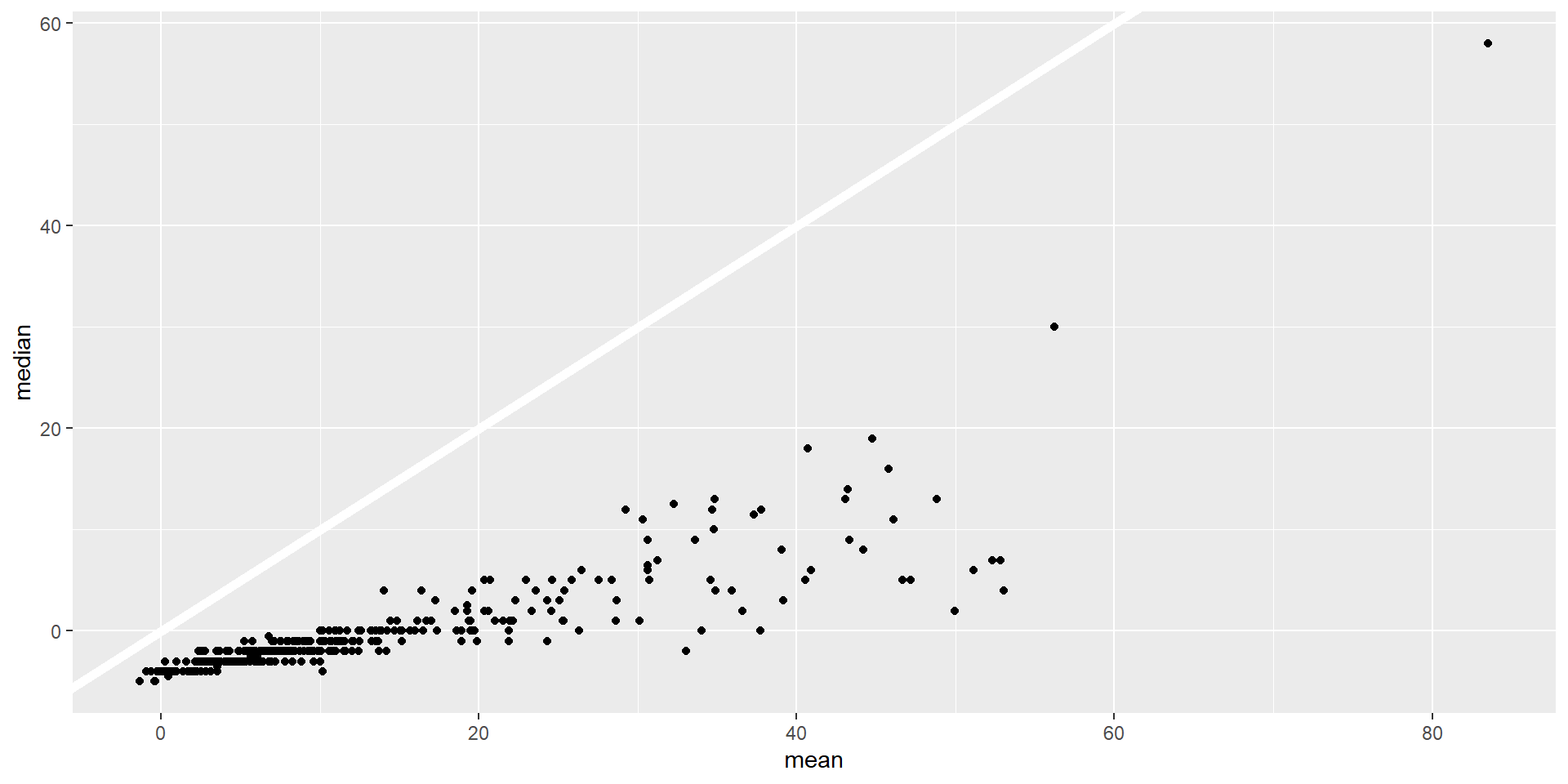

The figure compares the mean and median departure delay (in minutes) for each destination. The median delay is always smaller than the mean delay because flights sometimes leave multiple hours late, but never leave multiple hours early.

flights |>
  dplyr::group_by(.data[["year"]],
                  .data[["month"]],
                  .data[["day"]]) |>
  dplyr::summarize(
    mean = mean(.data[["dep_delay"]], na.rm = TRUE),
    median = stats::median(.data[["dep_delay"]],
                           na.rm = TRUE),
    n = dplyr::n(),
    .groups = "drop"
  ) |>
  ggplot2::ggplot(
    mapping = ggplot2::aes(x = .data[["mean"]],
                           y = .data[["median"]])) +
  ggplot2::geom_abline(
    slope = 1,
    intercept = 0,
    color = "white",
    linewidth = 2) +
  ggplot2::geom_point()

Quantiles

Another function is stats::quantile() which is a generalization of the median. quantile(x, 0.25) will find the value of x that is greater than 25% of the values, quantile(x, 0.5) is equivalent to the median

For the flights data, you might want to look at the 95% quantile of delays rather than the maximum, because it will ignore the 5% of most delayed flights which can be quite extreme.

flights |>
  dplyr::group_by(.data[["year"]],
                  .data[["month"]],
                  .data[["day"]]) |>
  dplyr::summarize(
    max = max(.data[["dep_delay"]],
              na.rm = TRUE),
    q95 = stats::quantile(.data[["dep_delay"]],
                          0.95,
                          type = 7,
                          na.rm = TRUE),
    .groups = "drop"
  ) |>
  reactable::reactable(
    filterable = TRUE,
    defaultPageSize = 5,
    theme = reactablefmtr::dark()
  )

Quantiles

Note that by default, stats::quantile() uses algorithm “type 7”. Difference between the different algorithm can be found in this SAS blog post

Spread

Two commonly used summaries for spread are the standard deviation, sd(x), and the inter-quartile range, IQR(). IQR() is quantile(x, 0.75) - quantile(x, 0.25) and gives you the range that contains the middle 50% of the data.

We can use this to reveal a small oddity in the flights data. You might expect the spread of the distance between origin and destination to be zero, since airports are always in the same place. But the code below reveals a data oddity for airport EGE:

flights |>
  dplyr::group_by(.data[["origin"]],
                  .data[["dest"]]) |>
  dplyr::summarize(
    distance_sd = stats::IQR(.data[["distance"]]),
    n = dplyr::n(),
    .groups = "drop"
  ) |>
  dplyr::filter(.data[["distance_sd"]] > 0) |>
  reactable::reactable(
    filterable = TRUE,
    defaultPageSize = 5,
    theme = reactablefmtr::dark()
  )

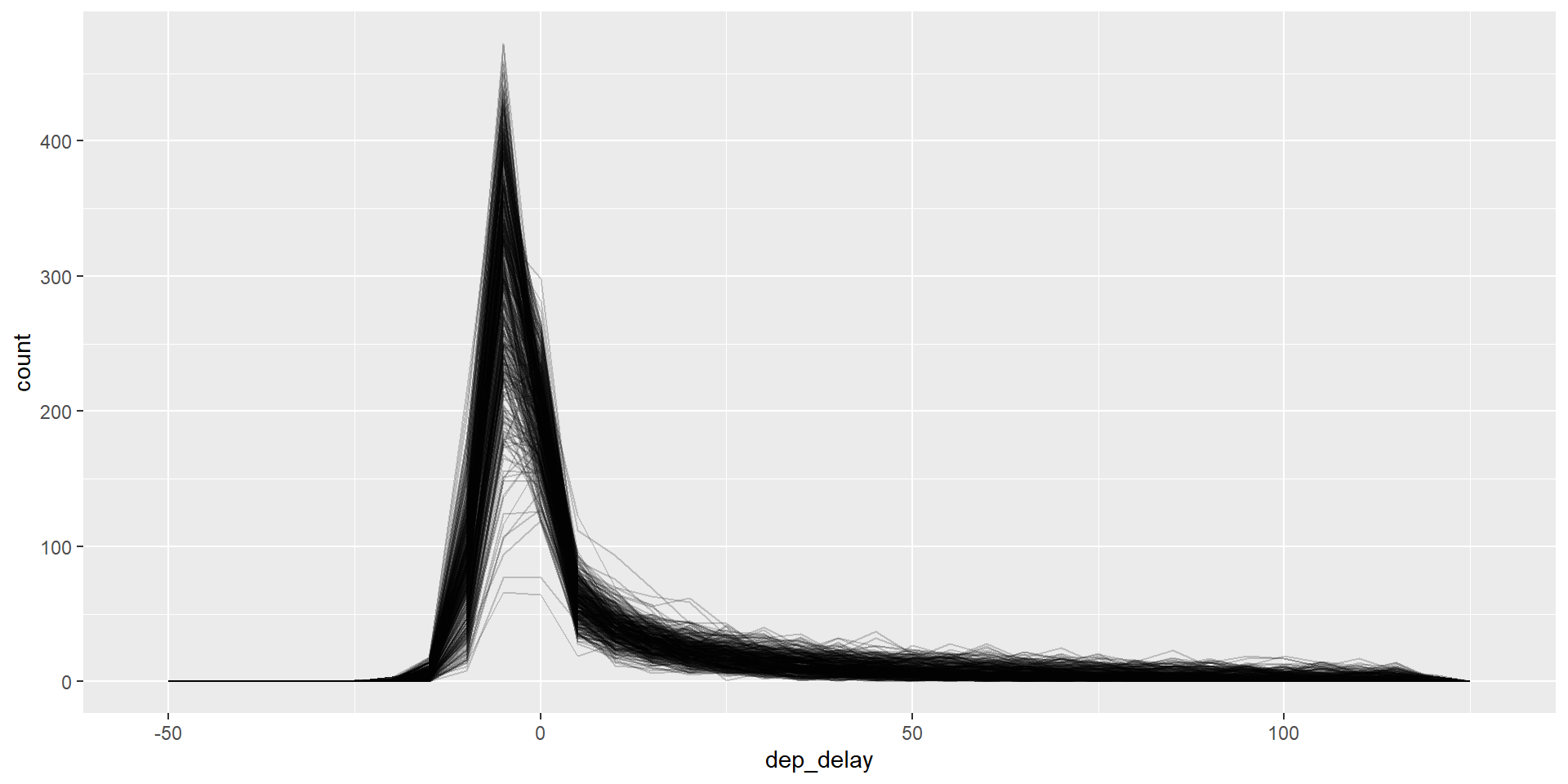

Distributions

It’s always a good idea to visualize the distribution before committing to your summary statistics. In the following plot, the frequency polygons of dep_delay are displayed for each day (365 in total), from minimum dep_delay to at most 2 hours.

flights |>
  dplyr::filter(.data[["dep_delay"]] < 120) |>
  ggplot2::ggplot(
    mapping = ggplot2::aes(
      x = dep_delay,
      group = interaction(.data[["day"]],
                          .data[["month"]]))) +
  ggplot2::geom_freqpoly(binwidth = 5, alpha = 1/5)

Position

We can use dplyr::first(), dplyr::last() and dplyr::nth() to extract a value at a specific position. For example, we can find the first, fifth and last departure for each day:

flights |>
  dplyr::group_by(.data[["year"]],
                  .data[["month"]],
                  .data[["day"]]) |>
  dplyr::summarize(
    first_dep = dplyr::first(.data[["dep_time"]],
                             na_rm = TRUE),
    fifth_dep = dplyr::nth(.data[["dep_time"]],
                           n = 5,
                           na_rm = TRUE),
    last_dep = dplyr::last(.data[["dep_time"]],
                           na_rm = TRUE),
    .groups = "drop"
  ) |>
  reactable::reactable(
    filterable = TRUE,
    defaultPageSize = 5,
    theme = reactablefmtr::dark()
  )

Position (Extracting vs filtering)

Extracting values at positions is complementary to filtering on ranks. Filtering gives you all variables, with each observation in a separate row:

flights |>
  dplyr::group_by(.data[["year"]],
                  .data[["month"]],
                  .data[["day"]]) |>
  dplyr::mutate(
    r = dplyr::min_rank(.data[["sched_dep_time"]])
  ) |>
  dplyr::filter(.data[["r"]] %in% c(1, max(.data[["r"]])))  |>
  dplyr::select(c("year", "month", "day", "tailnum",
                  "r", "sched_dep_time")) |>
  reactable::reactable(
    filterable = TRUE,
    defaultPageSize = 5,
    theme = reactablefmtr::dark()
  )

With mutate()

• x / sum(x) calculates the proportion of a total.
• (x - mean(x)) / sd(x) computes a Z-score (standardized to mean 0 and sd 1).
• (x - min(x)) / (max(x) - min(x)) standardizes to range [0, 1].
• x / first(x) computes an index based on the first observation.

It is easy to get the difference between mutate and summarize confused. Remember that mutate returns the same number of rows in a data frame, summarize returns just one row, and summarize with groups returns a row for each group.

Exercises 13.6.7

Brainstorm different ways to assess the typical delay characteristics of a group of flights.

flights |>
  dplyr::filter(!is.na(.data[["flight"]])) |>
  dplyr::filter(.data[["arr_delay"]] > 10) |>
  dplyr::group_by(.data[["origin"]], .data[["dest"]]) |>
  dplyr::summarise(
    arr_delay_num = dplyr::n(),
    arr_delay_mean = mean(.data[["arr_delay"]], na.rm = TRUE),
    arr_delay_median = mean(.data[["arr_delay"]], na.rm = TRUE),
    arr_delay_min = min(.data[["arr_delay"]], na.rm = TRUE),
    arr_delay_max = max(.data[["arr_delay"]], na.rm = TRUE),
  ) |>
  reactable::reactable(
    filterable = TRUE,
    defaultPageSize = 5,
    theme = reactablefmtr::dark()
  )

Exercises 13.6.7

Brainstorm different ways to assess the typical delay characteristics of a group of flights.

• EWR
• LGA
• JFK

flights_summary <- flights |>
  dplyr::filter(!is.na(.data[["flight"]])) |>
  dplyr::filter(.data[["arr_delay"]] > 10) |>
  dplyr::filter(.data[["origin"]] == "EWR")

flights_summary |>
  ggplot2::ggplot(
    mapping = ggplot2::aes(
      x = .data[["arr_delay"]]
    )
  ) +
  ggplot2::geom_histogram(bins = 30) +
  ggplot2::stat_bin(
    aes(
      x = .data[["arr_delay"]],
      y = ggplot2::after_stat(.data[["count"]]),
      label = ggplot2::after_stat(
        dplyr::if_else(.data[["count"]] > 0,
                       as.character(.data[["count"]]),
                       "")
        )
    ),
    bins = 30,
    geom = "text",
    vjust = -0.5,
    size = 2.25
  ) +
  ggplot2::facet_grid(
    rows = ggplot2::vars(.data[["carrier"]]),
    scales = "free_y") +
  ggh4x::facetted_pos_scales(
    y = list(
      .data[["carrier"]] == "9E" ~
        ggplot2::scale_y_continuous(
          limits = c(0, 120)),
      .data[["carrier"]] == "AA" ~
        ggplot2::scale_y_continuous(
          limits = c(0, 350)),
      .data[["carrier"]] == "AS" ~
        ggplot2::scale_y_continuous(
          limits = c(0, 70)),
      .data[["carrier"]] == "B6" ~
        ggplot2::scale_y_continuous(
          limits = c(0, 850)),
      .data[["carrier"]] == "DL" ~
        ggplot2::scale_y_continuous(
          limits = c(0, 600)),
      .data[["carrier"]] == "EV" ~
        ggplot2::scale_y_continuous(
          limits = c(0, 7500)),
      .data[["carrier"]] == "MQ" ~
        ggplot2::scale_y_continuous(
          limits = c(0, 350)),
      .data[["carrier"]] == "OO" ~
        ggplot2::scale_y_continuous(
          limits = c(0, 2)),
      .data[["carrier"]] == "UA" ~
        ggplot2::scale_y_continuous(
          limits = c(0, 6500)),
      .data[["carrier"]] == "US" ~
        ggplot2::scale_y_continuous(
          limits = c(0, 500)),
      .data[["carrier"]] == "VX" ~
        ggplot2::scale_y_continuous(
          limits = c(0, 150)),
      .data[["carrier"]] == "WN" ~
        ggplot2::scale_y_continuous(
          limits = c(0, 900))
  )) +
  ggplot2::theme(
    axis.title.y = ggplot2::element_text(angle = 0),
    axis.ticks.y.left = ggplot2::element_blank(),
    axis.text.y.left = ggplot2::element_blank(),
  ) +
  ggplot2::labs(
    x = "Arrival Delay",
    y = "")

flights_summary <- flights |>
  dplyr::filter(!is.na(.data[["flight"]])) |>
  dplyr::filter(.data[["arr_delay"]] > 10) |>
  dplyr::filter(.data[["origin"]] == "LGA")

flights_summary |>
  ggplot2::ggplot(
    mapping = ggplot2::aes(x = .data[["arr_delay"]])
  ) +
  ggplot2::geom_histogram(
    bins = 30
  ) +
  ggplot2::stat_bin(
    aes(x = .data[["arr_delay"]],
        y = ggplot2::after_stat(.data[["count"]]),
        label = ggplot2::after_stat(
        dplyr::if_else(.data[["count"]] > 0,
                       as.character(.data[["count"]]),
                       "")
        )
    ),
    bins = 30,
    geom = "text",
    vjust = -0.5,
    size = 2.25
  ) +
  ggplot2::facet_grid(
    rows = ggplot2::vars(.data[["carrier"]]),
    scales = "free_y") +
  ggh4x::facetted_pos_scales(
    y = list(
      .data[["carrier"]] == "9E" ~
        ggplot2::scale_y_continuous(limits = c(0, 350)),
      .data[["carrier"]] == "AA" ~
        ggplot2::scale_y_continuous(limits = c(0, 1600)),
      .data[["carrier"]] == "B6" ~
        ggplot2::scale_y_continuous(limits = c(0, 1000)),
      .data[["carrier"]] == "DL" ~
        ggplot2::scale_y_continuous(limits = c(0, 3000)),
      .data[["carrier"]] == "EV" ~
        ggplot2::scale_y_continuous(limits = c(0, 1100)),
      .data[["carrier"]] == "F9" ~
        ggplot2::scale_y_continuous(limits = c(0, 200)),
      .data[["carrier"]] == "FL" ~
        ggplot2::scale_y_continuous(limits = c(0, 700)),
      .data[["carrier"]] == "MQ" ~
        ggplot2::scale_y_continuous(limits = c(0, 3000)),
      .data[["carrier"]] == "OO" ~
        ggplot2::scale_y_continuous(limits = c(0, 3)),
      .data[["carrier"]] == "UA" ~
        ggplot2::scale_y_continuous(limits = c(0, 1000)),
      .data[["carrier"]] == "US" ~
        ggplot2::scale_y_continuous(limits = c(0, 1600)),
      .data[["carrier"]] == "WN" ~
        ggplot2::scale_y_continuous(limits = c(0, 1000)),
      .data[["carrier"]] == "YV" ~
        ggplot2::scale_y_continuous(limits = c(0, 100))
  )) +
  ggplot2::theme(
    axis.title.y = ggplot2::element_text(angle = 0),
    axis.ticks.y.left = ggplot2::element_blank(),
    axis.text.y.left = ggplot2::element_blank(),
  ) +
  ggplot2::labs(
    x = "Arrival Delay",
    y = "")

flights_summary <- flights |>
  dplyr::filter(!is.na(.data[["flight"]])) |>
  dplyr::filter(.data[["arr_delay"]] > 10) |>
  dplyr::filter(.data[["origin"]] == "JFK")

flights_summary |>
  ggplot2::ggplot(
    mapping = ggplot2::aes(x = .data[["arr_delay"]])
  ) +
  ggplot2::geom_histogram() +
  ggplot2::stat_bin(
    aes(x = .data[["arr_delay"]],
        y = ggplot2::after_stat(.data[["count"]]),
        label = ggplot2::after_stat(
        dplyr::if_else(.data[["count"]] > 0,
                       as.character(.data[["count"]]),
                       "")
        )
    ),
    bins = 30,
    geom = "text",
    vjust = -0.5,
    size = 2.25
  ) +
  ggplot2::facet_grid(
    rows = ggplot2::vars(.data[["carrier"]]),
    scales = "free_y") +
  ggh4x::facetted_pos_scales(
    y = list(
      .data[["carrier"]] == "9E" ~
        ggplot2::scale_y_continuous(limits = c(0, 1800)),
      .data[["carrier"]] == "AA" ~
        ggplot2::scale_y_continuous(limits = c(0, 1800)),
      .data[["carrier"]] == "B6" ~
        ggplot2::scale_y_continuous(limits = c(0, 6500)),
      .data[["carrier"]] == "DL" ~
        ggplot2::scale_y_continuous(limits = c(0, 2000)),
      .data[["carrier"]] == "EV" ~
        ggplot2::scale_y_continuous(limits = c(0, 200)),
      .data[["carrier"]] == "HA" ~
        ggplot2::scale_y_continuous(limits = c(0, 50)),
      .data[["carrier"]] == "MQ" ~
        ggplot2::scale_y_continuous(limits = c(0, 1000)),
      .data[["carrier"]] == "UA" ~
        ggplot2::scale_y_continuous(limits = c(0, 600)),
      .data[["carrier"]] == "US" ~
        ggplot2::scale_y_continuous(limits = c(0, 400)),
      .data[["carrier"]] == "VX" ~
        ggplot2::scale_y_continuous(limits = c(0, 400))
  )) +
  ggplot2::theme(
    axis.title.y = ggplot2::element_text(angle = 0),
    axis.ticks.y.left = ggplot2::element_blank(),
    axis.text.y.left = ggplot2::element_blank(),
  ) +
  ggplot2::labs(
    x = "Arrival Delay",
    y = "")

Exercises 13.6.7

Which destinations show the greatest variation in air speed ?

flights |>
  dplyr::mutate(
    air_time_hours = .data[["air_time"]] / 60,
    air_speed_mph = .data[["distance"]] / .data[["air_time_hours"]]
  ) |>
  dplyr::summarise(
    air_speed_var = stats::var(.data[["air_speed_mph"]],
                               na.rm = TRUE),
    .by = c("dest")
  ) |>
  dplyr::arrange(dplyr::desc(.data[["air_speed_var"]])) |>
  reactable::reactable(
    filterable = TRUE,
    defaultPageSize = 5,
    theme = reactablefmtr::dark()
  )

Exercises 13.6.7

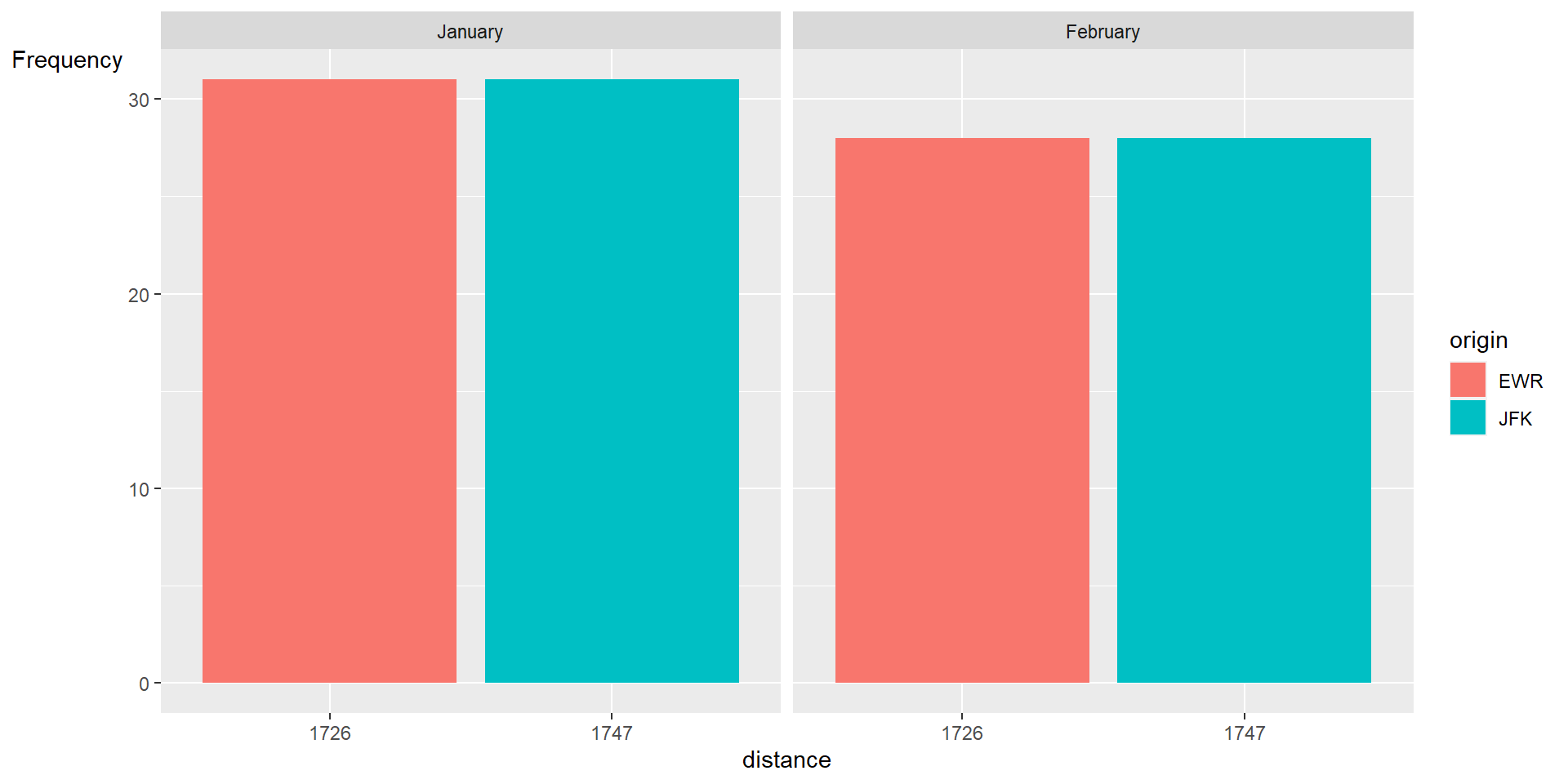

Create a plot to further explore the adventures of EGE (Eagle County Regional Airport). Can you find any evidence that the airport moved locations?

Code

month_names <- c(
  `1` = "January",
  `2` = "February"
)

flights_ege <- flights |>
  dplyr::filter(.data[["dest"]] == "EGE") |>
  dplyr::mutate(
    distance = as.factor(.data[["distance"]])
  )

flights_ege |>
  dplyr::filter(.data[["month"]] %in% c(1, 2)) |>
  ggplot2::ggplot(
    mapping = ggplot2::aes(
      x = .data[["distance"]],
      fill = .data[["origin"]]
    )
  ) +
  ggplot2::geom_bar() +
  ggplot2::facet_wrap(
    facets = ggplot2::vars(.data[["month"]]),
    labeller = ggplot2::as_labeller(month_names)
  ) +
  ggplot2::theme(
    axis.title.y = ggplot2::element_text(angle = 0)
  ) +
  ggplot2::labs(
    y = "Frequency"
  )

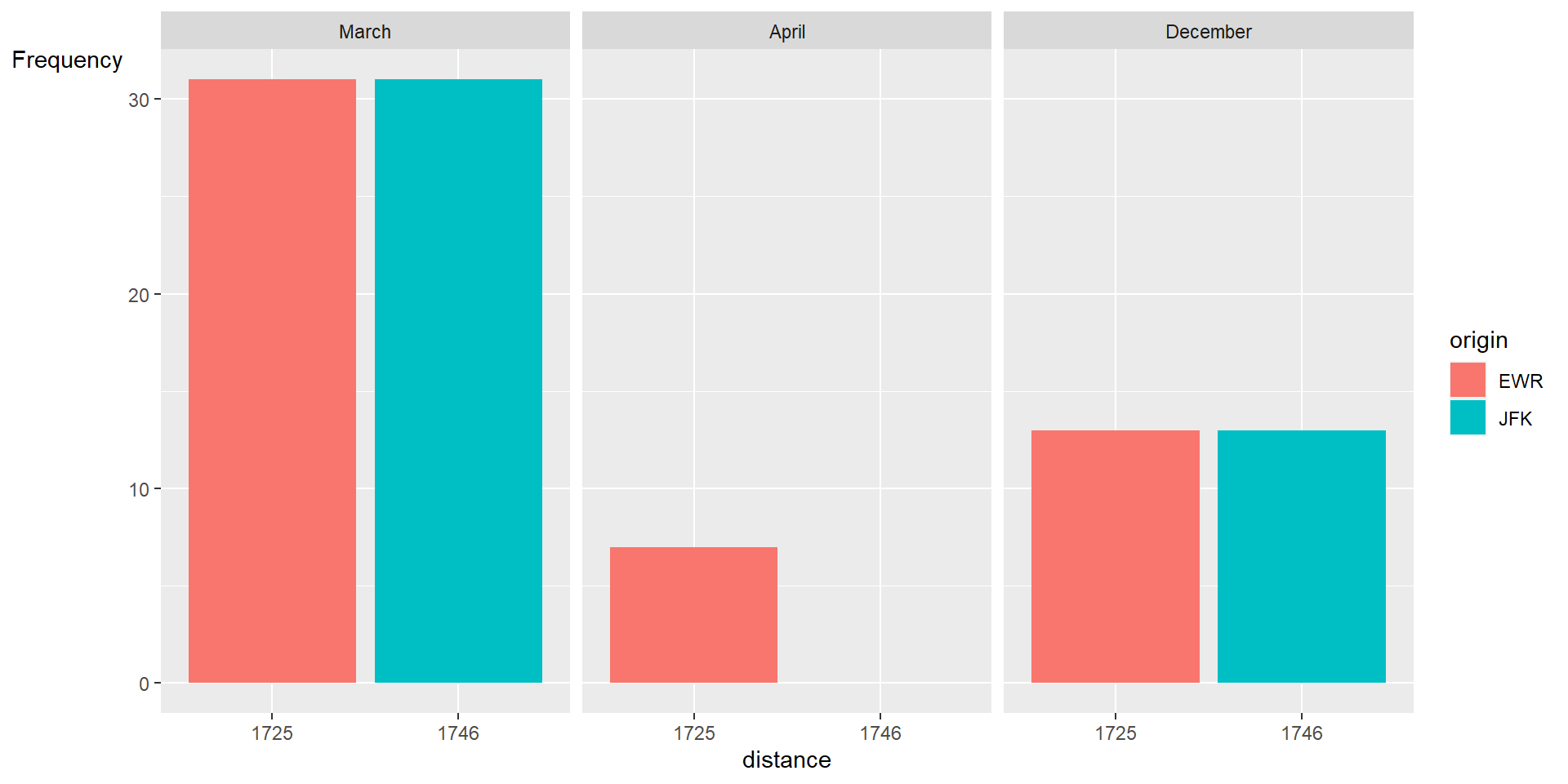

Code

month_names <- c(
  `3` = "March",
  `4` = "April",
  `12` = "December"
)

flights_ege <- flights |>
  dplyr::filter(.data[["dest"]] == "EGE") |>
  dplyr::mutate(
    distance = as.factor(.data[["distance"]])
  )

flights_ege |>
  dplyr::filter(.data[["month"]] %in% c(3, 4, 12)) |>
  ggplot2::ggplot(
    mapping = ggplot2::aes(
      x = .data[["distance"]],
      fill = .data[["origin"]]
    )
  ) +
  ggplot2::geom_bar() +
  ggplot2::facet_wrap(
    facets = ggplot2::vars(.data[["month"]]),
    labeller = ggplot2::as_labeller(month_names)
  ) +
  ggplot2::theme(
    axis.title.y = ggplot2::element_text(angle = 0)
  ) +
  ggplot2::labs(
    y = "Frequency"
  )
