Retrospective clinical data harmonisation reporting using R and Quarto

---

Jeremy Selva

@JauntyJJS
https://jeremy-selva.netlify.app

For useR! 2025

9 August 2025

whoami

Research Officer from National Heart Centre Singapore who collects, cleans and harmonises clinical data.

Taming the Data Beast from “Cleaning Medical Data with R” workshop by Shannon Pileggi, Crystal Lewis and Peter Higgins presented at R/Medicine 2023. Illustrated by Allison Horst.

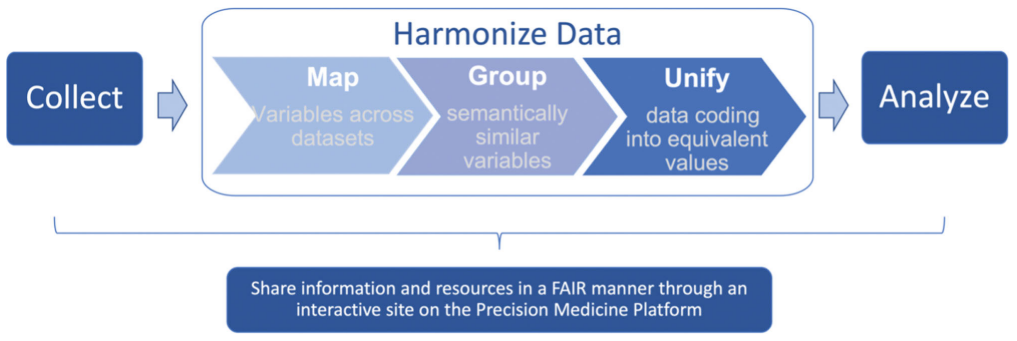

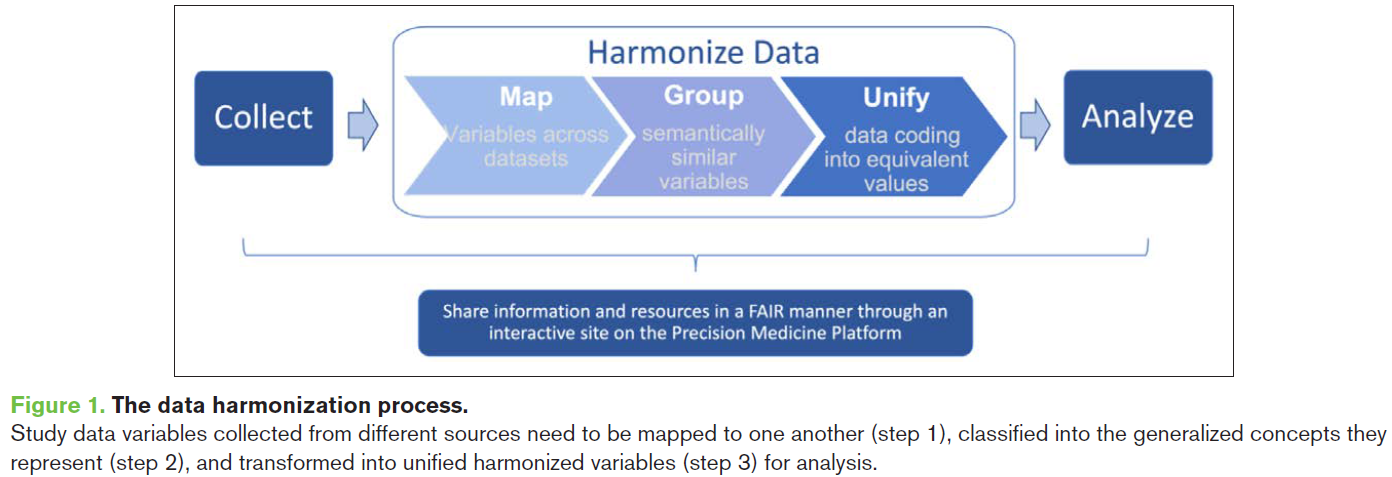

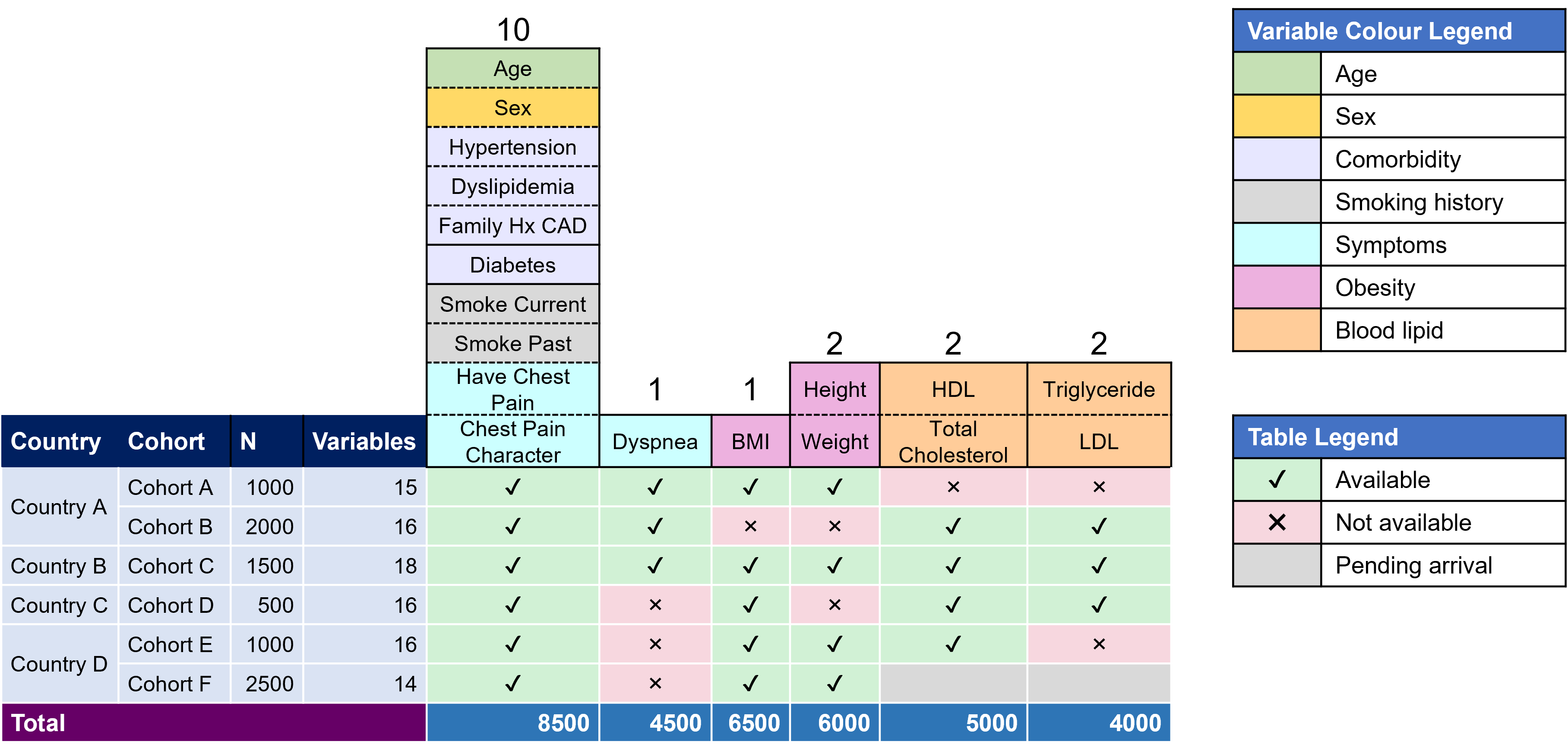

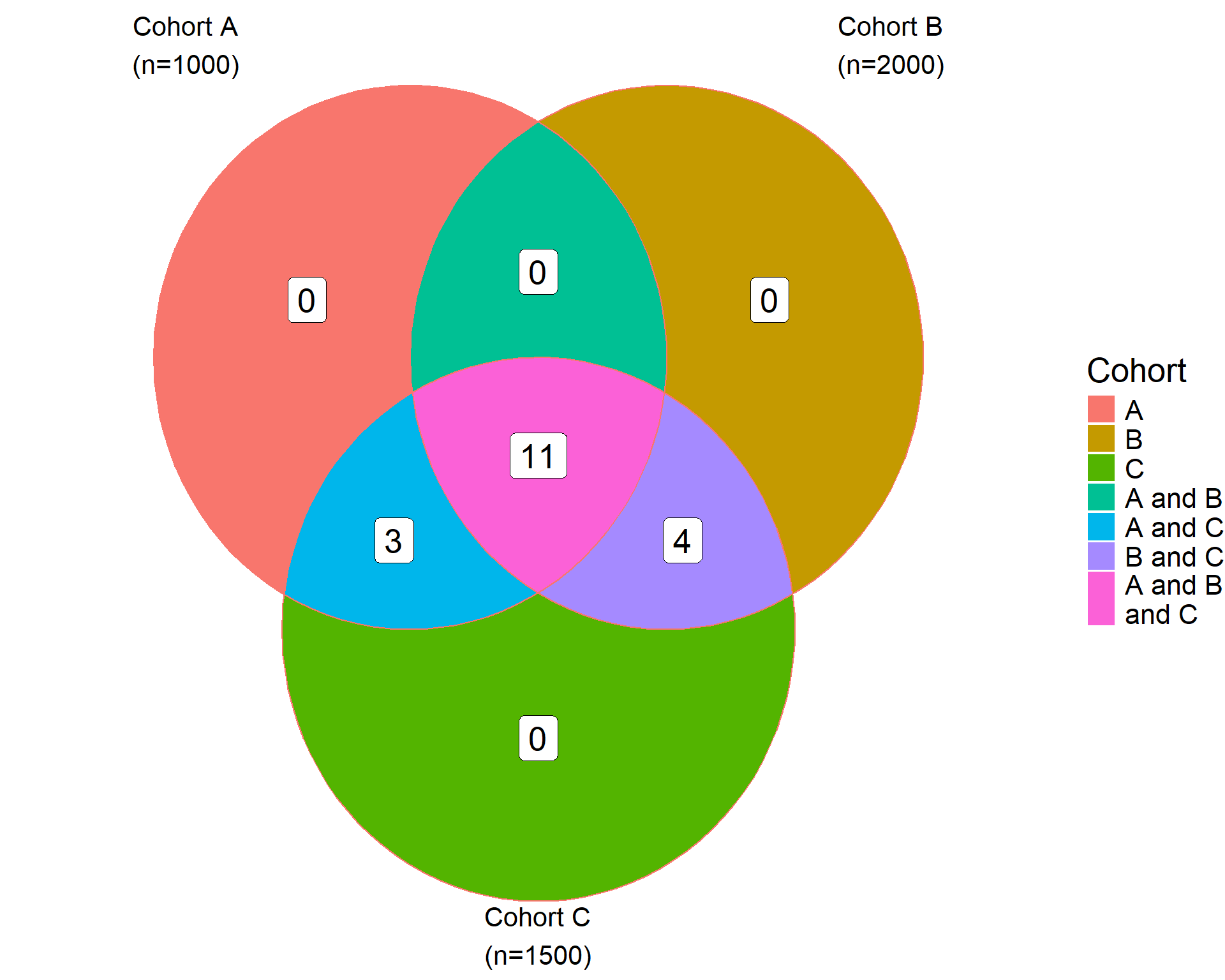

About Data Harmonisation

Data harmonisation is part of data wrangling process where

• Similar variables from different datasets are identified.

• Grouped based on a generalised concept they represent.

• Transformed into unified harmonised variables for analysis.

Image from Mallya et al. Circ Cardiovasc Qual Outcomes. 2023 Nov; 16(11):e009938 doi: 10.1161/CIRCOUTCOMES.123.009938.

How it started

Cheerful Businessman designed by Iftikhar Alam from Vecteezy and Medical Doctor Man from Creazilla.

How it started

Cheerful Businessman designed by Iftikhar Alam from Vecteezy and Medical Doctor Man from Creazilla.

How it started

Cheerful Businessman designed by Iftikhar Alam from Vecteezy and Medical Doctor Man from Creazilla.

How it started

snapshot from Ready for QA | MonkeyUser 2SP Animation Video from MonkeyUser.com.

How it started

snapshot from Ready for QA | MonkeyUser 2SP Animation Video from MonkeyUser.com.

How it started

Turn my sorrow into opportunities.

How it started

Cheerful Businessman designed by Iftikhar Alam from Vecteezy and Medical Doctor Man from Creazilla.

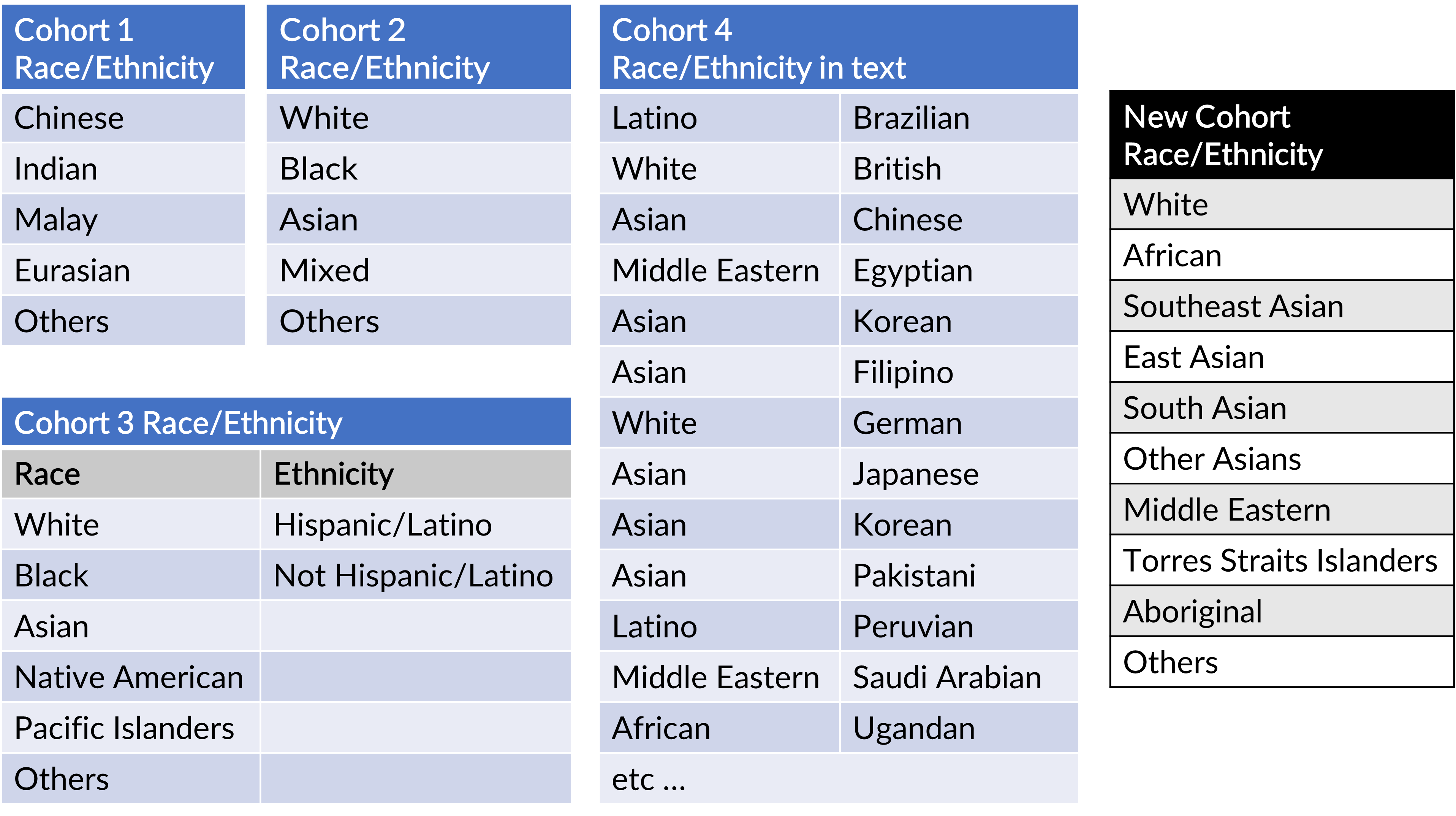

Additional Motivation

Some data fields just cannot be planned in advanced.

Issues

While there are R packages to facilitate data harmonisation,

• retroharmonize for survey data.
• Rmonize for epidemiological data.
• psHarmonize for health and education data.

There are limited resources on how to make a data harmonisation report.

Denvercoder9 from MonkeyUser.com

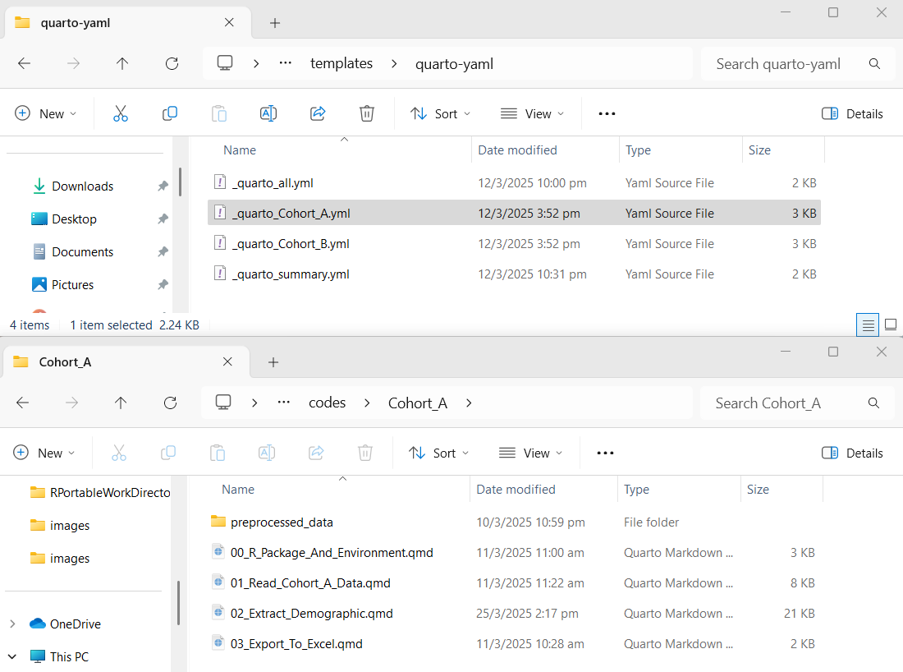

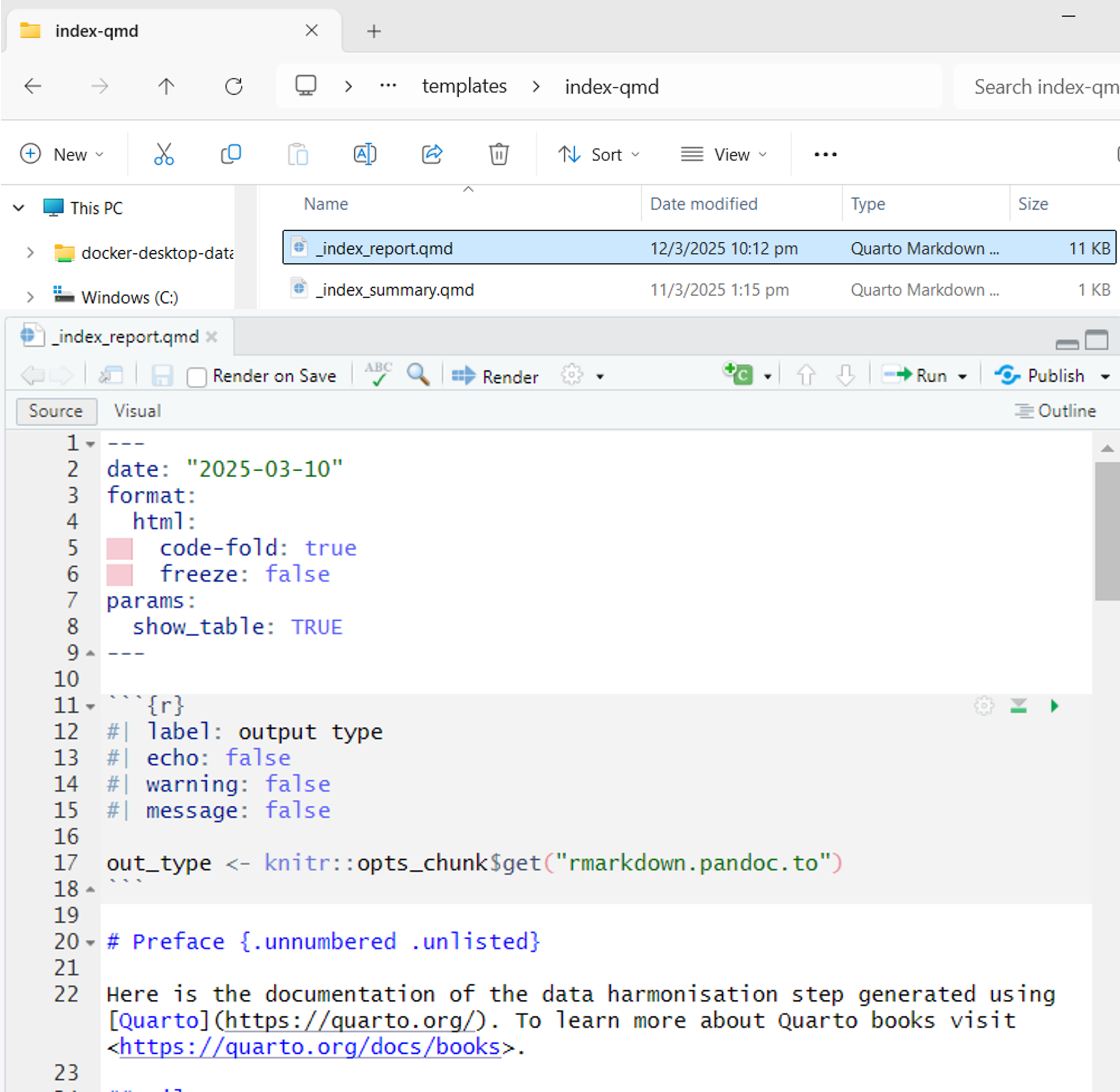

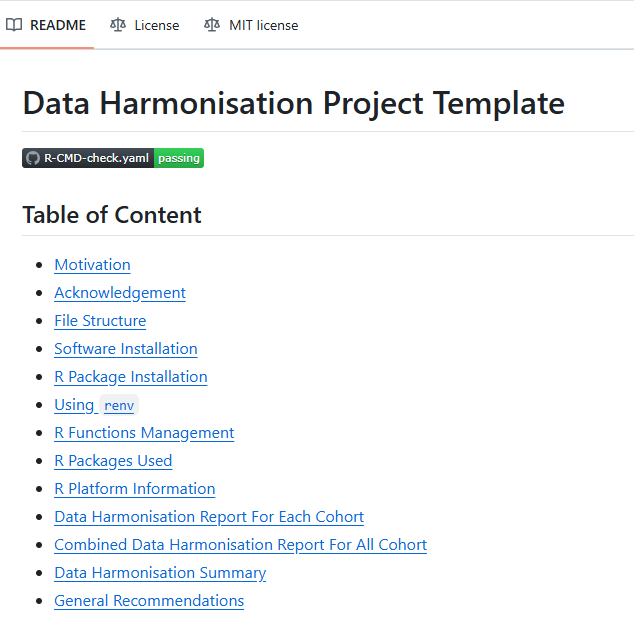

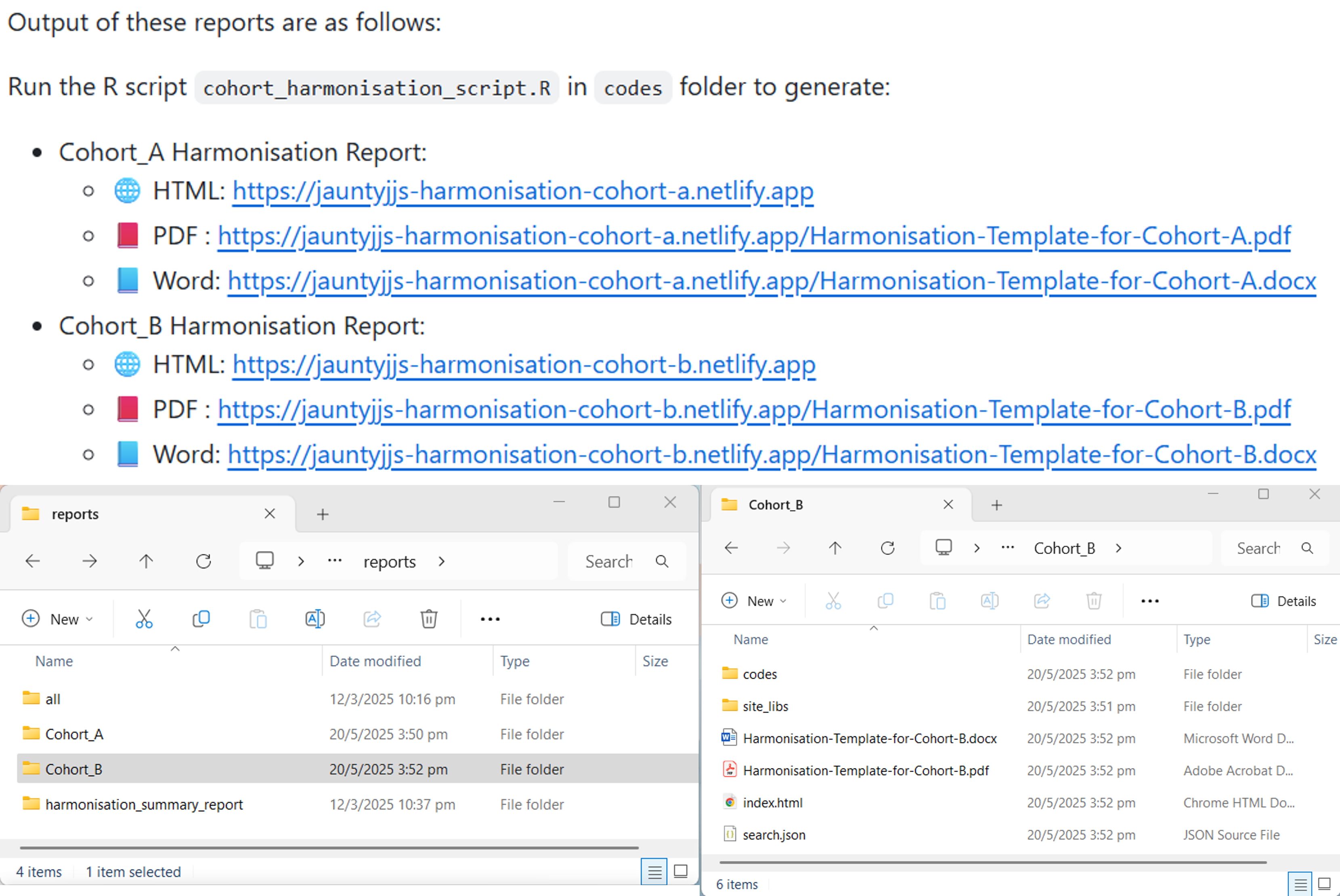

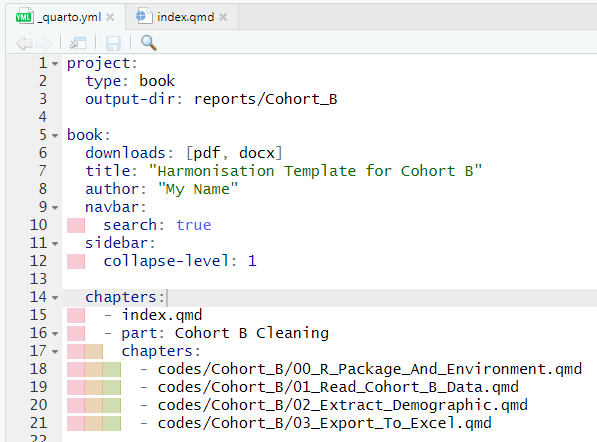

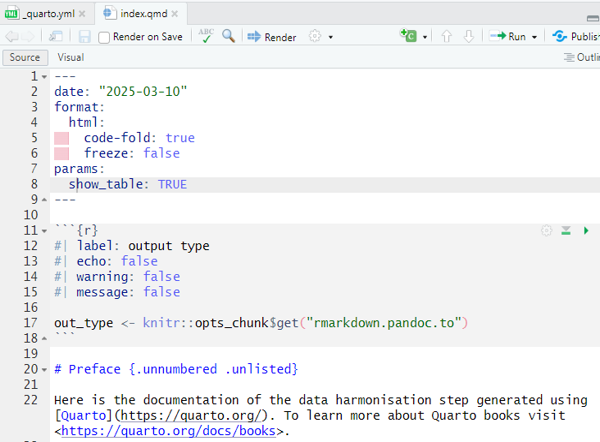

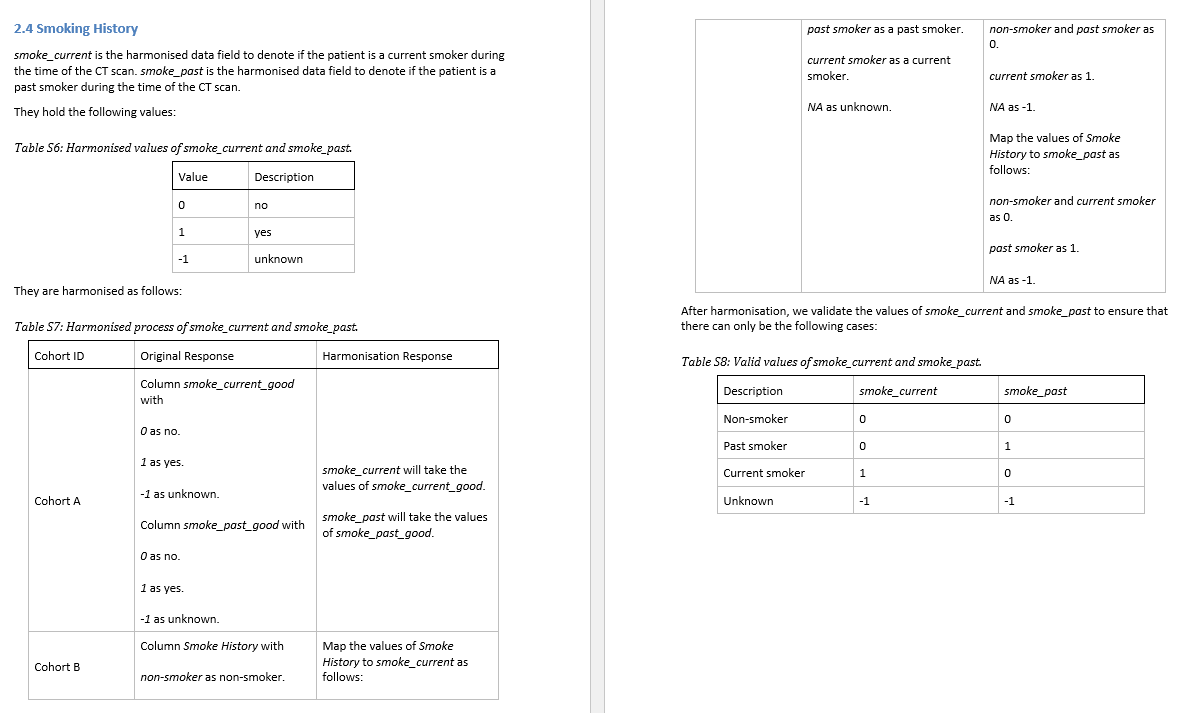

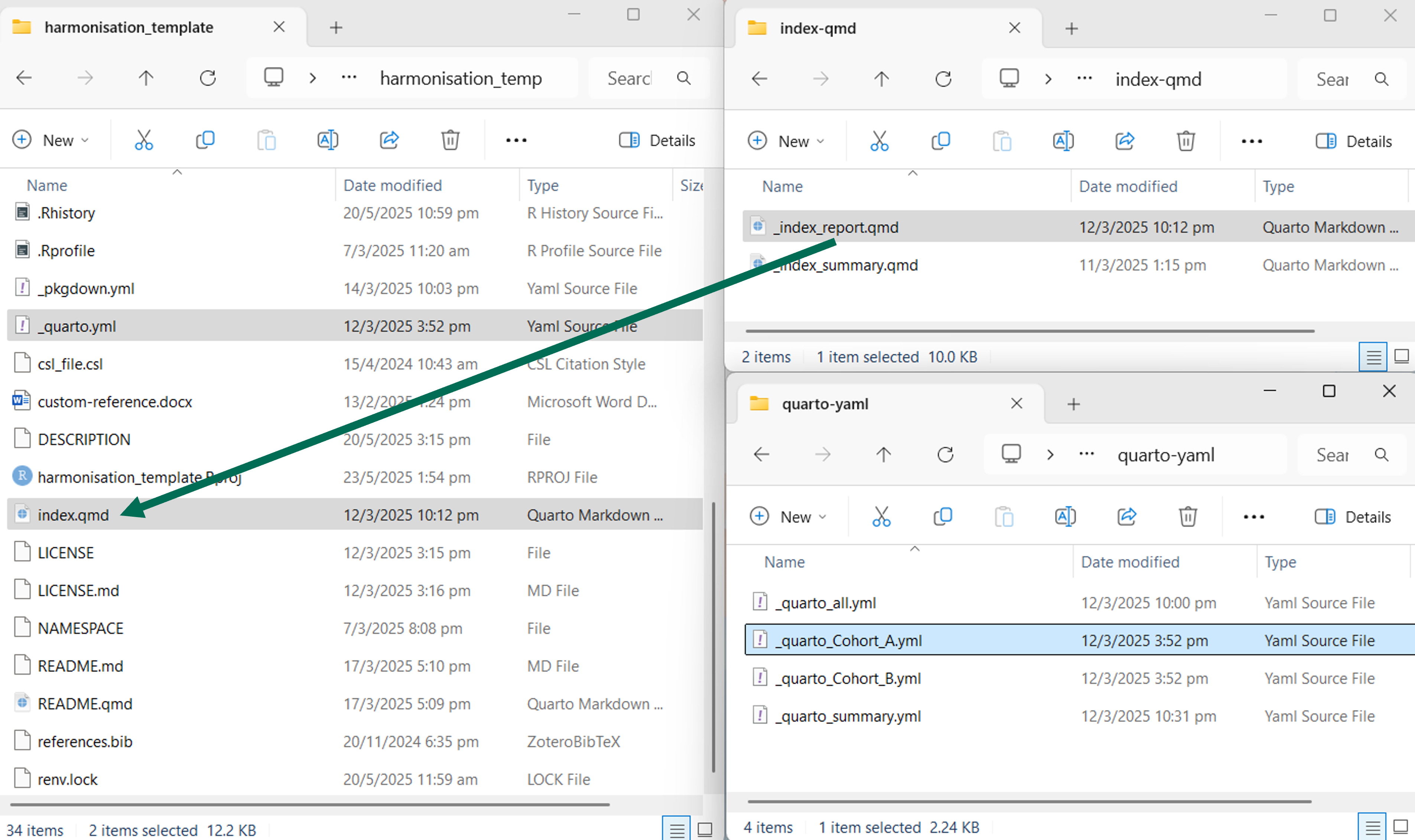

Harmonisation Project Template

A template to offer a systematic way to report data harmonisation processes.

[Link: https://jauntyjjs.github.io/harmonisation/]

Workflow with collaborators

Collaborator can send the raw data once and you keep updating the cleaned data for harmonsation.

Dataset vectors by Vectora Artworks from Vecteezy.

Workflow with collaborators

Cheerful Businessman designed by Iftikhar Alam from Vecteezy and Medical Doctor Man from Creazilla.

Workflow with collaborators

Cheerful Businessman designed by Iftikhar Alam from Vecteezy and Medical Doctor Man from Creazilla.

Workflow with collaborators

Collaborator can update the raw data. For example, adding new clinical data, add more patients, correct errors.

Dataset vectors by Vectora Artworks from Vecteezy.

Workflow with collaborators

New version means new bugs or reopen issues to fix. Is there an automated way to catch warnings/issues when reading these updated files ?

Dataset vectors by Vectora Artworks from Vecteezy. Anticipate from MonkeyUser.com

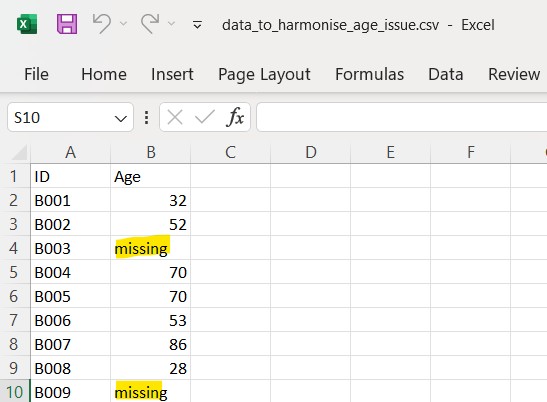

Automated capture of warnings (csv)

Is there an automated way to catch warnings/issues when reading csv files ?

cohort_data_csv <- vroom::vroom(
  file = here::here("data-raw", "Cohort_csv",
    "data_to_harmonise_age_issue.csv"),
  delim = ",",
  col_select = 1:2,
  show_col_types = FALSE,
  col_types = list(
    ID = vroom::col_character(),
    Age = vroom::col_integer()
  )
)

head(cohort_data_csv, n = 3)

# A tibble: 3 × 2

Warning: One or more parsing issues, call `problems()` on your data frame for details,
e.g.:
  dat <- vroom(...)
  problems(dat)

  ID      Age
  <chr> <int>
1 B001     32
2 B002     52
3 B003     NA

Automated capture of warnings (csv)

If there are issues with the data, the output of vroom::problems will be a tibble.

cohort_data_csv |>
  vroom::problems()

# A tibble: 4 × 5
    row   col expected   actual  file
  <int> <int> <chr>      <chr>   <chr>
1     2     2 an integer missing D:/Jeremy/PortableR/RPortableWorkDirectory/use…
2     4     2 an integer missing D:/Jeremy/PortableR/RPortableWorkDirectory/use…
3    10     2 an integer missing D:/Jeremy/PortableR/RPortableWorkDirectory/use…
4    17     2 an integer missing D:/Jeremy/PortableR/RPortableWorkDirectory/use…

To check for this automatically, we can use pointblank::expect_row_count_match.

cohort_data_csv |>
  vroom::problems() |>
  pointblank::expect_row_count_match(count = 0)

Error: Row counts for the two tables did not match.
The `expect_row_count_match()` validation failed beyond the absolute threshold level (1).
* failure level (1) >= failure threshold (1)

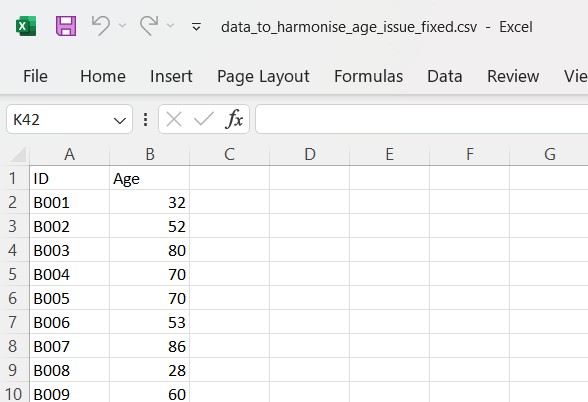

Automated capture of warnings (csv)

Here is a case with no issues.

cohort_data_csv <- vroom::vroom(
  file = here::here("data-raw", "Cohort_csv",
    "data_to_harmonise_age_issue_fixed.csv"),
  delim = ",",
  col_select = 1:2,
  show_col_types = FALSE,
  col_types = list(
    ID = vroom::col_character(),
    Age = vroom::col_integer()
  )
)

cohort_data_csv |>
  vroom::problems()

# A tibble: 0 × 5
# ℹ 5 variables: row <int>, col <int>, expected <chr>, actual <chr>, file <chr>

cohort_data_csv |>
  vroom::problems() |>
  pointblank::expect_row_count_match(count = 0)

Automated capture of warnings (Excel)

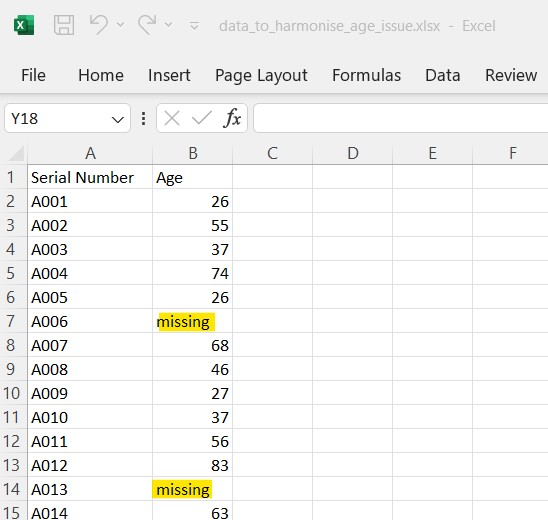

Is there an automated way to catch warnings/issues when reading Excel files ?

cohort_data_excel <- readxl::read_excel(
  path = here::here("data-raw", "Cohort_Excel",
    "data_to_harmonise_age_issue.xlsx"),
  sheet = "Sheet1",
  col_types = c(
    "text", "numeric"
    )
  )

Warning: Expecting numeric in B7 / R7C2: got 'missing'

Warning: Expecting numeric in B14 / R14C2: got 'missing'

Automated capture of warnings (Excel)

We can read the Excel file with testthat::expect_no_condition.

testthat::expect_no_condition(
  cohort_data_excel <- readxl::read_excel(
    path = here::here("data-raw", "Cohort_Excel",
      "data_to_harmonise_age_issue.xlsx"),
    sheet = "Sheet1",
    col_types = c("text", "numeric")
  )
)

Error: Expected `... <- NULL` to run without any conditions.
ℹ Actually got a <simpleWarning> with text:
  Expecting numeric in B7 / R7C2: got 'missing'

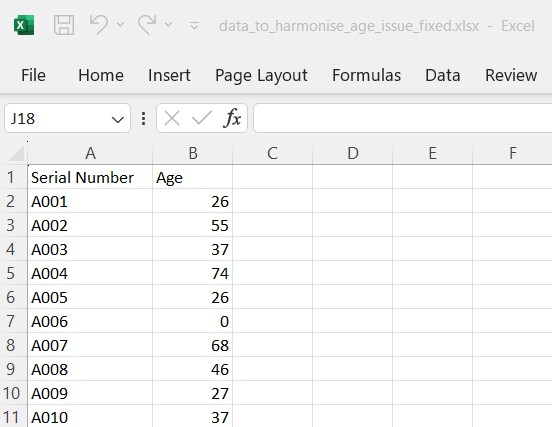

Automated capture of warnings (Excel)

However, this method means that you will lose the pipe workflow.

testthat::expect_no_condition(
  cohort_data_excel <- readxl::read_excel(
    path = here::here("data-raw", "Cohort_Excel",
      "data_to_harmonise_age_issue_fixed.xlsx"),
    sheet = "Sheet1",
    col_types = c("text", "numeric")
  )
)

cohort_data_excel <- cohort_data_excel |>
  # Check if Serial Number is unique
  pointblank::rows_distinct(
    columns = "Serial Number",
  )

Automated capture of warnings (Excel)

We can use the tee pipe operator %T>% from magrittr.

With Issues

cohort_data_excel <- readxl::read_excel(
  path = here::here("data-raw", "Cohort_Excel",
    "data_to_harmonise_age_issue.xlsx"),
  sheet = "Sheet1",
  col_types = c(
    "text", "numeric"
    )
  ) %T>%
  testthat::expect_no_condition()

Error: Expected `.` to run without any conditions.
ℹ Actually got a <simpleWarning> with text:
  Expecting numeric in B7 / R7C2: got 'missing'

No Issues

cohort_data_excel_2 <- readxl::read_excel(
  path = here::here("data-raw", "Cohort_Excel",
    "data_to_harmonise_age_issue_fixed.xlsx"),
  sheet = "Sheet1",
  col_types = c("text", "numeric")
) %T>%
testthat::expect_no_condition() |>
# Check if Serial Number is unique
  pointblank::rows_distinct(
    columns = "Serial Number",
)

Variable Mapping

Variable Mapping

Let take this data set as an example.

cohort_csv_data <- vroom::vroom(
  file = here::here("data-raw",
                    "Cohort_csv",
                    "data_to_harmonise.csv"),
  delim = ",",
  col_select = 1:8,
  show_col_types = FALSE,
  col_types = list(
    ID = vroom::col_character(),
    Age = vroom::col_integer(),
    Sex = vroom::col_character(),
    Height = vroom::col_double(),
    Weight = vroom::col_double(),
    `Smoke History` = vroom::col_character(),
    `Chest Pain Character` = vroom::col_character(),
    Dyspnea = vroom::col_character()
    )
  ) |>
  dplyr::rename(cohort_unique_id = "ID") |>
  # Remove rows when the ID value is NA
  dplyr::filter(!is.na(.data[["cohort_unique_id"]])) |>
  # Remove white spaces in column names
  dplyr::rename_all(stringr::str_trim) |>
  # Check if cohort id is unique
  pointblank::rows_distinct(
    columns = "cohort_unique_id",
  )

cohort_csv_data |>
  vroom::problems() |>
  pointblank::expect_row_count_match(count = 0)

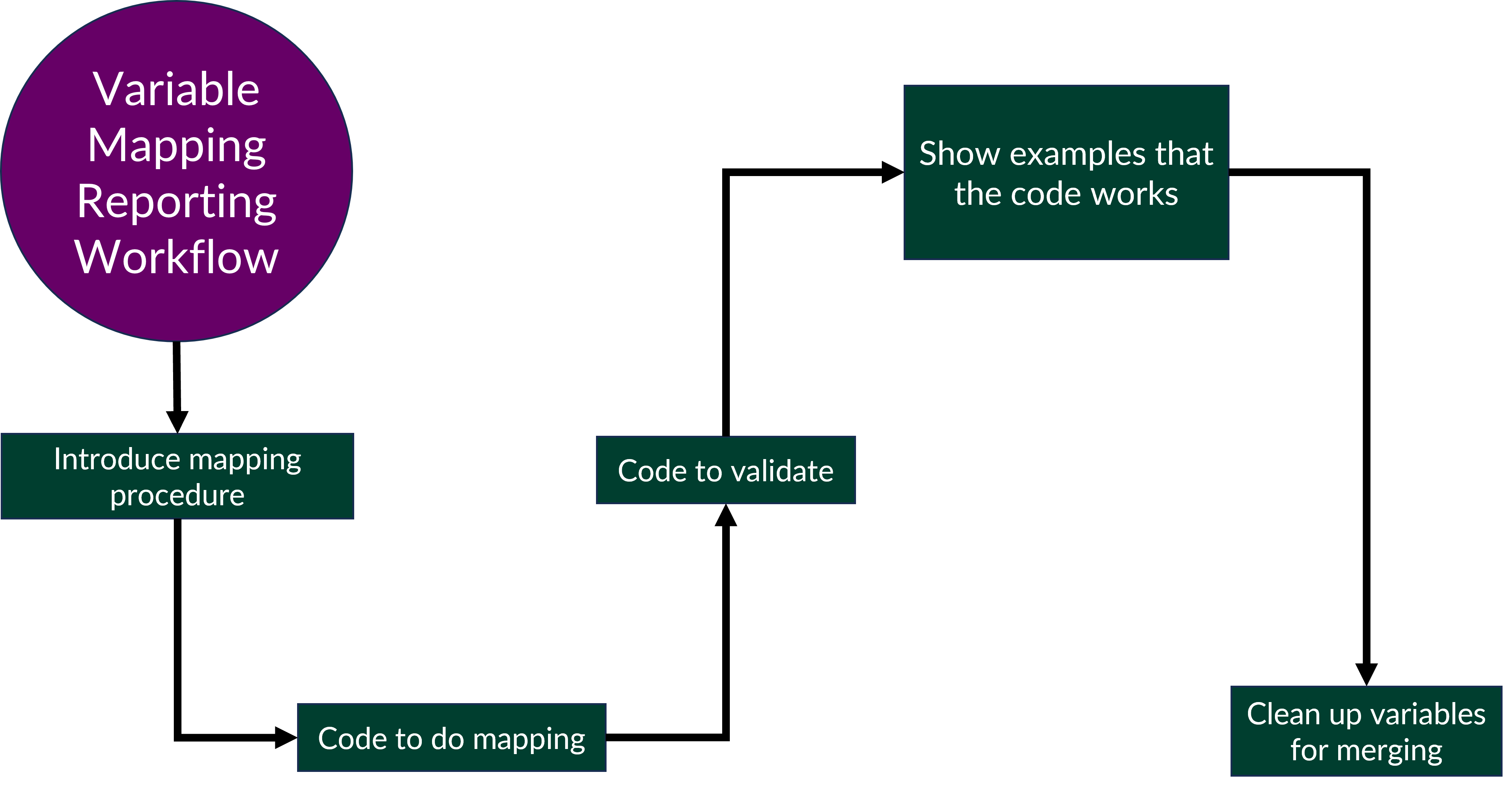

Variable Mapping

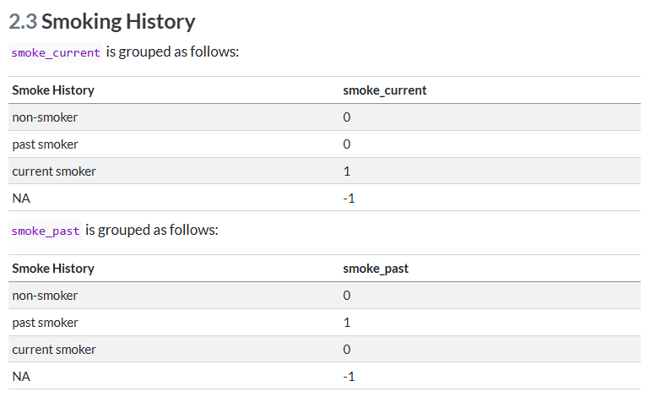

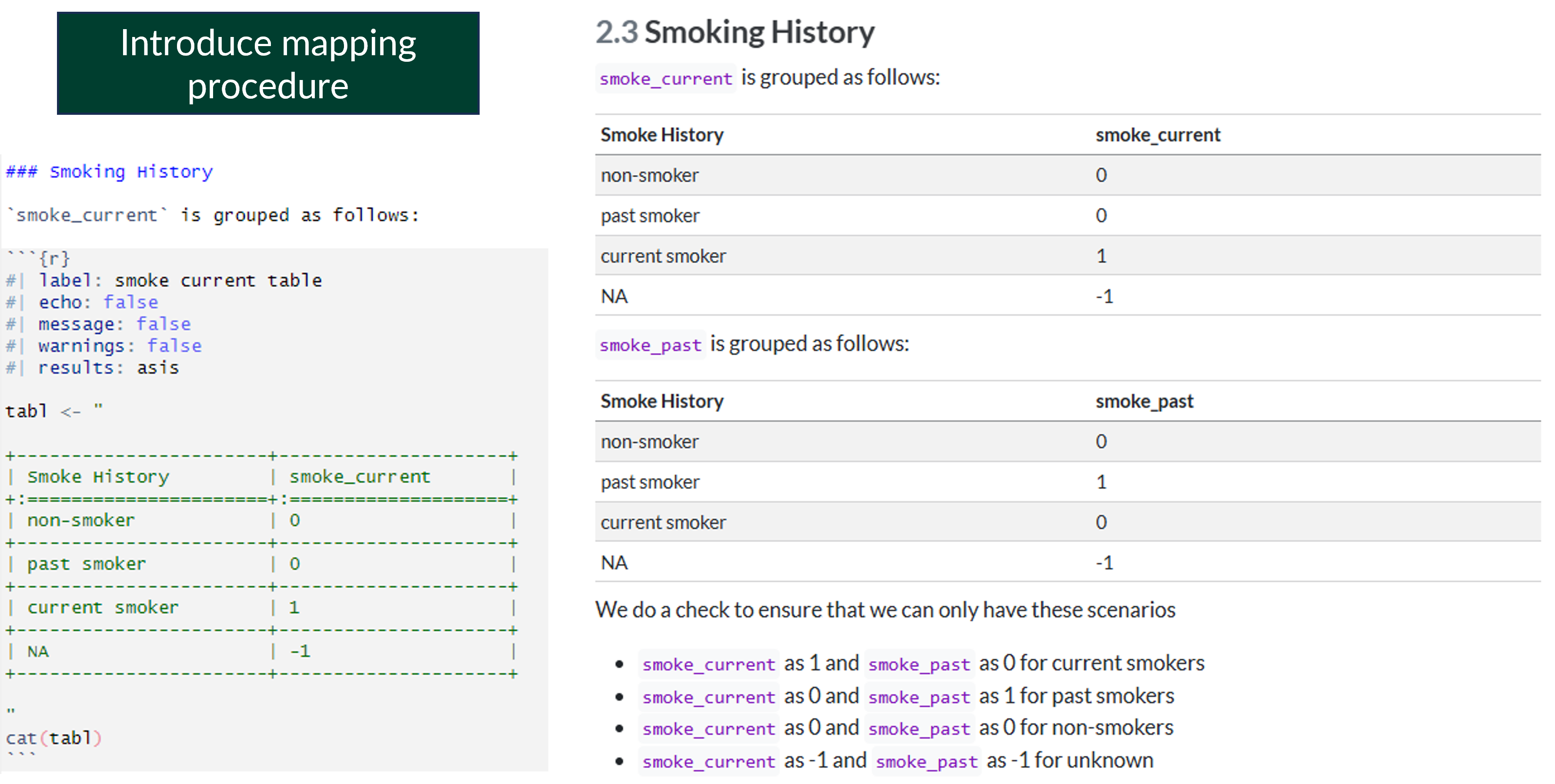

Let the reader know how the collaborator’s data Smoke History is going to be mapped.

Variable Mapping

smoking_data <- cohort_csv_data |>
  dplyr::select(c("cohort_unique_id",
                  "Smoke History")) |>
  dplyr::mutate(
    smoke_current = dplyr::case_when(
      is.na(.data[["Smoke History"]]) ~ "-1",
      .data[["Smoke History"]] == "non-smoker" ~ "0",
      .data[["Smoke History"]] == "past smoker" ~ "0",
      .data[["Smoke History"]] == "current smoker" ~ "1",
      .default = NA_character_
    ),
    smoke_current = forcats::fct_relevel(
      .data[["smoke_current"]],
      c("0", "1")),
    smoke_past = dplyr::case_when(
      is.na(.data[["Smoke History"]]) ~ "-1",
      .data[["Smoke History"]] == "non-smoker" ~ "0",
      .data[["Smoke History"]] == "past smoker" ~ "1",
      .data[["Smoke History"]] == "current smoker" ~ "0",
      .default = NA_character_
    ),
    smoke_past = forcats::fct_relevel(
      .data[["smoke_past"]],
      c("0", "1")),
    `Smoke History` = forcats::fct(
      .data[["Smoke History"]]
    )
  )

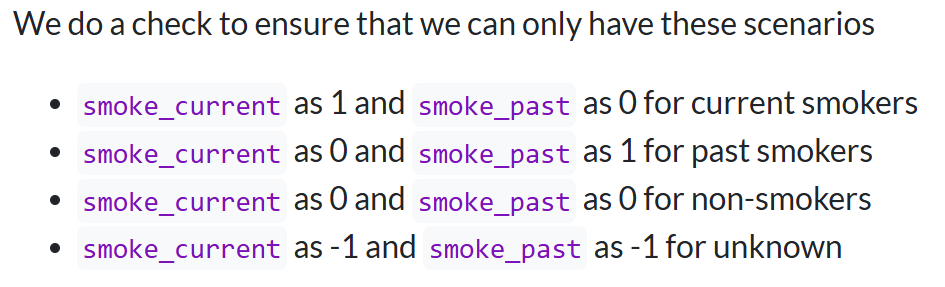

Variable Mapping

smoking_data <- smoking_data |>
  pointblank::col_vals_in_set(
    columns = c("smoke_current", "smoke_past"),
    set = c("0", "1", "-1")
  ) |>
  pointblank::col_vals_expr(
    expr = pointblank::expr(
      (.data[["smoke_current"]] == "1" & .data[["smoke_past"]] == "0") |
      (.data[["smoke_current"]] == "-1" & .data[["smoke_past"]] == -"1") |
      (.data[["smoke_current"]] == "0" & .data[["smoke_past"]] %in% c("0", "1"))
    )
  )

Reference: https://github.com/rstudio/pointblank/issues/578

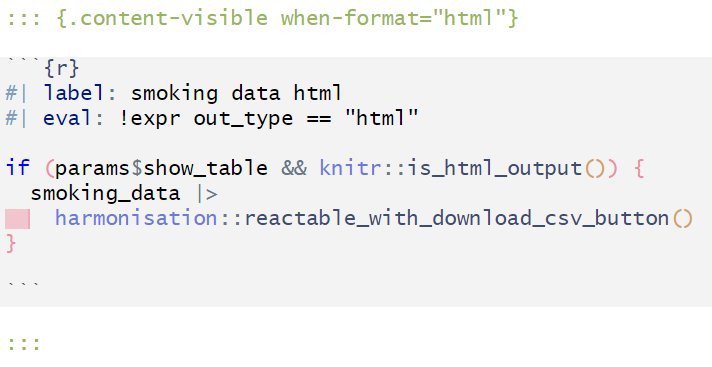

Variable Mapping

Html Output

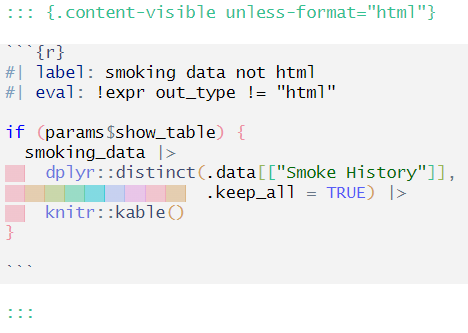

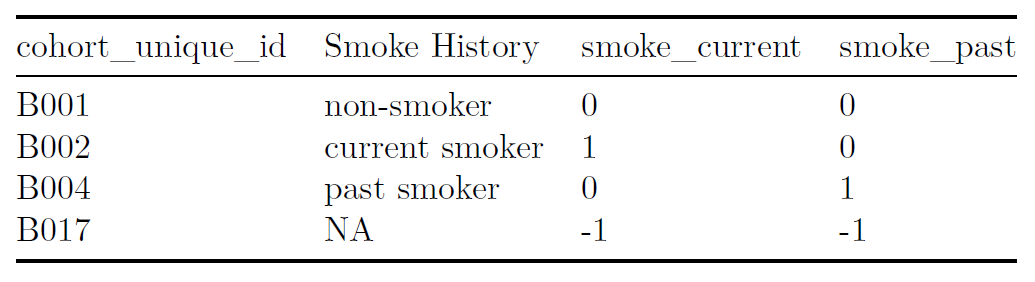

Variable Mapping

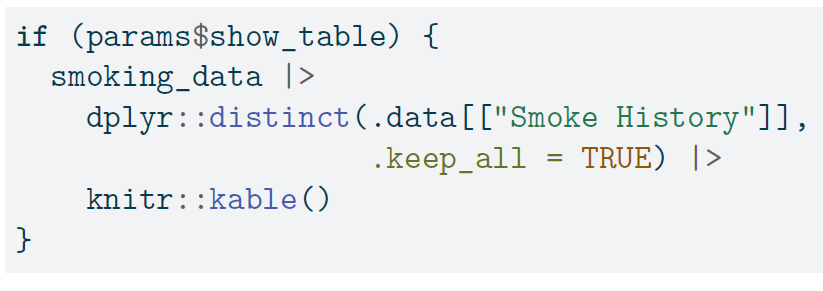

Pdf Output

Variable Mapping

smoking_data <- smoking_data |>
  dplyr::select(-c("Smoke History"))

Merging Harmonised Data

Suppose we have completed harmonising a batch of clinical data.

age_gender_data |>
  reactable_with_download_csv_button(
    defaultPageSize = 5,
    paginationType = "jump",
    style = list(fontSize = "1rem"),
  )

body_measurement_data |>
  reactable_with_download_csv_button(
    defaultPageSize = 5,
    paginationType = "jump",
    style = list(fontSize = "1rem"),
  )

How can we merge them without issues of missing rows or additional columns ?

Merging Harmonised Data

unmatched = "error" in dplyr::inner_join helps to avoid patients with no match.

join_specification <- dplyr::join_by("cohort_unique_id")

demo_behave_data <- cohort_csv_data |>
  dplyr::select(c("cohort_unique_id")) |>
  dplyr::inner_join(age_gender_data,
                   by = join_specification,
                   unmatched = "error",
                   relationship = "one-to-one") |>
  dplyr::inner_join(body_measurement_data,
                   by = join_specification,
                   unmatched = "error",
                   relationship = "one-to-one") |>
  dplyr::inner_join(smoking_data,
                   by = join_specification,
                   unmatched = "error",
                   relationship = "one-to-one") |>
  dplyr::relocate(c("bsa_m2", "bmi"),
                  .after = "sex")

three_penguins <- tibble::tribble(
  ~samp_id, ~species,    ~island,
  1,        "Adelie",    "Torgersen",
  2,        "Gentoo",    "Biscoe",
)

weight_extra <- tibble::tribble(
  ~samp_id,  ~body_mass_g,
  1,         3220,
  2,         4730,
  4,         4725
)

three_penguins |>
  dplyr::inner_join(
    y = weight_extra,
    by = dplyr::join_by("samp_id"),
    unmatched = "error"
 )

Error in `dplyr::inner_join()`:
! Each row of `y` must be matched by `x`.
ℹ Row 3 of `y` was not matched.

Reference: https://www.tidyverse.org/blog/2023/08/teach-tidyverse-23/#improved-and-expanded-_join-functionality

Merging Harmonised Data

unmatched = "error" in dplyr::inner_join helps to avoid patients with no match.

join_specification <- dplyr::join_by("cohort_unique_id")

demo_behave_data <- cohort_csv_data |>
  dplyr::select(c("cohort_unique_id")) |>
  dplyr::inner_join(age_gender_data,
                   by = join_specification,
                   unmatched = "error",
                   relationship = "one-to-one") |>
  dplyr::inner_join(body_measurement_data,
                   by = join_specification,
                   unmatched = "error",
                   relationship = "one-to-one") |>
  dplyr::inner_join(smoking_data,
                   by = join_specification,
                   unmatched = "error",
                   relationship = "one-to-one") |>
  dplyr::relocate(c("bsa_m2", "bmi"),
                  .after = "sex")

three_penguins <- tibble::tribble(
  ~samp_id, ~species,    ~island,
  1,        "Adelie",    "Torgersen",
  2,        "Gentoo",    "Biscoe",
  3,        "Chinstrap", "Dream"
)

weight_extra <- tibble::tribble(
  ~samp_id,  ~body_mass_g,
  1,         3220,
  3,         4725
)

three_penguins |>
  dplyr::inner_join(
    y = weight_extra,
    by = dplyr::join_by("samp_id"),
    unmatched = "error"
 )

Error in `dplyr::inner_join()`:
! Each row of `x` must have a match in `y`.
ℹ Row 2 of `x` does not have a match.

Reference: https://www.tidyverse.org/blog/2023/08/teach-tidyverse-23/#improved-and-expanded-_join-functionality

Merging Harmonised Data

relationship = "one-to-one" in dplyr::inner_join helps to avoid patients with multiple match.

join_specification <- dplyr::join_by("cohort_unique_id")

demo_behave_data <- cohort_csv_data |>
  dplyr::select(c("cohort_unique_id")) |>
  dplyr::inner_join(age_gender_data,
                   by = join_specification,
                   unmatched = "error",
                   relationship = "one-to-one") |>
  dplyr::inner_join(body_measurement_data,
                   by = join_specification,
                   unmatched = "error",
                   relationship = "one-to-one") |>
  dplyr::inner_join(smoking_data,
                   by = join_specification,
                   unmatched = "error",
                   relationship = "one-to-one") |>
  dplyr::relocate(c("bsa_m2", "bmi"),
                  .after = "sex")

three_penguins <- tibble::tribble(
  ~samp_id, ~species,    ~island,
  1,        "Adelie",    "Torgersen",
  2,        "Gentoo",    "Biscoe",
  3,        "Chinstrap", "Dream"
)

weight_extra <- tibble::tribble(
  ~samp_id,  ~body_mass_g,
  1,         3220,
  2,         4730,
  2,         4725,
  3,         4000
)

three_penguins |>
  dplyr::inner_join(
    y = weight_extra,
    by = dplyr::join_by("samp_id"),
    relationship = "one-to-one"
 )

Error in `dplyr::inner_join()`:
! Each row in `x` must match at most 1 row in `y`.
ℹ Row 2 of `x` matches multiple rows in `y`.

Reference: https://www.tidyverse.org/blog/2023/08/teach-tidyverse-23/#improved-and-expanded-_join-functionality

Merging Harmonised Data

Use pointblank::has_columns to ensure we only have harmonised variables.

testthat::expect_false(
  pointblank::has_columns(
    demo_behave_data,
    columns = c(
      dplyr::ends_with(".x"),
      dplyr::ends_with(".y")
    )
  )
)

testthat::expect_equal(
  ncol(demo_behave_data), 9
)

testthat::expect_true(
  pointblank::has_columns(
    demo_behave_data,
    columns = c(
      "age_years", "sex",
      "height_cm", "weight_kg", "bsa_m2", "bmi",
      "smoke_current", "smoke_past"
    )
  )
)

three_penguins <- tibble::tribble(
  ~samp_id, ~species,    ~island,
  1,        "Adelie",    "Torgersen",
  2,        "Gentoo",    "Biscoe",
  3,        "Chinstrap", "Dream"
)

weight_extra <- tibble::tribble(
  ~samp_id,  ~island,
  1,         "Torgersen",
  2,         "Biscoe",
  3,         "Dream"
)

three_penguins <- three_penguins |>
  dplyr::inner_join(
    y = weight_extra,
    by = dplyr::join_by("samp_id"),
    unmatched = "error",
    relationship = "one-to-one"
 )

three_penguins |>
  pointblank::has_columns(
    columns = c(
      dplyr::ends_with(".x"),
      dplyr::ends_with(".y")
      )
  )

[1] TRUE

colnames(three_penguins)

[1] "samp_id"  "species"  "island.x" "island.y"

Harmonisation Report Types

Collaborator wants different ways to report how data harmonisation is done.

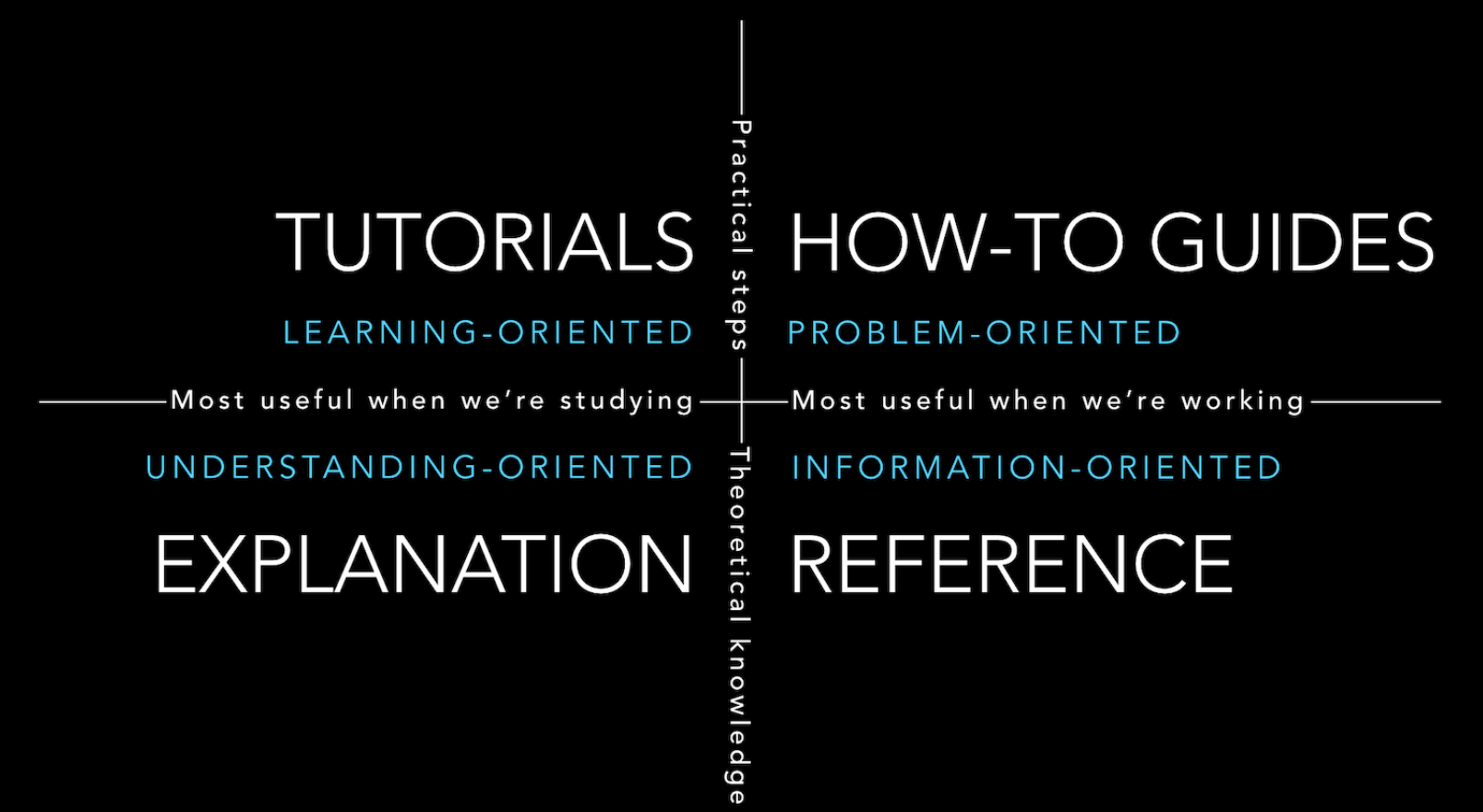

The documentation system by Divio

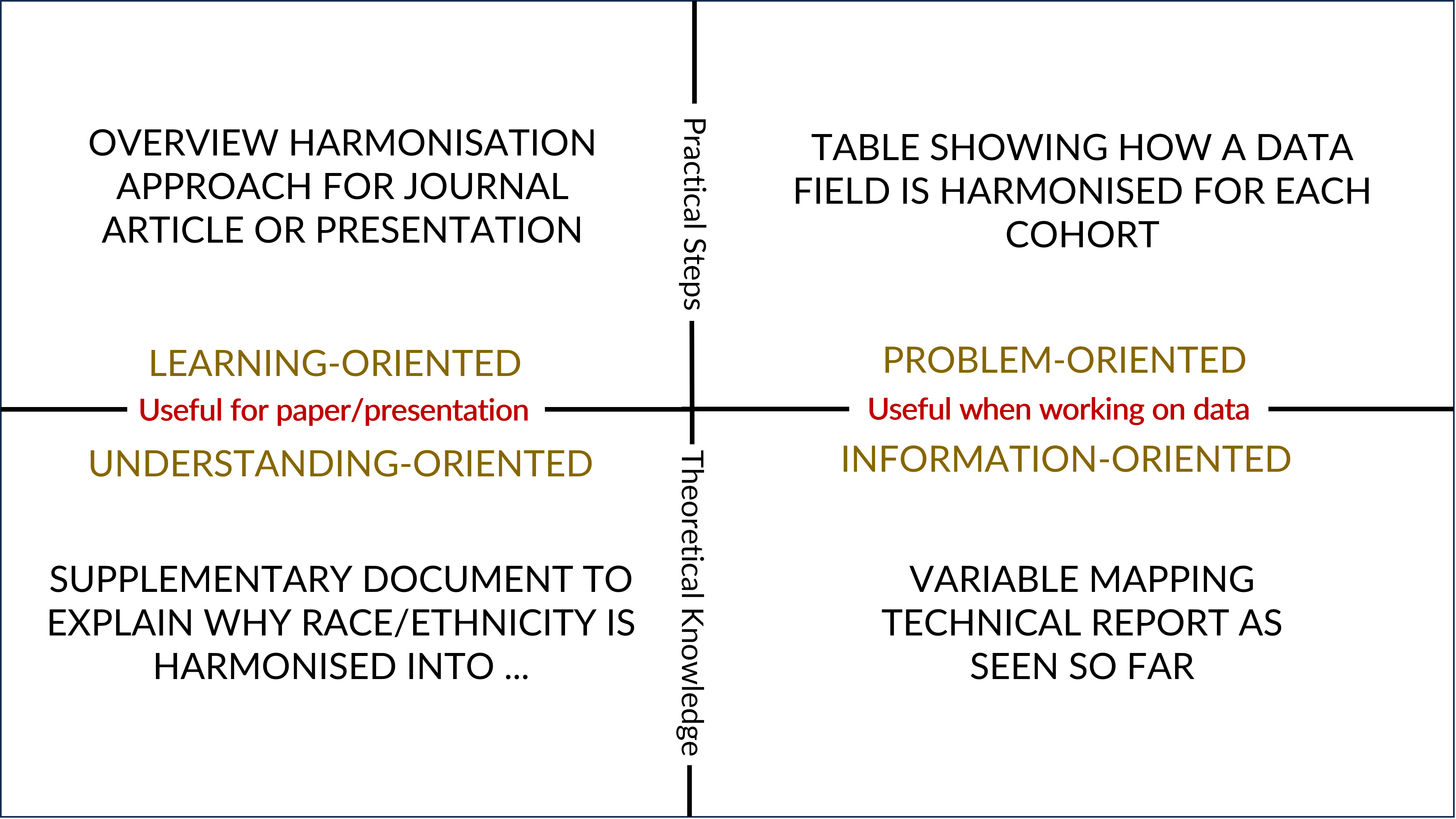

Harmonisation Report Types

Collaborator wants different ways to report how data harmonisation is done.

Tehcncal Report Challenge

One variable mapping report takes at least one page.

On average, a clinical trial will have a few hundred variables.

• One hundred columns for clinical and demographics.
• Two hundred columns for medication.

Harmonisation report can have at least a few hundreds pages for each cohort.

There is a need to automate the creation of these reports.

Businessman in pile of documents asking for help by Amonrat Rungreangfangsai

Quarto Books

To make a Quarto book or website, we need a _quarto.yml and index.qmd file

Automated Technical Report (Reference)

We create an index.qmd file for technical report generation.

Automated Technical Report (Reference)

We create a _quarto.yml file and relevant Quarto files for each cohort.

Automated Technical Report (Reference)

Create a script to generate technical reports in pdf, word and html for each cohort.

# Copy the right index.qmd
# file

index_qmd_file <- paste0(
  "_index_",
  "report",
  ".qmd"
)

fs::file_copy(
  path = here::here(
    "templates",
    "index-qmd",
    index_qmd_file),
  new_path = here::here(
    "index.qmd"
  ),
  overwrite = TRUE
)

Automated Technical Report (Reference)

Create a script to generate technical reports in pdf, word and html for each cohort.

copy_and_render <- function(
    cohort
) {

  # Copy quarto.yml file
  # for each cohort

  quarto_yml_file <- paste0(
    "_quarto_",
    cohort,
    ".yml"
  )

  fs::file_copy(
    path = here::here(
      "templates",
      "quarto-yaml",
      quarto_yml_file),
    new_path = here::here("_quarto.yml"),
    overwrite = TRUE
  )

  # Render each cohort
  quarto::quarto_render(
    as_job = FALSE
  )
}

cohort_name <- c("Cohort_A",
                 "Cohort_B")

purrr::walk(
  .x = cohort_name,
  .f = ~copy_and_render(
    cohort = .x
  )
)

Automated Technical Report (Reference)

Automated Summary Report (How-to-Guide)

A similar method is done to create a summary report in word using flextable.

Overview Diagrams

How many variables can each cohort provide ?

How many variables can be harmonised ?

demographic_list <- list(
  A = c("Age", "Sex",
        "Hypertension", "Dyslipidemia", "Family Hx CAD", "Diabetes",
        "Smoke Current", "Smoke Past",
        "Have Chest Pain", "Chest Pain Character",
        "Dyspnea",
        "BMI", "Height", "Weight"),
  B = c("Age", "Sex",
        "Hypertension", "Dyslipidemia", "Family Hx CAD", "Diabetes",
        "Smoke Current", "Smoke Past",
        "Have Chest Pain", "Chest Pain Character",
        "Dyspnea",
        "HDL", "Total Cholesterol",
        "Triglyceride", "LDL"),
  C = c("Age", "Sex",
        "Hypertension", "Dyslipidemia", "Family Hx CAD", "Diabetes",
        "Smoke Current", "Smoke Past",
        "Have Chest Pain", "Chest Pain Character",
        "Dyspnea",
        "BMI", "Height", "Weight",
        "HDL", "Total Cholesterol",
        "Triglyceride", "LDL")
)

cohort_a_label_name <- "Cohort A\n(n=1000)"
cohort_b_label_name <- "Cohort B\n(n=2000)"
cohort_c_label_name <- "Cohort C\n(n=1500)"

demographic_venn_data <- demographic_list |>
  RVenn::Venn() |>
  ggVennDiagram::process_data()

demographic_venn_regionedge_data <- demographic_venn_data |>
  ggVennDiagram::venn_regionedge() |>
  dplyr::mutate(
    name = stringr::str_replace_all(
      .data[["name"]],
      "/",
      " and "
    ),
    name = stringr::str_wrap(.data[["name"]], width = 10),
    name = forcats::fct_reorder(.data[["name"]],
                                nchar(.data[["id"]]))
  ) |>
  dplyr::rename(`Cohort` = "name")

demographic_venn_label_data <- demographic_venn_data |>
  ggVennDiagram::venn_setlabel() |>
  dplyr::mutate(
    name = dplyr::case_match(
      .data[["name"]],
      "A" ~ cohort_a_label_name,
      "B" ~ cohort_b_label_name,
      "C" ~ cohort_c_label_name
    )
  ) |>
  dplyr::rename(`Cohort` = "name")

demographic_venn_regionlabel_data <- demographic_venn_data |>
  ggVennDiagram::venn_regionlabel() |>
  dplyr::mutate(
    name = stringr::str_replace_all(
      .data[["name"]],
      "/",
      " and "
    ),
    name = stringr::str_wrap(.data[["name"]], width = 10),
    name = forcats::fct_reorder(.data[["name"]],
                                nchar(.data[["id"]]))
  ) |>
  dplyr::rename(`Cohort` = "name")

demographic_venn_edge_data <- demographic_venn_data |>
  ggVennDiagram::venn_setedge()

demographic_venn_diagram <- ggplot2::ggplot() +
  # 1. region count layer
  ggplot2::geom_polygon(
    data = demographic_venn_regionedge_data,
    mapping = ggplot2::aes(
      x = .data[["X"]], y = .data[["Y"]],
      fill = .data[["Cohort"]],
      group = .data[["id"]])
  ) +
  # 2. set edge layer
  ggplot2::geom_path(
    data = demographic_venn_edge_data,
    mapping = ggplot2::aes(
      x = .data[["X"]], y = .data[["Y"]],
      colour = "black",
      group = .data[["id"]]
    ),
    show.legend = FALSE
  ) +
  # 3. set label layer
  ggplot2::geom_text(
    data = demographic_venn_label_data,
    mapping = ggplot2::aes(
      x = .data[["X"]], y = .data[["Y"]],
      label = .data[["Cohort"]]),
    size = 5.5
  ) +
  # 4. region label layer
  ggplot2::geom_label(
    data = demographic_venn_regionlabel_data,
    mapping = ggplot2::aes(
      x = .data[["X"]], y = .data[["Y"]],
      label = .data[["count"]]),
    size = 7
  ) +
  ggplot2::scale_x_continuous(
    expand = ggplot2::expansion(mult = 0.2)
  ) +
  ggplot2::theme_void() +
  ggplot2::theme(
    text = element_text(size = 20)
  )

Venn diagram does not work for many (> 10) cohorts.

Overview Diagrams

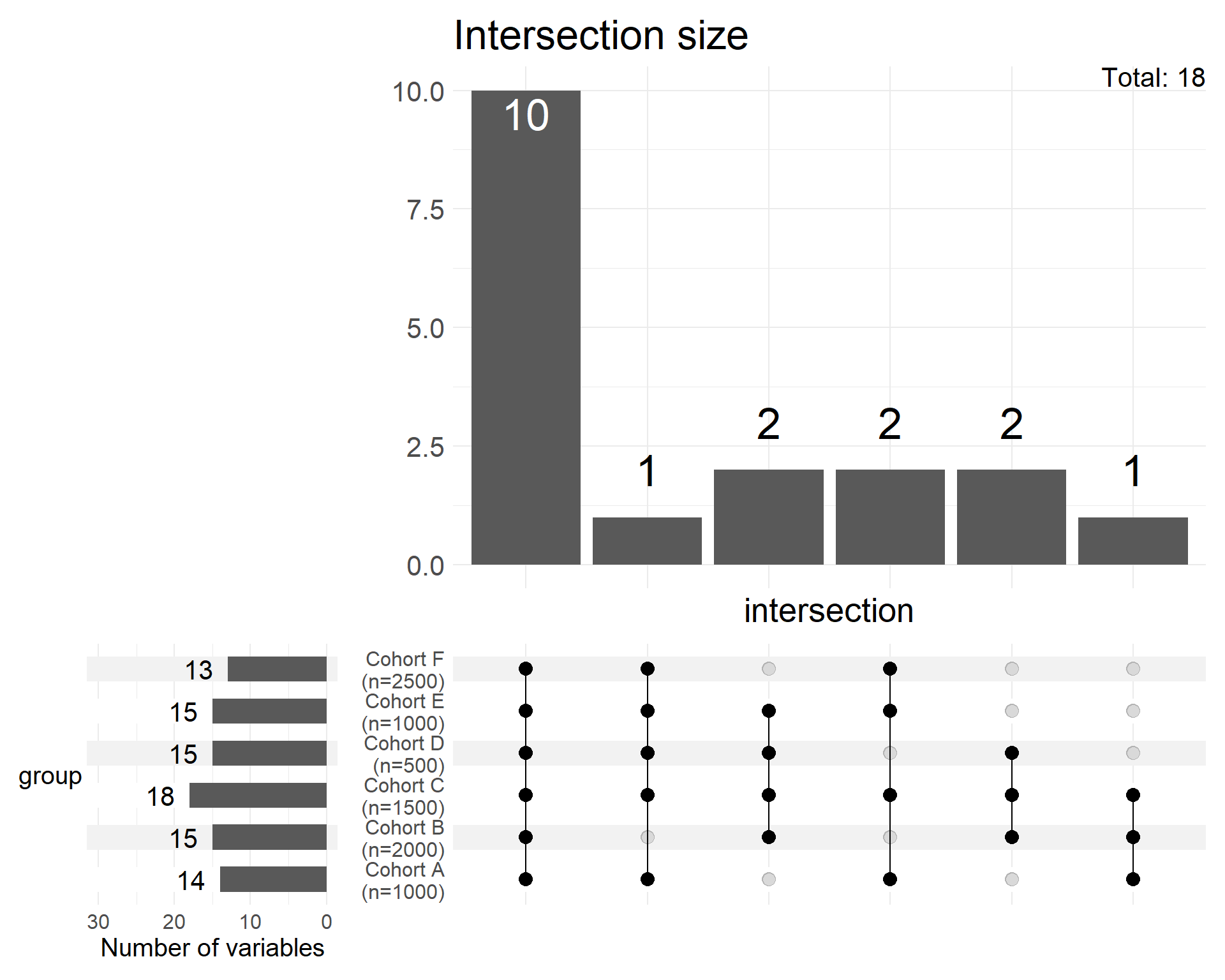

Upset plots are too complicated for clinicians.

demographic_venn <- tibble::tibble(
  column_name = c("Age", "Sex",
                  "Hypertension", "Dyslipidemia", "Family Hx CAD", "Diabetes",
                  "Smoke Current", "Smoke Past",
                  "Have Chest Pain", "Chest Pain Character",
                  "Dyspnea",
                  "BMI", "Height", "Weight",
                  "HDL", "Total Cholesterol",
                  "Triglyceride", "LDL"),
  `Cohort A` = c(1, 1,
                 1, 1, 1, 1,
                 1, 1,
                 1, 1,
                 1,
                 1, 1, 1,
                 0, 0,
                 0, 0),
  `Cohort B` = c(1, 1,
                 1, 1, 1, 1,
                 1, 1,
                 1, 1,
                 1,
                 0, 0, 0,
                 1, 1,
                 1, 1),
  `Cohort C` = c(1, 1,
                 1, 1, 1, 1,
                 1, 1,
                 1, 1,
                 1,
                 1, 1, 1,
                 1, 1,
                 1, 1),
  `Cohort D` = c(1, 1,
                 1, 1, 1, 1,
                 1, 1,
                 1, 1,
                 0,
                 1, 0, 0,
                 1, 1,
                 1, 1),
  `Cohort E` = c(1, 1,
                 1, 1, 1, 1,
                 1, 1,
                 1, 1,
                 0,
                 1, 1, 1,
                 1, 1,
                 0, 0),
  `Cohort F` = c(1, 1,
                 1, 1, 1, 1,
                 1, 1,
                 1, 1,
                 0,
                 1, 1, 1,
                 0, 0,
                 0, 0),
)

cohort_a_upset_col_name <- "Cohort A\n(n=1000)"
cohort_b_upset_col_name <- "Cohort B\n(n=2000)"
cohort_c_upset_col_name <- "Cohort C\n(n=1500)"
cohort_d_upset_col_name <- "Cohort D\n(n=500)"
cohort_e_upset_col_name <- "Cohort E\n(n=1000)"
cohort_f_upset_col_name <- "Cohort F\n(n=2500)"


demographic_upset_data <- demographic_venn |>
  dplyr::rename(
    !!cohort_a_upset_col_name := "Cohort A",
    !!cohort_b_upset_col_name := "Cohort B",
    !!cohort_c_upset_col_name := "Cohort C",
    !!cohort_d_upset_col_name := "Cohort D",
    !!cohort_e_upset_col_name := "Cohort E",
    !!cohort_f_upset_col_name := "Cohort F"
  )

upset_plot <- ComplexUpset::upset(
  demographic_upset_data,
  c(cohort_a_upset_col_name,
    cohort_b_upset_col_name,
    cohort_c_upset_col_name,
    cohort_d_upset_col_name,
    cohort_e_upset_col_name,
    cohort_f_upset_col_name),
  base_annotations = list(
    `Intersection size` =
      ComplexUpset::intersection_size(
        text = list(size = 9, nudge_y = 0.5),
        text_colors = c(on_background='black',
                        on_bar='white')
      ) +
      ggplot2::annotate(
        size = 5.5,
        geom = 'text',
        x = Inf,
        y = Inf,
        label = paste('Total:', nrow(demographic_venn)),
        vjust = 1,
        hjust = 1
      ) +
      ggplot2::theme(
        axis.title.y = ggplot2::element_text(angle = 0, size = 20),
        axis.title.x = ggplot2::element_text(angle = 0, size = 20),
        text = element_text(size = 20)
      ) +
      ggplot2::labs(y = "",
                    title = "Intersection size")
      ),
  set_sizes = (
    ComplexUpset::upset_set_size() +
    ggplot2::geom_text(
      size = 5.5,
      mapping = ggplot2::aes(label= ggplot2::after_stat(.data[["count"]])),
      hjust = 1.5,
      stat = 'count') +
    ggplot2::expand_limits(y = 30) +
    ggplot2::theme(
        axis.title.y = ggplot2::element_text(angle = 0, size = 15),
        axis.title.x = ggplot2::element_text(angle = 0, size = 15),
        text = element_text(size = 15)
    ) +
    ggplot2::labs(y = "Number of variables")
  ),
  sort_intersections_by = "degree",
  sort_sets = FALSE,
  name = "",
  width_ratio = 0.25,
  themes = ComplexUpset::upset_default_themes(text = element_text(size = 15))
  )

Cannot answer follow-up questions:

How many cohorts provide patient’s blood lipid information and how many patients have them ?

Overview Diagrams

Create a “heatmap”using Microsoft PowerPoint.

Summary

Thank you

Harmonisation project template: https://github.com/JauntyJJS/harmonisation/

Feature Complete from MonkeyUser.com

Happy 60th Birthday Singapore

Singapore National Day Parade (NDP) 2025 Logo from https://www.ndp.gov.sg
